Positron G-1212 Manuel utilisateur
Support
To ensure your PBX is working, try the following:
• Check the LED on the front panel, the LED with the circle mark
should be solid RED
• Plug an analog telephone into the FXS port – is there a dial tone?
• At the dial tone, press 6000 and you will hear the operator’s voice
These steps do not require user configuration. If you are unable to
complete them, please contact Positron Telecommunication Systems.
Technical Support
Tel: +1 (514) 664-4719
E-mail: ([email protected])
Skype Contact for Live Chat
Username: positronsupport
Features
• Single Compact Flash port
• 12 Foreign Exchange Office (FXO) ports for connection to the telephone network
• Dual Foreign Exchange Station (FXS) port for connecting a phone or fax machine
• Hardware based G.168 echo cancellation chip up to 128 ms tail length
• Four port Ethernet Switch 10/100Mbps auto MDIX Ethernet port
• Dual USB ports
• Audio Input (mono) jack
• Audio Output (mono) jack
• Power failure FXO pass through (connect ports FXS 2 to FXO 9)
• Real Time Clock (battery)
Installation Steps
1. Insert the external power supply cable to provide power to the
device
2. The default IP address of the card is 192.168.1.2 – the Ethernet
interface on the four port switch is auto speed detect and auto cable
cross over. For configuration you may connect directly to the
Ethernet interface or through a switch, no special cable is required.
3. Connect the RJ-45 Ethernet cable provided (orange) to one of the
four available Ethernet ports on the G-1212
- The default IP address of G-1212 is 192.168.1.2
4. Connect the other end of the RJ-45 to your laptop / PC
- The IP address of the laptop / PC must be on the same
subnet of the G-1212 (192.168.1.X)
5. Connect to the browser based configurator by opening the
browser to the IP address http://192.168.1.2. The following is the
default connection credentials:
Contents of Box
• G-1212 Gateway
• External Power Supply
• One RJ-45 Cat5e Ethernet Cable (orange)
• Six RJ-12 FXO line splitters
• Six RJ-12 Telephone cables
Compact Flash
Sandisk Compact Flash is the preferred media of choice
G-1212 Gateway Quickstart
LED Functionality
The LED on the front of the device will provide some state / diagnostic information. The table below describes each state:
Firmware
The Positron product purchased may not contain the latest firmware when shipped. Before installing, we recommend the unit be upgraded.
The information for the firmware is as follows:
Version: http://positrontelecom.com/G1212/version.txt
Firmware: http://positrontelecom.com/G1212/uImage-md5
Change-Log: http://positrontelecom.com/G1212/Change-Log.txt
Event LED
Card is booting All lights blinking
Operating system loading RED LED flashing
System fully loaded and operational RED LED solid
Telephone line plugged in and configured FXO LED ORANGE solid
Compact Flash or USB in use “Tick” LED GREEN flashing

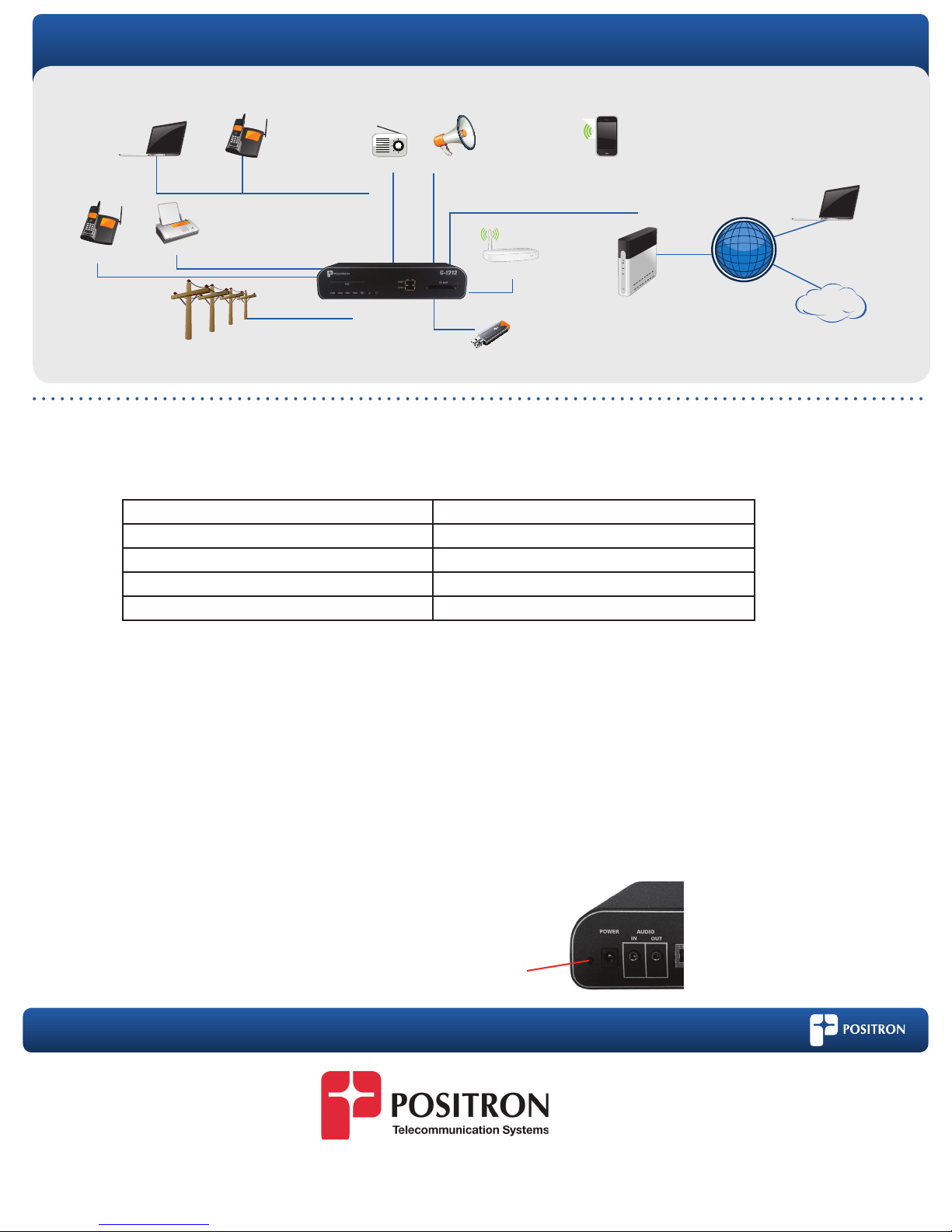

Think Inside the Box
Cable/DSL
Internet
G-1212
Telephone lines
SIP
SIP SIP
Wireless Access Point*
SIP
VoIP
Fax
Phone
USB Storage*
Music on hold Paging system
Factory Reset
In the event that a configuration does not allow connectivity to the system, a user may perform a factory reset that will put all the IP
addresses and passwords back to the default settings. Instructions: Push and hold the reset button for approximately 20 seconds.
NOTE: To perform a factory reset, push and hold the reset button until
the first two LED’s are Orange. Once they are Orange, release the reset
button and the factory reset will be initiated.
Reset Button
Positron Telecom • 5101 Buchan Street, Suite 200, Montreal, Quebec, Canada H4P 2R9 • Tel: (514)-345-2220 • Email: [email protected] • www.positrontelecom.com
Document Code: 44-00051-02
