Polycom® KIRK®

7010/7020/7040

Charge your handset 14-16 hours

prior to first use for best performance

Quick Guide

For more information about the

handset, refer to user guide available

for download at

www.polycom.com

Volume

Control

isplay

Left

Softkey

Call

Transfer

Right

Softkey

On/Off

Hook

Microphone

Four Way

Navigation

Key

Headset

Connector

Tear Off

Unit

LE Alarm Button

14184661-HD, ED. 1.fm Page 1 Friday, February 26, 2010 8:38 AM

All manuals and user guides at all-guides.com

all-guides.com

Basic Handset O tion

Turning Handset On/Off

•

To turn on the handset, press left

softkey

• To turn off the handset, press left

softkey until the question

Turn

off?



appears in the display. Confirm

with

Yes.

Adjusting S eaker Volume

Use the key placed at the upper right side

of the handset for volume control.

Locking Key ad

• Press

followed by





to lock

keypad

• Press

Unlock

followed by







to unlock

keypad

Shortcuts

Predefined Shortcuts

Predefined shortcuts are unchangeable

and assigned to different keys on the

handset

Silent mode On/Off

Press the

button, followed by the

utton to turn

the handset silent mode on/off. In silent

mode the ringer will be muted and the

vibrator activated

Call transfer

While off hook, press

Call list: Press left side of the navigation

key to enter Call list

Missed Calls: Press right side of

navigation key.

14184661-HD, ED. 1.fm Page 2 Friday, February 26, 2010 8:38 AM

All manuals and user guides at all-guides.com

Find Name: Press top or bottom of

navigation key.

Exit Menu: Whilst navigating menus,

press the



button to exit out of the menu

and go back to the main screen.

Save contact: ial number and press

Save

Personal Shortcuts

Personal shortcuts consist of functions,

you have chosen to add from a list of

shortcuts. The list is assigned to the right

softkey.

To add a shortcut

1 Press

Shortcut

2 Scroll to

Edit shortcut

Edit shortcutEdit shortcut

Edit shortcut

and press

Select

3 Press

Select

to add the function to

the list of personal shortcuts.

To use a shortcut

1 Press

Shortcut

2 Scroll to the desired shortcut and

press

Select

Making Calls

Off Hook Dialling (Dial Directly)

1 Press

to make a call.

2 ial number.

3 Press to terminate the call.

On Hook Dialling (Pre-Dial)

1 ial number.

2 Press to make a call.

3 Press

to terminate the call.

14184661-HD, ED. 1.fm Page 3 Friday, February 26, 2010 8:38 AM

All manuals and user guides at all-guides.com

S eed Dial

• Press a key (0-9) continuously for three

seconds until a call is started. (You must

assign a key to a number in Phone

Book).

Assigning S eed Dials

1 Press the

MenuMenu

button to enter the

main menu.

2 Scroll the

Phone Book

and then press

the

Select

button.

3 Scroll to

Speed dial

and then press the

Select

button.

4 Scroll to the appropriate speed dial

entry (0-9) and then press the

Add

name

button.

5 Select the appropriate phone book

entry and press the

button.

6 Select the appropriate number and

press the

button.

From Call List

1 Press left side of navigation key to

enter Call list.

2 Scroll to desired name or number and

press .

From Phone Book

1 Press

to enter main menu.

2 Scroll to

Phone Book

and press

Select

3 Scroll to

Find name

and press

Select

4 Find the desired name and press

to make a call.

14184661-HD, ED. 1.fm Page 4 Friday, February 26, 2010 8:38 AM

All manuals and user guides at all-guides.com

Answering Calls

• Press to answer a call when your

handset rings.

Mute a Call

• Press

Silence

and the ring signal is

muted.

Reject a Call

Press

Reject

to refuse the call.

Call Transfer

• Press

and dial number.

To withdraw the call, press

again.

Note: The feature is system dependent.

Turning S eaker hone On/Off

(Not available on 7010)

• While on a call, press

Loud on

to turn

speakerphone on.

• Press

Loud off

to turn speakerphone

off.

Turning Micro hone Mute On/Off

• While on a call, press

Mic Mute

to turn

microphone mute on.

• Press

Mic on

to turn microphone mute

off.

Changing Settings

Adjusting Ringing Volume

1 Press

to enter main menu.

2 Scroll to

Settings

and press

Select

3 Scroll to

Ringing volume

and press

Select

4 Press left or right side of navigation

14184661-HD, ED. 1.fm Page 5 Friday, February 26, 2010 8:38 AM

All manuals and user guides at all-guides.com

key to adjust the volume.

5 Press

Set

SetSet

Set

and then

Back

Changing Ringing Tone

1 Press

to enter main menu.

2 Scroll to

Settings

and press

Select

3 Scroll to

Ringing tone

and press

Select

4 Scroll to desired ringing tone and

press

Change

to listen to chosen

ringer tone.

5 Press

Back

Turning Vibrator On/Off

(Not available on 7010)

1 Press

to enter main menu.

2 Scroll to

Settings

and press

Select

3 Scroll to

Vibrator

and press

Select

4 Scroll to

and press

Change

5 Press

Back

Adding Contact to Phone

Book

1 Press

to enter main menu.

2 Scroll to

Phone Book

and press

Select

3 Scroll to

Add name/number

and press

Select

4 Type the name of the contact using

the keys 2-9.

5 Scroll to number and enter the

number of the contact (max. 24

digits).

6 Press

Save

to store the name and

number.

Handset O tions Status

To display the status of the handset

options (Battery, ringer volume, firmware

14184661-HD, ED. 1.fm Page 6 Friday, February 26, 2010 8:38 AM

All manuals and user guides at all-guides.com

all-guides.com

etc.).

1 Press the

button to enter the

main menu.

2 Scroll to

Status

and then press the

Select

button.

3 Press the Top or Bottom of the

navigation key to highlight the

appropriate menu item and then

press the

Select

button to enter the

selected items menu.

4 Press the





Back

button.

Activate Bluetooth Function

(

7040 feature only

)

1 Press

to enter main menu.

2 Scroll to

Settings

and press

Select

3 Scroll to

Bluetooth

and press

Select

4 Scroll to

Active

and press





Select

5 Scroll to

and press

Select

Pair Wireless Headset with the

Handset

1 Press

to enter main menu.

2 Scroll to

Settings

and press

Select

3 Scroll to

Bluetooth

and press

Select

4 Scroll to

for compatible

Bluetooth headset and press

Select

5 Select the headset code number listed

in the display of the handset and

press

Stop

, then press

Add

6 Enter pin code and press

(Consult

the user guide of the Bluetooth

headset for the pin code information).

7 Press

, and press

ptions

in order

to connect to the headset.

8 Scroll to

Connect

and press

Select

9 Press

14184661-HD, ED. 1.fm Page 7 Friday, February 26, 2010 8:38 AM

All manuals and user guides at all-guides.com

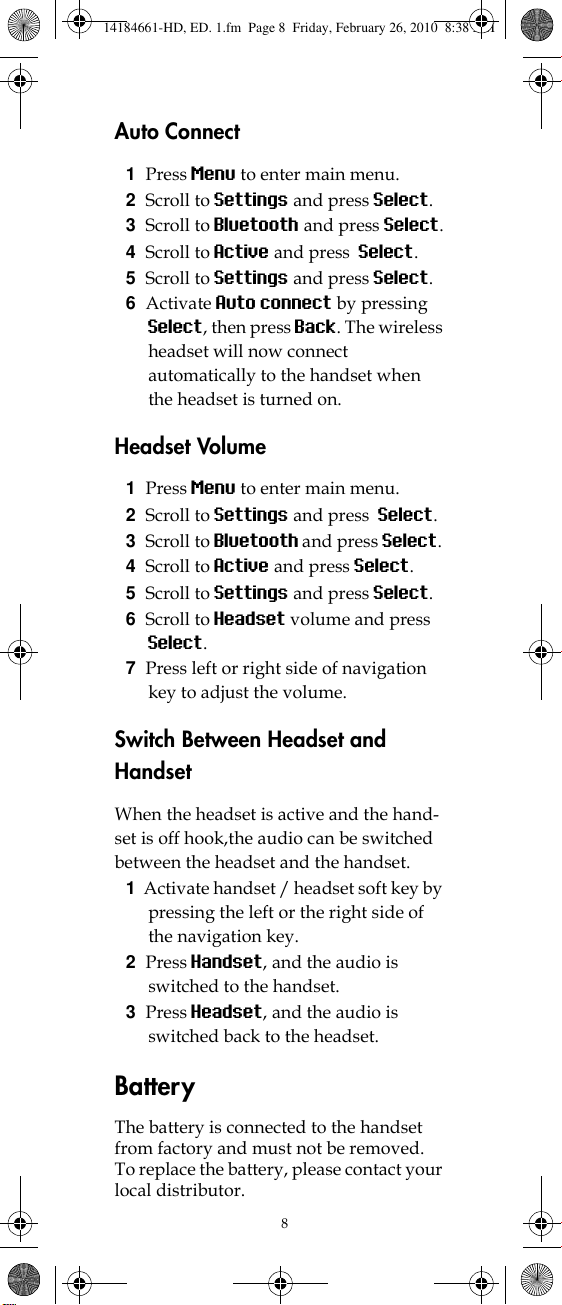

Auto Connect

1 Press

to enter main menu.

2 Scroll to

Settings

and press

Select

3 Scroll to

Bluetooth

and press

Select

4 Scroll to

Active

and press

Select

5 Scroll to

Settings

and press

Select

6 Activate

Auto connect

by pressing

Select

, then press

Back

. The wireless

headset will now connect

automatically to the handset when

the headset is turned on.

Headset Volume

1 Press

to enter main menu.

2 Scroll to

Settings

and press

Select

3 Scroll to

Bluetooth

and press

Select

4 Scroll to

Active

and press

Select

5 Scroll to

Settings

and press

Select

6 Scroll to

Headset

volume and press

Select

7 Press left or right side of navigation

key to adjust the volume.

Switch Between Headset and

Handset

When the headset is active and the hand-

set is off hook,the audio can be switched

between the headset and the handset.

1 Activate handset / headset soft key by

pressing the left or the right side of

the navigation key.

2 Press

Handset

, and the audio is

switched to the handset.

3 Press

Headset

, and the audio is

switched back to the headset.

Battery

The battery is connected to the handset

from factory and must not be removed.

To replace the battery, please contact your

local distributor.

14184661-HD, ED. 1.fm Page 8 Friday, February 26, 2010 8:38 AM

All manuals and user guides at all-guides.com

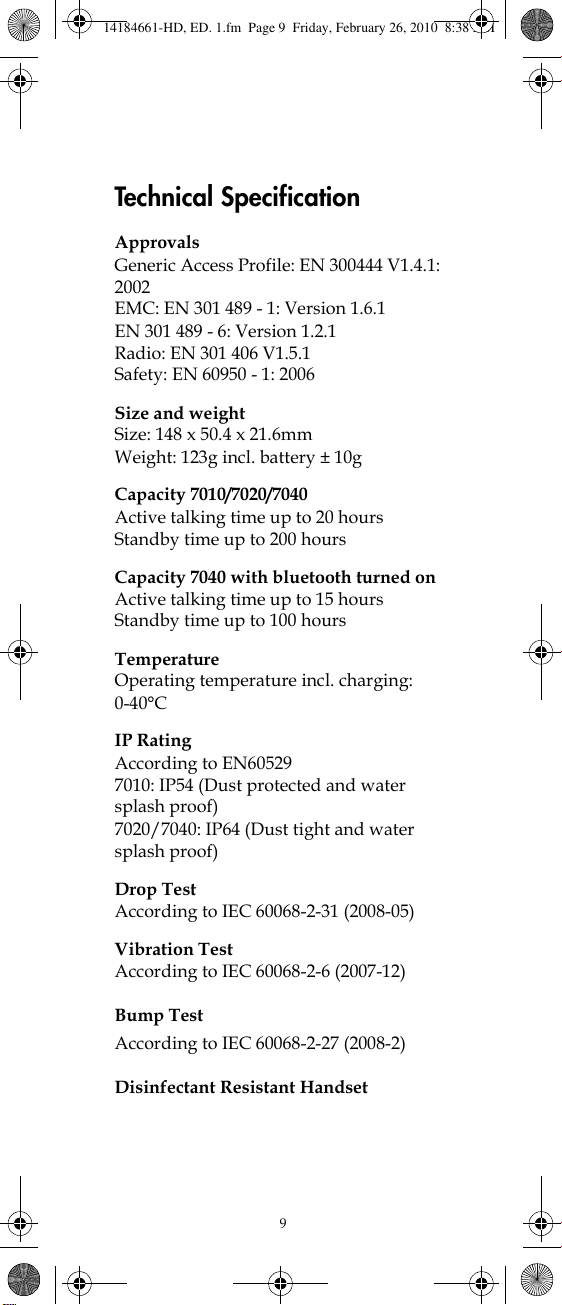

Technical S ecification

Approvals

Generic Access Profile: EN 300444 V1.4.1:

2002

EMC: EN 301 489 - 1: Version 1.6.1

EN 301 489 - 6: Version 1.2.1

Radio: EN 301 406 V1.5.1

Safety: EN 60950 - 1: 2006

Size and weig t

Size: 148 x 50.4 x 21.6mm

Weight: 123g incl. battery ± 10g

Capacity 7010/7020/7040

Active talking time up to 20 hours

Standby time up to 200 hours

Capacity 7040 wit bluetoot turned on

Active talking time up to 15 hours

Standby time up to 100 hours

Temperature

Operating temperature incl. charging:

0-40°C

IP Rating

According to EN60529

7010: IP54 ( ust protected and water

splash proof)

7020/7040: IP64 ( ust tight and water

splash proof)

Drop Test

According to IEC 60068-2-31 (2008-05)

Vibration Test

According to IEC 60068-2-6 (2007-12)

Bump Test

According to IEC 60068-2-27 (2008-2)

Disinfectant Resistant Handset

14184661-HD, ED. 1.fm Page 9 Friday, February 26, 2010 8:38 AM

All manuals and user guides at all-guides.com

International Regulatory and

Product Information

This KIRK 7010/7020/7040

Handset has been marked

with the CE mark. This

mark indicates compliance

with EEC irectives 89/

336/EEC, 73/23/EEC

1999/5/EC. A full copy of

the eclaration of

conformity can be obtained

from Polycom Ltd, 270

Bath Road, Slough,

Berkshire, SL1 4 X, UK.

The WEEE Marking on this

equipment indicates that

the product must not be

disposed of with unsorted

waste, but must be

collected separately.

Visit www.polycom.com

for further guidance on

battery recycling.

14184661-HD, ED. 1.fm Page 10 Friday, February 26, 2010 8:38 AM

All manuals and user guides at all-guides.com

Autres manuels pour KIRK 7010

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Polycom Téléphone sans fil

Polycom

Polycom KIRK 2010 Manuel utilisateur

Polycom

Polycom VVX 300 Manuel utilisateur

Polycom

Polycom KIRK 3040 Manuel utilisateur

Polycom

Polycom SpectraLink 1725-36038-001 Mode d’emploi

Polycom

Polycom SpectraLink 8000 System Manuel utilisateur

Polycom

Polycom SpectraLink 1725-36024-001 Manuel utilisateur

Polycom

Polycom KIRK 14171914-HD Manuel utilisateur

Polycom

Polycom VVX 300 Manuel utilisateur

Polycom

Polycom Spectralink 8452 Manuel utilisateur

Polycom

Polycom CX400 Manuel utilisateur

Polycom

Polycom KIRK 6040 Manuel utilisateur

Polycom

Polycom SpectraLink 8020 Manuel de service

Polycom

Polycom KIRK 5020 Manuel utilisateur

Polycom

Polycom VVX 311 Manuel utilisateur

Polycom

Polycom KIRK 4020 Manuel utilisateur

Polycom

Polycom VVX 300 Manuel utilisateur

Polycom

Polycom KIRK 7010 Manuel utilisateur

Polycom

Polycom SpectraLink 6020 Manuel utilisateur

Polycom

Polycom SoundPoint IP 32x Manuel d'instructions

Polycom

Polycom VVX 311 Manuel d'instructions

Polycom

Polycom SpectraLink 6020 Manuel utilisateur

Polycom

Polycom SpectraLink e340 Mode d’emploi

Polycom

Polycom KIRK 14158600-HD Manuel utilisateur

Polycom

Polycom SpectraLink 8020 Guide de référence rapide

Manuels Téléphone sans fil populaires d'autres marques

3Com

3Com NBX Manuel utilisateur

Panasonic

Panasonic KX-TGK210HK Manuel utilisateur

Panasonic

Panasonic KX-TCA181EX Manuel utilisateur

BT FREESTYLE 3200 Manuel utilisateur

AT&T

AT&T CL84102 Manuel utilisateur

BREZZICNI

BREZZICNI CL-3622 Manuel utilisateur

Panasonic

Panasonic KX-TG1831NZ Manuel utilisateur

Panasonic

Panasonic KX-TG7301E Manuel utilisateur

Furuno

Furuno FM-4721 Manuel utilisateur

Sanyo

Sanyo CLT-J70 Manuel utilisateur

Amplicomms

Amplicomms BigTel 201 Manuel utilisateur

GE 26992 Manuel utilisateur

AT&T

AT&T E1812B Manuel utilisateur

Sanyo

Sanyo CLT-670 Manuel utilisateur

GE 15432970 Manuel utilisateur

Curtis

Curtis TC595 Manuel utilisateur

Gigaset

Gigaset Gigaset 3000 Micro Manuel utilisateur

Poly

Poly VVX D230 Guide de configuration
