Setting Up the Polycom®

RealPresence®Utility Cart 500

Single 27” System Dual 22” System

Base cart with laptop/accessory shelf

27” display or (2) 22” displays

Polycom EagleEyeTM IV camera

Storage drawer

AC and RJ45 jack

External 120V or 240V

power supply and

34Ah battery (lasts

approximately 4 hours)

Optional

Accessories

3” 2-way powered

monitor speaker system

Accessory basket

Microphone and 25’ cable

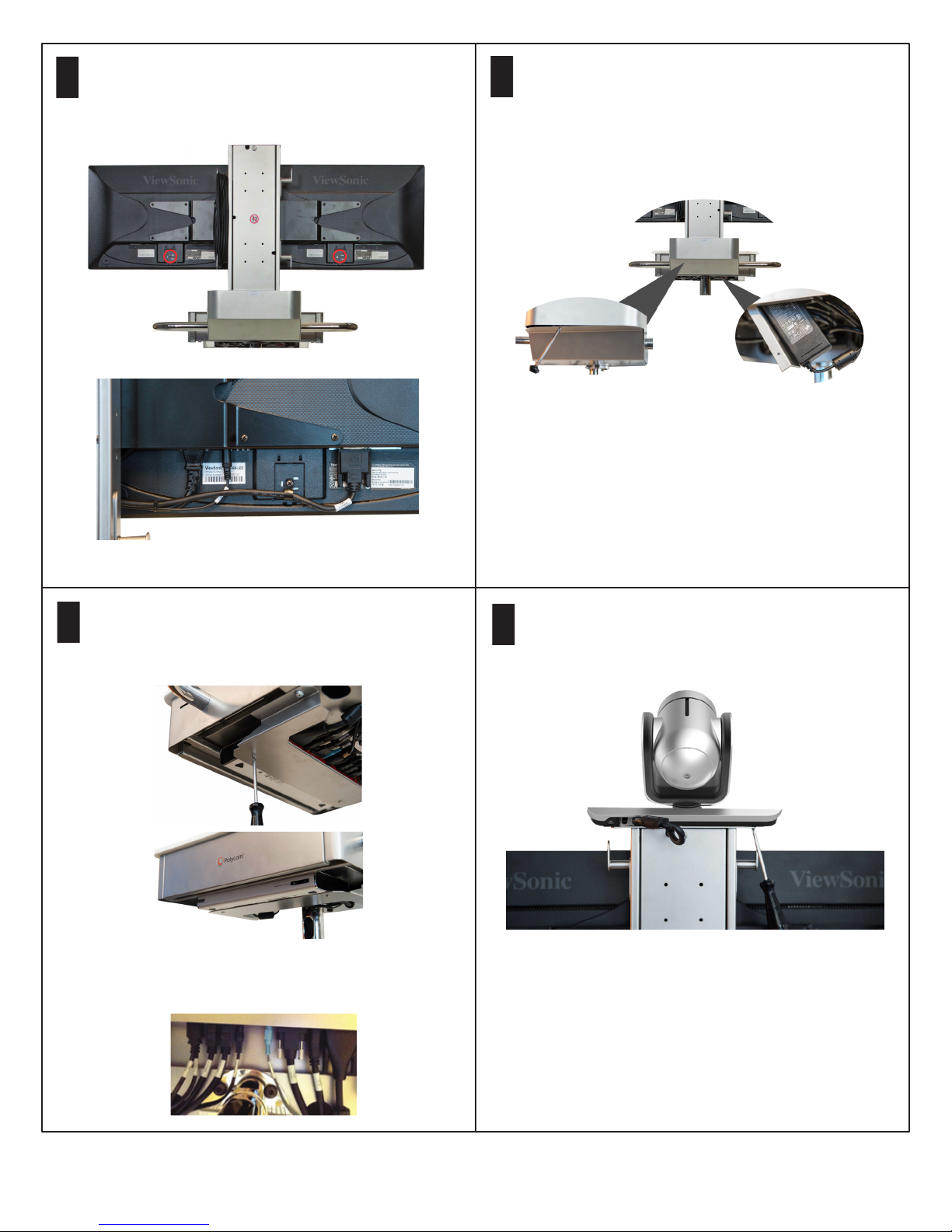

1 Dual 22” Displays

Polycom RealPresence Group 500 system

Attach a 22” display on each side of the display bracket,

using four M4 x 10 Phillips pan head screws per display,

as shown circled in red below.

For a single 27” display, remove the dual display bracket

by opening the rear column cover and removing the

nuts holding the bracket, as shown circled in red below.

Then, attach the 27” display, using four M4 x 10 Phillips

pan head screws.

Use this equipment only with the display(s) supplied

by Polycom.

1 Single 27” Display

Use this equipment only with the display(s) supplied

by Polycom.

Setting up the Polycom® RealPresence® Utility Cart 500 2

3Attach the EagleEye IV camera to the camera base,

using four M3 x 6 Phillips ﬂat head screws. Tighten

the screws.

Mount the RealPresence Group 500 system under

the Utility Cart 500 drawer, using two M3 x 8mm

Phillips pan head screws. Open the drawer to allow

easier access for mounting the system.

Install a 3/8” plastic cable clamp on each display,

using an M4 screw. Connect the pre-installed display

cables, and use the cable clamps, to neatly fasten

the cables behind the display.

Install the RealPresence Group 500 system power

supply by removing the bottom plate. Insert the

power supply in the vertical position shown below,

then ﬂip it to a horizontal position, and reinstall the

screw on the power supply bracket. Connect the

pre-installed AC power cable to the power supply.

Neatly route and connect the pre-installed cables,

which are labeled. Refer to the wiring diagram at

the end of this document for details.

Setting up the Polycom® RealPresence® Utility Cart 500 3

9 Optional Battery Pack and Power Supply Module

Remove the four screws and two cable clamps to open

the connection plate from the box and remove the

connectors from the connection plate.

Remove the AC input and RJ45 network connection

box at the base of the cart by removing the four screws

that attach the U-shaped brackets and connection box

to the base of the cart.

6Remove the rear panel from the display support

column. Route the microphone and camera cables

through the opening in the back of the support

column and connect them to the rear of the system.

Wrap the microphone cable on the cable hooks on

one side of the display support column and neatly

wrap the extra camera cable in the column.

8Optional: Attach the utility shelf to either side of the

drawer. Open the drawer. You may have to unlock

it ﬁrst. Lift out the shelf.

Insert the shelf tabs into the side slots. The shelf

rests on the side handle.

The AC cable comes attached with the system,

shown below on the left. For countries other than

North America, replace the AC cable with the AC

cable supplied with the system or the country-

speciﬁc AC cable that was purchased separately.

Install the RJ45 cable supplied with the system,

shown below on the right.

Connect the AC and network cables from the

system to the wall outlets. You are now ready to

use the system.

Setting up the Polycom® RealPresence® Utility Cart 500 4

Move the two cables from the rear bottom hole in the

pole to the front bottom hole. Attach the power supply

base to the optional power supply and battery pack.

120V power supply and 34Ah battery (2200-64870-110)

The system should only be connected to a mains

power supply of 120V 60 Hz.

230V power supply and 34Ah battery (2200-64870-230)

The system should only be connected to a mains

power supply of 230V 50Hz.

Attach the power supply to the cart, using the supplied

screws.

Connect the RJ45 LAN cables from the power supply

base to the LAN ports on the power supply. Information

is transmitted to LEDs on the power supply cover.

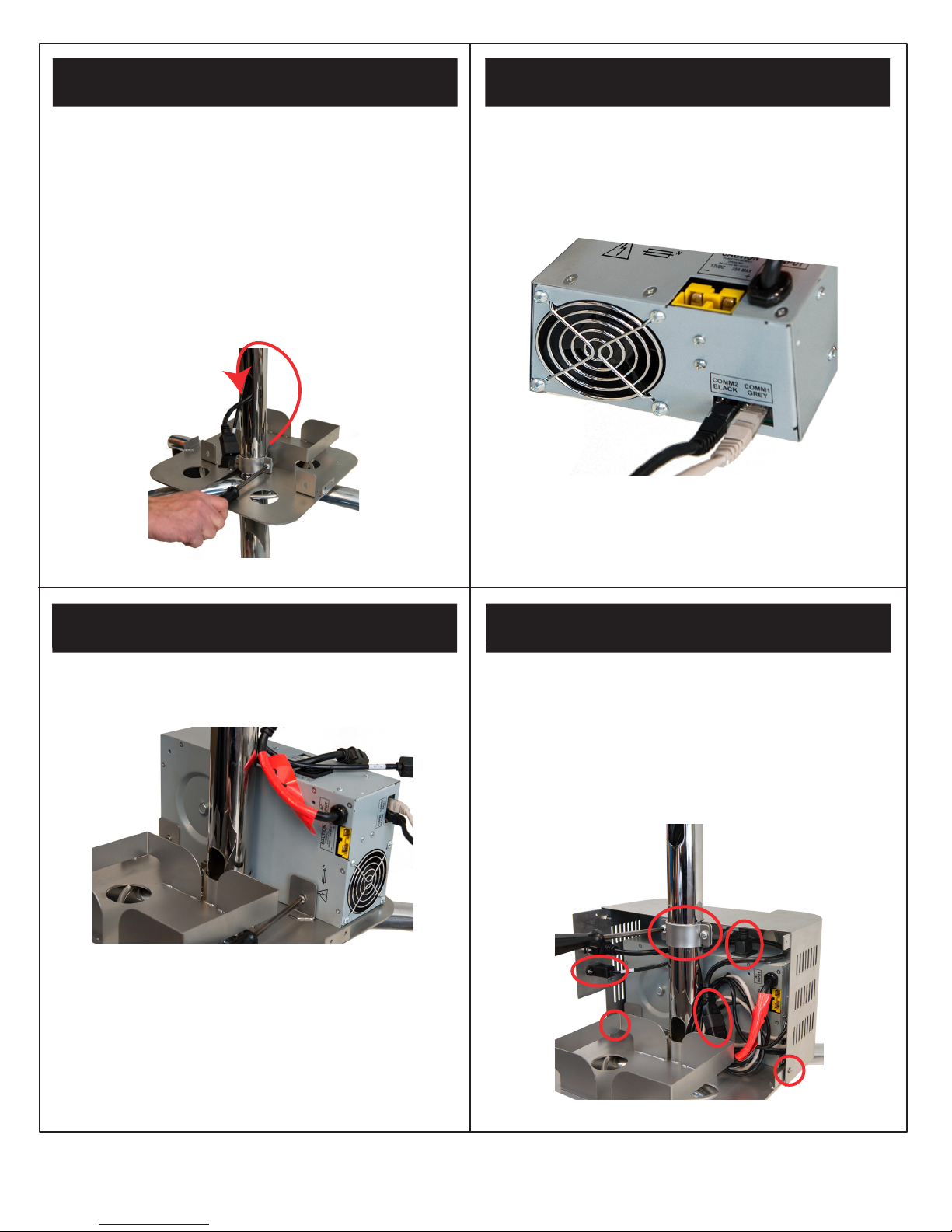

10 Optional Battery Pack and Power Supply Module

11 Optional Battery Pack and Power Supply Module

12 Optional Battery Pack and Power Supply Module

13 Optional Battery Pack and Power Supply Module

Connect the input and output AC connector to the

power supply. Attach the power supply cover, using the

U-shaped bracket and the supplied screws. Tighten the

screws.

Attach the RJ45 connector to the connector panel,

using the previously removed hardware.

Insert the battery into the battery compartment and

connect the battery to the power supply.

Setting up the Polycom® RealPresence® Utility Cart 500

3” 2-way powered monitor speaker system

(2200-64870-001)

The optional powered speaker kit ships with the

speakers already installed in the speaker brackets.

Remove the cover on the back of the speakers to

expose the Input B jack.

Remove the bottom plate (as shown in step 4), remove

the rear panel from the display support column (as shown

in step 6), and remove the drawer to allow easier access

for installing the cables down the pole.

Move the audio cable from the display down the pole.

Install the supplied AC power cable from the power

strip and exit at the pole, as shown below. Pass the

cables into the speaker assembly and attach the

speaker assembly to the pole.

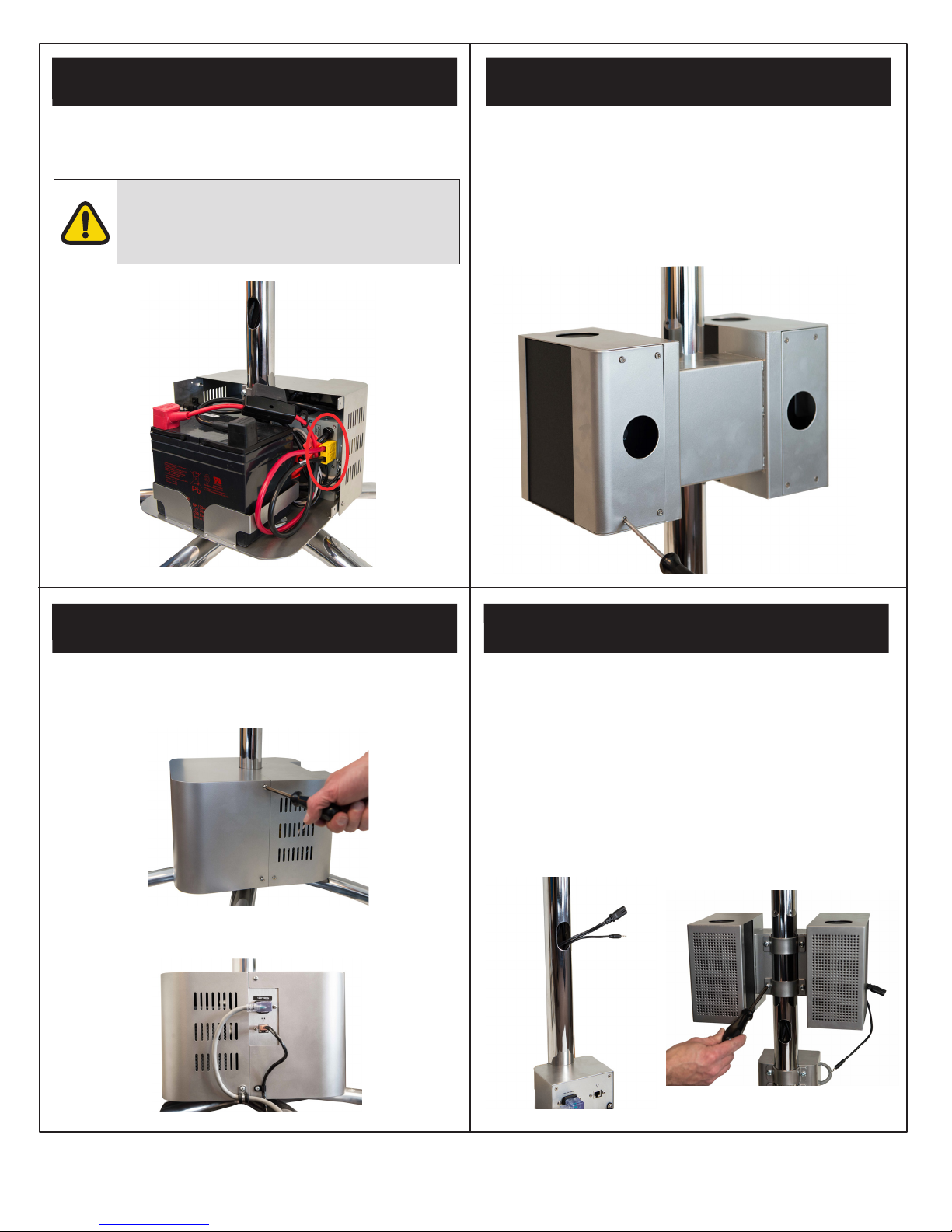

15 Optional Battery Pack and Power Supply Module

16 Optional Powered Speaker Kit

17 Optional Powered Speaker Kit

Take extra precautions when installing and

connecting the battery due to high current

capacity. Seek assistance from a trained

service person or electrician, if necessary.

14 Optional Battery Pack and Power Supply Module

Attach the battery pack cover, using the supplied screws.

Tighten the screws.

Reinstall the cable clamps removed in step 9.

Connect the 1/8 stereo plug to the Input-B port.

Push the AC cord into the power supply, which is

attached to the inside of the speaker enclosure.

Setting up the Polycom® RealPresence® Utility Cart 500

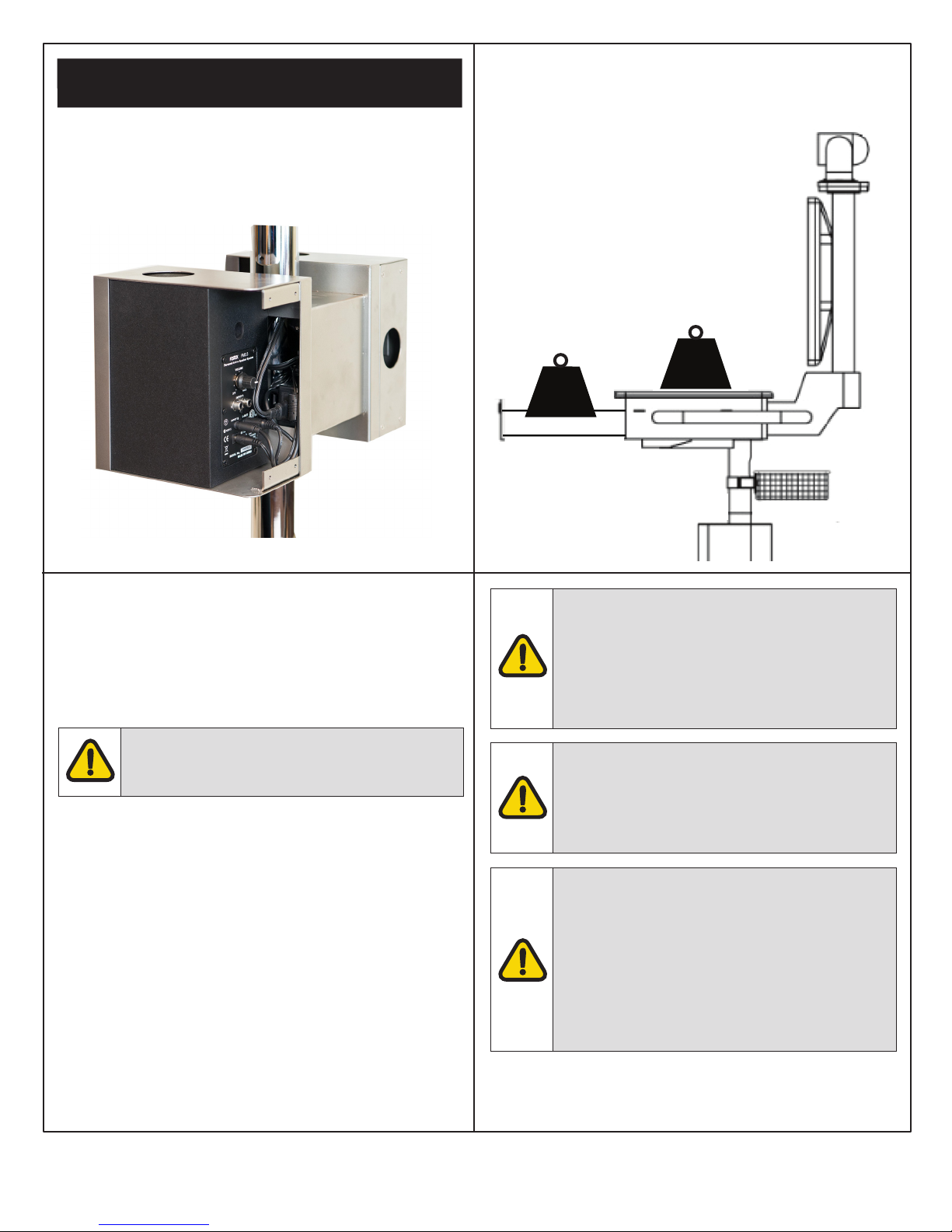

18 Optional Powered Speaker Kit

Mains input ratings:

With 120V or 230V battery option:

Voltage: 120 VAC, 60Hz or 230 VAC, 50Hz (depending on

option)

Current: 5.4A (max)

Without battery option:

Voltage: 100-240VAC, 50/60Hz

Current: 5.4A (max)

Weight of Assembled System:

27” display: 70 lbs (31.8 kg)

dual 22” displays: 74 lbs (33.6 kg)

Weight of Assembled System (with optional battery

pack and power supply module):

27” display: 126 lbs (57.2 kg)

dual 22” displays: 130 lbs (59 kg)

Weight of Assembled System (with optional powered

speaker kit):

27” display: 83 lbs (37.6 kg)

dual 22” displays: 87 lbs (39.5 kg)

Weight of Displays:

1x Viewsonic 27” LED Display (Model VS14818)

Weight: 10.9 lbs (4.9 kg) or

2x Viewsonic 22” LED Display (Model VA15451)

Weight: 6.9 lbs (3.1 kg) each

Ensure that the correctly rated battery option

is ﬁtted before connecting it to the mains

supply.

CAUTION

RISK OF EXPLOSION

The battery can explode if it is replaced

incorrectly or by an incorrect type. Always

observe correct polarity. Only install battery

manufactured by CSB model number

EVX 12340 and GP 12340.

CAUTION

RISK OF ELECTRIC SHOCK

If battery option is ﬁtted, live parts can remain

energized even when the AC input power is

disconnected.

CAUTION

RISK OF FIRE

Battery can generate hydrogen gas. Keep

away all potential sources of ignition. Do not

allow metallic articles to simultaneously

contact the negative and positive terminals

of the battery or its wiring.

Dispose of used batteries according to local

authority or state regulations.

Maximum Loading:

Desktop: 20 lbs (9.1 kg)

Drawer: 7 lbs (3.1 kg)

20 lbs

(9.1 kg)

7 lbs

(3.1 kg)

Regulatory Notices and General Warnings:

This equipment is intended for indoor use only.

Use this equipment only with the display(s) supplied by

Polycom.

Do not use a power cord that is damaged. This could cause

ﬁre or electric shock. Contact the manufacturer for a

replacement cord, if necessary.

Only use a power cord which is appropriately rated and

approved relevant to the country of use.

This equipment should be used only on even surfaces.

This equipment has lockable wheels which should be applied

while the cart is stationary.

When connecting to the mains supply, connect only to an

earthed supply outlet which is installed near the equipment

and is easily accessible.

If the optional power module is ﬁtted, even when the

equipment is disconnected from the supply outlet, there will

still be internal mains voltages present unless the battery

power system is switched o.

Keep ventilation openings free from any obstructions.

The ambient operating temperature rating of this equipment

is 0 - 40ºC and should not be exceeded.

Do not immerse the system in any liquid or place any liquids

on it.

Do not spray liquids directly onto the system when cleaning.

Always apply the liquid ﬁrst to a static-free cloth.

For further information concerning the individual components

of this equipment, please refer to the respective product

literature.

For support or service, please contact your Polycom®

distributor or go to Polycom Support at

www.polycom.com/support.

Setting up the Polycom® RealPresence® Utility Cart 500

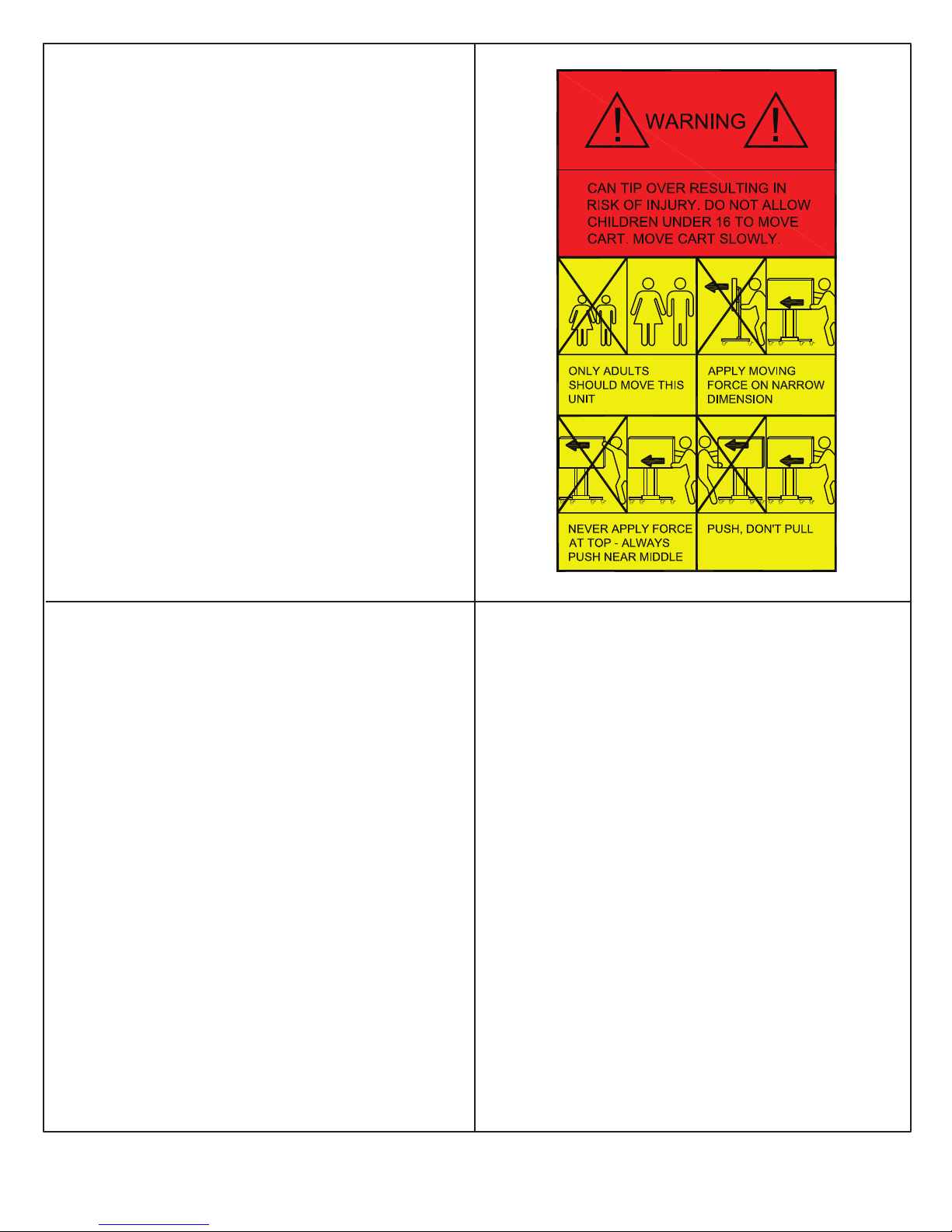

Child Safety Warnings:

Death or serious injury may occur when children climb on

audio and/or video equipment furniture. A remote control or

toys placed on the furnishing may encourage a child to climb

on the furnishing and as a result the furnishing may tip over

onto the child.

Relocating audio and/or video equipment to furniture not

speciﬁcally designed to support audio and/or video

equipment may result in death or serious injury due to

furniture collapsing or overturning onto a child.

Setting up the Polycom® RealPresence® Utility Cart 500

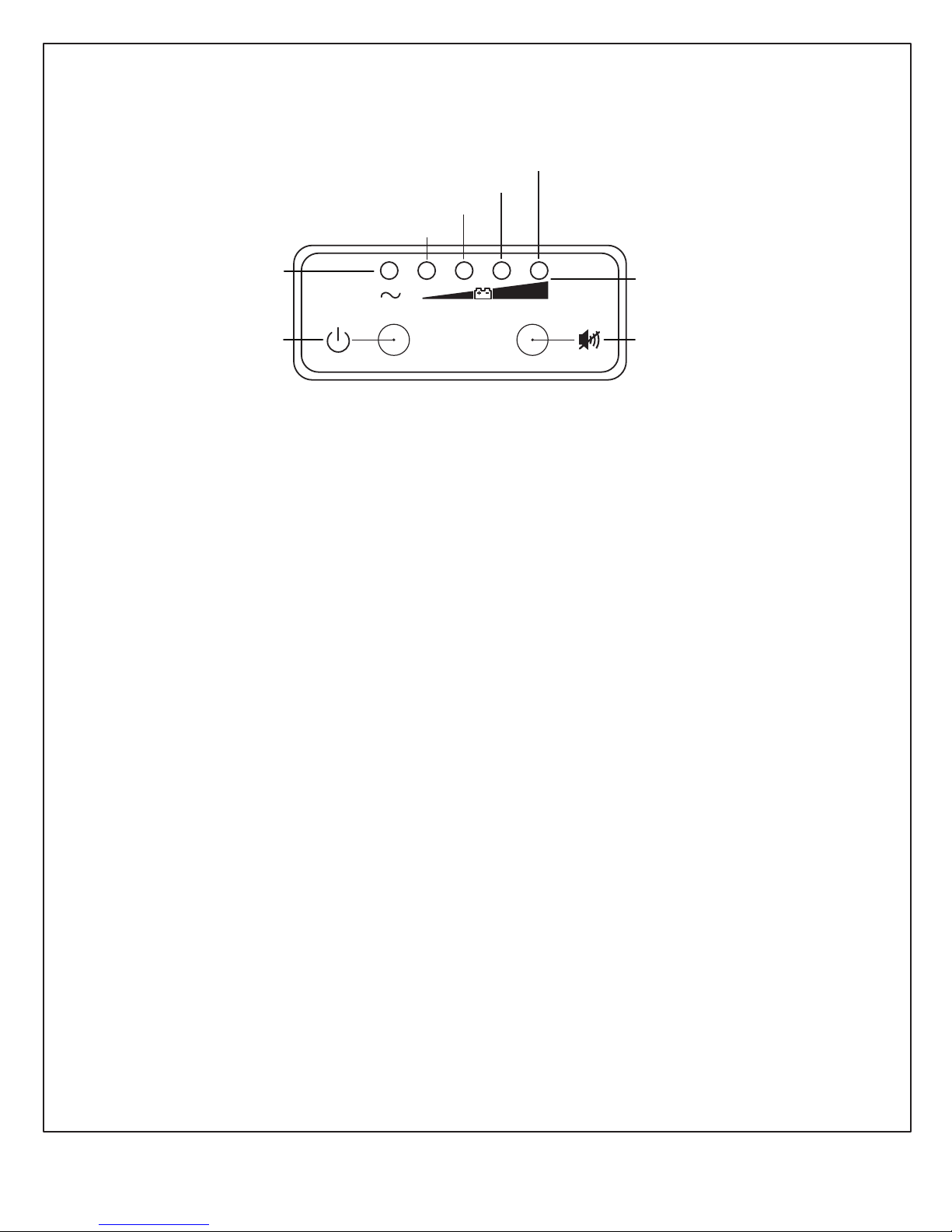

Power Button

The Power button turns the system power on and o.

To turn ON system power: Press and hold the Power button for one second. The alarm will beep once brieﬂy after

one second has passed. Release the button. The Power LED will illuminate. The Power button will turn the system

on regardless of whether the Power Supply Module is plugged in or not.

To turn OFF system power: Press and hold the Power button for one second. The alarm will beep once brieﬂy after

one second has passed. Release the button. The Power LED will turn o.

Power LED

The green LED indicates whether the system power is ON or OFF.

Battery Charge LED Meter

The LEDs will illuminate in several sequences to indicate the approximate charge level of the Battery Module. See

“Operation” section for charts illustrating Battery Charge LED Meter Display depending on dierent charge levels

while discharging and charging.

Mobile Operation (Unplugged/Discharging)

Unplug the Power Supply Module from the AC wall outlet. To reduce the risk of damage, ensure that the cord is

safely stowed on the cart.

Use connected equipment between charges, depending on battery conditions, environmental conditions, and

equipment load. The Battery Charge LED Meter indicates the approximate charge level of the Battery Module (see

chart).

To power o connected equipment and the Power Supply Module’s outlets, and stop the battery from discharging,

press the Power button for one second. The alarm will beep once brieﬂy after one second has passed. Release the

button. All LEDs will be OFF.

Alarm Mute Button

This button silences the Power Supply Module’s low battery alarm. To silence the low battery alarm, brieﬂy press

and release the Alarm Mute button. The low battery alarm will beep once per second unless it is silenced. Once the

charge level falls below 30% (and shutdown is imminent), the alarm will resume again after one minute. Once the

charge level falls below 30%, the user should save open ﬁles and safely shut down connected equipment immedi-

ately. If the cart is unattended and PowerAlert Software is loaded on a computer connected to the Power Supply

Module, PowerAlert will automatically save open ﬁles prior to automatic shutdown.

Power Control and Battery Meter Panel

If you installed the optional Battery Pack and Power Supply Module, refer to this section for information about

the battery meter panel and how to use the battery.

Battery Charge

LED Meter

90-100%

60-89%

31-59%

<30%

Power Alarm

Mute

Power LED

Setting up the Polycom® RealPresence® Utility Cart 500

Mobile Operation (Unplugged/Discharging)

Unplug the Power Supply Module from the AC wall outlet. To reduce the risk of damage, ensure that the cord is

safely stowed on the cart.

Use connected equipment between charges, depending on battery conditions, environmental conditions, and

equipment load. The Battery Charge LED Meter will indicate the approximate charge level of the Battery Module

(see chart).

To turn the system power OFF and stop the battery from discharging, press the Power button for one second. The

alarm will beep once brieﬂy after one second has passed. Release the button. All LEDs will be OFF.

Charge Levels (Discharging)

* The low battery alarm will beep once per second. To silence the alarm, press the Alarm Mute button. If the charge level falls

below 30% (and shutdown is imminent), the alarm will resume after one minute. Save open ﬁles and safely shut down

connected equipment. If PowerAlert software is loaded on a computer connected to the Power Supply Module, and the cart is

unattended, PowerAlert will automatically save open ﬁles prior to automatic shutdown.

Stationary Operation (Plugged in/Charging)

Plug the system main power cord into a live AC wall outlet.* The system will deliver AC power to connected

equipment while simultaneously charging the Battery Module.

Use connected equipment indeﬁnitely as long as the Power Supply is connected to a live AC outlet. If the utility

power fails, due to a blackout, the system will automatically support connected equipment with AC power from the

Battery Module (if adequately charged). When power resumes after a blackout, the system will automatically

resume supplying AC power and recharging the Battery Module.

Charge Levels (Charging)

* The battery should be charged as often as possible by plugging the Power Supply into a wall outlet. Charging the batteries for

brief intervals does not adversely aect battery performance. However, leaving the batteries fully discharged for long periods of

time does adversely aect battery performance.

90 - 100%

60 - 89%

31 - 59%

<= 30%

Green

OFF

Green

OFF

Green

Flashing Green

LED 1 LED 2 LED 3 LED 4

Charge Level

90 - 100%

60 - 89%

31 - 59%

<= 30%

Green

Yellow

Flashing Red

Green

Yellow

OFF

Green

OFF

Green

OFF

LED 1 LED 2 LED 3 LED 4

Charge Level

OFF

Low Battery Alarm*

Setting up the Polycom® RealPresence® Utility Cart 500

Utility Cart 500 Wiring Diagram

Autres manuels Polycom Système de conférence

Polycom

Polycom ViewStation SP384 Manuel utilisateur

Polycom

Polycom QSX Manuel utilisateur

Polycom

Polycom SpectraLink 6000 System Manuel utilisateur

Polycom

Polycom RealPresence Group Series Manuel utilisateur

Polycom

Polycom RealPresence Group 700 system Manuel utilisateur

Polycom

Polycom ViewStation FX4000 Manuel utilisateur

Polycom

Polycom MGC-100 Manuel utilisateur

Polycom

Polycom RealPresence Medialign 255 Slimline Base Manuel utilisateur

Polycom

Polycom RealPresence Group 700 system Manuel utilisateur

Polycom

Polycom VSX 7000e Series Manuel utilisateur

Polycom

Polycom 9.0.6 Manuel utilisateur

Polycom

Polycom SIP 2.2.0 Manuel de service

Polycom

Polycom realpresence trio 8800 Manuel utilisateur

Polycom

Polycom realpresence trio 8800 Fiche technique

Polycom

Polycom HDX 4000 Series Manuel de service

Polycom

Polycom ViewStation SP128 Manuel utilisateur

Polycom

Polycom SIP 3.1 Manuel de service

Polycom

Polycom VSX 5000 Manuel utilisateur

Polycom

Polycom MGC+50 ReadiConvene Manuel utilisateur

Polycom

Polycom RealPresence Immersive Studio Manuel utilisateur

Polycom

Polycom HDX Desktop Systems Manuel utilisateur

Polycom

Polycom SoundStation IP 3000 Manuel utilisateur

Polycom

Polycom VIEWSTATION EX Manuel utilisateur

Polycom

Polycom ViewStation SP128 Manuel utilisateur

Manuels Système de conférence populaires d'autres marques

Kramer

Kramer VIA GO Manuel utilisateur

AVT

AVT MAGIC AC1 Go Manuel utilisateur

ProSoft Technology

ProSoft Technology AN-X4-AB-DHRIO Manuel utilisateur

Sony

Sony PCS-I150 Manuel utilisateur

Middle Atlantic Products

Middle Atlantic Products VTC Series Manuel utilisateur

Prentke Romich Company

Prentke Romich Company Vanguard Plus Mode d’emploi

Speakerbus

Speakerbus iD 712 Manuel utilisateur

Trelleborg

Trelleborg SafePilot CAT PRO Manuel utilisateur

Sennheiser

Sennheiser ADN Manuel utilisateur

ADTRAN

ADTRAN NetVanta 7100 Manuel utilisateur

AINA

AINA PTT Voice Responder Manuel utilisateur

Yamaha

Yamaha ProjectPhone PJP-100H Manuel utilisateur

vissonic

vissonic VLI Series Manuel utilisateur

Panasonic

Panasonic KX-VC500 Manuel utilisateur

Poly

Poly Trio 8300 Manuel utilisateur

Crestron

Crestron Mercury CCS-UCA-SMK Dessin dimensionnel

Inmarsat

Inmarsat mini M Manuel utilisateur

Tenveo

Tenveo ALL-IN-ONE Manuel utilisateur
