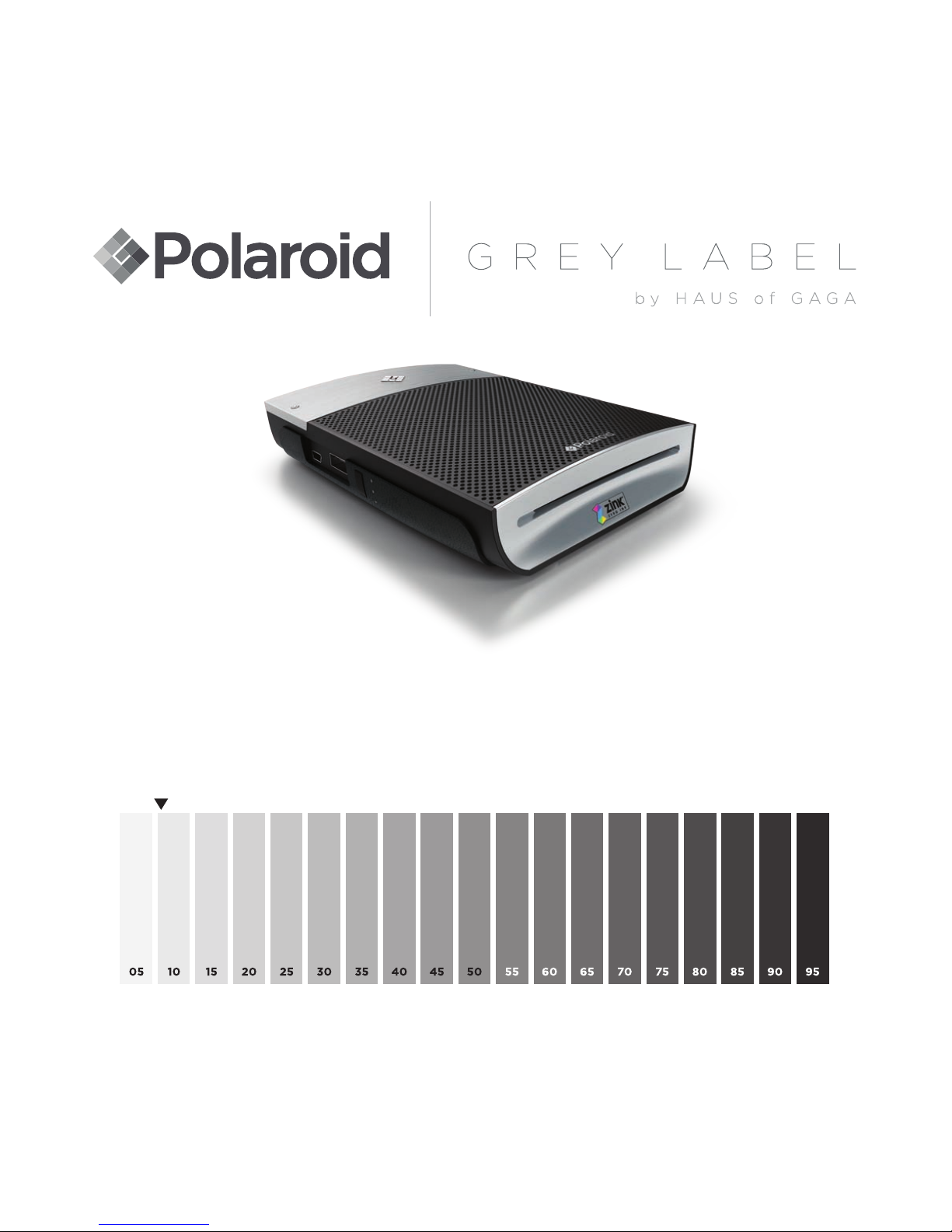

GL10

Instant Mobile Printer

User Manual

NEED HELP? Visit www.polaroid.com.

This Instant Mobile Printer has been tested and is in compliance with the essential requirements and

other relevant provisions of Directive 1999/5/EC.

Changes or modiﬁcations not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential

installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does not cause harmful interference to radio or television

reception, which can be determined by turning the equipment o and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet or on a circuit dierent from that to which the receiver is

connected

• Consult the dealer or an experienced radio/TV technician for help.

This transmitter must not be co-located or operated in conjunction with any other antenna or

transmitter.

This equipment complies with the FCC/IC radiation exposure limits set forth for uncontrolled

equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET62

and RSS-102 for the IC radio frequency (RF) Exposure rules. This

equipment has very low levels of RF energy that is deemed to comply without maximum permissive

exposure evaluation (MPE).

It is desirable that it be installed and operated with at least 20 cm or more between the radiator and

person’s body (excluding

extremities: hands, wrists, feet, and ankles).

This device complies with Part 15 of the FCC Rules and the RSS-Gen of IC Rules. Operation is subject

to the following two conditions: (1) this device may not cause interference, and (2) this device must

Safety Information

accept any interference, including interference that may cause undesired operation of this device.

CAUTION

RISK OF EXPLODING IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

BATTERY CAUTIONS

1. Use only the provided charger with this product.

2. Only charge the battery as recommended by the instructions.

3. The battery provided with his product is intended for this product only.

4. Prolonged use of the printer will result in the battery becoming warm.

BATTERY WARNINGS

1. Avoid contact with leaking or a damaged battery.

2. Do not short battery terminals.

3. Adult supervision is recommended when product is used by young children.

4. Avoid areas of excessive heat or moisture.

5. Do not disassemble the battery.

This product contains electrical or electronic materials. The presence of these materials

may, if not disposed of properly, have potential adverse eects on the environment and

human health. Presence of this label on the product means it should not be disposed of

as unsorted waste and must be collected separately. As a consumer, you are responsible

for ensuring that this product is disposed of properly. To ﬁnd out how to properly dispose

of this product, please go to www.polaroid.com and click on “Company“ or call the

customer service number for your country listed in the instruction manual.

Product Diagram

Power button

Battery door

ZINK Paper® door latch

AC adaptor input

BACK VIEW

Photo exit slot

FRONT VIEW

ZINK Paper® tray door Transfer LED indicator

Error LED indicator

Battery LED indicator

USB connectors

Reprint/Reset button

SIDE VIEW

LED Color Action Communication

Green Solid Power on, template disabled

Orange Solid Power on, template enabled

Green Pulse Receiving data, printing, cooling

Red Pulse (3x speed) Paper jam

Orange Solid Low Battery

Orange Pulse Receiving data, printing, cooling

with template

Red Solid Template error

Red Solid Out of battery / Recharge battery

Red Pulse (1x speed) Out of paper, non-feed, non-

compatible paper

Green Solid Fully charged

Green Pulse Charging from AC adapter

Installing and Charging the Battery

Install battery

Replace battery door cover

To charge the battery:

1. Install the battery (see above steps).

2. Connect the AC adapter to the printer and the power source.

3. Turn on the printer.

Notes:

• Before using the printer on battery power, fully charge the battery for 2.5 hours.

• You can print photos while plugged into the power source.

Installing ZINK Paper®

Press and release latch on the ZINK Paper® tray door.

Unrwrap the 10-pack of ZINK Paper®.

Slide the 10-pack of ZINK Paper® into the printer. Make sure

the blue ZINK SmartSheet® is placed with the barcode down.

Close the ZINK Paper® tray door.

Press and hold the POWER button to turn on the printer.

When you turn the printer on, the ZINK SmartSheet® will

automatically eject.

Notes:

• The printer must be empty before reﬁlling. Do not ﬁll the printer with more than one 10-pack

of ZINK Paper®. Having more than 10 sheets of ZINK Paper® may damage the printer.

• Avoid bending the ZINK Paper®.

• Only hold the ZINK Paper® by its edges; avoid touching the printing surface with your ﬁngers.

• If the warning LED is ﬂashing, push the Reprint button and release after 3 seconds.

ZINK

Smartsheet

Printing: Camera Cell Phone

Passcode: 6-0-0-0

For speciﬁc printing directions for your phone, visit www.polaroid.com.

The following is an example for connecting to the printer and print

your images. The terminology used in your cell phone may be dierent.

1. Select the image you would like to print from the stored images on your camera cell phone. In the

“options” menu, select “send via Bluetooth.” Search for devices and select the Polaroid printer and print.

2. If you are unable to print from “send via Bluetooth,” select “connectivity” or “Bluetooth” under the

“settings” or “tools” menu. Search for devices and select the Polaroid printer. Once paired, go back

to stored images and select the image you want to print. In the “options” menu, select “beam” or

“send via Bluetooth”. Select the Polaroid printer and print.

3. If your camera cell phone does not include “send via Bluetooth” under the “options” menu, select

the image you want to print. Select the “options” menu and select “print via Bluetooth”. Search for

devices, select the Polaroid printer, and print.

For Android™ phones, download the free Polaroid Grey Label app from the Market to add cool eects

to your photos before printing.

Visit www.polaroid.com to download the printer application and

instructions for printing from your Windows or Mac computer.

*USB cable not included.

If the printer has not turned o, you may reprint the last image printed. Push the Reprint button and

release after 3 seconds.

Printing: Computer

Reprint Last Image

Printing: Digital Camera

For speciﬁc print directions for your digital camera, please review

your digital camera user’s manual or manufacturer’s website.

The following is an example for connecting to the printer and

print your images. The terminology used in your camera may

be dierent.

1. Connect your digital camera and printer to determine if a print option or printer icon is

automatically displayed on the camera screen.

2. If no print option appears, select “menu” and navigate to conﬁrm that PictBridge is enabled. Note:

if “USB” is displayed under “settings” then PictBridge is NOT enabled.

3. Once PictBridge is enabled, select the image you want to print and follow the on-screen

instructions to print.

Notes:

• Do not disconnect the USB cord until entire printing process is complete.

• Do not turn o the printer while printing.

• Do not open ZINK Paper® tray door while printing.

• To print the date on your photo, ensure the Date Stamp feature on your digital camera is enabled.

The GL10 prints full bleed by default.

To enable the Polaroid Classic Border Logo format:

1. Press and hold the “Reprint” button for 5 seconds.

2. The LED will change from green to orange.

To print without the Polaroid Classic Border Logo format:

1. Press and hold the “Reprint” button for 5 seconds.

2. The LED will change from orange to green. LED

will change from green to orange.

For more information on printing with customizable borders, visit www.polaroid.com to download the

printer application and instructions for creating your customized border.

Printing with Borders

border no border

Troubleshooting

For additional troubleshooting and frequently asked questions, visit www.polaroid.com.

Polaroid, Polaroid & Pixel, Polaroid Classic Border Logo and Polaroid Grey Label are trademarks of PLR IP Holdings, LLC, used

under license. All other trademarks are the property of the respective owner, who has not sponsored, endorsed, or approved

this product. PLR IP Holdings, LLC does not manufacture this product or provide any Manufacturer’s Warranty or support.

Distributed By: C&A Licensing, LLC, 2 Bergen Turnpike, Ridgeﬁeld Park, NJ 07660

The ZINK® Technology and ZINK® trademarks are owned by ZINK Imaging, Inc. Used under license.

Problem

The photo has streaks

The paper jammed before printing

(nothing has been ejected)

The paper jammed while printing (part

of the image has already ejected)

If all else fails…

Solution

DO NOT: Send another image

to be printed.

DO NOT: Send another image

to be printed.

DO: Open the ZINK Paper® tray door.

Check to see if there is ZINK Paper® in

the tray. If so, ensure the ZINK Paper®

is loaded correctly. Press the “Reprint”

button to resume printing.

DO NOT: Pull out paper.

DO: Turn o the printer. Wait 5

seconds, turn the printer back on.

Printer will eject current photo. To

reprint, resend your photo to the

printer.

DO: Turn o the printer. If the printer

will not power o, disconnect the AC

adapter. Remove the battery cover

and the battery. Replace the battery

and battery cover. Turn on the printer.

DO: Turn o the printer. Open the

ZINK Paper® tray door and remove

the ZINK Paper®. Place one blue ZINK

SmartSheet® (with the barcode facing

down) in the paper tray. Close the

ZINK Paper® tray door and turn the

printer on. The ZINK SmartSheet® will

automatically eject. Open the ZINK

Paper® tray door and reload the ZINK

Paper®.
