Instruction
This manual provides information how to charge PM550 or PM550 battery with cradles (optional
accessories). Please read this manual carefully before using your cradles.
Revision History
Revision
Date
Description
V01
15 Jul 2020
Initial release
V02
16 Jul 2020
Edit minor issues of 6SBC cradle image
Change the order of content
Related Document
PM550 User Manual –describes how to use PM550 hardware and software safely
PM550 Charging with Cradle User Manual
2
© 2006 –2020 POINTMOBILE Co., Ltd. All rights reserved
Table of Contents
INSTRUCTION ..........................................................................................................1
Revision History.......................................................................................................................1
Related Document...................................................................................................................1
TABLE OF CONTENTS.............................................................................................2
6SBC (6 SLOT BATTERY CHARGER).....................................................................3
Major Parts ..............................................................................................................................3
Charging the Battery................................................................................................................4
4SC (4 SLOT CRADLE) ............................................................................................7
Charging the device.................................................................................................................7
SSC (SINGLE SLOT CRADLE).................................................................................8
Major Parts ..............................................................................................................................8
Charging the device.................................................................................................................9
Charging the battery ..............................................................................................................10
PM550 Charging with Cradle User Manual
3
© 2006 –2020 POINTMOBILE Co., Ltd. All rights reserved
6SBC (6 Slot Battery Charger)
6SBC (6 Slot Battery Charger) is for charging up to 6 batteries at the same time
Major Parts
PM550 Charging with Cradle User Manual
4
© 2006 –2020 POINTMOBILE Co., Ltd. All rights reserved
6SBC (6 Slot Battery Charger)
Charging the Battery
1. Insert the battery so that the connector pin of the battery and battery slot contact each other
2. Push down the battery until it clicks. And check if the LED indicator flashes solid red or solid
green.
PM550 Charging with Cradle User Manual
5
© 2006 –2020 POINTMOBILE Co., Ltd. All rights reserved
6SBC (6 Slot Battery Charger)
Depending on production time, battery inserting orientation could be reversible. Check out the
below table to find the difference of slot shape & battery orientation between the previous version
and the new version.
Previous Version
New Version
Slot
Shape
Battery
Orientation
PM550 Charging with Cradle User Manual
6
© 2006 –2020 POINTMOBILE Co., Ltd. All rights reserved
6SBC (6 Slot Battery Charger)
3. If the battery is plugged properly, LED indicator of the slot will flash red or green
Color
Description
Figure
Red
Battery is charging
Green
Battery is fully charged
Blinking
Battery is not plugged properly
PM550 Charging with Cradle User Manual
7
© 2006 –2020 POINTMOBILE Co., Ltd. All rights reserved
4SC (4 Slot Cradle)

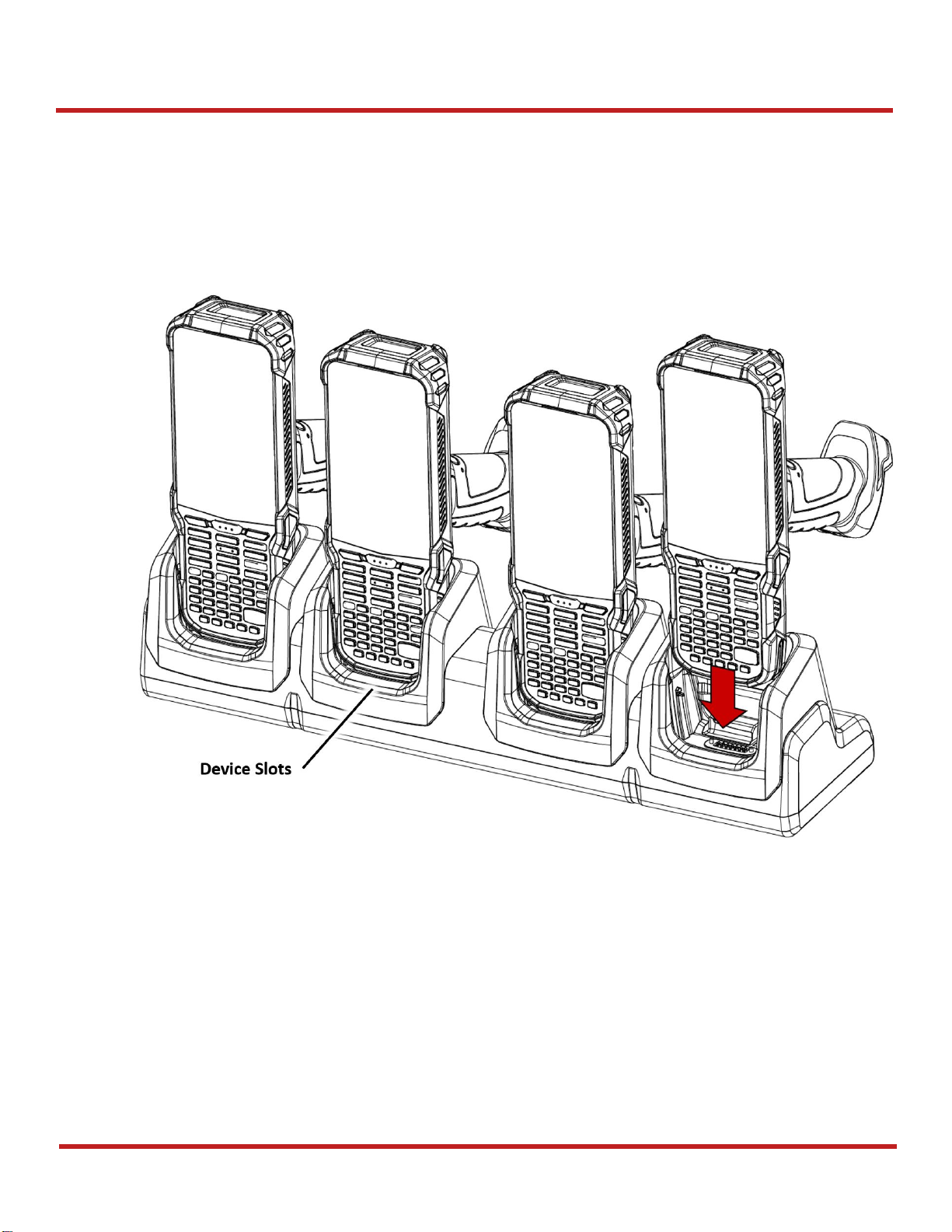

4SC (4 Slot Cradle) is for charging up to 4 units of PM550 at the same time.
Charging the device
Insert a PM550 from top to bottom.
Charging state will be indicated by the PM550 LED indicator.
PM550 Charging with Cradle User Manual
8
© 2006 –2020 POINTMOBILE Co., Ltd. All rights reserved
SSC (Single Slot Cradle)
SSC (Single Slot Cradle) is for charging a PM550 and a battery. You can charge the device and battery at
the same time.
Major Parts
Provide power by AC Adaptor 12V/5A. Adaptor and power cable are included in the PM550-4SC
package.
PM550 Charging with Cradle User Manual
9
© 2006 –2020 POINTMOBILE Co., Ltd. All rights reserved
SSC (Single Slot Cradle)
Charging the device
Insert a PM550 from top to bottom. Check if the device is plugged to cradle firmly. When PM550 is
properly inserted, the charging LED indicator of PM550 will flash red or green.
PM550 Charging with Cradle User Manual
10
© 2006 –2020 POINTMOBILE Co., Ltd. All rights reserved
SSC (Single Slot Cradle)
Charging the battery
1. Insert the battery so that the connector pin of the battery and battery slot contact each other
2. Push down the battery until it clicks. And check if the LED indicator flashes solid red or solid
green.
