PLT WPM45UNV5KD Manuel utilisateur

—

To prevent personal injury or product damage only licensed electricians should provide all installation services.

—

To avoid electric shock or component damage disconnect power before attempting installation or servicing.

—

This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state and local electric codes and safety standards.

—

Disconnect product and allow cooling prior to servicing.

—

Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage and/or product malfunction.

—

To prevent product malfunction and/or electrical shock this product must be properly grounded.

—

This luminaire is designed to operate in ambient temperatures ranging from -30°c to 40°c and to be horizontally mounted with the LEDs facing down.

—

Wall mount only.

LED MEDIUM WALLPACK

LED WPM

Installation Guide

PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION

LED Product Partner

WARNING

1 Unpacking

1. Thoroughly inspect the ﬁxture for freight damage. Freight damage should be reported to the delivery carrier.

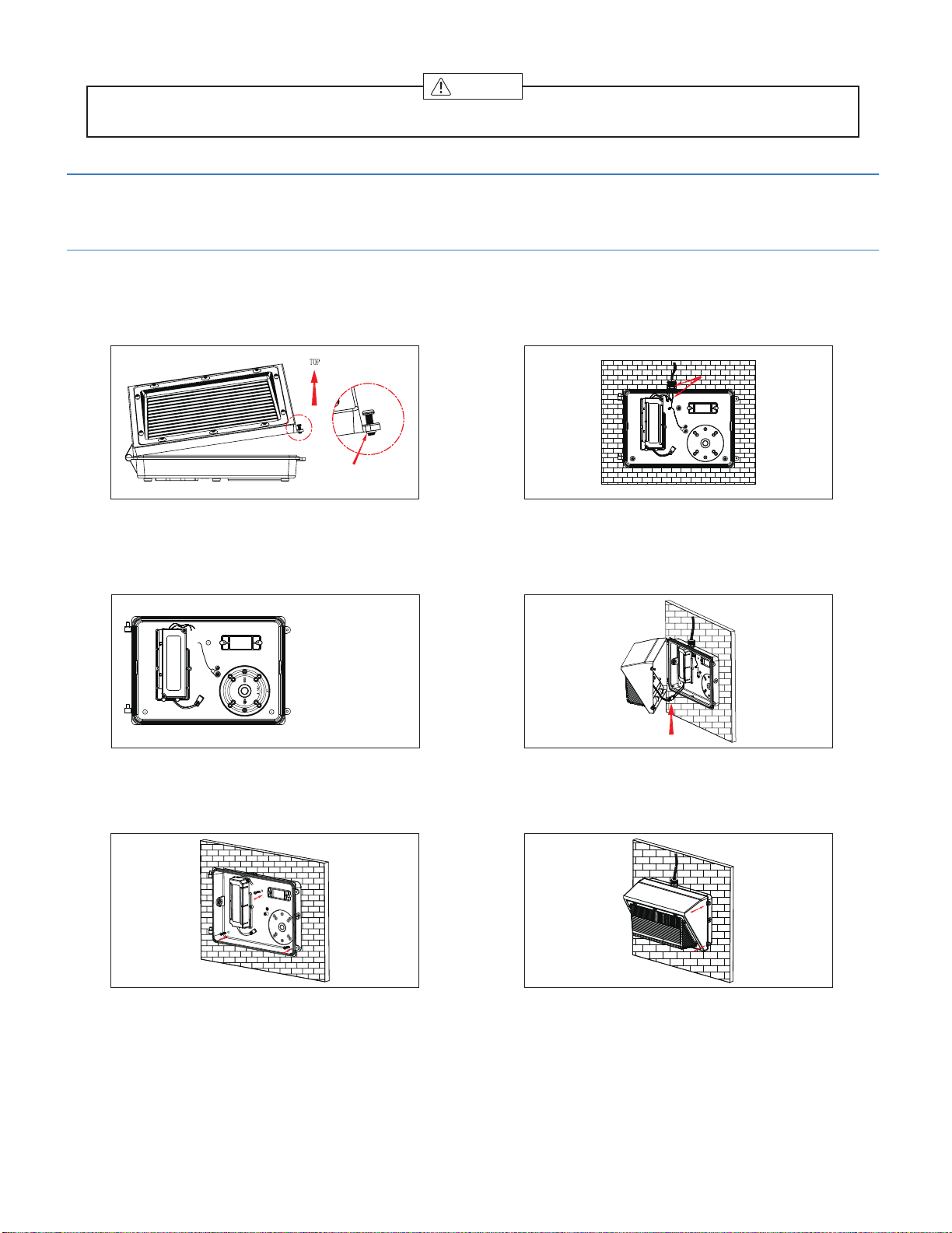

2 Installation

1. Open the front housing assembly and

Remove thefronthousing assembly.

3. Prepare the back-plate for mounting by drilling

out the two corner and the center 5/16” diameter

holes ("B")

4. If wiring is performed using a recessed junction box then

drill out the appropriate junction box houes.

5. Line up the back plate in thedesired location and mount

securely. Use thesupplied gaskets for a weather tightseal

between

back plate and junction box.

6. Attach thedriver input wires to the color matched

supply wires.

Wiring can be performed using arecessed junction box or a

surface conduit. The ﬁxture back plate has a template that

matches two standard junction box sizes. Conduit is connected

using the ½" NPS tapped holes ("A").

Place the front housing assembly on the hinge pins of the back plate.

Attach the female connector of driver into the male connector

of the led board

9. Fasten thefront housing assembly to the ba

ck pla

A–1/2” NPS tapped holes

(surface conduit or photo control)

B–5/16” dia.Screw hole

RISK OFELECTRIC SHOCK.DISCONNECT POWER BEFORE SERVICING

WARNING

B B
