Voyager Legend®CS

Bluetooth Headset System

User Guide

Congratulations on purchasing your new Plantronics product. This guide contains instructions

for setting up and using your Voyager Legend CS Wireless Headset System.

Please refer to the separate safety instructions for important product safety information prior

to installation or use of the product.

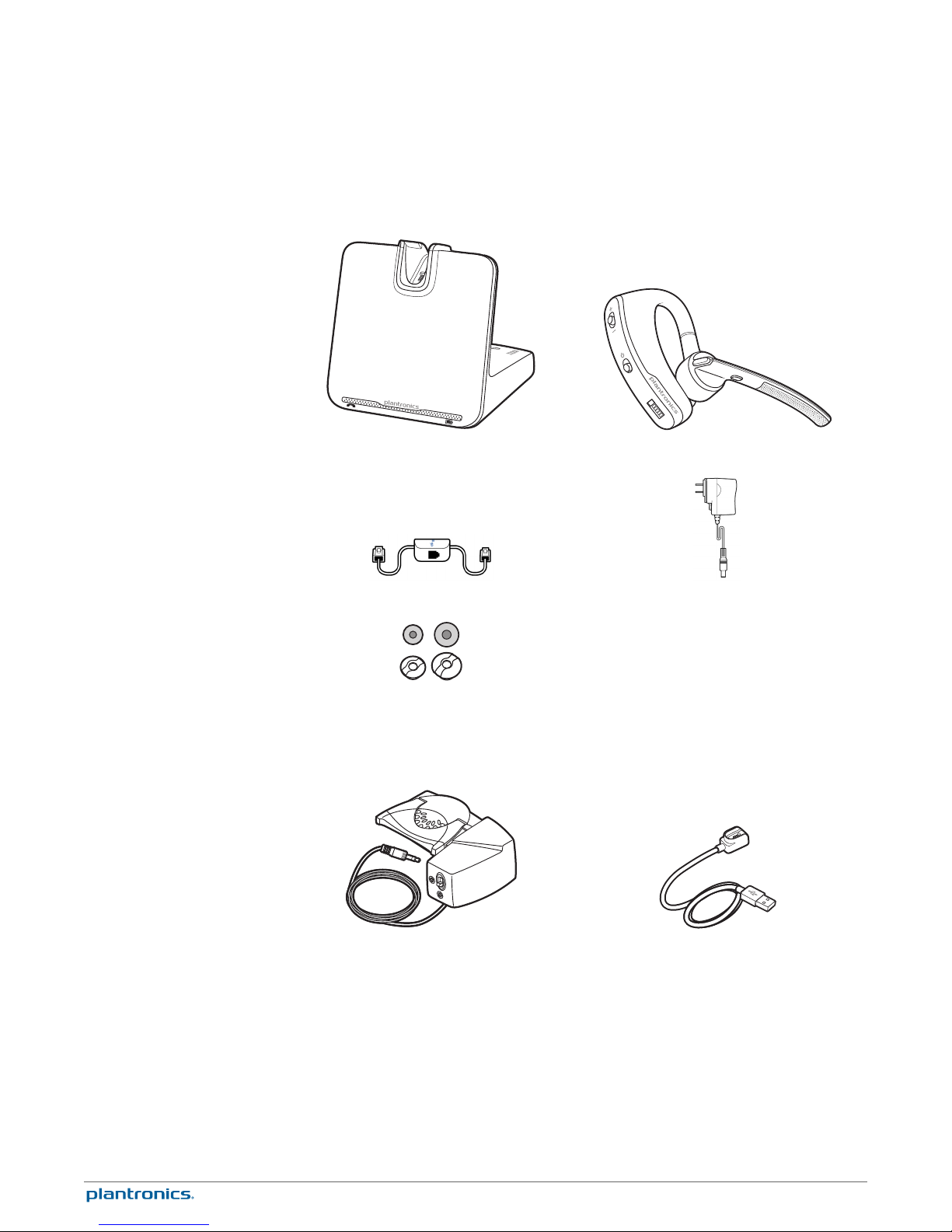

Welcome

Base Headset

Telephone interface cable Power supply

Eartips

Some models may also include:

HL10 Lifter USB Charge cable

What's in the Box

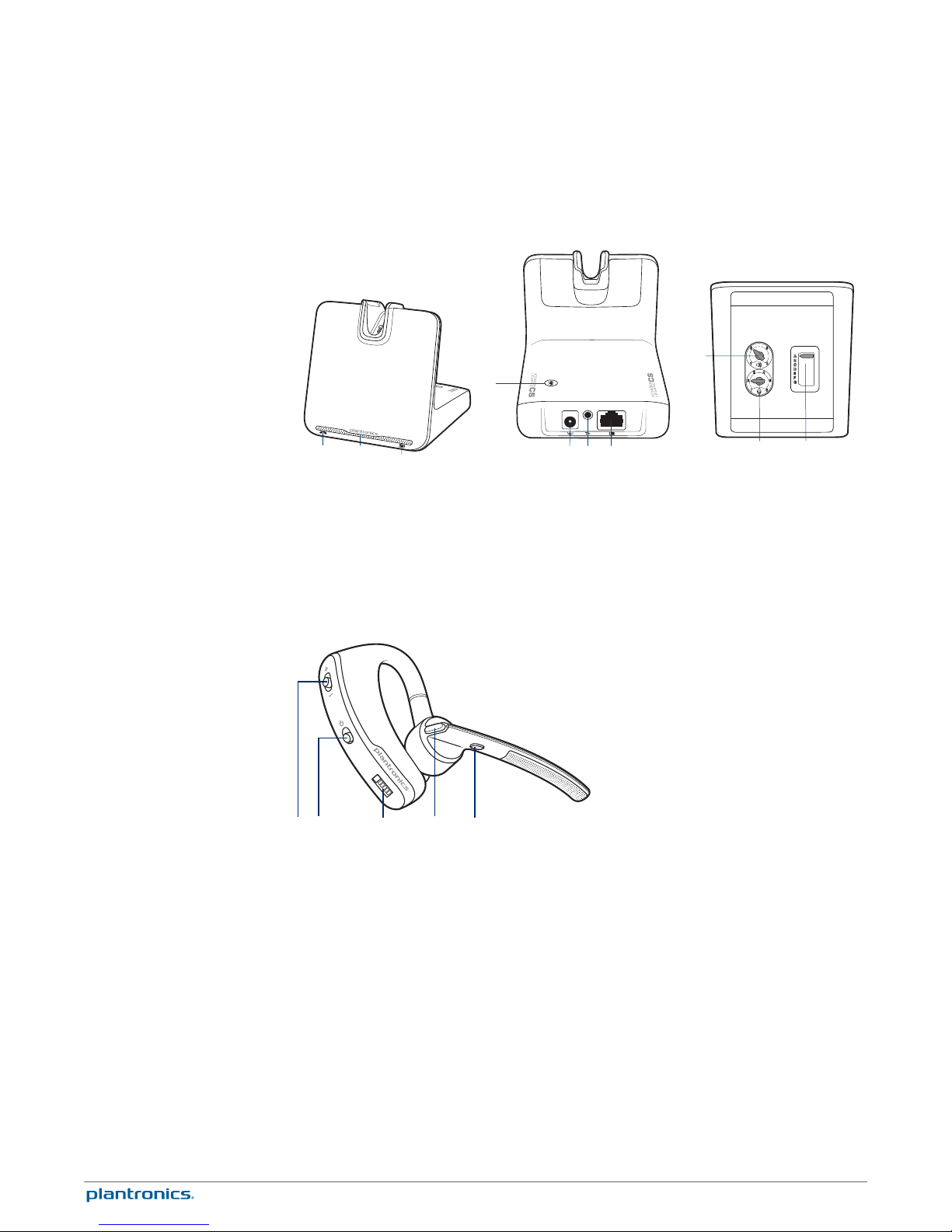

Base

109

1Call/mute LED 6Handset lifter/EHS cable jack

2Power on/pairing LED 7Telephone interface cable

3Charging LED 8Listening volume dial*

4Pairing button 9Speaking volume dial*

5Power jack 10 Configuration switch*

*For installation set up

Headset

1235

1Volume +/- button 4Call button

2Power button 5Mute microphone/voice command button

3Snap fit magnetic charge connection

Base and Headset Basics

Sold separately.

1 2

3 4 5

6 7

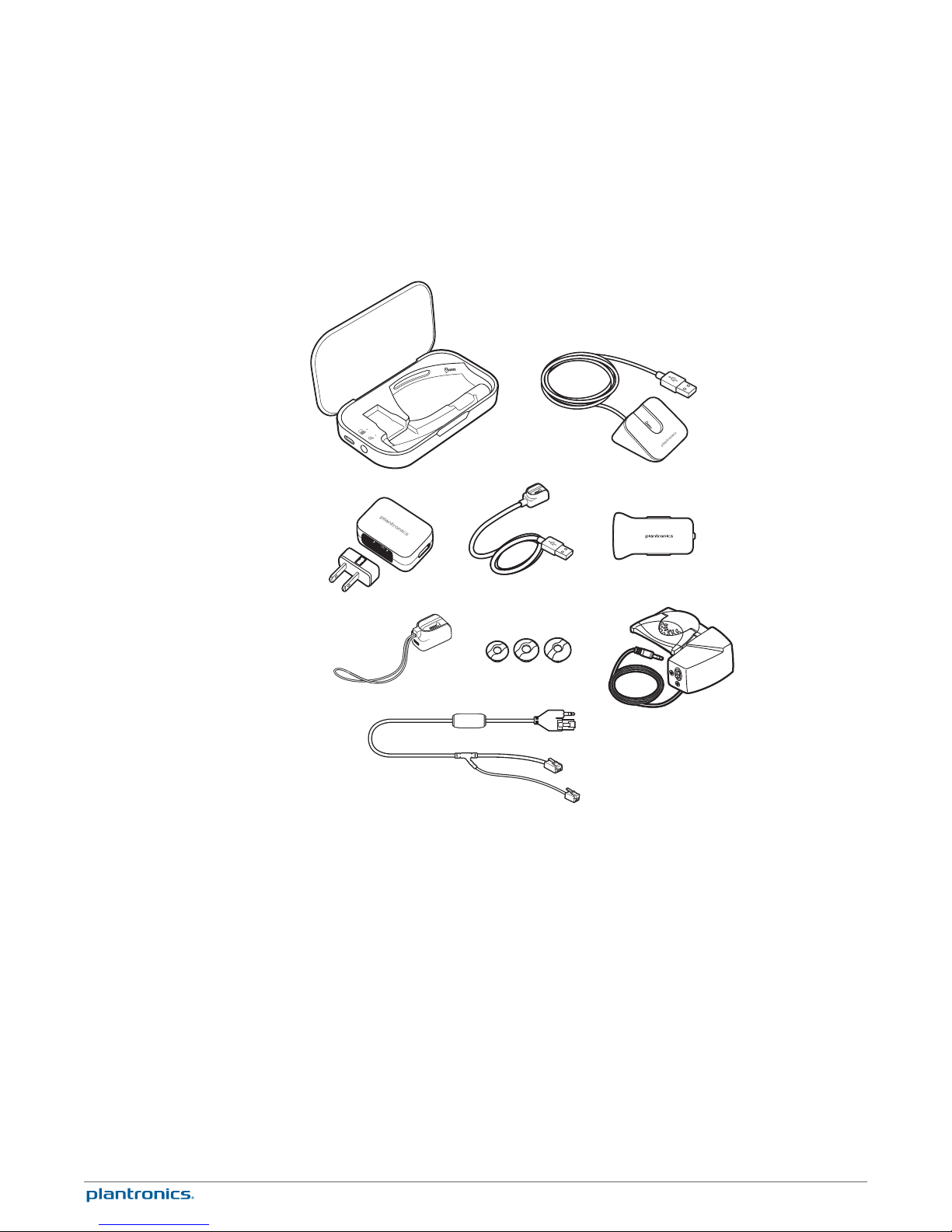

1Portable charge case

2Desktop charge stand

3AC charger

4USB charge cable*

5Car charge adapter

6Micro USB charge adapter

7Eartip kit (available in S, M, L)

8HL10 lifter* Automatically lifts handset and returns it to the cradle. Enables remote call

control with your headset.

9Electronic hookswitch cable (EHS cable) Electronically and automatically takes your desk

phone handset off hook. Enables remote call control with your headset.

*Included with some models.

Accessories

Change the eartip for a better fit.

1Push in eartip and rotate to the left to unlock it.

2Align new eartip into slot.

3Rotate it to the right to lock it into place.

To wear the headset on your other ear, rotate the boom upwards then twist it around so the

eartip is on the other side before lowering the boom.

Fit

Change the eartip

Wear on the left or right

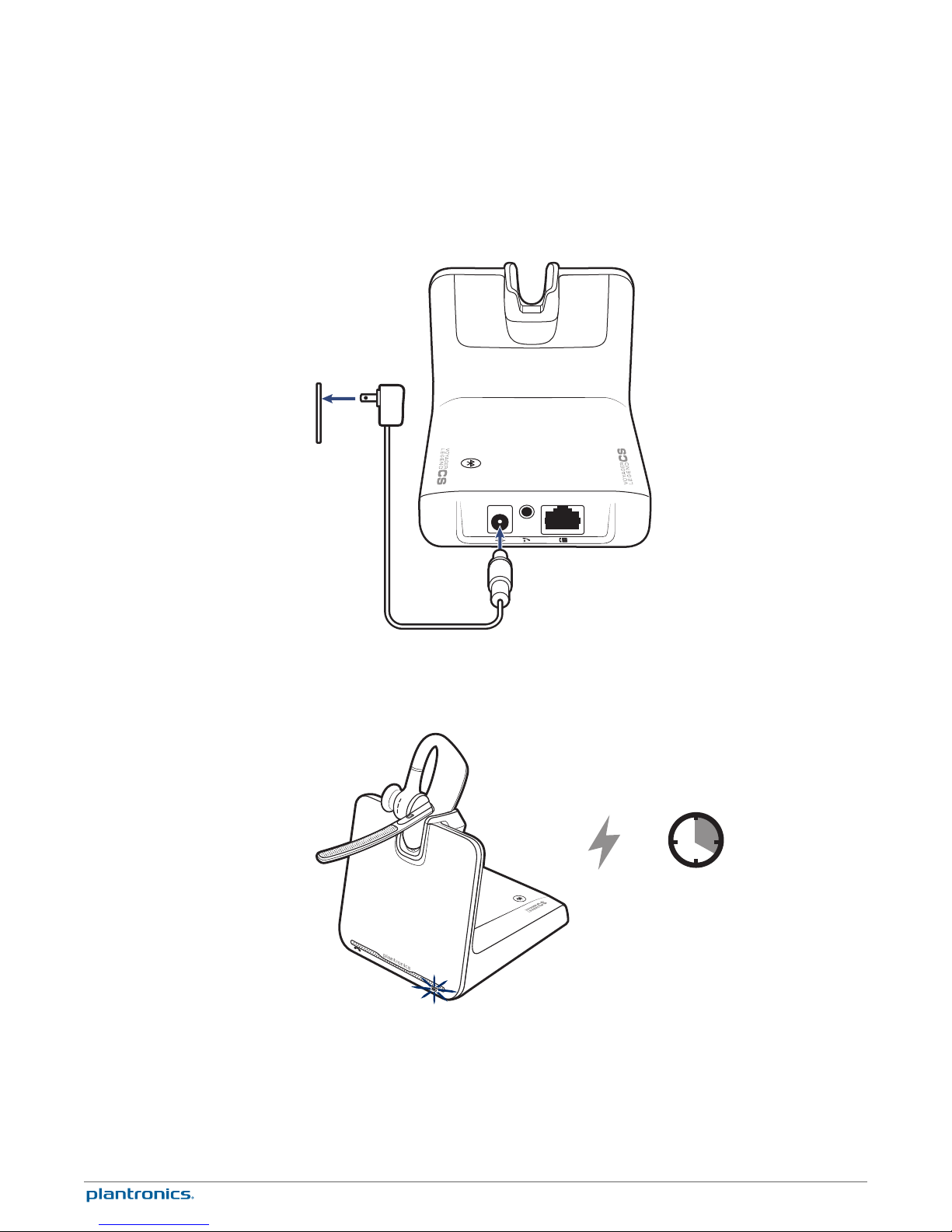

Plug one end of the power supply into the power jack on the back of the base and the other end

into a working power outlet. The Power On LED will be solid white.

Place the headset in the charge cradle. The charging LED on the base will flash blue when

charging and turn solid blue when the headset is fully charged. Charge for at least 20 minutes

prior to the first use. A full charge takes 90 minutes.

There are three setup options for connecting the Voyager Legend CS to your desk phone.

Select one of the following and continue.

• Desk phone (standard)

• Desk phone + HL10 Lifter (sold separately)

• Desk phone + EHS cable (sold separately)

Connect Your Desk Phone

Connect the power

Charge the headset

Connect and configure

your desk phone

NOTE If you will be using a standard desk phone set up or a desk phone with an HL10 lifter, continue

below. If you will be using the desk phone with an EHS cable, refer to Desk phone plus EHS cable

section in this guide. For further installation information refer to the EHS Getting Started guide that

came with your EHS cable or at plantronics.com/accessories.

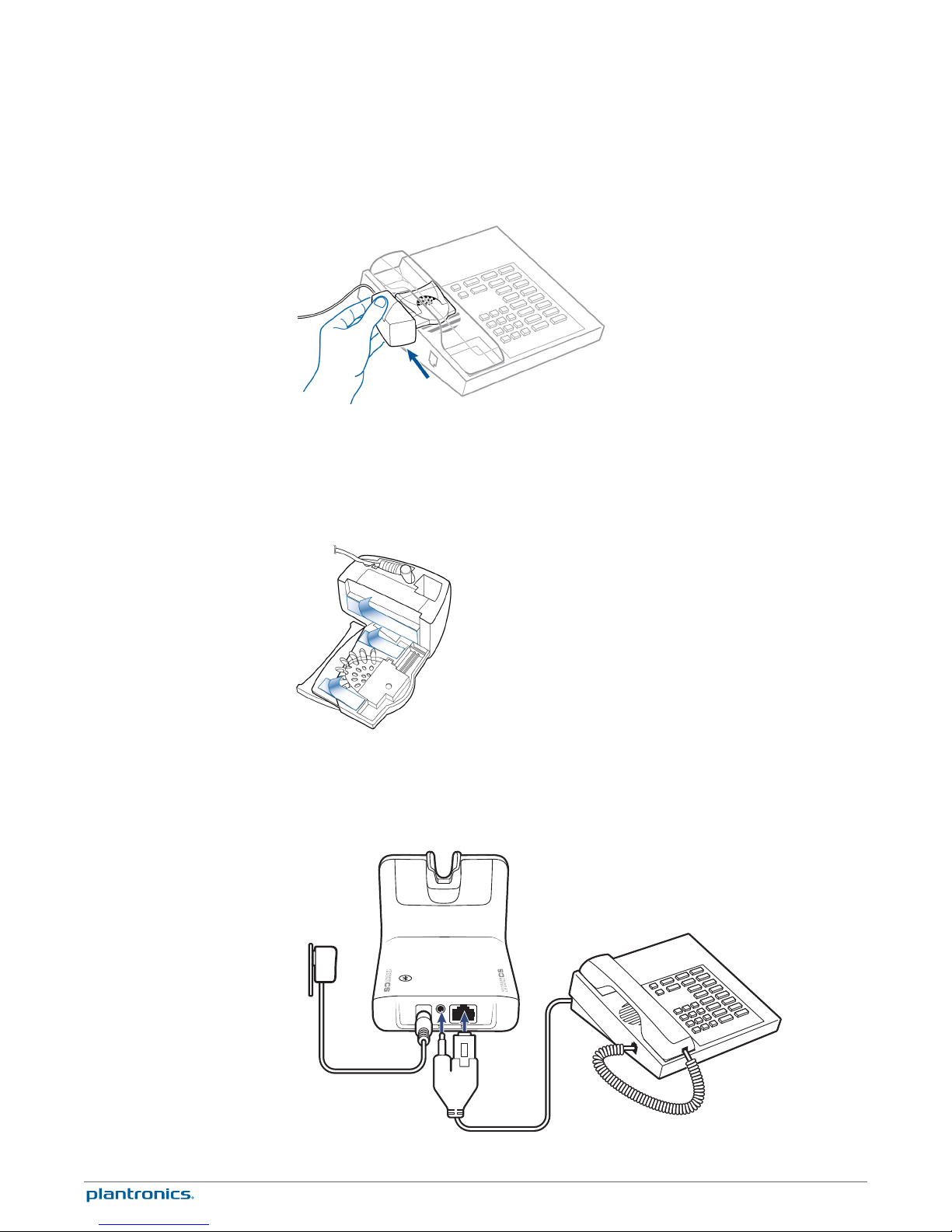

1Connect one end of the telephone interface cable to the back of the base.

2Disconnect the handset coil cord from the desk phone and re-connect it to the telephone

interface cable junction box.

3Connect the remaining end of the telephone interface cable into the open handset port on the

desk phone.

USE

NOTE Your desk phone handset will continue to work; it's just hooked up differently.

NOTE If your phone has a built-in headset port, you should only use the headset port if you will not be

using the HL10 lifter. In this configuration, you must first press both the headset button on your phone

and the call control button on the headset to answer or end calls.

1If your desk phone has a volume control set it to mid range.

2Look at the bottom of your base and make sure the default settings are correct. Set your desk

phone's volume also.

Set the listening volume dial and the speaking volume dial to 2.

Set the configuration switch to A.

Set the desk phone volume to mid-range.

Desk phone (standard)

Check configuration and

make a test call

3Remove the handset from the desk phone cradle.

4While wearing your headset, press the call button on the headset.

5If you do not hear a dial tone, adjust the configuration switch (A-G) until you do.

NOTE For most phones, these factory settings will sound best.

6Dial a test call from the desk phone. If needed, fine tune the volume with the headset volume

controls. You can also adjust the desk phone speaking and listening volumes on the bottom of

the base.

First follow the steps above for Desk phone (standard).

1Firmly press the handset lifter power cord into the handset lifter jack.

USE

2While wearing your headset, slide the handset lifter arm under the handset until the lifter base

touches the side of the phone.

Desk phone plus HL10

3Slide the lifter up to where it nearly touches the handset earpiece.

4Press the call button on your headset to activate the lifter.

5If you hear a dial tone the lifter is set correctly and needs no adjustment.

6Remove the protective strips from the 3 mounting tapes on the underside of the lifter.

7Gently place the lifter on the desk phone in the pre-determined position.

8Press firmly to adhere.

Connect the end of the EHs cable to the base and the other end of the desk phone as described

in the EHS Quick Start Guide.

NOTE For further installation information refer to the EHS Quick Start Guide that came with your EHS

cable or at www.plantronics.com/accessories .

Desk phone plus EHS

cable
