Plantronics DuoSet H141 Manuel utilisateur

User Guide

DuoSet™ Headset

Models H141/H141N/P141

Duoset English 4.0 10/27/99 3:58 PM Page 4

WELCOME

Thank you for selecting the DuoSet™

Headset from Plantronics. This User

Guide will help you install your

DuoSet™ Headset and learn its basic

operation. The Amplifier is

described in a separate guide

which should be read following

familiarization with the headset.

Duoset English 4.0 10/27/99 3:59 PM Page 11

A B C

DEF

GHI

Duoset English 4.0 10/27/99 3:59 PM Page 5

DIAGRAM

Duoset English 4.0 10/27/99 3:59 PM Page 6

Adjustable Headband

(P/N 43298-01)

Ear Cushion Assembly

(P/N 43299-01)

Headset Assembly

Voice Boom

Cord

Clothing Clip

(P/N 43220-01)

Pivot Ball Ring

(P/N 45650-01)

Flexible Earhook

(P/N 45651-01)

Headset

(Both Configurations Shown)

DIAGRAM KEY

Duoset English 4.0 10/27/99 3:59 PM Page 7

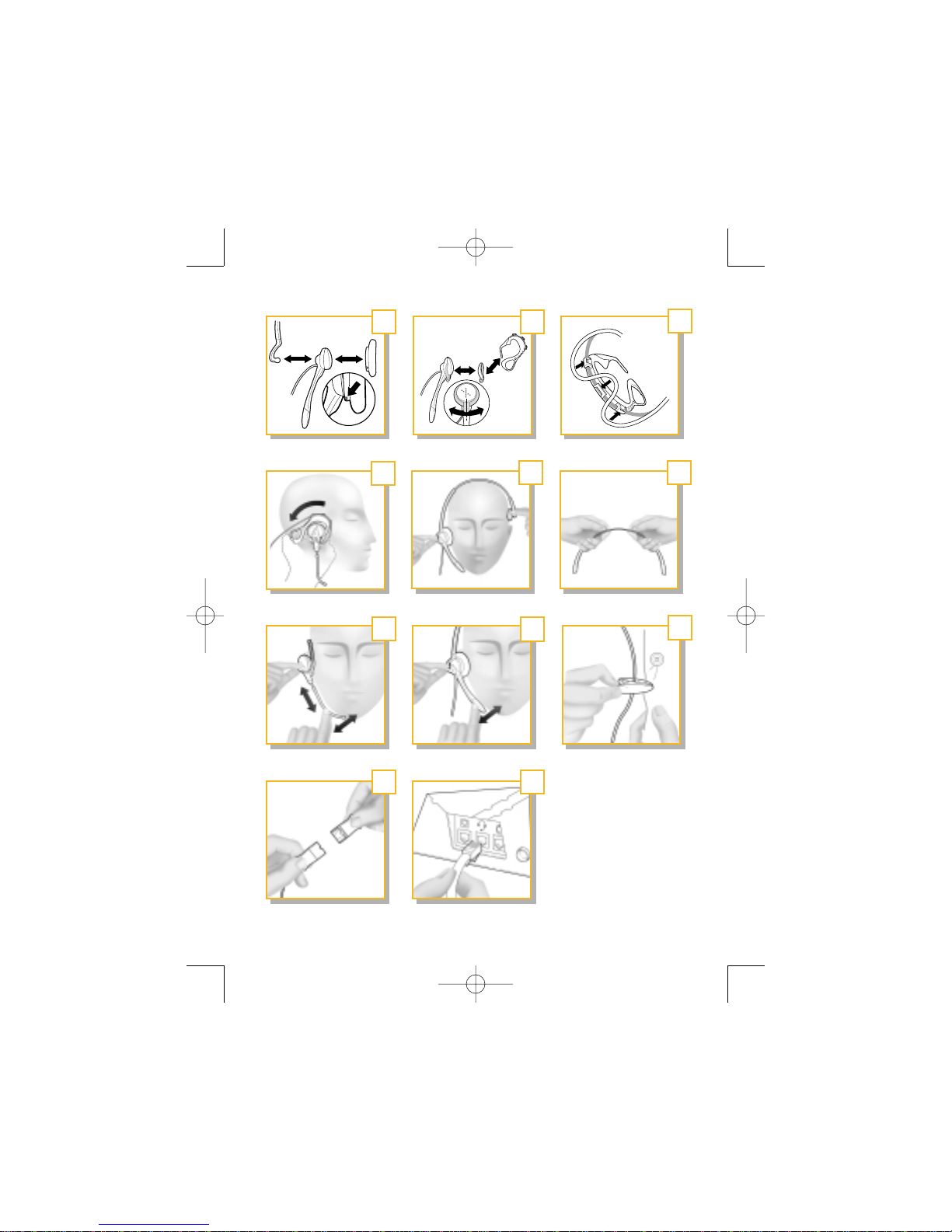

OVER-THE-EAR-CONFIGURATION

If already in place, unsnap the Headband from the rear of

the Headset Assembly .

If already in place, remove the Ear Cushion and

Rubber Ring from the Headset Assembly .

Press the Pivot Ball Ring onto the Headset Assembly

aligning the Pivot Ball Ring with the Voice Boom .

Insert the Earhook into either side of the Pivot Ball Ring ,

depending on whether the headset is to be worn over the left

or the right ear.

For added stability, press the Headset Cord under the

Cord Guides on the Earhook.

Expand the Earhook around your ear as shown and release.

Rotating the Pivot Ball Ring on the Headset Assembly

may provide a better fit.

Duoset English 4.0 10/27/99 3:59 PM Page 12

OVER-THE-HEAD CONFIGURATION

If already in place, remove the Pivot Ball Ring and

Earhook .

Press the Ear Cushion and Rubber Ring onto the Headset

Assembly . Align the notch in the ring with the Voice

Boom .

Snap the ball on the end of the Headband into the socket

on the rear of the Headset Assembly .

Place the Headband over the top of your head, with the

Ear Cushion resting gently against your ear and the T-Bar

positioned above the opposite ear.

If the headband is too tight or too loose, grasp the metal part

of headband and gently bend in the middle. The headband

length may be adjusted for fit and comfort.

Duoset English 4.0 10/27/99 3:59 PM Page 13

POSITIONING THE BOOM

If you have the Voice Tube version of the product, pull-out,

push-in, rotate, or swivel the Voice Boom into a position

near the corner of your mouth that best transmits your voice.

If you have the Noise-Canceling version of the product,

position the tip of the Voice Boom as near to the corner of

your mouth as you comfortably can.

Duoset English 4.0 10/27/99 3:59 PM Page 14

SECURING THE HEADSET

Attach the Clothing Clip at about chest level. The clip keeps

the headset properly seated and free of the weight of the

Headset Cable . This is particularly important in the Earhook

configuration.

Duoset English 4.0 10/27/99 3:59 PM Page 15

Using the Quick Disconnect™Module

Use the Quick Disconnect™(QD) Module to place a call

on hold and move away from the phone without removing

the headset.

To put your call on hold, grasp the QD Module as shown and

pull straight apart.

To resume your conversation, reconnect the two halves.

Polaris™Headset Variations

Polaris™Headset Variations, designed for use with phones

with a clearly marked headset jack, do not require an

Amplifier. Insert the Polaris connector directly into the

headset jack. Consult your telephone's instruction manual

for more information.

For Non-Polaris™Versions

You are now ready to install the Amplifier.

CONNECTING THE HEADSET
