Plantronics CS530A Manuel utilisateur

CS530A™

Wireless Headset System

User Guide

ContentsContents

Welcome 3

What’s in the box 4

Base and headset basics 5

Accessories 6

Customise your headset 7

Left ear wearing 8

Connect your desk phone 9

Connect the power 9

Charge the headset 9

Connect and conﬁgure your desk phone 10

Desk phone (standard) 10

Check conﬁguration and make a test call 11

Desk phone plus HL10 lifter (sold separately) 12

Desk phone plus EHS cable 14

Position your base 15

Your headset 16

Headset controls 16

Talk time 16

Low battery warning 17

Muting your headset during a call 17

Adjusting your headset volume 17

Out of range warning tones 17

Your base 18

Base phone button and switches 18

Subscription button 18

Wideband/Narrowband audio switch 19

Auto answer switch 19

Daily use 20

Place an outgoing call 20

Answer an incoming call 20

Conference up to three additional headsets 20

Troubleshooting 21

Headset 21

Desk phone 21

Welcome

Congratulations on purchasing your new Plantronics product. This guide contains instructions for

setting up and using your CS530A Wireless Headset System.

Please refer to the separate safety instructions for important product safety information prior to

installation or use of the product.

The enclosed DECT Standard wireless product uses restricted wireless radio frequencies that vary

by country. DECT Standard devices are generally authorised for use in Europe, Australia and New

Zealand. Use of this DECT Standard product in unauthorised countries is a violation of law, may

disrupt telecommunications networks and devices and can subject you to ﬁnes and penalties by

regulatory agencies. For speciﬁc countries in which DECT Standard devices may be lawfully used,

please consult the following:

http://www.dect.org/content.aspx?id=28

What’s in the box

Telephone interface cable

Power supply

Base Headset

Eartips

Base and headset basics

1 Call/mute LED

2 Power on/subscription LED

3 Charging LED

4 Subscription button

5 Narrowband/wideband audio switch

6 Power jack

7 Handset lifter/EHS cable jack

8 Telephone interface cable jack

9 Auto answer switch

10 Listening volume dial*

11 Speaking volume dial*

12 Conﬁguration switch*

* For installation set up 1211

58 9

BACK

FRONT

Headset overview

1 Volume up button

2 Volume down button

3 Call control button

4 Indicator light

5Microphone

BOTTOM

Base overview

1235

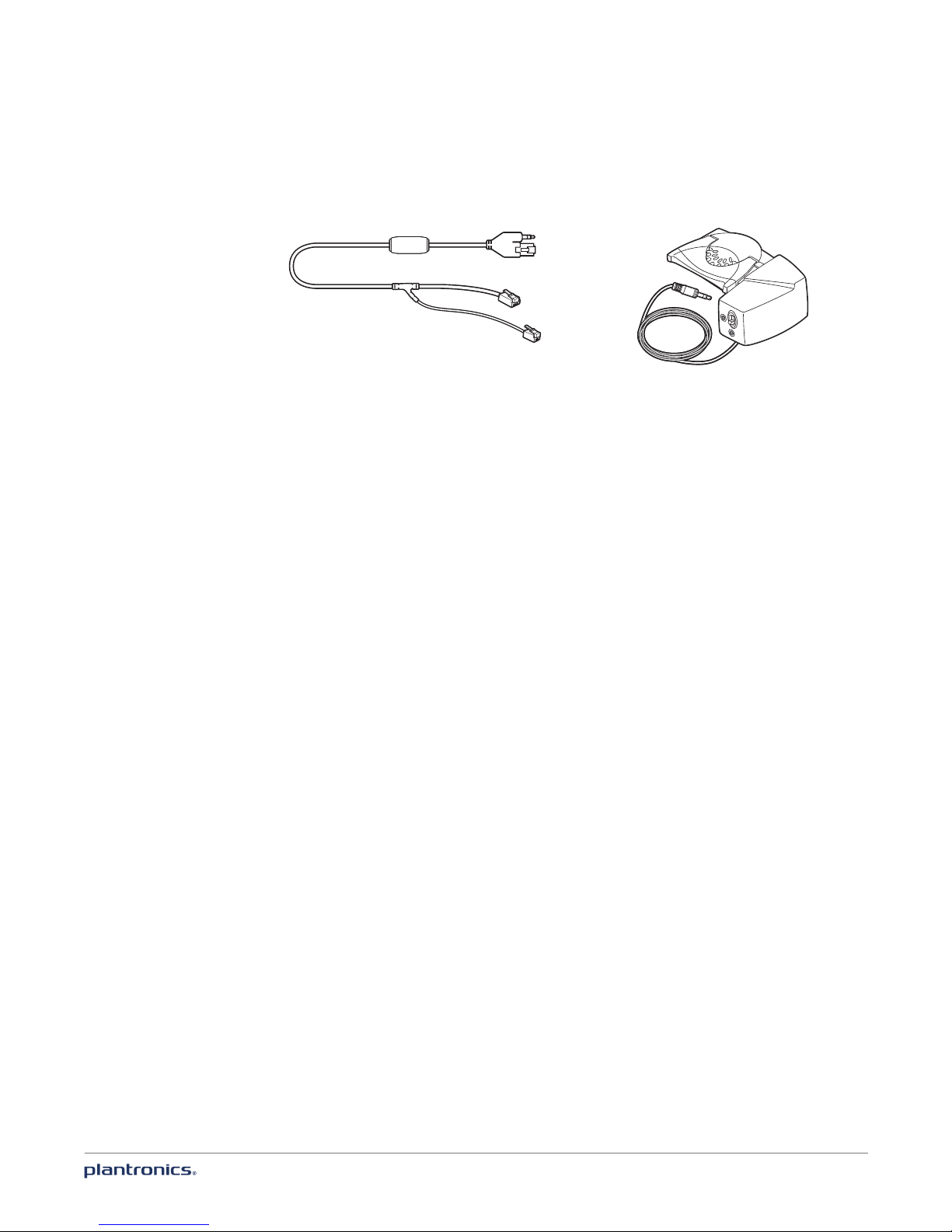

Accessories

1 Electronic Hookswitch Cable (EHS) Electronically takes your desk phone handset off hook.

Enables remote call answer/end with your headset.

2HL10™ Lifter Automatically lifts handset and returns it to the cradle. Enables remote call

answer/end with your headset

Customise your headset

Customise the headset by changing the ear tip, wearing it on the right or left

and optimising the position of the microphone

Change the ear tip

1 The headset comes with a pre-installed ear tip. To install a different ear tip see the following:

Remove the pre-installed ear tip by pushing in and turning the ear tip CLOCKwise, then pull

ﬁrmly.

2 Choose the size and style of ear tip that ﬁts most comfortably. Align ear tip tabs with notches

in headset. Push in ﬁrmly and twist COUNTER clockwise.

NOTE When installing a gel tip ensure the raised part of the ear tip is pointed toward the curved

section of the headset as shown.

Position your headset

When you wear the headset, the microphone should rest as close to your cheek as possible

without touching. The microphone can be adjusted inward by the pivoting earpiece to optimize

the position of the headset.

1 Slide the headset over and behind your ear, then press gently toward your ear.

2 Rotate the microphone boom until it is pointed toward your mouth.

Left ear wearing

1 The headset can be converted for wearing on left ear as follows:

2 Turn microphone boom around.

3 Rotate microphone boom down.

This section describes how to connect the base to your desk phone.

Connect the power

Plug one end of the power supply into the power jack on the back of the base and the other end

into a working power outlet. The Power On LED will be solid white.

Charge the headset

Place the headset in the charge cradle. The charging LED on the base will ﬂash green when

charging and turn solid green when the headset is fully charged. Charge for at least 20 minutes

prior to the ﬁrst use. A full charge takes 3 hours.

Connect your desk phone

Connect and conﬁgure your desk phone

There are three setup options for connecting the CS530A to your desk phone. Select one of the

following and continue.

• Desk phone (standard)

• Desk phone + HL10 lifter (sold separately)

• Desk phone + EHS cable (sold separately)

NOTE If you will be using a standard desk phone set up or a desk phone with an HL10 lifter, continue

below. If you will be using the desk phone with an EHS cable, refer to Desk phone plus EHS cable

section in this guide. For further installation information refer to the EHS Getting Started guide that

came with your EHS cable or at plantronics.com/accessories.

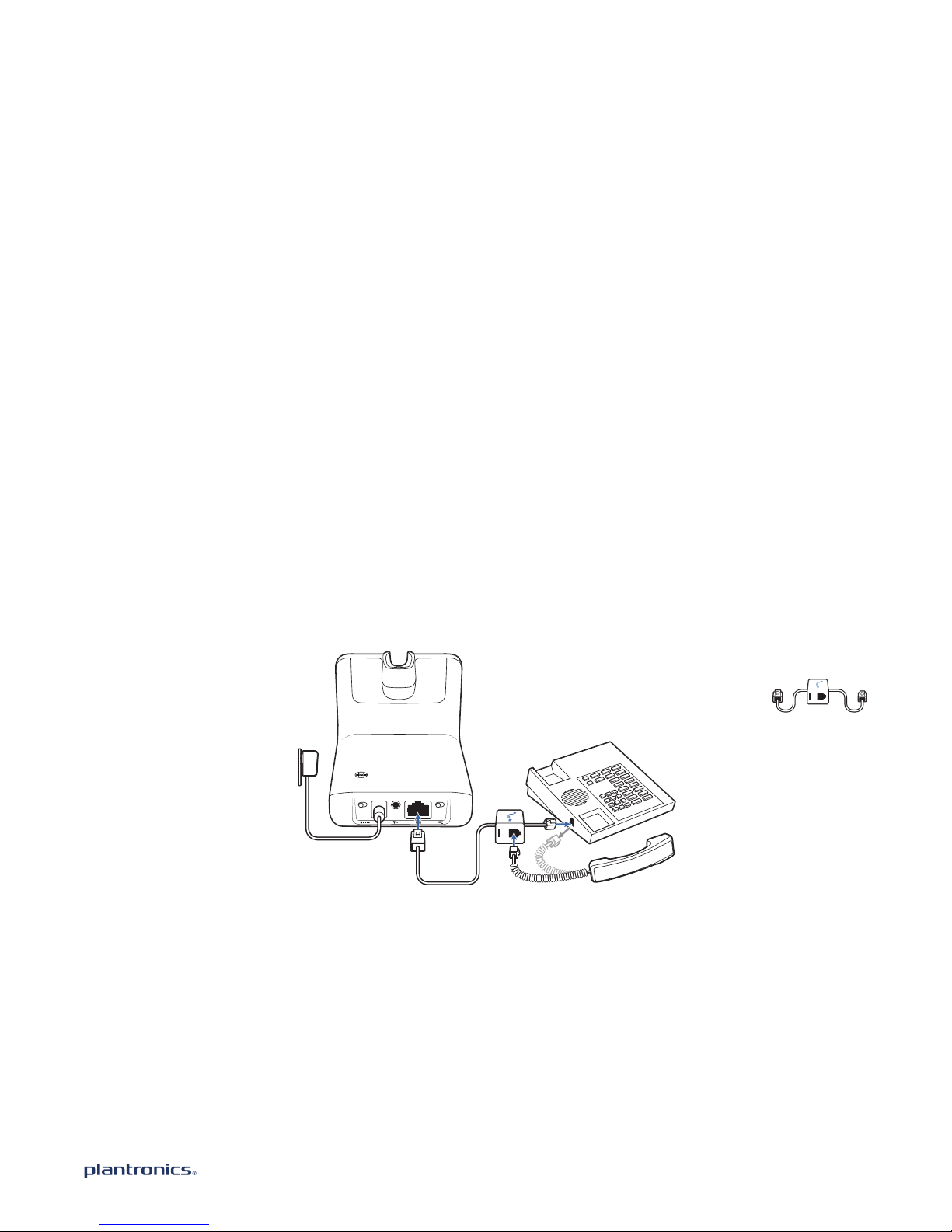

Desk phone (standard)

1 Connect one end of the telephone interface cable to the back of the base.

2 Disconnect the handset coil cord from the desk phone and re-connect it to the telephone

interface cable junction box.

3 Connect the remaining end of the telephone interface cable into the open handset port on the

desk phone.

NOTE Your desk phone handset will continue to work; it’s just hooked up differently.

USE

NOTE If your phone has a built-in headset port, you should only use the headset port if you will not

be using the HL10 lifter. In this conﬁguration, you must press both the headset button on your phone

and the call control button on the headset to answer or end calls.
