LEARN

BackBeat™903+

Bluetooth® Headphones

TAKE A GOOD LOOK

CALL BUTTON

• Takeacallorendit (1 tap)

• Redial(2 taps)

• Initiatephone’svoice-dialing(2-second

press until tone is heard)

• ReconnectlostBluetoothconnection

(1 tap if the headphones don’t automatically

reconnect)

• CancelmissedcallLED(1 tap)

• Rejectacall(2-second press)

• Transfercallto/fromphone 

(during call, 2-second press)

• Enable/disableOnlineIndicator(while

powered on, 2-second press Call and

Volume Up buttons)

MICRO USB CHARGING PORT

• UsewiththeACwallcharger:

1 hour before ﬁrst use

3 hours (100% charge)

• Donotuseheadphoneswhilecharging

VOLUME/TRACKING BUTTONS

• VolumeUp/Down(1 tap per level change)

• TrackForward/Back(2-second press per

track change)

• Enable/DisableOpenMic™(3-second press

Call and Volume Down buttons)

LED

• Charging(solid red)

• Fullycharged(brief solid blue ﬂash)

• Lowbattery(2 red ﬂashes every

15 minutes)

• Onacall(blue ﬂash every 2 seconds)

• Missedcall(3 purple ﬂashes repeating

for 5 minutes or until cancelled)

• Pairingmode(repeating red/blue

ﬂashes)

MUSIC BUTTON

• Play/Pause (1 tap)

• BassBoost(2-second press)

• MuteMusicorCall(1 tap)

• UseOpenMic™topausemusic

andactivatemic(1 tap)

POWER/PAIRING BUTTON

• On/Off(2-second press to turn

on, 4-second press to turn off)

• Activatepairingmodeafter

initialsetup(press until

red/blue LED ﬂashes)

• Checkbatterylevel(1 tap)

Besafe!Pleasereadthesafetyguide

beforeusingyournewheadphones.

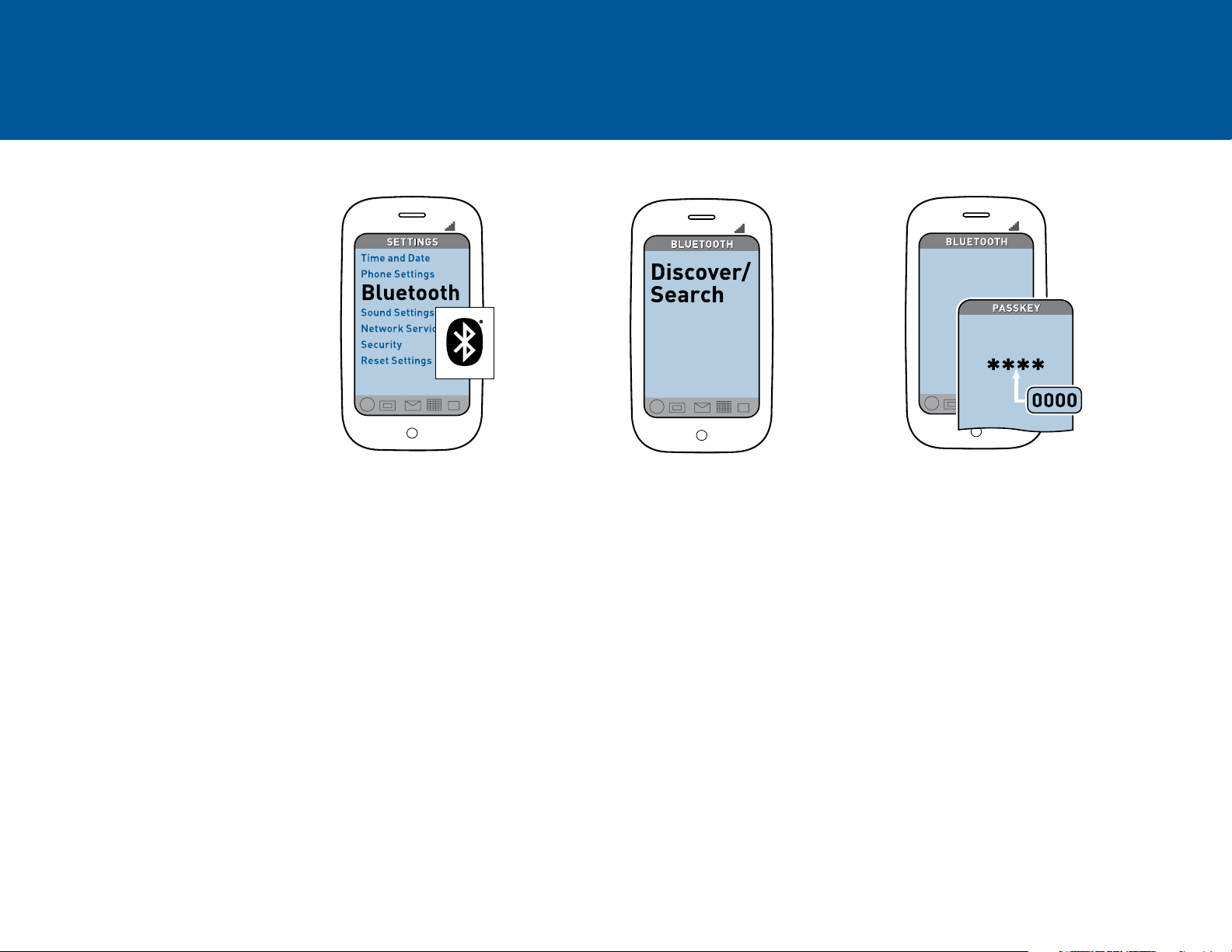

CONNECT TO YOUR PHONE

Pairing is a one-time process

unless your phone loses the

connection or you want to

pair to a new phone.

1. READY

Activate the Bluetooth feature

on your device, then get it to

add / search for / discover new

Bluetooth devices.

Phoneshavedifferentmenus

toselectfrom:

iPhone: Settings > General >

Bluetooth > On

(starts the search for devices)

BlackBerry®smartphone:

Settings/options >

Bluetooth: On >

Search for devices

VIDEO TUTORIAL IN USA:

www.plantronics.com/pairing

2. SET

Firsttime,rightoutofthebox:

With headphones turned off,

activate Bluetooth pairing mode

by pressing Power/Pairing button

on. The LED ﬂashes red/blue to

indicate pairing mode.

Pairingnewphone/reconnecting

original:

With headphones turned off, press

Power/Pairing button until the LED

ﬂashes red/blue.

3. CONNECT

Select “PLT_BB903+” from the list

of Bluetooth devices shown on

your device.

If device asks for a passcode, enter

four zeros (0000). You may see

**** on screen.

Some devices also ask to conﬁrm

connection after pairing.

The headphone’s LED will stop

ﬂashing red/blue once success-

fully paired/connected.

You can now make a call using

your device’s keypad or voice-

dialing feature.

PLT_BB903+

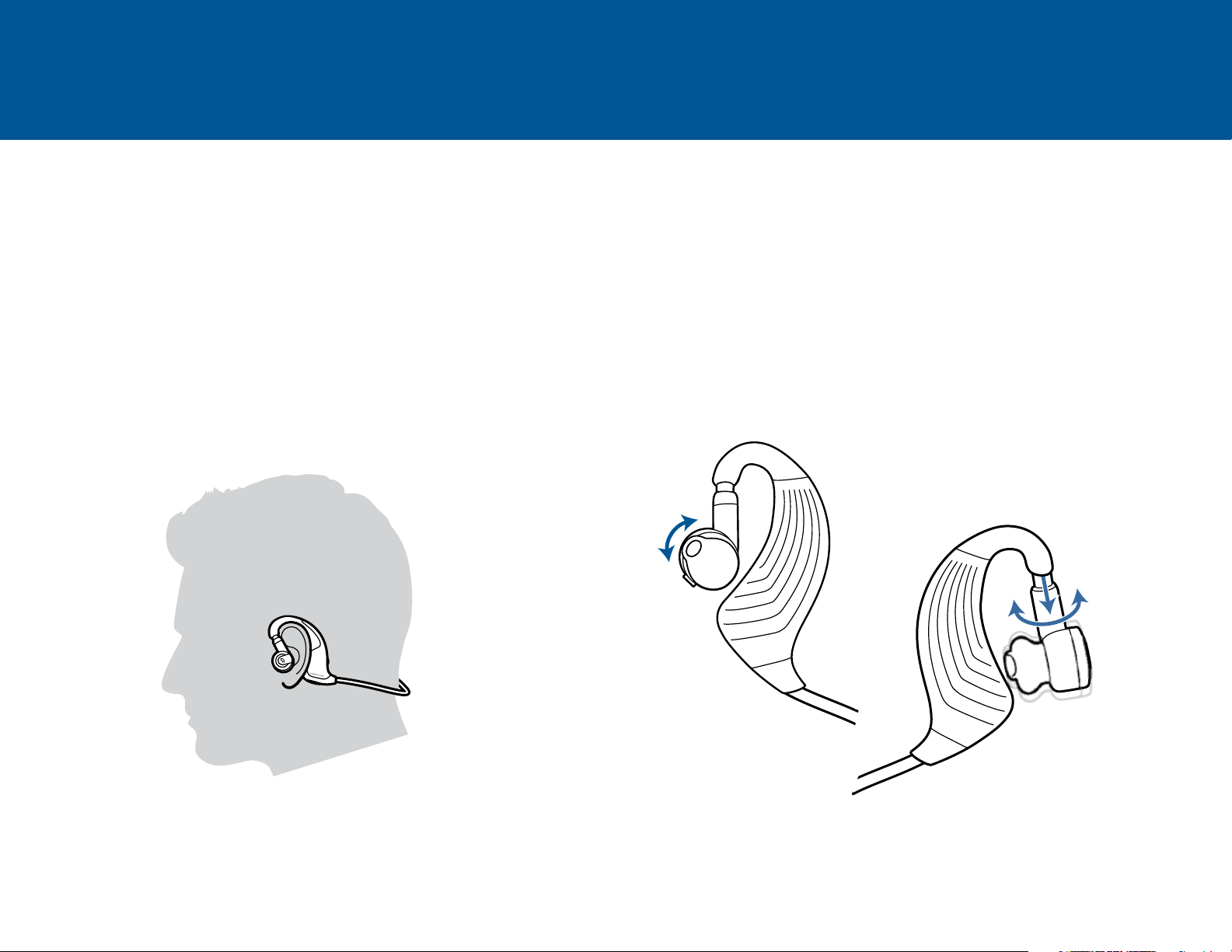

ADJUST THE FIT

For the best sound performance and a secure, comfortable

ﬁt, be sure to adjust the headphones to rest gently in your

ear and drape around the back of your neck.

1. Drape the stereo cable behind your neck.

2. Guide one earpiece behind your ear and secure the

eartip inside your ear using the telescoping/swivel

adjustments.

3. Repeat step 2 with the other earpiece and continue

to adjust the ﬁt in each ear until both eartips rest

comfortably and securely in your ears.

LISTEN TO THE VOICE

WHAT YOU’LL HEAR WHEN YOU’LL HEAR IT

ListeningTime:(5hrs,

4hrs,3hrs,2hrs,1hr)

After 2-second press of the Power button to turn on

power or after a short press during music play

BatteryLow When you have approximately 30 minutes left before

the battery must be recharged

RechargeBattery When you have approximately 10 minutes left before

the battery must be recharged

Connected After pressing the Power button to turn on power or to

reconnect a dropped Bluetooth connection

IncomingCall As an incoming call rings to your phone

TrackForward/Back After 2-second press of either track forward + or track

backward - button

MuteOn After tapping the Music button during a call

MuteOff When on mute during a call, after tapping the Music

button

LostConnection When the phone loses the Bluetooth connection with

the headphones

These headphones whisper various

status alerts when you power on/off,

run low on listening time, or lose/

reconnect the Bluetooth connection

to your phone.

TIPS

Make Calls With Voice Dialing:

Your headphones can work with

your phone’s voice dialing feature.

Press the Call button for 2 seconds

and listen for the low tone. Your phone

may prompt you by saying something

like “Name Please.” Check your phone’s

documentation for details.

Hear What’s Going On Around You:

Your headphones use the OpenMicTM

feature to pause the music when you

want to hear your surroundings or

have a quick chat with someone near-

by. To use this feature, tap the Music

button once, then tap it again when

you are ﬁnished and want to resume

music play.

To disable this feature, press the Call

and Volume Down buttons for 3 sec-

onds (you will hear a low-high-low set

of tones). To re-enable it, press the Call

and Volume Down buttons for 3 sec-

onds (you will hear a high-low-high set

of tones).

Check the Battery Level:

If you are on a call or listening to

music and hear 3 high tones then

you have under 10 minutes of listen-

ing time remaining.

At other times, you can check the

battery level by tapping the Power

button. The headphones will say

how many hours of useage remain.

The LED also ﬂashes red to show

the battery level.

1 ﬂash = more than 2/3 full

2 ﬂashes = 1/3 - 2/3 full

3 ﬂashes = less than 1/3 full

Stay Near Your Device:

Bluetooth has a working “range” of

up to 33 feet between the device and

headphones before audio degrades

and the connection is lost. For best

audio reception, keep your device on

the left side of your body.

Know How to Reconnect:

Your headphones try to reconnect

a lost Bluetooth connection. If they

can’t, then tap the Call button once

or manually reconnect via the device’s

Bluetooth menu.

SPECIFICATIONS

Talk/ListeningTime Up to 7 hours

StandbyTime Up to 7 days

OperatingDistance(Range) Up to 33 feet from device

HeadphonesWeight 34 grams

HeadphonesDimensions L x W x H = 330 mm x 20 mm (at widest point of

earpiece) x 57 mm

ChargeConnector Micro USB charging

BatteryType Rechargeable, non-replaceable Lithium ion polymer

ChargeTime(Maximum) 3 hours

PowerRequirements 5V DC – 180 mA

BluetoothVersion 2.1 + Enhanced Data Rate (EDR) and eSCO data packet

transfer

BluetoothProles Supports Advanced Audio Distribution (A2DP), Audio/

Video Remote Control (AVRCP), Hands-free (HFP) v1.5

and Headset (HSP) v1.1

Operating,Storageand

ChargingTemperature

32°F - 104°F (0°C - 40°C)

NEED MORE HELP?

Phone support in USA:

1-866-363-BLUE (2583)

1-year limited warranty details:

www.plantronics.com/warranty

are trademarks or registered trademarks of Plantronics, Inc. Bluetooth is a registered

trademark of Bluetooth SIG, Inc. and any use by Plantronics is under license. iPhone is

a trademark of Apple, Inc., registered in the U.S. and other countries. Blackberry is the

property of Research In Motion Limited and is registered and/or used in the U.S. and

countries around the world. All other trademarks are the property of their respective

owners. Patents US D619561; China ZL200930192537.2; EM 001142582-002; Taiwan

D135150; Patents Pending AM84445-01 (03/11)

Z109

N10687
