Planet SG-4800 Manuel utilisateur

Gigabit SSL VPN Security Router

SG-4800

Quick Installation Guide

Table of Contents

1. Package Contents ....................................................................................... 3

2. Hardware Installation .................................................................................. 4

2.1 Safety Instruction ................................................................................ 4

2.2 Front panel ......................................................................................... 4

2.3 LED&Buttondenition........................................................................ 5

2.4 Placement........................................................................................... 5

2.5 Network Connection............................................................................. 6

3. BasicSystemConguration ......................................................................... 7

3.1 Web Login .......................................................................................... 7

3.2 ConguringtheWAN ........................................................................... 8

3.3 Remote Management ..........................................................................10

4. Furtherconguration..................................................................................12

1. Package Contents

Thank you for purchasing PLANET Gigabit Multi-Homing VPN Security Router, SG-

4800,andthisQuickInstallationGuidewillintroducehowtonishthebasicsetting

to connect the internet. Open the box of the VPN Security Router and carefully

unpackit.Theboxshouldcontainthefollowingitems:

SG-4800x1l

QuickInstallationGuidex1l

User’sManualCDx1l

PowerCordx1l

Cat5Cablex1l

19inchesBracketsx2l

BracketScrewx8l

If any of above items are damaged or missing, please contact your dealer

immediately.

2. Hardware Installation

The followings are instructions for setting up PLANET SG-4800. Refer to the

illustration and follow the simple steps below to quickly install your VPN Security

Router.

2.1 Safety Instruction

ThefollowingisthesafetyinstructionsforVPNSecurityRouterbeforeinstalling.

Themaximumoperatingtemperatureofthe routeris50ºC.Care must be taken

toallowsufcientaircirculation.

The connections and equipment that supply power to the router should be

capableofoperatingsafelywiththemaximumpowerrequirementsoftherouter.

In the event of a power overload, the supply circuits and supply wiring should

notbecomehazardous.

The AC power cord must plug into the right supply voltage. Make sure that the

supplied AC voltage is correct and stable. If the input AC voltage is over 10%

lowerthanthestandardmaycausetheroutertomalfunction.

Generally, when installed after the nal conguration, the product must comply

with the applicable safety standards and regulatory requirements of the country

inwhichitisinstalled.Ifnecessary,consultfortechnicalsupport.

2.2 Front panel

Figure 2-1 Front Panel of the SG-4800

Power Indicator:Lightsupwhenthepowerison.

DIAG Indicator:Glitterswhensystemisonself-testafterpoweronthedevice.

Ethernet Port can be set as a:

LAN Port:lTheSecurityRoutersupports8LANport.

WAN Port:lTheSecurityRoutersupports4WANports.

DMZ Port:lTheSecurityRoutersupports1DMZport.

2.3 LED&Buttondenition

LED Color Status Description

PWR Green Steady PowerOn

Off Off PowerOff

DIAG Amber

SteadyOn Systemiscrashed.

Blinking Systemisonself-testafterpoweronthe

device.

Off System is ready.

WAN/DMZ

LINK/ACT Green

SteadyOn Porthasbeenconnected&getsIP.

Blinking Transmit data.

Off NotgettheIPaddress,eventheporthas

been connected.

LAN

LINK/ACT Green SteadyOn LANporthasbeenconnected.

Blinking Transmit data.

LAN/

WAN/DMZ

Speed

Green SteadyOn Works on 1000Mbps.

Amber SteadyOn Works on 100Mbps.

Off Off Works on 10Mbps.

Button Action Description

Reset

Press for 5 Secs Warm Start

DIAGindicator:AmberLEDashingslowly.

PressOver10Secs Factory Default

DIAGindicator:AmberLEDashingquickly.

2.4 Placement

Makesurethedeviceisplacedinasafeenvironmenttoavoidequipmentfailure.

DONOTplaceanythingontopofthedevice.Excessiveweightcoulddamageit.l

DO NOT obstruct ventilation slots on each side of the router or expose it tol

direct sunlight or other heat source. Be sure that there is adequate air ow

aroundtherouter.

Placetherouteronaatsurfacetoavoidanydamage.l

2.5 Network Connection

SSL VPN Tunnel

Modem

ADSL

PC SG-4800

Vendor

Headquarters Action Office

Branch Offices

Mail-ServerWeb-Server

DMZ

Access Point

Firewall GatewayFirewall Gateway

Modem

PC Group

Laptop

Firewall Firewall

ADSL

a/n

PPTP VPN Tunnel

IPSec VPN Tunnel

ADSL 2/2+

ADSL

VDSL2

100Base-TX UTP

1000Base-T UTP

5GHz 802.11a/n

a/n

VDSL2VDSL2

Action Office

Internet

Finance-Server

Figure 2-2 Topology of the SG-4800

3.BasicSystemConguration

3.1 Web Login

Step 1. Connect a computer to a LAN port on the router. Your PC (DHCP client

mode) will obtain an IP address automatically. (It is usually in the

192.168.1.xrange.)

Step 2. Start a web browser. To use the user interface, you need a PC with

InternetExplorer(version6andhigher),Firefox,orSafari(forMac).

Step 3. Enter the default IP address of the router: 192.168.1.1 into the URL

addressbox.

Step 4. Enterthedefaultusernameadminandthedefaultpasswordadmin.Then

clickLogintoenterWeb-baseduserinterface.

Figure 3-1 Login page of the SG-4800

DefaultLANIP:192.168.1.1

DefaultName:admin

DefaultPassword:admin

3.2 ConguringtheWAN

Step 1. GotoNetwork NetworkConnectiontondWAN Setting.

Figure 3-2 Network connection button

Figure 3-3 Multi-WAN interface setting page

Step 2. ClickEdittoenterWANcongurationpage.

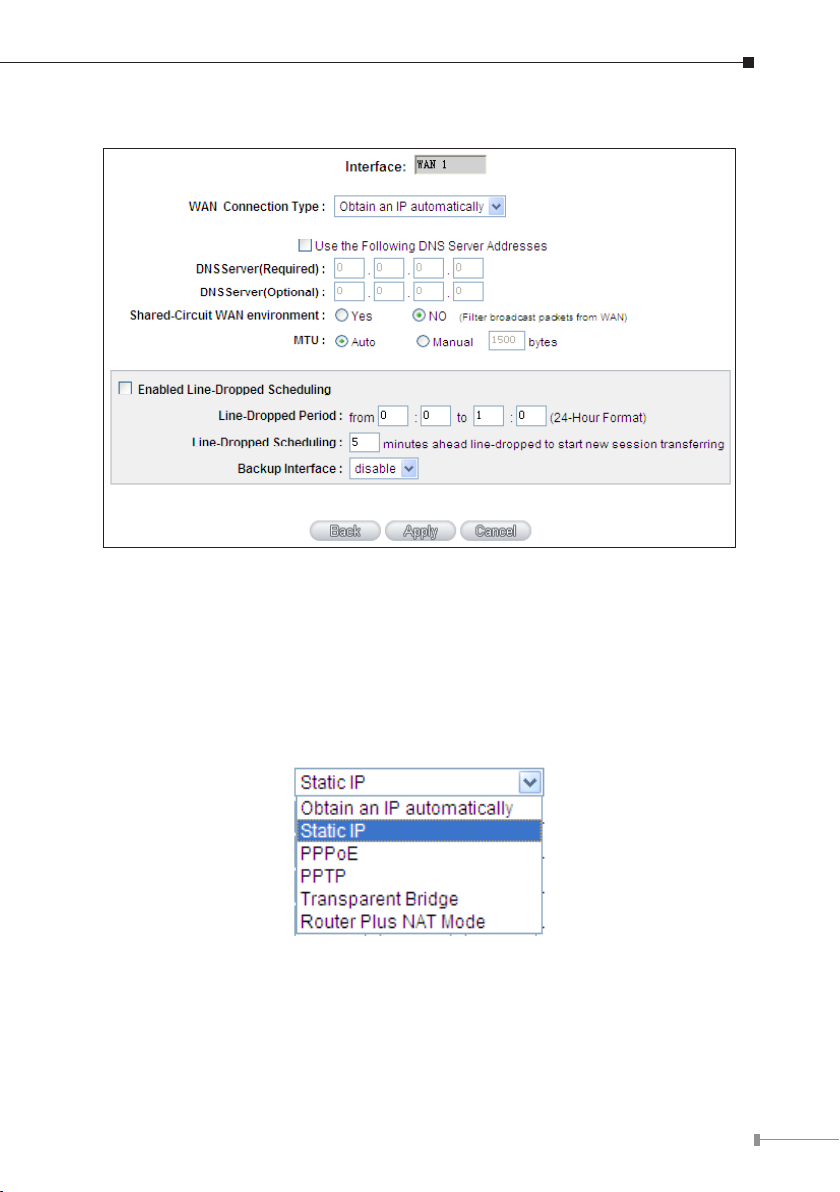

Figure 3-4 WAN conguration page

There are six types of WAN connection. They are Obtain an IP automatically,

Static IP, PPPoE (Point-to-Point Protocol over Ethernet), PPTP (Point-to-Point

Tunneling Protocol), Transparent Bridge or Router Plus NAT Mode. Users

can choose according to their actual network structure. You can nd detail setting

processintheusermanual.

Figure 3-5 WAN connection type selection item

3.3 Remote Management

Thefunctioncanenableuserstomanagethesecurityrouteratremotesitesandto

allowtechnicalpersontoassistyouinsolvingnetworkproblem.

Step 1. GotoFirewall General Policy.

Figure 3-6 The rewall setting button

Figure 3-7 General Policy setting page

Step 2. Click Enable to active Remote Management. And then enter the control

portyouwanttouse.Thedefaultvalueis8080.

Step 3. Click Applytosavetheconguration.Andyoucantypethehttp://WAN

IP address: 8080toaccesstherouterfromtheremoteside.
