PLANET Technology GRT-101 User’s Manual
- 0 -
Networking & Communicatio
n
G.SHDSL Bridge/Router
GRT-101
User’s Manual
PLANET Technology GRT-101 User’s Manual
- 1 -
Copyright
Copyright (C) 2002 PLANET Technology Corp. All rights reserved.
The products and programs described in this User’s Manual are licensed products of PLANET
Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s
Manual and all accompanying hardware, software, and documentation are copyrighted.
No part of this User’s Manual may be copied, photocopied, reproduced, translated, or reduced to any
electronic medium or machine-readable form by any means by electronic or mechanical. Including
photocopying, recording, or information storage and retrieval systems, for any purpose other than the
purchaser's personal use, and without the prior express written permission of PLANET Technology.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and
applications, and makes no warranty and representation, either implied or expressed, with respect to the
quality, performance, merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability
for any inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent a
commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be
contained in this User’s Manual. PLANET makes no commitment to update or keep current the
information in this User’s Manual, and reserves the right to make improvements to this User’s Manual
and/or to the products described in this User’s Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate
your comments and suggestions.
CE mark Warning
The is a class B device, In a domestic environment, this product may cause radio interference, in which
case the user may be required to take adequate measures.
Trademarks
The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous
hardware and software products by their trade names. In most, if not all cases, these designations are
claimed as trademarks or registered trademarks by their respective companies.
Revision
User’s Manual for PLANET G.SHDSL Bridge/Router:
Model: GRT-101
Rev: 1.0 (Jul. 2002)
Part No. EM-GRTV1
PLANET Technology GRT-101 User’s Manual
- 2 -
Table of Contents
TABLE OF CONTENTS...................................................................................2
CHAPTER 1 OVERVIEW ................................................................................4
CHAPTER 2 INSTALLATION..........................................................................7
2.1 FRONT PANEL LEDS.................................................................................7
2.2 REAR PANEL PORTS..................................................................................7
2.3 REAR PANEL CONNECTIONS ......................................................................8
2.4 SETTING UP THE HARDWARE ENVIRONMENT ................................................9
CHAPTER 3 CONFIGURATION....................................................................10
3.1 PURPOSE...............................................................................................10
3.2 LOGON PROCEDURE ...............................................................................10
3.2.1 Serial console................................................................................10
3.2.2 Telnet.............................................................................................11
3.2.3 Web browser..................................................................................11
3.3 QUICK INSTALLATION...............................................................................12
3.3.1 Bridge Mode ..................................................................................12
3.3.2 Routing Mode for PPPoA and PPPoE with IP Sharing ..................14
3.3.3 Routing Mode for IPoA or EoA........................................................16
3.3.4 LAN-to-LAN Connection with Bridge Mode .....................................18
3.4 OPERATION INTERFACE ...........................................................................20
3.4.1 Multi-level password protection......................................................21
3.5 CONNECTION MODE................................................................................22
3.6 BRIDGING MODE.....................................................................................22
3.6.1 Bridge management ......................................................................22
3.6.2 Static bridge table..........................................................................23
3.7 ROUTING MODE......................................................................................24
3.7.1 LAN setting....................................................................................24
3.7.2 Static routing table.........................................................................25
3.7.3 NAT/PAT ........................................................................................26
3.7.4 DHCP server..................................................................................29
3.7.5 DNS proxy .....................................................................................29
3.8 WAN AND ATM VIRTUAL CONNECTION ....................................................30
3.8.1 SHDSL operation...........................................................................30
3.8.2 ATM virtual connection...................................................................31
3.8.3 ATM traffic shaping........................................................................33
PLANET Technology GRT-101 User’s Manual
- 3 -
3.8.4 WAN IP address ............................................................................34
3.8.5 ISP profile for PPP.........................................................................34
3.9 SYSTEM STATUS AND PERFORMANCE.......................................................35
3.10 USER PROFILE .....................................................................................37
3.11 MANAGEMENT SECURITY.......................................................................38
3.11.1 Telnet port number.......................................................................38
3.11.2 Legal client IP ..............................................................................39
3.12 SNMP SUPPORT..................................................................................40
3.12.1 SNMP community........................................................................40
3.12.2 SNMP trap...................................................................................40
3.13 BACKUP AND RESTORE CONFIGURATION.................................................41
3.13.1 Backup configuration ...................................................................41
3.13.2 Restore configuration...................................................................42
3.14 SOFTWARE UPGRADE ...........................................................................43
PLANET Technology GRT-101 User’s Manual
- 4 -
Chapter 1 Overview
Based on digital subscriber line (DSL) technology, PLANET new DSL product,
GRT-101 provides an affordable, flexible, efficient Internet access solution for
SOHO customers while reducing deployment and operational costs from
service providers. Via sending and receiving user’s datagram (often Internet
service) over existing telephone lines, GRT-101 concentrates all traffic onto a
single high-speed trunk for Internet activities or sharing a corporate intranet.
Through the simple-yet-powerful management UI of GRT-101, networks
administrators can complete a managed network deployment just in seconds.
SOFTWARE FEATURES
Easy configuration and management with password control for various
application environments
Efficient IP routing and transparent learning bridge to support
broadband Internet services
Fully ATM protocol stack implementation over SHDSL
ATM traffic shaping delivers quality-of-service (QoS) guarantees for
multimedia applications
PPP supports user authentication with PAP/CHAP/MS-CHAP
SNMP management with MIB II
Getting enhancements and new features via Internet software upgrade
SOFTWARE SPECIFICATIONS
ATM Protocol
ATM adaptation layer type 5 (AAL5)
VC multiplexing and LLC encapsulation
Multi-protocol over AAL5 (RFC 1483/2684 bridged and routed PDU)
Classical IP over ATM (RFC 1577 with MTU = 1500)
Up to 8 PVCs
Traffic shaping CBR/UBR
UNI 3.1/4.0 PVC
I.610 OAM F5 loopback
PPP Support
PPP (RFC 1661)
PPP over AAL5 (RFC 2364)
PPP over Ethernet (RFC 2516)
PLANET Technology GRT-101 User’s Manual
- 5 -
User authentication with PAP/CHAP/MS-CHAP
Routing Capability
IP routing with static routing and RIPv1/RIPv2
NAT/PAT with virtual server mapping
DHCP server
DNS proxy
Bridging
IEEE 802.1D transparent learning bridge
Up to 128 MAC learning addresses
Configuration
Local console (RS232)
Telnet access
Web-based GUI (HTTP)
Multi-level password protection
Network Management
SNMPv1/SNMPv2 agent
MIB II
Software Upgrading
TFTP download
Hardware Specification
WAN/LAN Ports RJ-11 SHDSL WAN port x1
10Mbps LAN port x1
Connector RJ-11 connector for WAN, RJ-45 connector for LAN
Cabling
Requirement G.SHDSL : AWG26 or higher
10 Base T : UTP/STP Category 3 or 5
LEDs SHDSL , Power Status, WAN Link and Action Status,
LAN Link/Active (and 100M Status)
Speed SHDSL : 192Kbps to 2.304Mbps (64Kbps per
channel)
LAN Switch : 10 Mbps at half duplex
Power External power adapter 9V DC, 1000mA
PLANET Technology GRT-101 User’s Manual
- 6 -
Environmental Operating temperature: 0° to 45°C
Storage temperature: -10° to 70°C
Housing Plastic Case
Dimension 145 mm x 187 mm x 33 mm (L x W x H)
PLANET Technology GRT-101 User’s Manual
- 7 -
Chapter 2 Installation
2.1 Front Panel LEDs
The LEDs on the front panel indicate the operational status of GRT-101.
Figure 2-1 Front Panel
The following table describes the LEDs’ functions:
Table 2-1 LED Functions
LEDs Color Active Description
PWR Green ON
The power adaptor is connected to the
Modem
LNK Green ON SHDSL connection is established
WAN ACT Green ON
Transmit data or receive data over SHDSL
link
LNK/ACT Green ON Transmit data or receive data over Ethernet
link
LAN 100M Green ON
LED is on 100Mbps mode (reserved for
future use)
2.2 Rear Panel Ports
The connectors on the rear panel provide Power, LAN, CONSOLE and LINE
interfaces.
Figure 2-2 Rear Panel
PLANET Technology GRT-101 User’s Manual
- 8 -
The following table describes the connectors’ functions:
Table 2-2 Connector Functions
Connectors Description
DC-IN Power adaptor inlet: Input voltage 9VDC
LAN Ethernet 10BaseT for LAN port (RJ-45)
CONSOLE RS- 232C (DB9) for system configuration and maintained
LINE SHDSL interface for WAN port (RJ-11)
2.3 Rear Panel Connections
The figure shows the rear panel connections of GRT-101.
The STU-R is a standalone and can able to place in desktop. All the external
wiring shall be located at the rear panel. The LAN port is a 10 Base-T
auto-sensing and half/full duplex configurable Ethernet interface and complied
with IEEE 802.3u respectively. The console (RS-232C) interface for
configuration are menu-driven operation and can also be configured through
Ethernet interface by Telnet or Web-based operation. The power switch
operated for power on and power off
Figure 2-3 Direct Connection with PC or NB
PC NB
Wall Jack
Power
Adapter
Cross
Over
Ethernet
DB-9
Cable
PLANET Technology GRT-101 User’s Manual
- 9 -

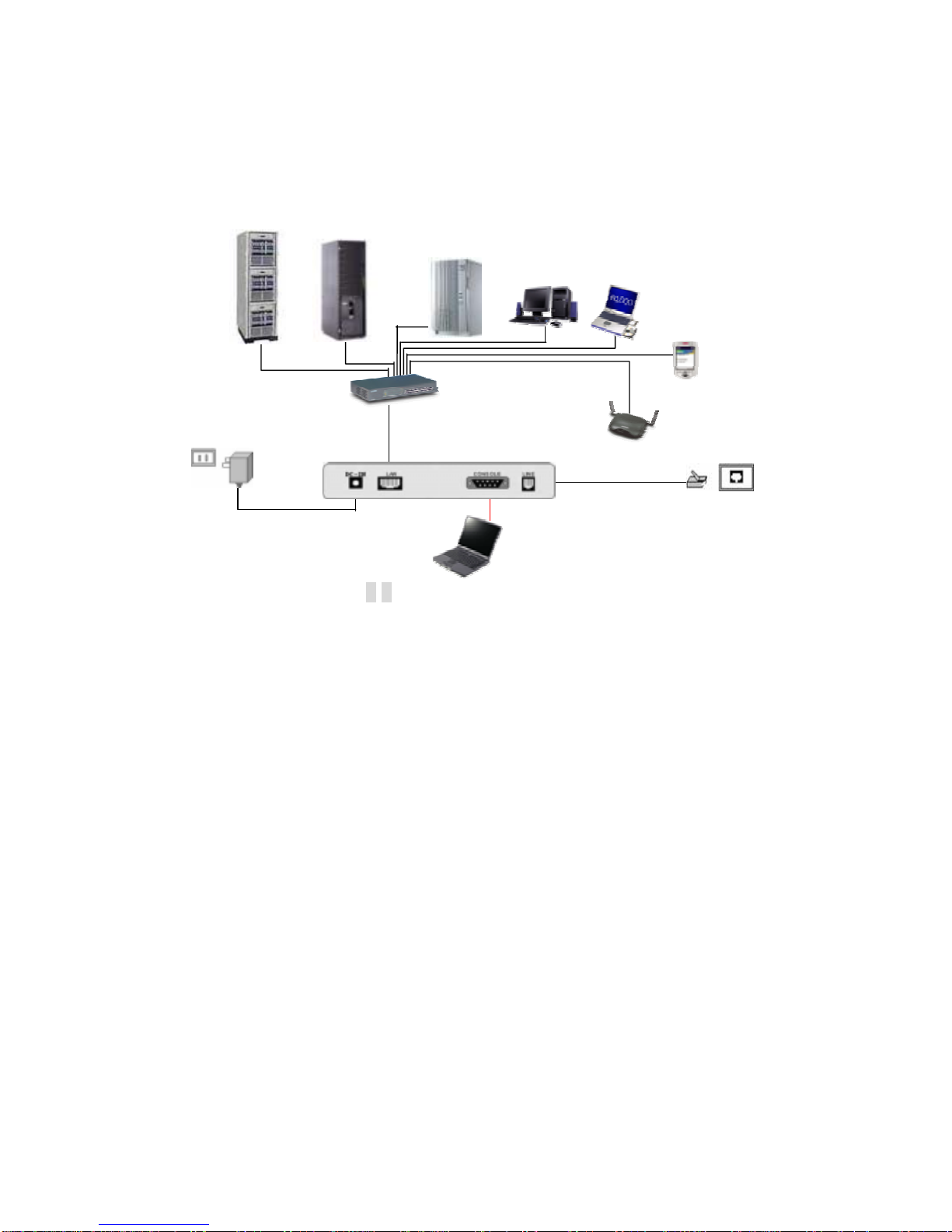

Figure 2-4 Connection with Switch or HUB
2.4 Setting up the hardware environment
Step 1: Connect the power adapter to the port labeled DC-IN on the rear
panel of the product.
Step 2: Connect the Ethernet cable.
If GRT is directly connected to PC, the Ethernet cable has to be used
cross over one (refer to figure 2-3). If the product is connected to hub
or switch, be sure that the hub or switch supporting auto-sensing or
not. If yes, both cross over and none cross over Ethernet cable are
suitable. If not, only none cross over Ethernet cable could be used
(refer to figure 2-4).
Step 3: Connect the phone cable to the product. Connect the other side of
phone cable to wall jack.
Step 4: Connect male end of RS-232 cable to the product and female end to
any free COM port in PC.
Step 5: Connect the power adapter by plugging power supply.
Wall Jack
Non-cross
Over
Ethernet
Server File Server
PC
NB
Power
DB-9
HUB/Switch
Workstation
Mobile
Device
Wireless LAN
Autres manuels pour GRT-101
5
Table des matières
Autres manuels Planet Matériel réseau
Planet
Planet ICA-HM230 Manuel utilisateur
Planet
Planet NVR-3210 Manuel utilisateur
Planet
Planet NVR-420 Manuel utilisateur
Planet
Planet IPOE-171-60W Manuel utilisateur
Planet
Planet NVR-820 Manuel utilisateur
Planet
Planet NVR-820 Manuel utilisateur
Planet
Planet IVS-100 Manuel utilisateur
Planet
Planet FGSW-2402VS Manuel utilisateur
Planet
Planet GRT-501 Manuel utilisateur
Planet
Planet EPL-2000 Manuel utilisateur
Planet
Planet PL-501 Manuel utilisateur
Planet
Planet NVR-1600 Manuel utilisateur
Planet
Planet IPOE-171-60W Manuel utilisateur
Planet
Planet FSD-624SF Manuel utilisateur
Planet
Planet NVR-3685 Manuel utilisateur
Planet
Planet GRT-101 Manuel utilisateur
Planet
Planet FGSW-2840 Manuel utilisateur
Planet
Planet NVR-820 Manuel utilisateur
Planet
Planet HPOE-2400G Manuel utilisateur
Planet
Planet MGB-Series Manuel utilisateur
Manuels Matériel réseau populaires d'autres marques
Matrix Switch Corporation
Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur
B&B Electronics
B&B Electronics ZXT9-IO-222R2 Manuel utilisateur
Yudor
Yudor YDS-16 Manuel utilisateur
D-Link
D-Link ShareCenter DNS-320L Manuel utilisateur
Samsung
Samsung ES1642dc Instructions d'utilisation
Honeywell Home
Honeywell Home LTEM-PV Instructions de montage
