Planet VC-301 Manuel utilisateur

VC-301

The PLANET VDSL2 Modem - VC-301 is a very high performance

VDSL2 bridge modem providing one RJ-11 port for connecting to

VDSL2 CO and one 10/100M Ethernet RJ-45 port for connecting to

local PC. The VC-301 uses highly integrated chipsets solution and

supports the VDSL2 and VDSL standards.

The VC-301 can provide very high performance access to Internet,

both downstream and upstream up to 100Mbps. It offers rich feature

set for IPTV and triple play that includes on-chip classiﬁcation, queuing

and scheduling for enhanced Quality of Service (QoS) in IPv4 and IPv6

networks, enhanced Impulse Noise Protection and etc. The Ethernet

sections are compliant with IEEE802.3/802.3u standards.

Data Sheet

Key Features

Internet Access Features

Shared Internet Access.•All users on the LAN can access the Internet through the VC-301 using only a single external IP Address.

Ultra High Data Rate.•The VC-301 offers data transfer rates up to 100Mbps for Downstream and Upstream bandwidth which is higher than

traditional ADSL. The greater bandwidth could be provided for multiple services over copper wire such as streaming video, Internet surf and VoIP

(Triple Play). SOHO, business user and home user can enjoy high quality internet service access.

Advanced Internet Functions

Supports VDSL2 8a/8b/8c/8d, 12a/12b, 17a, 30a Proﬁles.•The VC-301 offers multiple proﬁles for all common VDSL and VDSL2 connections.

LAN Features

1-Port Ethernet.•The VC-301 provided a 1-port 10/100BaseT Ethernet port to connect your PC.

VDSL2 Modem

Applications

High Speed Wired Internet Connection

The VC-301 is the perfect solution to connect streaming video, VoIP, and Internet surf with high-speed broadband connection. Users are able to enjoy high

quality Internet access.

VC-301

VOIP

IPTV VOD

Data

DSLAM

Internet

100Base-TX UTP

Telephone wire

Central office

Home

The VC-301 is usually preferred to provide Ultra-high Internet access, IPTV, and triple play applications for the individual users, SOHO, enterprises and so on.

VC-301

Data Sheet

Specification

Ordering Information

VC-301 VDSL2 Modem (1 x RJ-11 Port, 1 x RJ-45 Port)

01-09 C-VC301

PLANET reserves the right to change specications without prior notice. All brand names and trademarks are property of

PLANET Technology Corporation

11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C.

Tel: 886-2-2219-9518 Fax: 886-2-2219-9528

Email: [email protected] www.planet.com.tw

VoIP Gateway: vip.planet.com.tw

Product VDSL2 Modem

Model VC-301

Hardware

Ports WAN

LAN

1 x RJ-11 Port (VDSL2)

1 x RJ-45 Port (10Base-T/100Base-TX, Auto-Negotiation, Auto MDI/MDI-X)

Standard

VDSL2-DMT

-ITU-T G.993.2 VDSL2 (8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a) and support to Upstream 100Mbps /

downstream 100Mbps.

-ITU-T G.993.1 VDSL

Complaints IEEE802.3/802.3u

ETSI TS 101 270-1 V1.3.1 and TS 101 270-2 V1.21

Band Plan 997 and 998 Support

U0 Band Support(25KHz to 276KHz)

Packet Transfer Mode Ethernet in the First Mile(PTM-EFM)

Protocol Bridging to 1 LAN port.

Extended US0 band up to 276KHz

LED Indicators PWR, LINK(DSL ACT), Data, LAN(LNK/ACT,100)

Button 1 x power button

Environment Speciﬁcation

Dimension (W x D x H) 168 x 125 x 24 mm

Power 5V DC, 1.5A

Temperature Operating: 0~50 Degree C

Storage: -20~70 Degree C

Humidity Operating: 5%~ 90% (non-condensing),

Storage: 0~95% (non-condensing)

Emission FCC, CE

Table des matières

Autres manuels Planet Modem

Planet

Planet USB ADSL Modem ADU-2000 Manuel utilisateur

Planet

Planet WL-3600 Manuel utilisateur

Planet

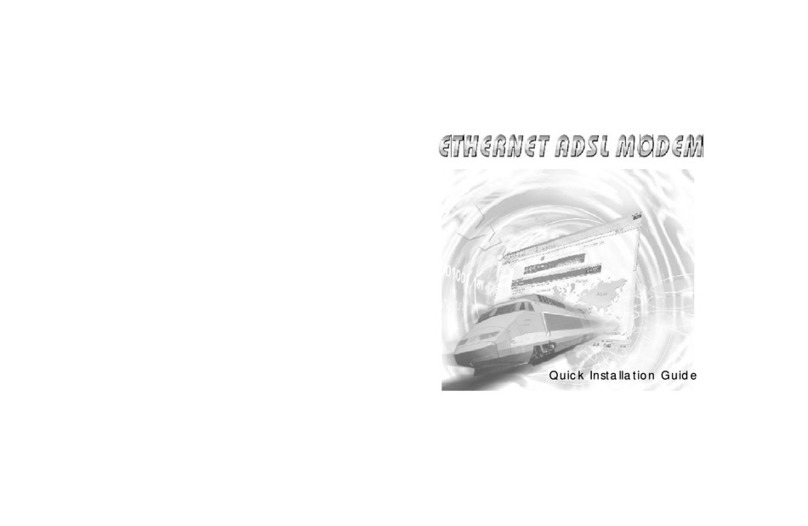

Planet ADE-3000 Manuel utilisateur

Planet

Planet WNAP-7320 Manuel utilisateur

Planet

Planet Bridge/Router ADU-2100 Manuel utilisateur

Planet

Planet ADU-2110A Manuel utilisateur

Planet

Planet ENW-5601 Manuel utilisateur

Planet

Planet VC-204 Manuel utilisateur

Planet

Planet UM-560 Manuel utilisateur

Planet

Planet UI-1281 Manuel utilisateur

Planet

Planet UM-560 Manuel utilisateur

Planet

Planet USB ADSL Modem ADU-2120 Manuel utilisateur

Planet

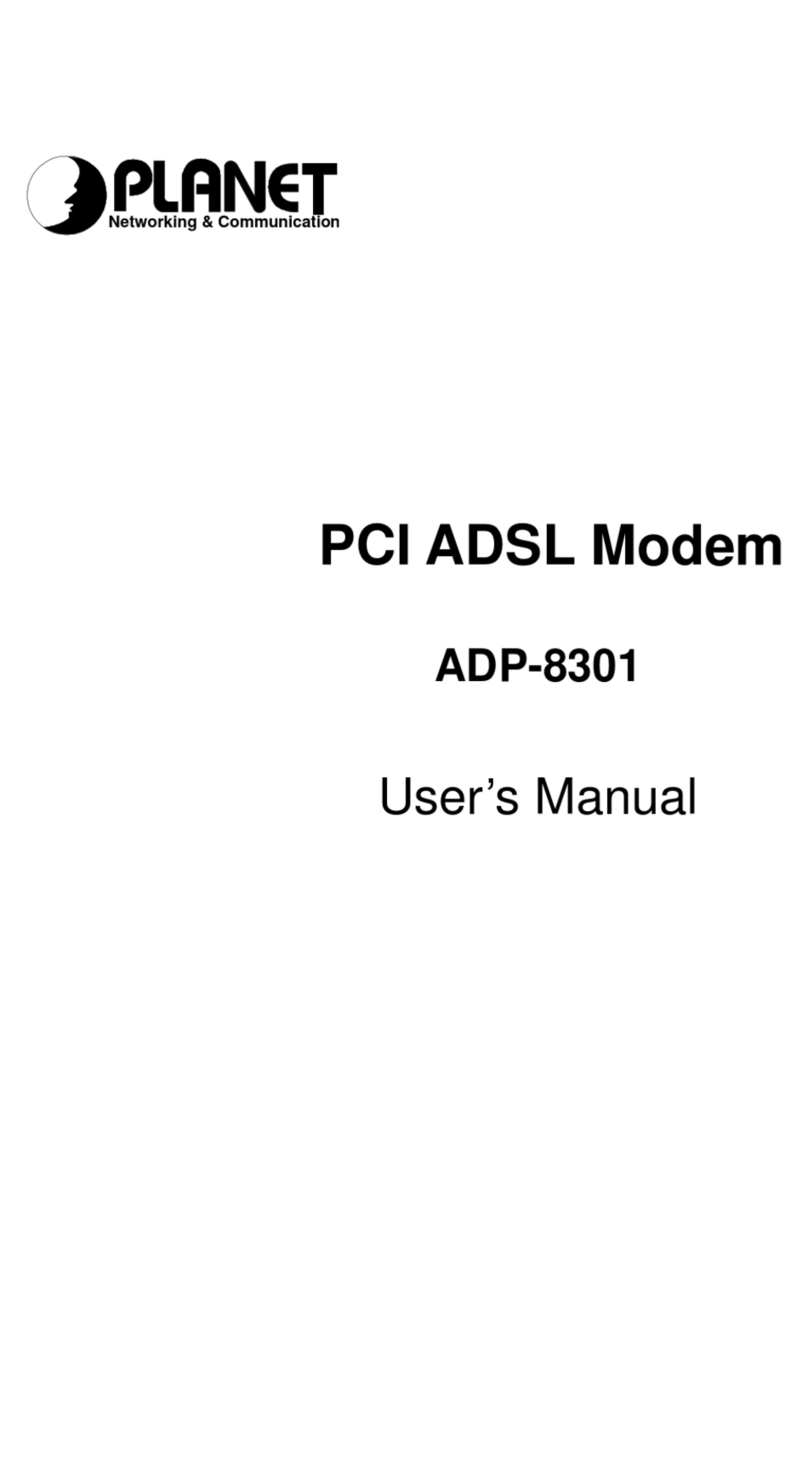

Planet ADP-8301 Manuel utilisateur
