DECT VoIP Phone

VIP-321

Quick Installation Guide

Overview

This quick installation guide describes the objectives; organization and

basic installation of the PLANET VIP-321 SIP DECT VoIP Phone, and

explains how to establish your rst voice over IP communication via

PLANET product. Also, this guide shows you how to nd additional

information on related products and services.

The VIP-321 integrate web-based graphical user interface that can

cover most congurations and machine status monitoring. Via standard,

web browser, you can congure and check machine status from

anywhere around the world.

Table of Contents

Preparation before beginning administration on the VIP-321 ............... 5

Physical Interfaces..................................................................... 5

Administration Interface ......................................................... 8

Web conguration access: ...................................................... 8

Network Interface quick congurations........................................ 9

Installing Batteries into the Handset ..........................................10

Charging the Handset ...............................................................11

Voice communication samples.........................................................12

Peer to Peer (P2P) mode...........................................................12

Intercom mode ........................................................................13

SIP Proxy mode .......................................................................14

Quick reference in CD-ROM guide ...................................................16

Document Objectives

This guide provides physical installation, network congurations, and

Internet access establishment information for the PLANET DECT VoIP

Phone.

Document Organization

This guide is organized as follows:

1 Preparation before beginning administration on PLANET DECT VoIP

Phone

2 Administration interface

3 Network interface quick congurations

4 Internet access setup guide

Preparation before beginning administration on

the VIP-321

Physical Interfaces

VIP-321: DECT VoIP Phone (2 x RJ-45, 1 x RJ-11)

Front Panel of VIP-321

Rear Panel of VIP-321

Physical Interfaces Description

WAN

RJ-45 connector, to maintain the existing network structure,

connected directly to the xDSL/Cable modem through

straight CAT-5 cable

LAN RJ-45 connector, for Internet access, connected directly to

Switch/Hub, through straight CAT-5 cable.

RESET Reset to the factory default setting

LINE RJ-11 connector, connected directly to the PSTN analog line.

Press “＊＊” to switch to PSTN mode.

6V DV 6V DC Power input outlet.

Note

• Machine default LAN IP is http://192.168.0.1. Press

RESET button and hold over 10 seconds will reset the

device to factory default value.

• If press RESET button 1~9 seconds only to enable the

device reset function.

Front panel LED and Button function:

PAGE /

Registration

Button

PWR LED

In Use LED

Charge PIN

Top view LED function:

LED and Button Description

In use LED An active LED indicates either Handset has been

hanged off or Incoming call is ongoing

PWR LED A solid LED indicates PWR works normally

PAGE /

Registration

Button

Press this button (1~9 seconds) to enable the

DECT PAGE function. Press and hold this button

over 10 seconds to enable DECT Registration

function.

Charging PIN To charge for DECT phone

LAN LED

Light : connection is active

Blink : data transmitting or receiving

Off : connection is not established

WAN LED

Light : connection is active

Blink : data transmitting or receiving

Off : connection is not established

VoIP 1 / 2 Light : VoIP session has been established

Off : No VoIP session

LAN LED

WAN LED

VoIP LED 1 / 2

Administration Interface

The VIP-321 provides GUI (Web based, Graphical User Interface) for

machine management and administration.

Web conguration access:

To start VIP-321 web conguration, you must have one of these web

browsers installed on computer for management

● Microsoft Internet Explorer 6.0 or higher with Java support

Default LAN IP address of DECT VoIP Phone is 192.168.0.1. You

may now open your web browser, and insert http://192.168.0.1 in

the address bar of your web browser to logon DECT VoIP Phone web

conguration page.

The VIP-321 will prompt for logon username/password, please enter:

root / null (not password) to continue machine administration.

Note

In order to connect machine for administration, please

locate your PC in the same network segment (192.168.0.x)

of IP Phone. If you’re not familiar with TCP/IP, please refer

to related chapter on user’s manual CD or consult your

network administrator for proper network configurations.

Network Interface quick congurations

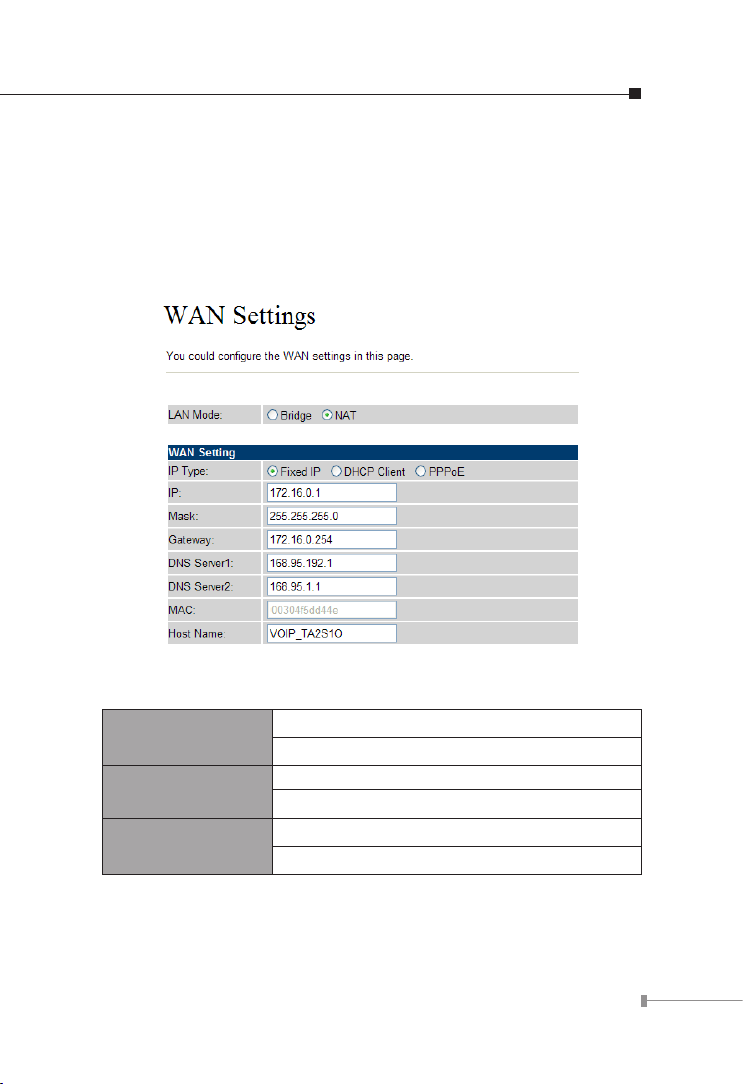

Execute your web browser, and insert the WAN IP address (default:

172.16.0.1) of VIP-321 in the address bar. After logging on machine

with username / password (default: root / not password), browse to

“Network” -->“WAN settings” conguration menu:

Parameter Description

IP address WAN IP address of the VIP-321

Default: 172.16.0.1

Mask WAN mask of the VIP-321

Default: 255.255.255.0

Default Gateway Gateway of the VIP-321

Default: 172.16.0.254

Connection Type Description

Connection Type Data required.

Fixed IP The ISP will assign IP address, and related

information

DHCP Client In most circumstances, it is no need to

congure the DHCP settings.

PPPoE The ISP will assign PPPoE username /

password for Internet access.

After conrming the modication you’ve done. Please click on the

Submit button to apply settings and browse to “Save & Reboot”

menu to reboot the machine to make the settings effective.

Save Change to Flash Memory

Most of the VIP-321 parameters will take effective after you modify,

but it is just temporary stored on RAM only, it will disappear after your

reboot or power off the DECT VoIP Phone, to save the parameters into

Flash ROM and let it take effective forever, please remember to press

the “Save & Reboot” button after you modify the parameters.

Installing Batteries into the Handset

You must install three AAA Ni/MH batteries (included in the package)

into the VIP-321 handset and charge them in the base for 15 hours or

more before you can use your new VIP-321 Cordless IP Telephone.

1. Slide the battery cover in the direction of the arrow.

2. Insert the new batteries, as indicated, matching the correct polarity

(+,-).

3. Replace the battery cover and slide it up until it snaps shut.

4. Put the Handset into the Base.

5. Connect the Base to the AC mains using the supplied AC adapter.
