Planet VIP-255PT Manuel utilisateur

Table of Contents

English

Document Objectives .................................................................................... 1-1

Equipment Packaging & Overview ................................................................. 1-1

Installation Connect the PoE IP Phone ............................................................ 1-1

Installation.............................................................................................. 1-1

Basic Conguration ................................................................................. 1-3

Quick reference in CD-ROM guide ............................................................. 1-3

Germany

Ziel der Anleitung ......................................................................................... 2-1

Verpackungsinhalt und Überblick.................................................................... 2-1

Installation: Anschließen des PoE IP-Telefons................................................... 2-1

Installation.............................................................................................. 2-1

Basis Konguration .................................................................................. 2-3

Kurzanleitung und die CD_ROM ................................................................ 2-3

Polish

Document Objectives .................................................................................... 3-1

Informacje podstawowe................................................................................. 3-1

Podłączanie telefonu IP.................................................................................. 3-1

Instalacja................................................................................................ 3-1

Podstawowa konguracja.......................................................................... 3-3

Instrukcja obsługi na płycie CD-ROM......................................................... 3-3

Portugal

Objetivos do Documento ............................................................................... 4-1

Conteúdo da Embalagem e Visão Geral .......................................................... 4-1

Instalando o Telefone IP PoE.......................................................................... 4-1

Instalação............................................................................................... 4-1

Congurações Básicas .............................................................................. 4-3

Guia de referência rápida no CD ............................................................... 4-3

Russian

Цель ...................................................................................................... 5-1

Комплектация.............................................................................................. 5-1

Подключение SIP IP телефона ..................................................................... 5-1

Установка............................................................................................... 5-1

Основные настройки............................................................................... 5-3

Обзор прилагаемого Компакт диска ........................................................ 5-3

Spanish

Objetivos del Documento............................................................................... 6-1

Embalaje del equipo y reseña ....................................................................... 6-1

Conectando el Teléfono IP PoE....................................................................... 6-1

Instalación .............................................................................................. 6-1

Conguración Básica ............................................................................... 6-3

Guía de Referencia Rápida en CD-ROM...................................................... 6-3

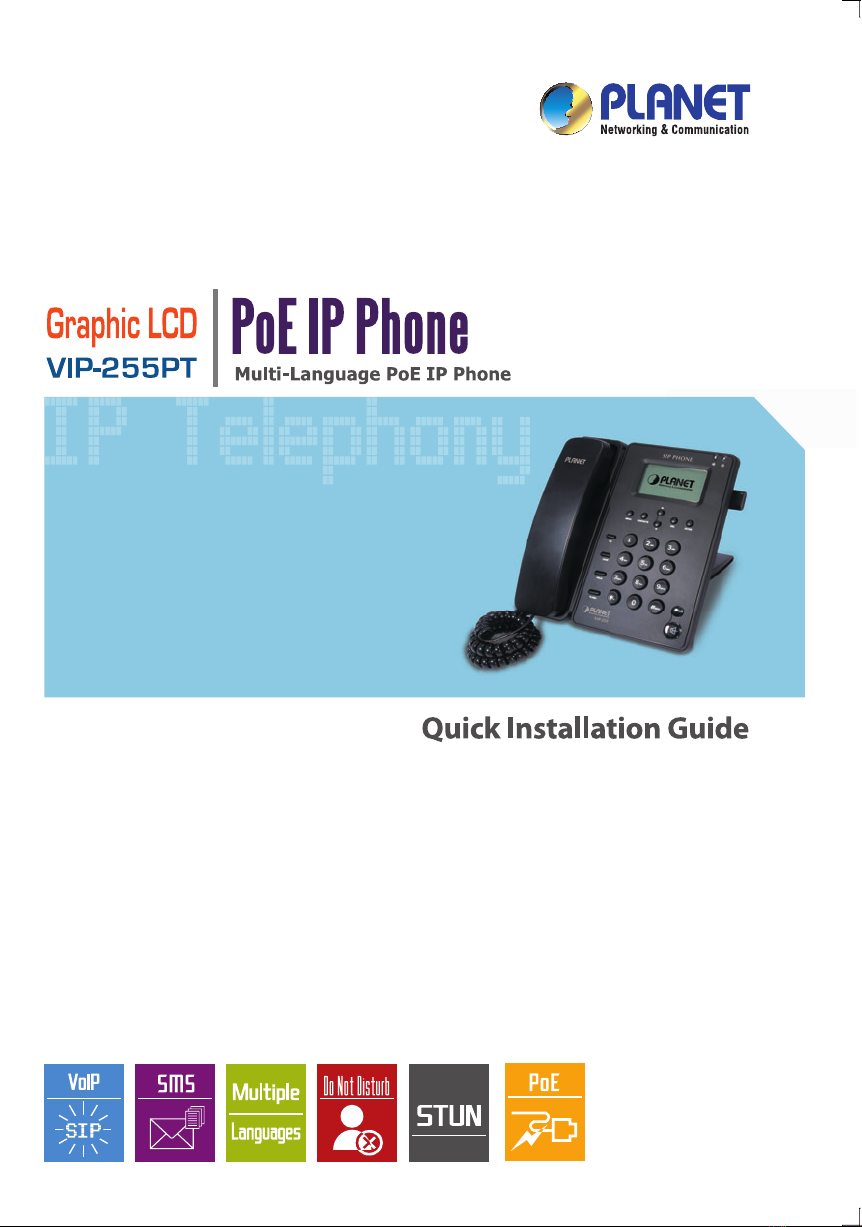

PoE IP Phone

VIP-255PT

Quick Installation Guide

1-1

English

Document Objectives

This guide provides physical installation, network congurations, and Internet

access establishment information for the PLANET PoE IP Phone.

Equipment Packaging & Overview

Package Contents

PoE IP Phone Unit

Power adapter

Quick Installation Guide

User’s Manual CD

RJ-45 cable

Installation Connect the PoE IP Phone

IP PBX PoE Switch VIP-255PT PCInternet

Internet

Installation

Step 1: Connecting Handset

DC5V

Handset

1-2

English

Step 2: Connecting Power AC Power and Network

LAN

Plug the Ethernet cable into the back of the base station. Plug the other end of the

Ethernet cable into your already prepared network connection.

DC5V

Power Adapter (5V DC)

NOTE: Use only the power adapter shipped with the unit to ensure correct functionality.

Step 3: Attaching the Desk Stand

Press and hold the button of right side to change the stand mount angle.

1-3

English

Basic Conguration

A. LCD conguration access

1. Press MENU to enter or exit conguration menu.

2. Go to『Network』¶『LAN port Option』to congure the network conguration.

3. Please congure the phone based on your network conguration: Static IP, DHCP

or PPPoE.

4. Please utilizing arrow UP and DOWN to modify each network congurations.

5. After conrmed whole congurations please press ENTER to save congurations

and it will be automatically reboot.

B. Web conguration access

The PoE IP Phone provides GUI (Web based, Graphical User Interface) for machine

management and administration.

The default IP address of PoE IP phone is 192.168.0.1. You may now open your

web browser, and insert http://192.168.0.1 in the address bar of your web

browser to logon PoE IP Phone web conguration page.

PoE IP Phone will prompt for logon username/password, please enter: root / null

(without password) to continue machine administration.

Note

In order to connect machine for administration, please locate your

PC in the same network segment (192.168.0.x) of PoE IP phone. If

you’re not familiar with TCP/IP, please refer to related chapter on

user’s manual CD or consult your network administrator for proper

network configurations.

Quick reference in CD-ROM guide

This guide is used to help you startup your Internet PoE IP Phone settings. It is

also recommended to check the user manual CD-ROM for more details like the

“LCD menu”, “Web Setup”, and how to set the device back to default value.

PoE IP Telefon

VIP-255PT

Kurzanleitung

2-1

Germany

Ziel der Anleitung

Dieses Dokument erklärt die Installation der Hardware, das Einrichten des

Netzwerk-Zugangs sowie das Einrichten des Internet-Zugangs für das PLANET PoE

IP-Telefon

Verpackungsinhalt und Überblick

Package Contents

PoE IP Phone Unit

Power adapter

Quick Installation Guide

User’s Manual CD

RJ-45 cable

Installation: Anschließen des PoE IP-Telefons

IP PBX PoE Switch VIP-255PT PCInternet

Internet

Installation

Schritt 1: Anschluß des Telefonhörers

DC5V

Telefonhörer
