Usage Notice

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s guide to maximize the life of your unit.

Do:o:

o:o:

Turn off the product before cleaning.

Use only a dry soft cloth or clean room wiper when cleaning

the LCD panel surface.

Use only high quality and safety approved AC/DC power adapter.

Disconnect the power plug from AC outlet if the product is not

used for a long period of time.

Donon

onon

on’’’’’t:t:

t:t:

Do not touch the LCD panel surface with sharp or hard objects.

Do not use abrasive cleaners, waxes or solvents for cleaning.

Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

WARNING – To prevent the risk of fire or shock hazards, do not

expose this product to rain or moisture.

WARNING – Please do not open or disassemble the product as this

may cause electric shock.

4PT1700M(U) and PT1701M(U) User’s Guide (020-0410-00 A)

Introduction

About Planar’s PT1700M(U) / PT1701M(U)

The PT17XXM(U) is a 17” flat panel screen with an active matrix, thin-film

transistor (TFT), liquid crystal display (LCD).

Feaea

eaea

eaturtur

turtur

tures include:es include:

es include:es include:

es include:

Analog VGA graphics signal input

Active matrix TFT LCD technology

1280 x 1024 SXGA resolution

17” viewable display area

31.5 ~ 80 kHz horizontal scan

56 ~ 75 Hz refresh rate

0.264mm x 0.264mm pixel pitch

300 cd/m2(typ.) brightness

4 CCFT backlight lamps w/30,000 hrs life

500:1(typ.) contrast ratio

L/R=80°/80°,U/D=80°/80° viewing angle, CR=5:1

Tr+Tf: 8ms(typ.) response time

Auto-adjustment function

Multilingual OSD user controls

VESA DPMS power saving

3M® 5-wire resistive touchscreen (for PT1700M(U))

3M® Capacitive touchscreen (for PT1701M(U))

Rear surface VESA mount (100mm x 100mm)

PT1700M(U) and PT1701M(U) User’s Guide (020-0410-00 A) 5

Touchscreen (for PT1700M(U) / PT1701M(U))

Surface: Anti-glare treatment

Interface: USB/Serial

Durability:

Resistive: 35 million activations at a single point

Capacitive: 225 million activations

Hardness of surface =

Resistive: 4H per ASTM D3363-92

Capacitive: 6.5 Mohs

Operating force for resistive Touchscreen

Stylus: < 25g average

Finger: < 50g average

Resistivesistiv

esistivesistiv

esistivee

eCC

Capacitivapacitiv

apacitivapacitiv

apacitivee

Transmittance: 83% +/- 2%Typical Up to 88% @ 550nm

HAZE = 5% Typical -

Clarity = 5% Typical -

S/W Driver Compatibility: Windows® 95/98/Me/NT/2000/XP,

*Linux (PT1701M(U) only)

6PT1700M(U) and PT1701M(U) User’s Guide (020-0410-00 A)

Package Overview

LCD Display

VGA Signal Cable

User’s Guide

Power Adapter

Audio-In Cable

Power Cord

RS-232 Serial Cable

(for PT1700M,

PT1701M)

Landing Strip USB Cable

(for PT1700MU,

PT1701MU)

Touchscreen Driver

Installation CD-ROM

PT1700M(U) and PT1701M(U) User’s Guide (020-0410-00 A) 7

Installation

Product Overview

• F• F

• Frr

ronon

onon

ontt

t VV

Viewiew

iewiew

iew

• R• R

• Rearear

earear

ear VV

Viewiew

iewiew

iew

8PT1700M(U) and PT1701M(U) User’s Guide (020-0410-00 A)

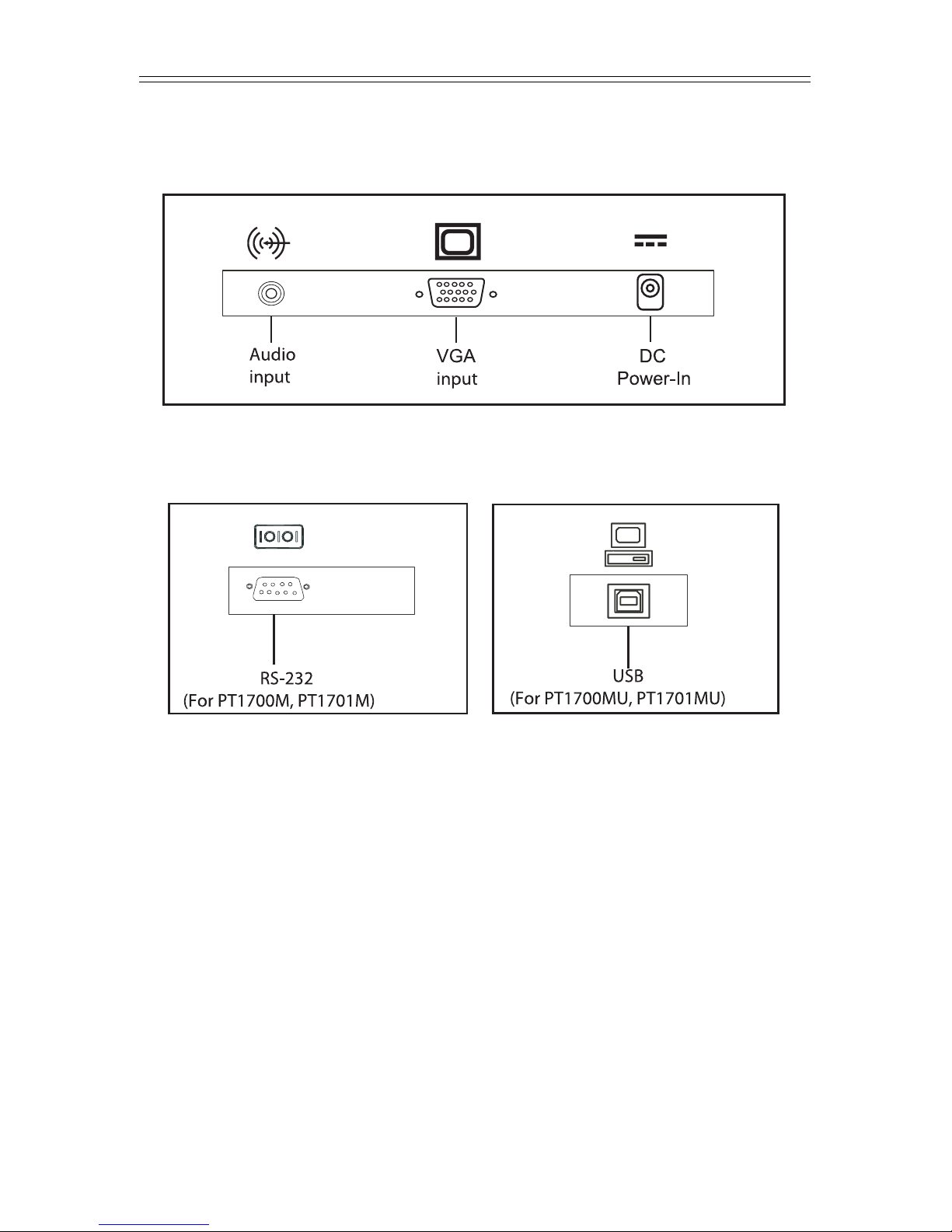

• C• C

• Conneconnec

onneconnec

onnectt

tor Por P

or Por P

or Poror

oror

ortsts

tsts

““

“AA

A””

””

”

• C• C

• Conneconnec

onneconnec

onnectt

tor Por P

or Por P

or Poror

oror

ortsts

tsts

“B“B

“B””

””

”

PT1700M(U) and PT1701M(U) User’s Guide (020-0410-00 A) 9

• Kensington Security Slot• Kensington Security Slot

• Kensington Security Slot

The monitor can be secured to your desk or any other fixed object with

Kensington lock security products.The kensington lock is not included.

10 PT1700M(U) and PT1701M(U) User’s Guide (020-0410-00 A)

• VESA Mount your monitor• VESA Mount your monitor

• VESA Mount your monitor

This monitor conforms to the VESA Flat Panel Mounting Physical Mounting

Interface Standard which defines a physical mounting interface for flat panel

monitors, and corresponding standards for flat panel monitor mounting devices,

such as wall and table arms.The VESA mounting interface is located on the back

of your monitor. To mount the monitor on a swing arm or other mounting

fixture, follow the instruction included with the mounting fixture to be used.

Note!Note!

Note!

Please select the proper screws!

The distance between the back cover surface and the bottom of the screw

hole is 8mm. Please use a M4 screw.
