Planar UltraRes Manuel utilisateur

008-0161-00A 1

Introduction

Once the UltraRes display has been installed and mounted, there are several

important steps that you need to take in order to get the display up and running. This

document is intended to give you a quick overview of the steps needed to connect

cables, turn on your display and attach sources. For more in-depth information, see

the Installation Guide that is on the USB drive in your accessory kit box.

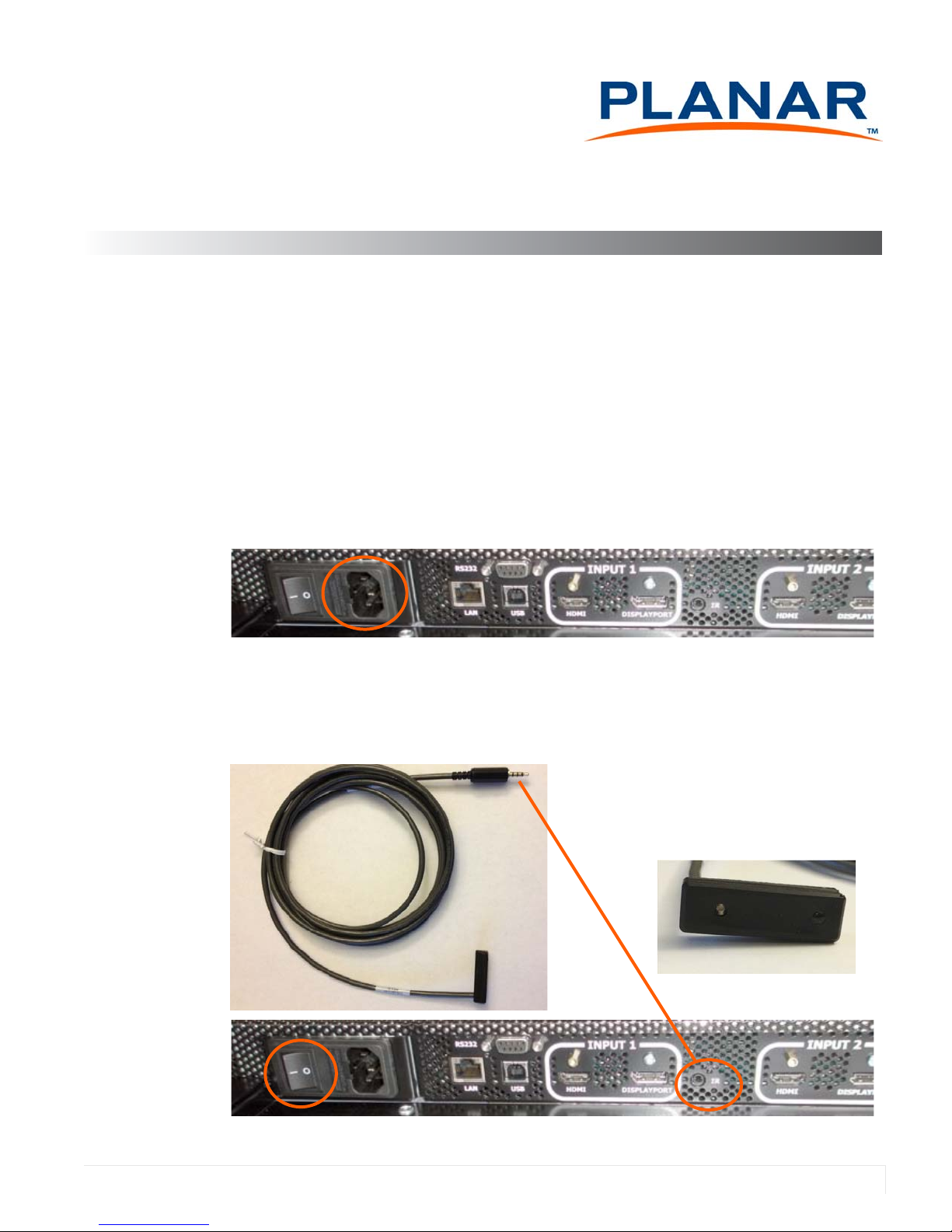

1 Using the supplied AC power cord, connect one end to a grounded outlet and the

other to the AC power input next to the I/O panel the bottom of the UltraRes

display.

2 The IR module has and LED status and an IR receiver on the same module. In

order for the remote control to work, you need to connect the wired IR module to

the display, also on the bottom of the I/O panel. Then place the IR receiver in the

desired place on or near the display.

UltraRes Quick Start Guide

3 Turn the power switch on. The display should now be in stand-by mode and the

wired IR module LED should show solid blue.

4 Install the UltraRes Control software on your Windows PC. This software is

contained on the USB drive in your accessory kit box. Follow the automatic

prompts. For more information about this software, see the Installation Guide on

the USB drive that is included in your accessory kit box. Connect a USB cable from

the PC to the display. In the UltraRes Control software, click the Connect button

to establish a connection to the display.

5 Turn on the display using one of two methods:

• Pressing the power button on the remote control, point it at the IR receiver.

• Using the UltraRes Control software, select the Power On button.

6 Using either method in the previous step, the IR receiver LED should blink and

then turn off. The display should change from a black screen to blue.

UltraRes Quick Start Guide

Setting Up UltraRes Using Single Inputs

Instead of having one central device into which you can connect and define your

source inputs, single source setup requires connecting from a single-headed source

to the display. For example, connecting one input directly from a Blu-ray player into

the 84” display.

The example below uses the following:

• PC with 4K @ 24/25/30HZ output

• 4K Blu-ray player

The following formats are supported for single inputs:

• (1x) DisplayPort or HDMI 4K @ 24/25/30Hz

• PC with DisplayPort 1.1a or 1.2 output

• 4K Blu-ray player

There are two preferred ways in which you can select individual inputs. They are

described on the following pages.

UltraRes Quick Start Guide

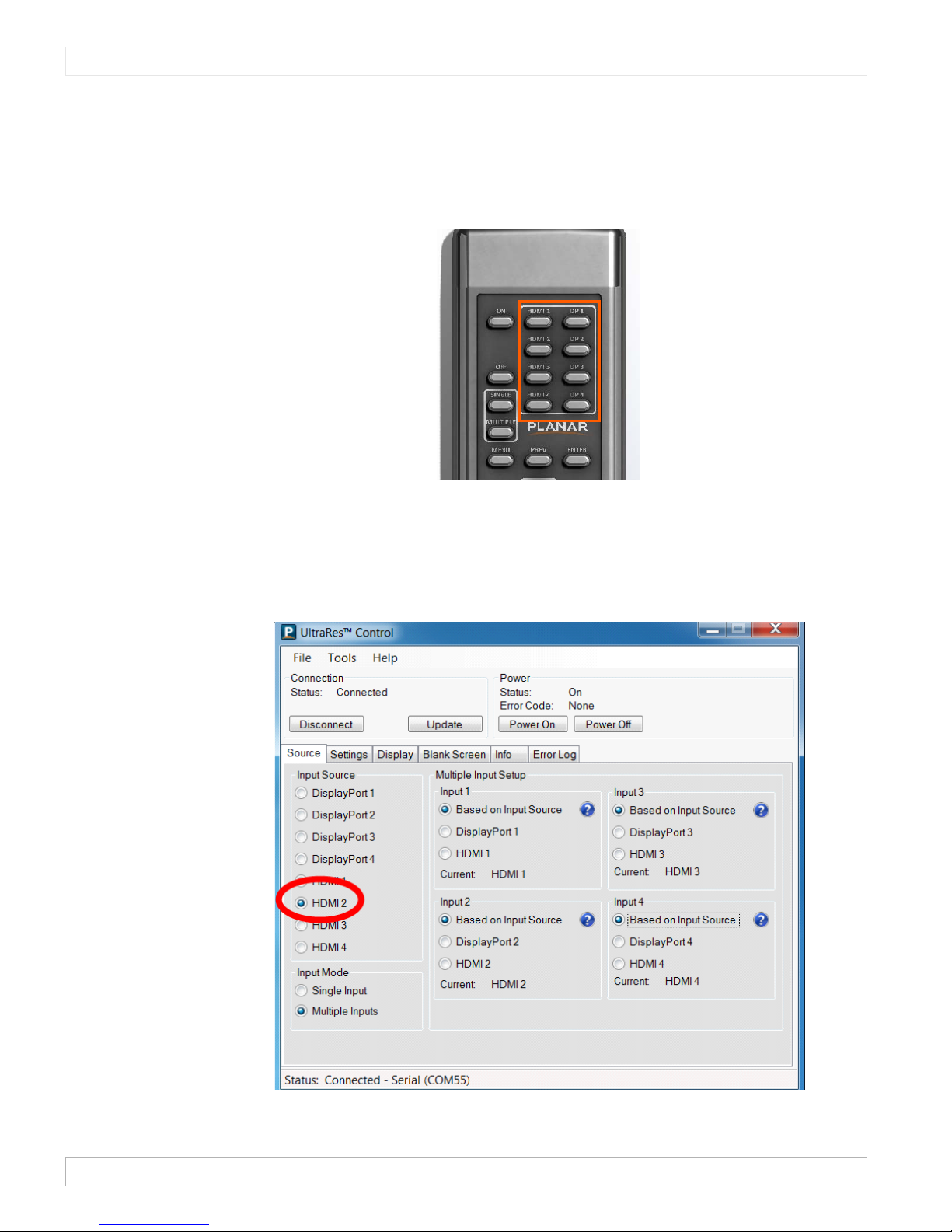

Selecting Individual Inputs Using the Remote Control

The UltraRes remote control has individual inputs that can be selected. For example,

if this UltraRes input is connected to HDMI 2, press the HDMI 2 button on the remote

control.

Selecting Individual Inputs Using the UltraRes Control Software

On the Source tab, select the input that is connected to the UltraRes display. For

example, if this UltraRes input is connected to HDMI 2, select the HDMI 2 radio

button in the Input Source section on the left.

UltraRes Quick Start Guide

Setting Up UltraRes Using Multiple Inputs

In order to set up the UltraRes using multiple inputs, you must have a computer that

contains four video outputs. All four outputs will then be connected to the UltraRes

display. The following formats are supported for multiple inputs:

• (4x) DisplayPort or HDMI/DVI 1080p @ 24/50/60Hz

• PC with DisplayPort or HDMI/DVI (or mix of both)

• External processors

• (4x) DisplayPort or HDMI/DVI 960 x 2160 @ 60Hz

• Needs a PC with a special graphics card setup

• (2x) DisplayPort or HDMI 1920 x 2160 @ 60Hz

• Needs a PC with a special graphics card setup

Note: When using (2x) 1920 x 2160 @ 60Hz, the connections must be: Input 1 and Input 3 or

Input 2 and Input 4. For example, using 1920 x 2160 @ 60Hz on Input 1 and Input 3 is allowed

but using 1920 x 2160 @ 60Hz on Input 1 and Input 2 is not allowed.

The graphics card that you install on your main PC will determine what outputs will

be plugged into the Planar UltraRes display. For example, some graphics cards have

two HDMI outputs and two DisplayPort outputs. Any combination of these outputs is

fine. Below is a visual example of how a basic connection might look.

In the example below, using four input channels on a computer, you would use one

connector for each input on the I/O panel on the UltraRes display, as shown below.

As an example, you could use the following:

Note: You cannot plug into two ports on the same input channel. For example, you can’t

plug into HDMI 1 and DisplayPort 1 in Input 1 as shown above. You can only connect to one

input for each input channel.

• Input 1 - HDMI 1 • Input 3 - DisplayPort 3

• Input 2 - DisplayPort 2 • Input 4 - HDMI 4

UltraRes Quick Start Guide

Select that source using one of two methods:

• Using the remote control.

• Using the UltraRes Control software.

UltraRes Quick Start Guide

Using UltraRes Control Software to Set Up Multiple Inputs

If you use the UltraRes Control software to set up multiple sources, there are three

different settings per input channel. Before continuing, make sure you have selected

the Multiple Inputs radio button in the lower left corner.

• Based on Input Source - This default option automatically selects the same type

of input as the current Input Source setting. For example, if you have four HDMI

input sources, this feature should detect that your sources are connected to

HDMI 1-4.

• Select Individual Inputs - The example below shows the circled inputs that were

selected individually.

When you are finished, click Update to save your changes.

UltraRes Quick Start Guide
