Planar LB2650W Manuel utilisateur

LB2650W

USER’S GUIDE

www.planar.com

The information contained in this document is subject to change without notice. This document

contains proprietary information that is protected by copyright. All rights are reserved. No part of

this document may be reproduced, translated to another language or stored in a retrieval system,

or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise,

without prior written permission.

Windows is a registered trademark of Microsoft, Inc.

Other brands or product names are trademarks of their respective holders.

European Union 2002/95/EC Directive on the Restriction of Hazardous Substances (RoHS)

In February 2003, the European Union issued Directive 2002/95/EC on the Restriction of Hazardous Substances,

commonly known as RoHS, in certain electrical and electronic equipment. It restricts the use of six hazardous

substances, including lead (Pb).

The Directive states that all new products within its scope, placed on the European market after July 1, 2006 must be

compliant with its requirements.

Planar Systems Inc. is fully in support of and compliant with EU Directive 2002/95/EC for applicable products within

its scope.

A Planar part number will be modied with an “LF” sux designation to indicate RoHS compliance, as shown on the

part number label axed to the display and on the box containing the display.

Important Recycle Instruction:

LCD Lamp(s) inside this product contain mercury. This product may contain other electronic waste that

can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal

Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specic

disposal information check WWW.LAMPRECYCLE.ORG.

Revision Control

DATE: DESCRIPTION

January 2009 Document number 020-0973-00 Rev. A

LB2650W User’s Guide 020097300 Rev. A 3

Table of Contents

Usage Notice

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Introduction

About the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Package Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Installation & Dimensional Drawings

Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

User Controls

Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

How to Use the OSD Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Adjusting the Monitor’s Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Function Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

OSD Lock Out Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Appendix

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Standard Timing Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Cosmetic Specication Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Support and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4 LB2650W User’s Guide 020097300 Rev. A

Usage Notice

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s guide to maximize the life of your unit.

Do:

❑Turn o the product before cleaning.

❑LCD front surface may be cleaned using a soft clean cloth

moistened with mild window glass commercial cleaners or

50/50 mixture of water and isopropyl alcohol.

❑Use only high quality and safety approved AC/DC power adapter

that comes with your monitor.

❑Disconnect the power plug from AC outlet if the product is not

used for an extended period of time.

Don’t:

❑Do not touch the LCD display screen surface with sharp or hard

objects.

❑Do not use abrasive cleaners, waxes or solvents for cleaning.

❑Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic eld.

- In direct sunlight.

WARNING – To prevent the risk of re or shock hazards, do not

expose this product to rain or moisture.

WARNING – Please do not open or disassemble the product as this

may cause electric shock.

LB2650W User’s Guide 020097300 Rev. A 5

Introduction

About Planar’s LB2650W

The LB2650W products all have a 26" diagonal at panel screen with an active

matrix, thin-lm transistor (TFT) liquid crystal display (LCD).

Features include:

❑Dual signal input: Analog VGA and Digital DVI (future models will also

include an additional DVI port).

❑Active matrix TFT LCD technology

❑1920 x 1200 WUXGA resolution

❑5 ms GTG response time

❑26" viewable display area

❑31 ~ 93 kHz horizontal scan

❑50 ~ 76 Hz vertical refresh rate

❑0.2865mm pixel pitch

❑400 cd/m2(typ.) brightness

❑178° H, V viewing angle, CR=5

❑CCFL backlight lamps

❑Auto-adjustment function

❑User controls

❑Power saving

The LB2650W monitor has been designed to assist OEM customers with forward

compatibility concerns. This product is designed to provide consistent X,Y, and

Z mounting points and power input requirements. Customers are requested to

only utilize Planar recommended mounting points contained on the products

mounting brackets to ensure forward compatibility. OEM customers are reminded

that connector location may change within the“component envelope”- therefore

allow additional slack in your cable lengths and route cables inside your enclosure

to ensure that your design will allow for changes in exact connector location. Finally,

ensure that your systems power budget is adequate to allow up to 20% additional

power draw should the eciency of this product change during its product life.

6 LB2650W User’s Guide 020097300 Rev. A

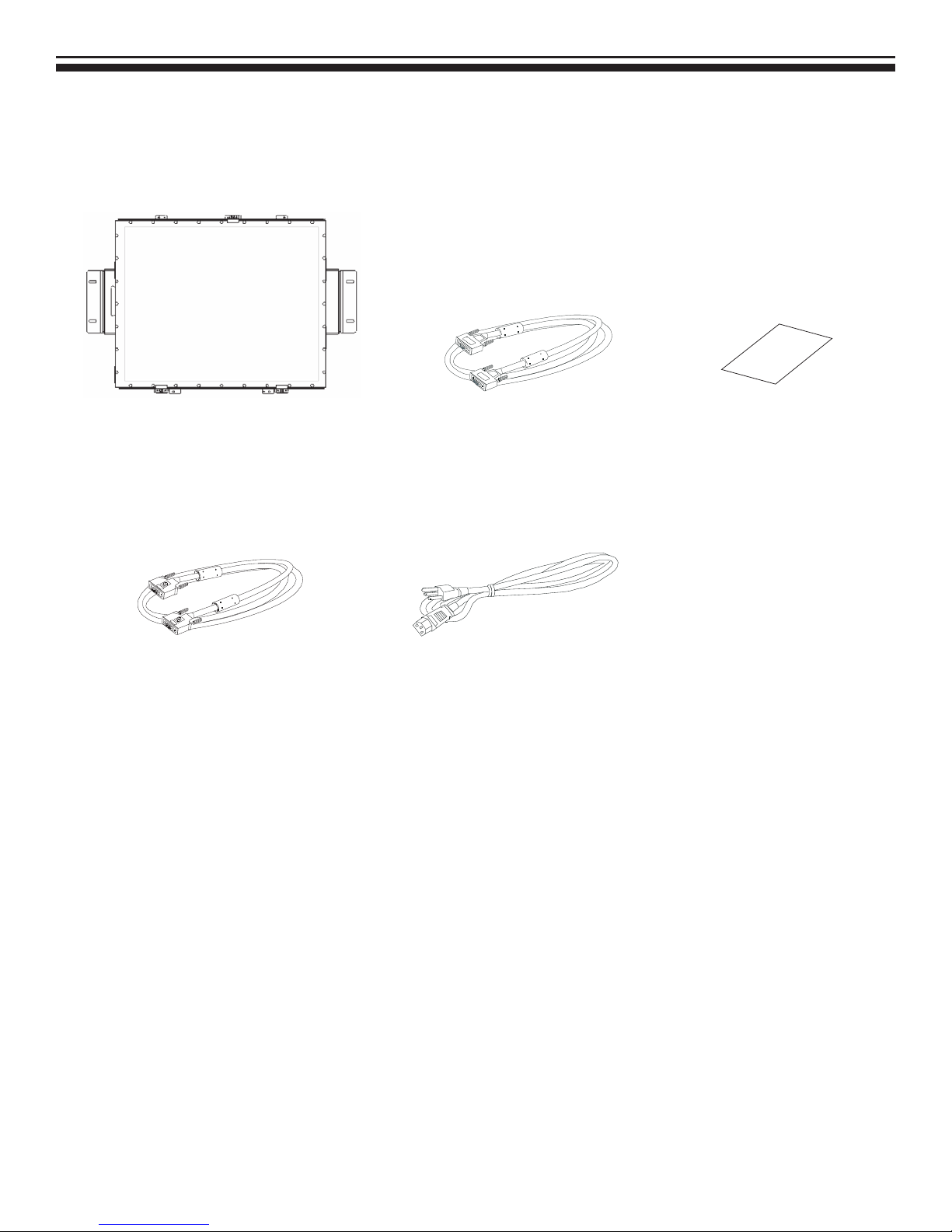

Package Overview

LCD Display VGA Signal Cable

HDMI to DVI Signal Cables North American Power Cord

(Please order p/n 903-0467-00 for

European style cord)

Quick Start Guide

LB2650W User’s Guide 020097300 Rev. A 7

Installation & Dimensional Drawings

Product Overview

216&5((1&21752/

%877216

32:(56:,7&+





$'('

62)

72&(17(52)02817,1*6/27

;

;

72&(17(5

2)02817,1*

6/27



$&7,9($5($

%(=(/23(1,1*



PP



',$*12/





$&7,9($5($



%(=(/23(1,1*



;







216



%5$&.(76

678'6

7+5($'('

(1'62)

2876,'(2)

02817,1*

%5$&.(7

)/$1*(6

 

2876,'(2)

02817,1*



8 LB2650W User’s Guide 020097300 Rev. A

Connecting the display (Figure 1.1)

To set up this display, please refer to the following gure and procedures.

Be sure all equipment is o.1.

Connect the AC power cord to the power connector. Plug the other end2.

into an electrical outlet(1).

For the PC with Analog graphics output: connect the VGA signal cable3.

from display VGA input connector to the 15-pin connector of your host

computer and tighten the screws(2).

For DVI or HDMI output: connect DVI cable from display to the PC.4.

Turn on your computer, display and video source.5.

Notice: To ensure the LCD display works well with your computer,

congure the display mode of your graphic card, less than or

equal to 1920 x 1200 resolution and make sure the timing of the

display mode is compatible with the LCD panel.“Video Modes”

of this LCD panel are listed in the appendices for your reference.

LB2650W User’s Guide 020097300 Rev. A 9

Figure 1.1

DVI Cable

(on future models)

DVI-HDMI

10 LB2650W User’s Guide 020097300 Rev. A

User Controls

Front Panel Controls

A brief description and the location of all LCD Monitor functions controls

and indicators.

Power Button Push to turn ON or turn O.

LED Indicator Green when the monitor is on, Amber when in power saving mode, and Dark when o.

Cursor Button A four direction key plus enter/exit button. Allows you to move up, down, left, right or

pressed. See function chart below.

Menu Button Activates OSD main menu.

Exit Button Exit OSD display / DV mode hot key.

Source Button Select DVI or D-SUB signal source. (Toggle Switch)

Auto Button Hot key for manually auto adjusting the display.

Press key up~

Hot Key: Contrast +

Menu: Cursor Up

Press key left~

Hot Key: Brightness -

Menu: Cursor Left/Volume -

Press key center~

Item Enter/Exit

Press key right~

Hot Key: Brightness +

Menu: Cursor Right/Volume +

Press key down~

Hot Key: Contrast -

Menu: Cursor Down

Cursor Button
