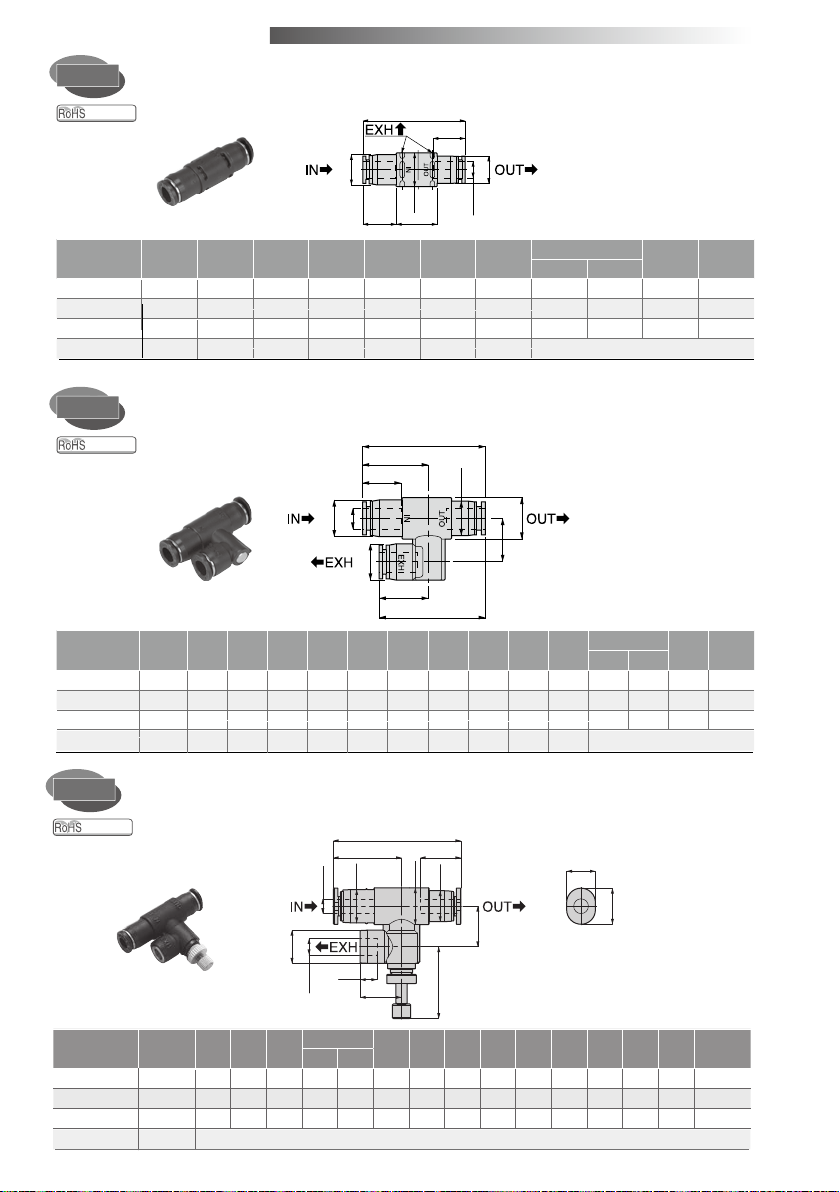

■ How to adjust the speed (Exhaust needle type only)
1. Speed adjustment of actuators
①Increasing speed
Turn the needle in the counterclockwise from a
fully closed state. The more the needle is
opened, the faster the actuator moves. Make sure
to tighten the locknut at the desired speed.
The speed setting can be changed without
tightening the locknut.
②Reducing speed
Turn the needle in the clockwise when the
speed is too fast. Make sure to tighten the
locknut at the desired speed. The speed setting
can be changed without tightening the locknut.
■ How to replace silencer element
1. Replacement of silencer element
①Remove the silencer cover by loosening it in the
counterclockwise direction.
②Remove the silencer element.
③Attach a new silencer element to the metallic body
up to the end.
④Place the silencer cover over the element and
tighten the cover in the clockwise direction.
※Make sure to stop air supply before replacing
silencer element. No need to readjust the needle
after the replacement of silencer element.
Silencer element
Model code
Element Model code
EQ 01-C □P□E
EQSE-01E
EQ 02-C □P□E
EQSE-02E
EQ 03-C □P□E
EQSE-03E
Silencer cover
Metallic body
■ How to insert and disconnect
1. How to insert and disconnect tubes
①Tube insertion
Insert a tube into Push-In Fitting up to the tube end. Lock-claws bite the
tube and fix it automatically, then the elastic sleeve seals around the
tube.
Refer to “2. Instructions for Tube Insertion”under “Common Safety
Instructions for Fittings” .
②Tube disconnection
The tube is disconnected bypushing release-ring torelease Lock-
claws.
Make sure to stop air supply before the tube disconnection.
2. How to tighten thread
①Tightening thread
Use a spanner to tighten a hexagonal-column or square part of the product.
Refer to “Table: Recommended tightening torque”under “2. Instructions for
Installing Controllers”in “Common Safety Instructions for Controllers”.
Hexagonal-column
