Chapter 1: Introduction

This series including i4800 and i3600 are professional speaker processors that can realize a variety of DSP functions. This

series of products are integrated with compressors, limiters, frequency dividers, d ynamic EQ, delayers, equalizers, input

and output with FIR phase correction, and audio mixers. The matrix can be quickly debugged and monitored through

the beautiful and intuitive software, which provides a broad operating space for the construction and operation of

professional audio amplification systems. D4 represents the function of configuring 4 channels of Dante network audio

input and output interfaces.

Applications

▲Arena

▲Stadium

▲Professional performance

▲Auditorium

▲Multi-functional hall

▲Conference system

Chapter 2: TechnicalParameters

2.1 Features

▲i3600 provides with 3 input channels and 6 output channels, i4800 provides with 4 input channels and 8 output

channels

▲Uncompromising top audio performance

▲Unique and precise 96kHz/24bit digital signal processing

▲Analog and Dante™ (optional) inputs and outputs

▲Ethernet remote controlthrough PHONIC's PiWare drive free application

▲Complete front paneluser interface provides simple and intuitive local operation

▲TCP/IP LAN remote control, support RS232 central control, easy system integration

▲Designed, manufactured, tested and supported byPHONICCORPORATION

2.2 TechnicalParameters

DSP MO DULE

Signal processing

ADISHARC 21489

Audio system delay

1.8 ms

D/Aconversion

24-bit

Sampling Rate

96kHz

ANALOG AUDIO INPUTS AND OUTPUTS

Input channel

4 balanced inputs. Line level

Page 4/ 34

Audio interface

Cannon male and female

Input resistance

11kΩ

Maximum input level

16dBu/Line

Output channel

8 balanced outputs, Line level

Output impedance

100Ω

AUDIO PERFORMANCE SPECIFICATIONS

Frequency response curve

20Hz～40kHz(±0 .5 d B)/ Lin e

Noise floor

20Hz～20kHz, A-wt, -93dBu

THD+ N

-90dB(@0dBu, 1kHz,A-wt )/ Lin e

SNR

108dB(@16dBu, 1kHz,A-wt )/ Lin e

COMMUNITICATION PORTS AND INDICATORS

USB

Micro-B type, free drive

RS232

Serial port communication

TCP/IP networkport

RJ-45

Indicator light

C LIP, LEVEL, EDIT, MUTE

ELECTRICALAND PHYSICAL

Power supply range

AC 90V～264V50/60 Hz

power dissipation

Stand-by11.6W, full load 11.8W

Operating temperature

-20℃～ 80℃

Product dimension

483mm×215mm×44.5mm

Net weight

3.2kg

Page 5/ 34

Chapter 3 FunctionalStructure

Front Panel

BackPanel

BACK NEXT

MENU ENTER

BYPASS EXIT

FREQ Q GAIN

O VERLO AD LIGHT

0d Bu INPUT LEVEL LIGHT

-24dBu INPUT LEVEL LIGHT

INPUT EDIT MUTE LIGHT

LIMIT STATUS LIGHT

0d Bu INPUT LEVEL LIGHT

-24dBu INPUT LEVEL LIGHT

OUTPUT EDIT MUTE LIGHT

INPUT LONG PRESS: EDIT

INPUT SHORT PRESS: MUTE

OUTPUT LONG PRESS: EDIT

OUTPUT SHORT PRESS: MUTE

USB-B INTERFACE

LCD DISPALY

4 CHANNELS XLR INPUT

8CHANN ELS XLR O UTPUT

POWER SWITCH

FUSE BO X

POWER OUTLET

DANTE INTERFACE (IN OPTION)

TCP/ IP CONTROL INTERFACE

RS232 INTERFACE

Page 6/ 34

3.1 LCD display function menu

LCD menu main interface

1. Device name:The user can customize and modify the name through the controlsoftware or the lower computer.

2. Device IP:When the device is connected to the software via TCP/IP,the device and the computer must be in the same

IP domain, for example, the device IP is 169.254.xxx.xxx, and the computer IP should be 169.254.xxx.xxx.

3. Current gear: the preset currentlyapplied bythe device,Default is the default gear ofthe device.

4. Security lock: When this icon appears, the keys and knobs ofthe device are inoperable, press and hold [ENTER] for 5

seconds to unlock (can cancelthe lockscreen on the menu page).

5. Device firmware version: displaythe firmware version burned bythe device.

3.2 Control buttons

BACK (Up key): Function and parameter selection.

NEXT (Down key): Function and parameter selection.

MENU (Menu key): Enterthe main menu,use [BACK]and [NEXT]keysto selectdifferent

sub-menus.

ENTER (Ente r key): Enter submenu or function to edit parameters; confirm selection;

change parameters.

BYPASS (Bypass key): Make the currently selected function inoperative.

EXIT (Exit key): Exit the current editing state or the current menu

3.3 Input section

EDIT/MUTEbutton (mute and edit button):

Long press [EDIT/MUTE key] EDIT/MUTE light turns on blue light, enters

the channel menu editing mode, lights up multiple channels at the same

time, enters the channel joint edit mode, click other input channels at this

time, there will be more than two channels lighted blue at the same time

Light, indicating joint adjustment of channelfunctions;

Short press [EDIT/MUTE key] The EDIT/MUTE indicator lights up in red, and the channel is muted; the EDIT/MUTE

indicator lights up in purple when the edit mode and mute are turned on at the same time;

Use [BACK] and [NEXT] Keys to switch functions and parameter editing.

1.Device name

3.Current gear

4.Security lock

5.Device firmware version

2.Device IP

Page 7/ 34

3.4 Output section

EDIT/MUTEbutton (mute and edit button): Refer to the input section for function editing and operation mode.

Chapter 4: Introduction to PCSoftware

Software provides users quickly interact with all the parameters of one or more machines. It can store the configuration

parameters of the machine in the machine and the computer, providing a very convenient way to preset scenes and

parameters for different systems. The software has high execution efficiency and clear interface structure.

Chapter 5: Software Installation

5.1 Operating environment

The software is suitable for WIN7/WIN8/WIN10 x86/x64 operating system with Microsoft .NET Framework 4.0 runtime.

Figure 5.1

5.2 Software installation

Page 8/ 34

This software is a green version and does not require installation. The folder contains the following files or folders, allof

which are indispensable. The green version of the software does not include the Microsoft .NETFramework 4.0 runtime.

If necessary, please download and install it from the official Microsoft website.

5.3 Software operating

Steps:Double-click the executable file in the folder , enter the main interface of the software, as shown in

Figure 5.1.

Figure 5.1 The main interface ofthe software

Note:Please keep onlyone software open for each computer!

Page 9/ 34

Chapter 6 Software Interface Description

Figure 6.1 main function interface

6.1 Introduction to Interface Module

As shown in Figure 6.1, the module corresponding to the red word in the main interface ofthe function, each module is

as follows:

(1) Menu bar

(2) Scan button

(3) Setting button

(4)Joint debugging button

(5) Equipment list

(6)Computer IP address

(7) Function control keys

(8) Function status interface

(9) Volume monitoring of input and output channels

Page 10 / 34

6.1.1 Menu bar

File

Figure 6.1.1 "File" menu

As shown in Figure 6.1.1 "File" menu:

1. New, newproject, the project is restored to the initialopen state.

2. Add newdevices, add virtual devices, you can view all the functions of the device without affecting the specific device

connected.

3.Open,open an existing device management project from the computer disk.

4.Save, save the current equipment management project in the computer disk.

5.Save as, save the current equipment management project to the computer disk.

Device

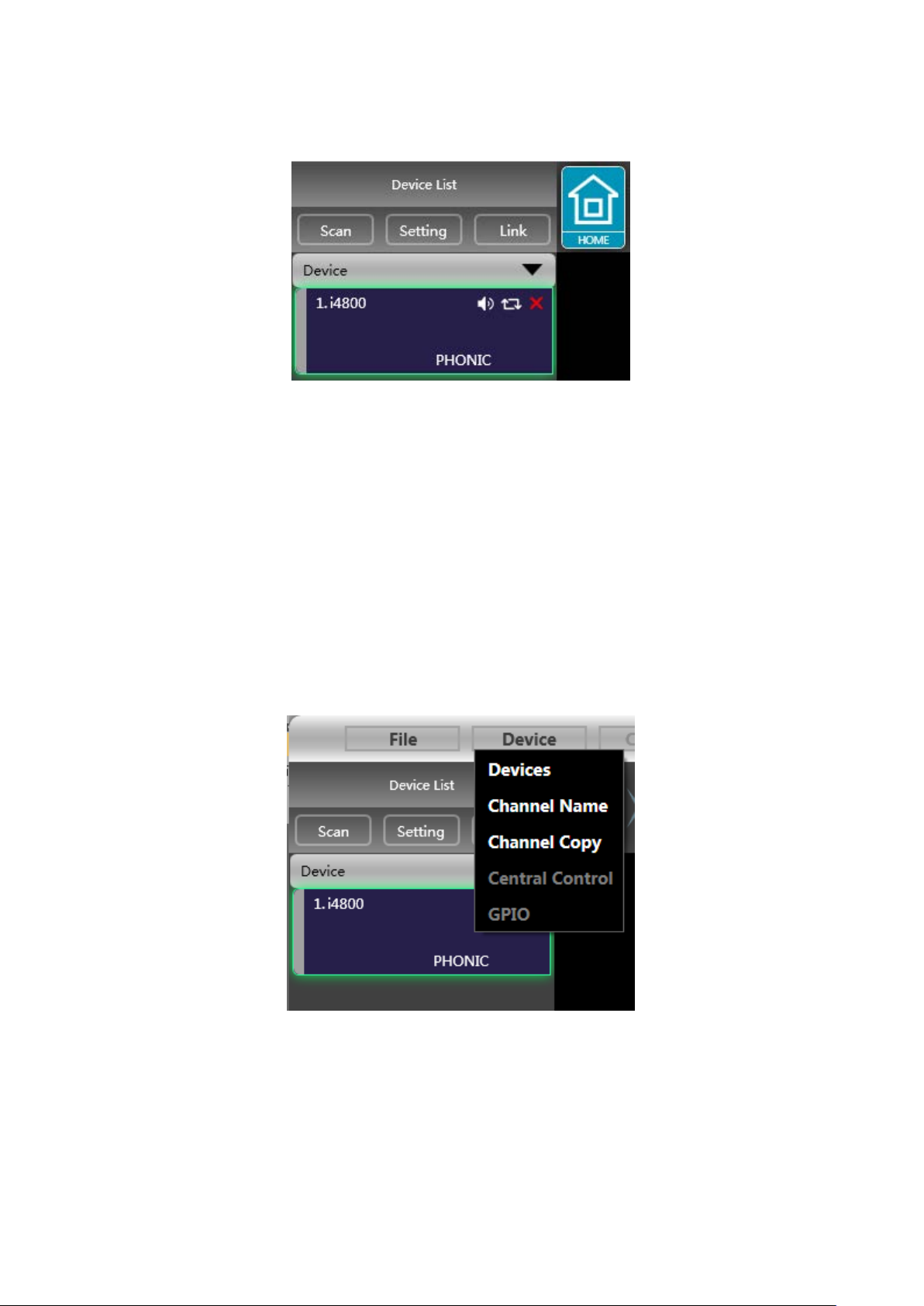

Figure 6.1.2 "Device"menu

As shown in Figure 6.1.2 "Device"menu:

Devices: view or modify the software version information, device name and device IP address of the upper and lower

computer ofthe device.

Channelname: set the name of each input and output channel, with memory function.

Channelcopy: copydevice input and output channel parameters, can realize cross-device copyparameters (Note:
