Phoenix Mecano HARTMANN ELECTRONIC PXE100A Series Manuel utilisateur

www.hartmann-electronic.com Rev. 1.0 1

PXI Express

Desktop PC Expansion

PCIE101A \ PXE100A

User’s Manual



www.hartmann-electronic.com Rev. 1.0 2

Revision History

Version: Notification of Change Date

1.0

10.01.2020

1.1 04.02.2020



Imprint:

Hartmann Electronic GmbH

Motorstraße 43, D-70499 Stuttgart (Weilimdorf)

Telephone: +49 711 1 39 89-0

Telefax: + 49 711 8 66 11 91

E-Mail: [email protected]

Internet: www.hartmann-electronic.com



HartmannElectronicisalongstandingpartnerofthe

Embeddedindustryandhasavarietyofdifferentbackplanes.

Withourwideselectionofbackplanesandenclosureyoucan

Buildyourperfectsystemplatform

All rights and technical modifications reserved

www.hartmann-electronic.com Rev. 1.0 3

Contents

1. Safety.....................................................................................................................................................................4

Intended Application..............................................................................................................................................4

Safety Symbols .....................................................................................................................................................4

General Safety Precautions ..................................................................................................................................4

Safety Instructions.................................................................................................................................................5

Protection Against Electromagnetic Interference (EMI).....................................................................................5

Electrostatic Discharge Precautions...................................................................................................................5

Installation ..........................................................................................................................................................5

Location..............................................................................................................................................................5

Voltage Hazards.................................................................................................................................................5

System Overheating...........................................................................................................................................5

Mounting Considerations....................................................................................................................................6

Electrical Hazards...............................................................................................................................................6

Board Installation................................................................................................................................................6

2. Product Description ...............................................................................................................................................7

Related Documentation.........................................................................................................................................7

Chassis Description...............................................................................................................................................8

Block Diagram.......................................................................................................................................................9

PCIE101A PCIe Gen. 3 X4 PC Card..................................................................................................................9

PXE100A PCIe Gen. 2 Uplink to PXI Express.................................................................................................10

Front Panel LEDs................................................................................................................................................11

Cabling ................................................................................................................................................................11

Installation................................................................................................................................................................12

Installing Hardware..............................................................................................................................................12

Installing Software...............................................................................................................................................14

3. Specification ........................................................................................................................................................15

Electrical..............................................................................................................................................................15

DC Input ...........................................................................................................................................................15

Operating Environment ....................................................................................................................................15

Electromagnetic Compatibility..........................................................................................................................16

Environmental...................................................................................................................................................16

CE Compliance.................................................................................................................................................17

Mechanical ..........................................................................................................................................................18

4. Pin Assignment....................................................................................................................................................19

PXI Express System Controller Slot (4 Link Configuration)................................................................................20

5. Ordering Information............................................................................................................................................21

www.hartmann-electronic.com Rev. 1.0 4

1. Safety

Intended Application

The PXE100A series remote controller kit is not designed for stand-alone use -- in order to enable stand-

alone functionality, additional elements are required. An operational system is achieved only by way of

appropriate PXI Express Cards.

The completion and final testing of the units have been carried out by qualified technicians. These

instructions are intended to assist those who are qualified to operate this equipment.

Make sure that the finished system complies with the safety regulations currently applicable in the

country it is going to be used.

Safety Symbols

Hazardous voltage!

Familiarize yourself with the danger of electrical voltages and the safety

precautions before starting to work with parts that carry dangerous voltages

Caution!

This symbol indicates a condition where damage of the equipment or injury of

the service personnel could occur. To reduce the risk of damage or injury,

follow all steps or procedures as instructed.

Danger of electrostatic discharge!

Static electricity can damage sensitive components in a system. To avoid

damage, wear ESD wrist straps or at regular intervals touch blank enclosure

parts.

General Safety Precautions

Warning!

Voltages over 60 VDC can be present in this equipment. This equipment is

intended to be accessed, installed and maintained by qualified and trained service

personnel only.

This equipment is designed in accordance with protection class 1.

It must therefore be operated only with protective GND/earth connection.

www.hartmann-electronic.com Rev. 1.0 5

Safety Instructions

This user's manual is intended for system Integrators and hardware/software engineers.

This product has been designed to meet the relevant standard industrial safety requirements. It is not

intended to be used in applications other than that of its specific area of the office telecommunication

industry and industrial control. It is not designed nor intended for use in safety-critical applications, life-

sustaining appliances or in aircraft.

Only trained personnel or persons qualified in electronics or electrical engineering are authorized to

install, operate or maintain the product.

This section provides safety information about the following:

Protection against electromagnetic interference (EMI)

Electrostatic discharge precautions

System installation

ProtectionAgainstElectromagneticInterference(EMI)

This product has been tested and found to comply with the limits for a Class A digital device, pursuant to

part 15 of the FCC Rules, EN 55022 Class A.

To ensure proper EMC shielding, operate the chassis only with filler panels covering all unpopulated

slots.

Ensure that all EMI gaskets make correct contact.

ElectrostaticDischargePrecautions

Electronic components can be easily destroyed by electrostatic discharge which can occur between

chassis components and a person.

Before working on the chassis, be sure that you are working in an ESD-safe environment or have

taken the necessary ESD precautions (ESD wrist strap, lab coat, etc.)

Installation

To avoid chassis damage, verify that the system environment meets or exceeds the environmental and

power requirements given in this guide before installation. In doing so, consider these guidelines:

Location

Locate the system in a stable area free of excessive movement or jarring, dust, smoke, and electrostatic

discharge (ESD). Make sure that the temperature does not exceed the operating temperature given in

the environmental requirements in this guide and allow room for proper air flow for cooling.

VoltageHazards

The system is powered with a power supply with the following voltage to the mains: 115/230VAC.

(Voltage range 90VAC to 264VAC)

This voltage is considered hazardous.

SystemOverheating

Ensure a clearance of at least 10 cm on both sides of the chassis to allow the needed air flow for proper

system cooling

Shelf ambient temperature may not exceed 50°C.

www.hartmann-electronic.com Rev. 1.0 6

MountingConsiderations

Assure that all components, structural or otherwise, were not loosened nor damaged during shipment

prior to use.

Do not operate under loose or damaged conditions as it may damage other parts of the system at large.

ElectricalHazards

The caution label on the system's rear, near the grounding studs, indicates a needed earth connection

due to the potential for high-leakage current which is considered hazardous.

High leakage current can cause injuries.

Ensure that the system is properly grounded at all times. Please account for the following condition:

This equipment shall be connected directly to the AC supply system earthing

BoardInstallation

Electrostatic discharge and incorrect board installation/removal can damage circuits or shorten their life.

Before touching the boards or electronic components, make sure that you are working in an ESD-

safe environment

Boards should be inserted and removed using their handles -- do not force the board by applying pressure to

the front panel.

www.hartmann-electronic.com Rev. 1.0 7

2. Product Description

The PXE100A series PXI Express Remote Controller is designed to operate in a PXI Express System Slot. The

controller complies with the PXI Express module form factor. With its use, a conventional Desktop PC is used to

control a PXI Express Chassis.

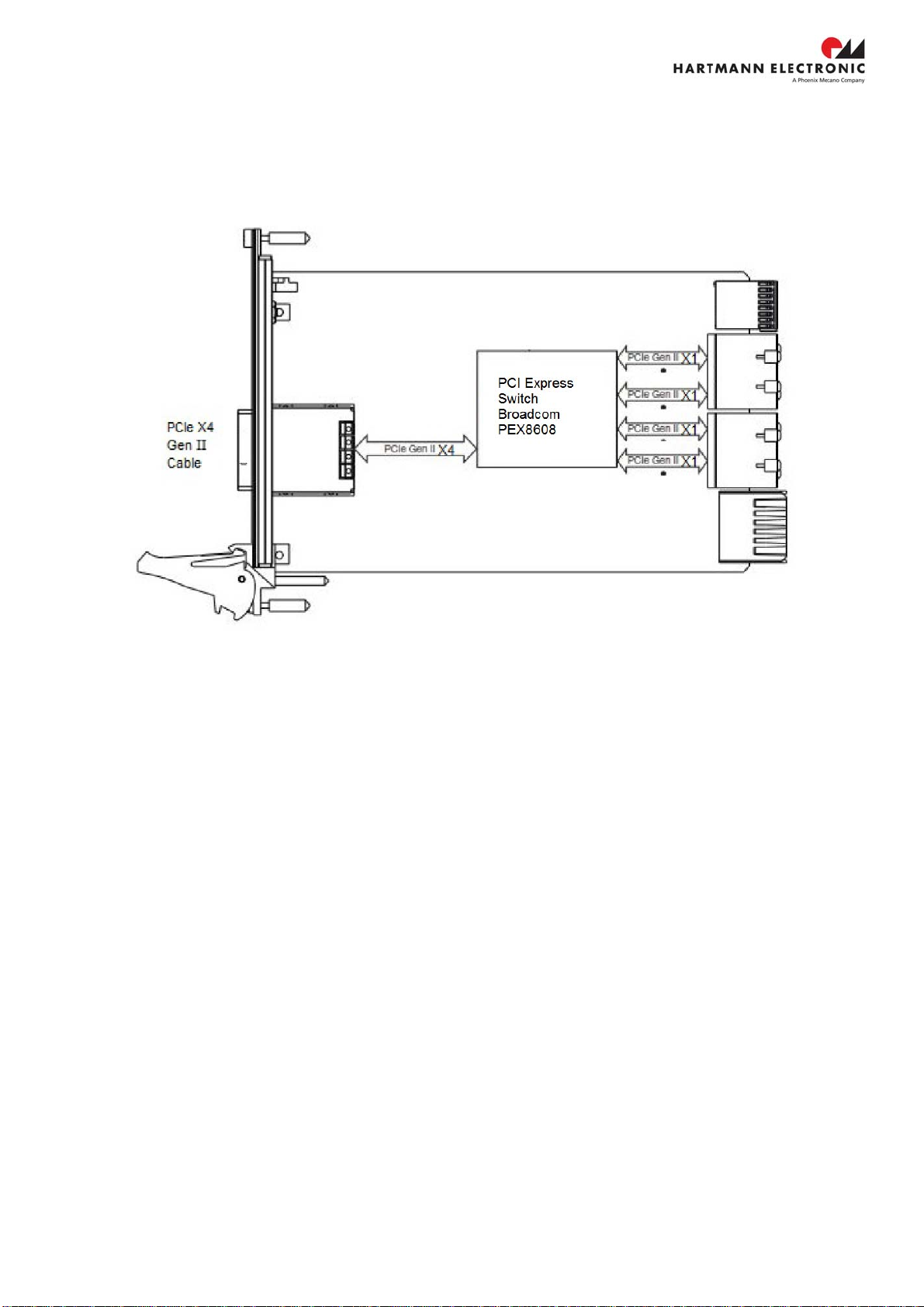

With the use of a Hartmann Electronic PCIE101A PC adapter, the Remote Controller is connected with a

standard PCIe X4 cable to the desktop PC. The interface of the PXE100A, as well as the interface of the

PCIE101A, are fully compliant with the PCI Express External Cable Specification, Revision 2.0.
