Introduction
Congratulations on your purchase and welcome to Philips!
To fully benet from the support that Philips offers, register your product at
www.philips.com/welcome.
Your robot (Fig. 1)
1 Handle of dust container lid
2 Dust container lid
3 Filter
4 Dust container
5 Top cover
6 Error codes table
7 Fan
8 Bumper
9 On/off button (switches robot on or to standby)
10 Power switch (switches robot on or off)
11 Front wheel
12 Side brush shafts
13 Drop-off sensors
14 Wheels
15 Battery cavity
16 Suction opening
17 Side brushes
18 Rechargeable battery
19 Battery cavity cover
20 Fixation blocks for dry wipes
21 Dry wipe holder
22 Dry wipes
23 Battery holder
24 Remote control
25 Charging cord
26 Pointer
27 Virtual wall unit
28 Docking station
29 Adapter
30 Small plug
Displays and control panels
Control panel of docking station
1 Display with time, day and programming indications
2 Adjusting and setting buttons
3 Battery indicator
1
2
3
ENGLISH
Remote control
1 Navigation buttons and on/off
2 Cleaning time buttons
3 Cleaning mode buttons
4 Fan speed buttons
5 Docking button
Pointer (FC8820)
1 Pointer button
2 On/off button
3 Cleaning mode buttons
4 Cleaning time buttons
5 Docking button
How your robot works
What your robot cleans
This robot is equipped with features that make it a suitable cleaner to help
you clean the oors in your home.
The robot is especially suitable for cleaning hard oors, such as wooden,
tiled or linoleum oors. It may experience problems cleaning soft oors,
such as carpet or rugs. If you use the robot on a carpet or rug, please stay
close by the rst time to see if the robot can deal with this type of oor.
The robot also needs supervision when you use it on black and shiny
hard oors.
How your robot cleans
Cleaning system
The robot has a 3-stage cleaning system to clean your oors efciently.
- The two side brushes help the robot clean in corners and along walls.
They also help to work dirt loose from the oor.
1
2
3
45
5
43
2
1
ENGLISH 7
- The suction power of the robot picks up loose dirt and transports it
through the suction opening into the dust container.
- The robot comes with a dry wipe holder that allows you to clean your
hard oor even more thoroughly with dry wipes.

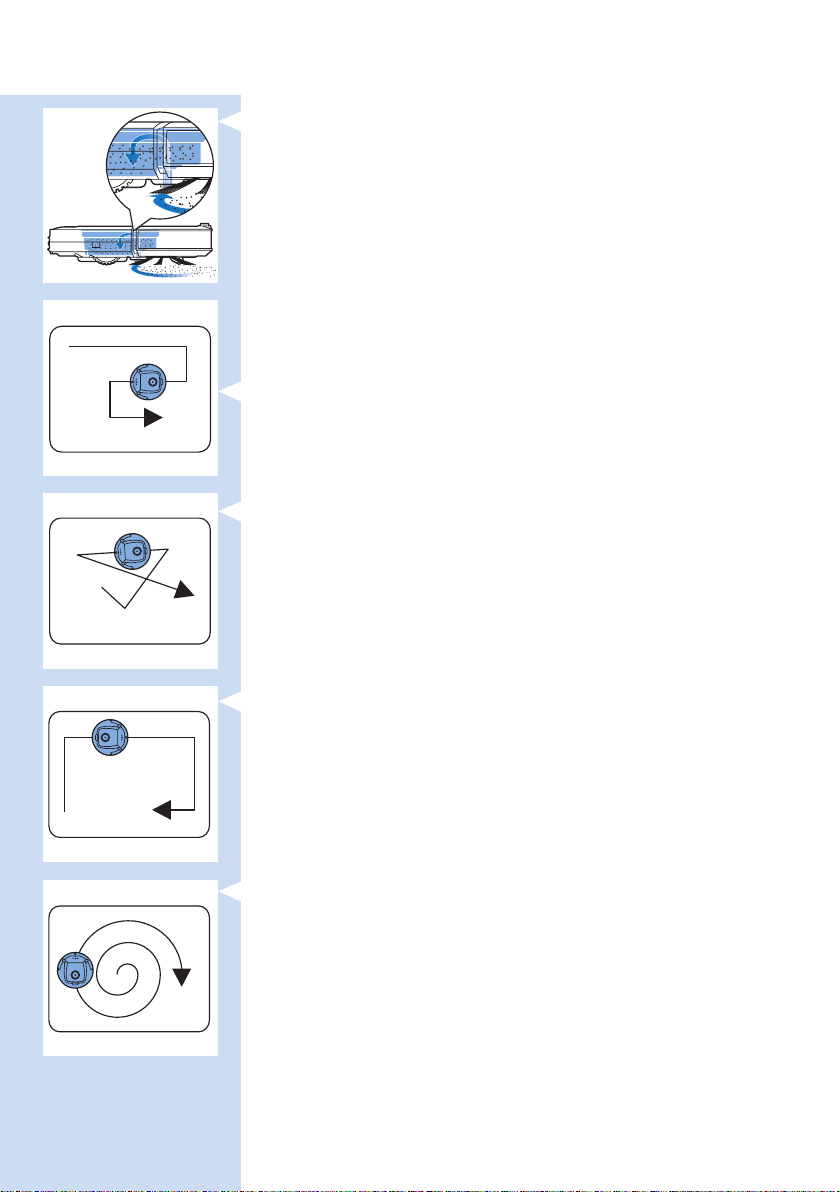

Cleaning patterns
In its auto cleaning mode, the robot uses an automatic sequence of
cleaning patterns to clean each area of the room optimally.
The cleaning patterns it uses are:
1 Z-pattern or zigzag pattern
2 Random pattern
3 Wall-following pattern
4 Spiral pattern
During auto cleaning, the robot uses these patterns in a xed sequence:
1 Z-pattern
2 Random pattern
3 Wall-following pattern
4 Spiral pattern
- When the robot has completed this sequence of patterns, it starts
moving in Z-pattern again.The robot continues to use this sequence of
patterns to clean the room until the rechargeable battery is empty, or
until it is switched off manually.
- If the robot detects a particularly dirty area during its cleaning run,
it switches to spiral mode and to turbo fan speed to ensure thorough
dirt removal.
Note:You can also select each mode individually by pressing the appropriate
button on the remote control or pointer (FC8820 only). For more details,
see chapter ‘Using your robot’, section ‘Cleaning modes’.
ENGLISH8
How your robot avoids height differences
- The robot has three drop-off sensors in its bottom. It uses these
drop-off sensors to detect and avoid height differences such as
staircases.
Note: It is normal for the robot to move slightly over the edge of a height
difference, as its front drop-off sensor is located behind the bumper.
Caution: In some cases, the drop-off sensors may not detect a staircase
or other height difference in time.Therefore monitor the robot carefully
the rst few times you use it, and when you operate it near a staircase
or another height difference.
Before rst use
Mounting the side brushes
1 Unpack the side brushes and place the robot upside down on a table
or on the oor.
2 Push the side brushes onto the shafts on the bottom of the robot.
Note: Make sure you attach the side brushes properly. Press them onto the
shaft until you hear them lock into position with a click.
Inserting the rechargeable battery into the robot
You have to insert the rechargeable battery before use.
1 Press the ribbed sections on the battery cavity cover to unlock it.
2 Slide the battery cavity cover off the robot.
3 Remove the plastic from the rechargeable battery.
1
2
ENGLISH 9
4 Place the rechargeable battery into the battery cavity.
Note: Make sure that the print on the battery points upwards and that the
connectors point in the right direction.
5 Slide the battery cavity cover back onto the robot.
Removing the protection tag from the remote control
The remote control works on a CR2025 coin-shaped battery.This battery
is protected with a protection tag that has to be removed before use.
1 Pull the battery protection tag out of the battery compartment of
the remote control.
,Now the remote control is ready for use.
Preparing for use
Installing the docking station
1 Insert the small plug of the adapter into the socket on the docking
station (1) and insert the adapter into the wall socket (2).
The display of the docking station lights up.
2 Place the docking station on a horizontal, level oor against the wall.
Tip: To ensure the docking station stays rmly in the selected spot, you can
fasten it to the wall with screws or with two strips of double-sided tape.
Note: Make sure that there are no obstacles or height differences 80cm in
front, 30 cm to the right and 100cm to the left of the docking station.
此方向
1
2
100 厘米 30 厘米
80 厘米
ENGLISH10
