Philips FC8454/01 Manuel utilisateur

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

ServiceManual

Philips Consumer Lifestyle

Vacuum cleaner

FC8454/01

14/09 Version 1.2

PRODUCT INFORMATION

• This product meets the requirements regarding

interference suppression on radio and TV.

• After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

• Colour : Deep black

• Power consumption : 2000 W

• Suction Power : 325 W

• Noise level : 82 dBA

• Dustcapacity : 3 L

• Filtration system : Micro filter

S-bag

Usability

• Action Radius : 9 m

• Cord length : 6 m

• Handgrip : Extra long ergonomic

grip

• Accessory storage : Accessory holder on

telescopic tube

Weight and dimensions (L x W x H):

• Dimensions of product : 406 x 282 x 220 mm

• Dimensions packaging : 520 x 300 x 290 mm

• Weight : 4.2 kg

ACCESSORIES

• Standard nozzle : All-purpose nozzle

• Additional nozzle : Hard floor nozzle

• Tubes : Telescopic tube

• Accessories : Crevice and small nozzle

• Accessory storage : Accessory holder on tube

REPAIR INSTRUCTION

• No specific issues

OPTIONAL (accessories)

• FC8021/03 : Philips Disposable S-bag

FC8454/01

2-9

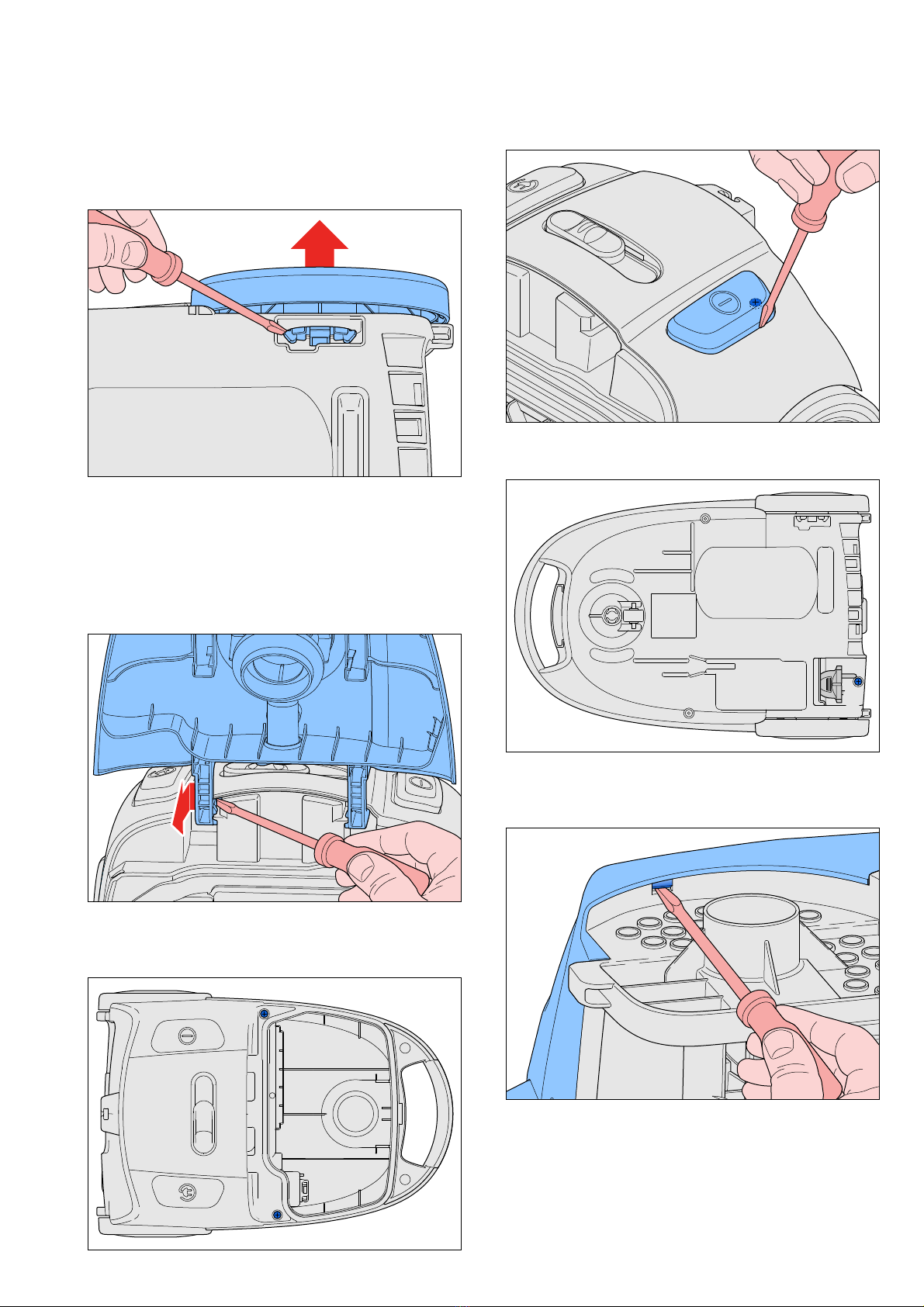

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

• First remove the dust bag.

• To replace the wheels (10), first turn the appliance

upside down. To remove the wheel on the left side (seen

from the backside), push with a screwdriver the nocks

from the inside out, and pull the wheel out (see picture).

• To remove the wheel on the cordwinder side, pull the

wheel with great force from the lower housing.

To place a wheel, click the wheel into the lower housing.

• To reach te inner parts for repair, the top housing (15)

has to be removed.

• Remove the dustcover assy (1) using a screwdriver

(see picture).

• When the dustcover has been removed, 2 of the 4

screws Bthat need to be unscrewed to disassemble the

tophousing (15) are accessible (see picture).

• The 3th screw Bis hidden under the On/Off pedal (12),

to remove the pedal use a screwdriver (see picture).

• Finally the last screw Bthat need to be removed is

situated at the bottom side of the appliance (see picture).

• To separate the top housing from the bottom housing

release the snap connection behind the wheel at the

cordwinder side (see picture).

FC8454/01

3-9

TR1

Motor

TMP

27-¼W

10M-¼W

220 - 240 V

50 Hz

0.47F

275V

22nF

ZD1

4.7V

½ W

220F

16V

1N4007

10k-1W

47k

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

ELECTRICAL DIAGRAM

• To replace the parkhook (13), first remove Screw C,

then by pushing the two lips with a screwdriver the

parkhook can be removed (see picture).

• To replace the cordwinder (20), first remove the

wires, the locks can be unlocked with a screw driver

(seepicture).

• The safety valve assy (21) can be clogged with dust, it can

be easily taken out and replaced after the tophousing has

been removed, it must be done from inside the bottom

housing where the cordwinder is situated (see picture).

• When replacing the motor, make sure that the two red

wires are placed underneath the motor.

• To replace the caster assy (11), squeeze the 2 dividers

in the middle of the hole of the caster arm together

with pliers, at the same time pull the caster assy off

(seepicture). The new caster assy can be snapped on in

one single move.

FC8454/01

4-9

PARTS LIST

Pos Service code Description Remark

9965 100 51989

4322 004 93701

9965 100 52011

9965 100 51988

9965 100 52007

Dustcover assy

Reusable dustbag *

Dustbag holder

Cover for handle

Dustbag full indicator

Deep black

4322 004 93671

9965 100 52003

9965 100 51994

9965 100 51992

9965 100 52004

Motor protector lter

Inlet lter frame

Cordwinder pedal (with spring)

Slide knob

Wheel assy

Hare

Deep red

Deep black

9965 100 52008

9965 100 51991

9965 100 51987

9965 100 69356

9965 100 54029

Caster assy

On/Off pedal

Park hook

Switch

Top housing

Deep black

Deep red

Deep black

9965 100 52001

9965 100 52005

4322 004 93681

9965 100 52014

4322 005 33091

Potmeter PCBA

Outlet grille

Exhaust micro lter

Cordwinder lever

Cordwinder 6 m EU plug

Hare

9965 100 52929

9965 100 54028

4322 006 24691

4322 006 99231

4322 004 25071

Safety valve

Bottom housing

PCBA 220 - 230 V

Motor 230 V / 50 - 60 Hz (2000 W)

Telescopic tube

Deep black

Hare

Kingclean

Aluminium

4322 004 25181

4222 459 46621

4222 459 46641

4322 004 24531

9965 100 51993

Hose assy

Small nozzle

Crevice nozzle

All oor nozzle Plastic plate

Parquet brush

Dark raven 80236

Dark raven

33 9965 100 52009 Springs of the buttons

* Only in specic versions

FC8454/01

5-9

EXPLODED VIEW

FC8454/01

6-9

EXPLODED VIEW

FC8454/01

7-9

EXPLODED VIEW

FC8454/01

8-9

EXPLODED VIEW

FC8454/01

9-9

Version history

Version 1.1 : FC8454/01 initial release.

Version 1.2 : In Parts list:

Changed Pos. 27, 4322 004 24521 Telescopic tube into 4322 004 25071.

Changed Pos. 28, 4322 004 24511 Hose assy into 4322 004 25181.
