Get Support

1.1

Identify and Register your TV

Identify your TV - TV model number and serial

number

You might be asked to provide the TV product model

number and serial number. Find these numbers on

the packaging label or on the type label on the back

or bottom of the TV.

including full support (including downloads),

privileged access to information about new products,

exclusive offers and discounts, the chance to win

prizes and even participate in special surveys about

new releases.

Go to www.philips.com/TVsupport

1.2

TV Help and User Manual

Press  Settings > Help

In Help menu, you can easily get software updated,

reset TV to default settings, and read user manual.

- Update software: Check available software updates.

- User manual: Read the user manual for TV

information.

- Troubleshooting: Find a solution for frequent ask

questions.

- Factory settings: Reset all settings to factory

settings.

- Reinstall TV: Reinstall and redo the complete TV

installation.

- Contact info: Show the telephone number or web

address for your country or region.

1.3

On-line Help and User

Manual

To solve any Philips TV related problem, you can

consult our online support. You can select your

language and enter your product model number.

Go to www.philips.com/TVsupport.

On the support site you can find your country's

telephone number to contact us as well as answers to

frequently asked questions (FAQs). In some countries,

you can chat with one of our collaborators and ask

your question directly or send a question by email.

You can download new TV software or the manual to

read on your computer.

For more TV troubleshooting and frequently asked

questions (FAQs)...

to http://philips-tvconsumercare.kxondemand.com/

portal/en/ModelSelect

TV Help on your tablet, smartphone or computer

To carry out extended sequences of instructions more

easily, you can download the TV Help in PDF format

to read on your smartphone, tablet or

computer. Alternatively, you can print the relevant

Help page from your computer.

To download the Help (user manual) go

to www.philips.com/TVsupport

1.4

Consumer Care / Repair

For support and repair, call the Consumer Care

hotline in your country. Our service engineers will take

care of a repair, if necessary.

Find the telephone number in the printed

documentation that came with the TV.

Or consult our

website www.philips.com/TVsupport and select

your country if needed.

TV model number and serial number

You might be asked to provide the TV product model

number and serial number. Find these numbers on

the packaging label or on the type label on the back

or bottom of the TV.

 Warning

Do not attemp to repair the TV yourself. This may

cause severe injury, irrepairable damage to your TV or

void your warranty.

Software

2.1

Update Software

Search for Updates

 (Home) > Settings > Update

software > Search for updates.

You need a computer and a USB memory device to

upload the software on the TV. Use a USB memory

device with 256MB free space. Make sure that write

protection is switched off.

1. Start the update on TV

- (Home) > Settings > Update

software > Search for updates.

2. Identify the TV

- Insert the USB memory into one of the USB

connections of the TV.

Select Start and press OK. An identification file is

written on the USB memory device.

3. Download the TV software

- Insert the USB memory into your computer.

- On the USB memory device, locate the

file update.htm and double click it.

- Click on Send ID.

- Select your region

- If new software is available, download the .zip file.

After the download, unzip the file and copy the

file autorun.upg onto the USB memory device.

4. Update the TV software

- Insert the USB memory into the TV again. The

update starts automatically.

The TV switches itself off for 10 seconds and then

back on again. Please wait.

Do not . . .

- remove the USB memory device from the TV

If a power cut occurs during the update, never

remove the USB memory device from the TV. When

the power returns, the update will continue.

Local Updates

For dealers and expert users…

 (Home) > Settings > Update software > Local

updates.

Look for OAD updates (Over-the-air

Download)

Scan to search for an Over-the-air software update.

 (Home) > Settings > Update software > Look

for OAD updates.

* The availability of OAD updates is dependent on

your country.

2.2

Software Version

To view the current TV software version…

 (Home) > Settings > Update

software > Current software Info

Quick Guide

3.1

Remote Control

Batteries and Cleaning

Replace batteries

If the TV does not react on a key press on the remote

control, the batteries might be empty.

To replace the batteries, open the battery

compartment on the back of the remote control.

1. Slide the battery door in the direction shown by the

arrow.

2. Replace the old batteries with 2

type AAA-R03-1.5V batteries. Make sure the + and

the - ends of the batteries line up correctly.

3. Reposition the battery door and slide it back until it

clicks.

- Remove the batteries if you are not using the

remote control for a long time.

- Safely dispose of your old batteries according to the

end of use directions.

Cleaning

Your remote control is treated with a scratch-resistant

coating.

To clean the remote control, use a soft damp cloth.

Never use substances such as alcohol, chemicals or

household cleaners on the remote control.

Key Overview

Top

1.  Standby / On

To switch the TV on or back to Standby.

2. Playback keys

- Play , to playback

- Pause , to pause playback

- Stop , to stop playback

- Rewind , to rewind

- Fast forward , to go fast forward

- Record , to record now

3.  TV GUIDE

To open or close the TV Guide.

4.  FORMAT

To open or close the Picture format menu.

5.  SETUP

To open the Settings menu.

Middle

1. HOME

To open or close the home menu.

2.  SOURCES

To open or close the Sources menu - the list of

connected devices.

3. Colour keys

The buttons function follow the on-screen

instructions.

4.  INFO

To open or close programme infomation.

5.  BACK

To switch back to the previous channel you selected.

To close a menu without changing a setting.

6.  EXIT

To switch back to watching TV.

7.  OPTIONS

To open or close the Options menu.

8. OK key

To confirm a selection or setting.

9. Arrow / navigation keys

To navigate up, down, left or right.

10.  LIST

To open or close the channel list.

Bottom

1.  Mute

To mute the sound or to restore it.

2.  Volume

To adjust the volume level.

3. Number keys

To select a TV channel directly.

4. SUBTITLE

To switch subtitles on, off or Automatic.

5.  Channel

To switch to the next or previous channel in the

channel list. To open the next or previous page in

Text/Teletext. To start the next or previous chapter on

a disc.

6. TEXT

To open or close Text / Teletext.

3.2

IR sensor

The TV can receive commands from a remote control

that uses IR (infrared) to send commands. If you use

such a remote control, always make sure you point

the remote control at the infrared sensor on the front

of the TV.

 Warning

Do not put any objects in front of IR sensor of the TV,

it may block the IR signal.

Setting Up

4.1

Read Safety

Read the safety instructions first before you use the

TV.

To read the instructions, in User manual, see

chapter Safety and Care.

4.2

TV Placement

Tips on Placement

- Position the TV where light does not shine directly

on the screen.

- Position the TV up to 15 cm away from the wall.

- The ideal distance to watch TV is 3 times its

diagonal screen size. When seated, your eyes should

be level with the centre of the screen.

Note:

Please keep the TV away from dust-producing

sources such as stoves. It is suggested to clean the

dust regularly to avoid getting dust into the TV.

TV Stand

You can find the instructions for mounting the TV

stand in the Quick Start Guide that came with the TV.

In case you lost this guide, you can download it

from www.philips.com.

Use the model number of the TV to look for

the Quick Start Guide to download.

Wall Mounting

4304, 4354 series TV

Your TV is also prepared for a VESA-compliant wall

mount bracket (sold separately).

Use the following VESA code when purchasing the

wall mount . . .

- 24PHS43x4 - VESA MIS-F 75x75, M4 (Minimum 10

mm, Maximum 10.5 mm)

Preparation

First remove the 4 plastic screw caps out of the

threaded bushes on the back of the TV.

Make sure that the metal screws, to mount the TV to

the VESA-compliant bracket, go about 10mm deep

inside the threaded bushes of the TV.

Caution

Wall mounting the TV requires special skills and

should only be performed by qualified personnel. The

TV wall mounting should meet safety standards

according to the TVs weight. Also read the safety

precautions before positioning the TV.

TP Vision Europe B.V. bears no responsibility for

improper mounting or any mounting that results in

accident or injury.

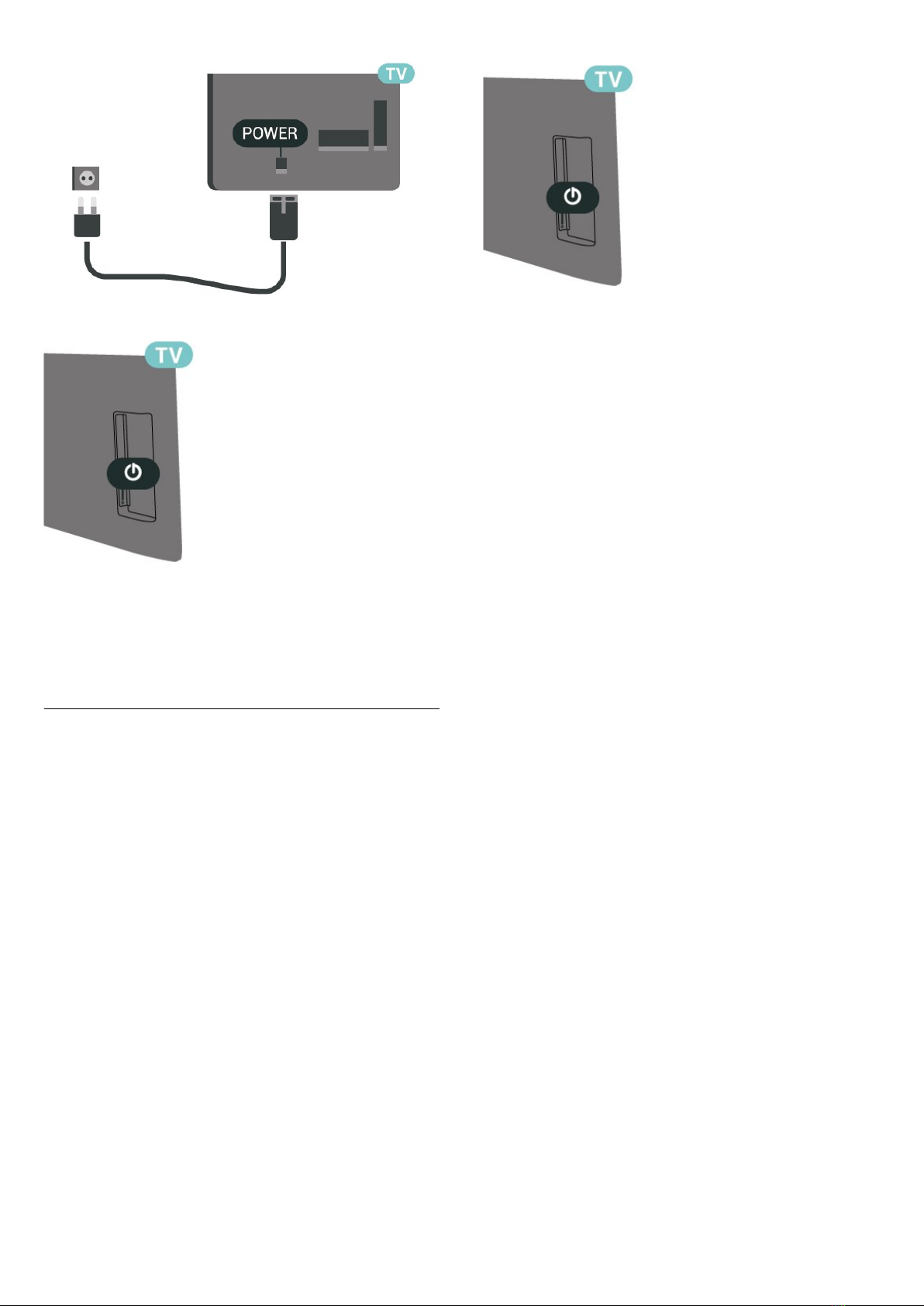

4.3

Turn on TV

Connect Power Cable

- Insert the power cable into the POWER connector

on the back of the TV.

- Make sure the power cable is securely inserted in

the connector.

- Make sure that the power plug, in the wall socket, is

accessible at all times.

- When you unplug the power cable, always pull the

plug, never pull the cable.

Although this TV has a very low standby power

consumption, unplug the power cable to save energy

if you do not use the TV for a long period of time.

Switch On or Standby

Before you switch on the TV, make sure you plugged

in the mains power in the POWER connector on the

back of the TV.

Switch On

Press the power button on the side or the back of the

TV.

Switch to standby

To switch the TV to Standby, press  on the remote

control.

To switch off the TV completely, disconnect the

power plug.

When disconnecting the power plug, always pull the

power plug, never the cord. Ensure that you have full

access to the power plug, power cord and outlet

socket at all times.

Connections

5.1

Connectivity guide

Always connect a device to the TV with the highest

quality connection available. Also, use good quality

cables to ensure a good transfer of picture and

sound.

When you connect a device, the TV recognizes its

type and gives each device a correct type name. You

can change the type name if you wish. If a correct

type name for a device is set, the TV automatically

switches to the ideal TV settings when you switch to

this device in the Sources menu.

5.2

Antenna

Insert the antenna plug firmly into

the Antenna socket at the back of the TV.

You can connect your own antenna or an antenna

signal from an antenna distribution system. Use an

IEC Coax 75 Ohm RF antenna connector.

Use this antenna connection for DVB-T and DVB-C

input signals.

* Network port is only for UK models

** Satellite port is only for xxPxSxxxx series

5.3

Satellite (if available)

Attach the satellite F-type connector to the satellite

connection SAT at the back of the TV.

* Network port is only for UK models

** Satellite port is only for xxPxSxxxx series

5.4

Video Device

HDMI

For best signal quality transfer, use a High speed

HDMI cable and do not use an HDMI cable longer

than 5 m.

* Network port is only for UK models

** Satellite port is only for xxPxSxxxx series

Copy protection

HDMI cables support HDCP (High-bandwidth Digital

Content Protection). HDCP is a copy protection signal

that prevents copying content from a DVD disc or Blu-

ray Disc. Also referred to as DRM (Digital Rights

Management).

HDMI - DVI

If you still own a device that only has a DVI

connection, you can connect the device to HDMI 2

connection with a DVI to HDMI adapter.

Use a DVI to HDMI adapter if your device only has a

DVI connection. Use HDMI 2 connection and add

an Audio L/R cable (mini-jack 3.5mm) to Audio In for

sound, on the back of the TV.

* Network port is only for UK models

** Satellite port is only for xxPxSxxxx series

HDMI-CEC Connection - EasyLink

Connect HDMI CEC-compatible devices to your TV,

you can operate them with the TV remote

control. EasyLink HDMI CEC must be switched on on

the TV and the connected device.

Switch on EasyLink

 (Home) > Settings > General

settings > EasyLink > EasyLink > On

Operate HDMI CEC-compatible devices with TV

remote control

 (Home) > Settings > General

settings > EasyLink > EasyLink remote

control > On

Note:

- EasyLink might not work with devices from other

brands.

- The HDMI CEC functionality has different names on

different brands. Some examples are: Anynet, Aquos

Link, Bravia Theatre Sync, Kuro Link, Simplink and

Viera Link. Not all brands are fully compatible with

EasyLink. Example HDMI CEC branding names are

property of their respective owners.

SCART

SCART is a good quality connection.

The SCART connection can be used for CVBS and

RGB video signals but cannot be used for High

Definition (HD) TV signals. The SCART connection

combines video and audio signals. The SCART

connection also supports NTSC playback.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips TV

Philips

Philips 32-REAL FLAT SDTV 32PT9005D - Hook Up Guide Manuel utilisateur

Philips

Philips Magnavox TS3258C Manuel technique

Philips

Philips 28PT 7157 Manuel utilisateur

Philips

Philips PR0930X1 Manuel utilisateur

Philips

Philips 25PT533S Manuel utilisateur

Philips

Philips 32PW8504 Manuel utilisateur

Philips

Philips 40PUK6400 Manuel utilisateur

Philips

Philips Matchline 28PW9617 Manuel utilisateur

Philips

Philips Cineous 55PL9524 Manuel utilisateur

Philips

Philips 25PT4223 Manuel utilisateur

Philips

Philips 26PFL3606H/12 Manuel utilisateur

Philips

Philips 32PHG5102/77 Manuel utilisateur

Philips

Philips TPE1.1U LA Manuel utilisateur

Philips

Philips 32DW6658/01 Manuel utilisateur

Philips

Philips 65PFT6520/12 Manuel utilisateur

Philips

Philips 26PFL4507/F7 Manuel utilisateur

Philips

Philips PT442621 Manuel utilisateur

Philips

Philips 19LT010L/35 Manuel utilisateur

Philips

Philips 8505 Series Manuel utilisateur

Philips

Philips 4511 series Manuel utilisateur

Philips

Philips 19PR19C Manuel utilisateur

Philips

Philips 27PT9007D Manuel utilisateur

Philips

Philips 48OLED848 Manuel utilisateur

Philips

Philips 29PT8344 Manuel utilisateur

Manuels TV populaires d'autres marques

Toshiba

Toshiba 27A10 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur

Sanyo

Sanyo CE19LD90N-B Manuel utilisateur

North State

North State TV2GO Manuel utilisateur

RCA

RCA RTU7877 Manuel utilisateur

Sharp

Sharp 21K-FG1RU Manuel utilisateur

Sony

Sony Esprit TAV-L1 Manuel utilisateur

Grundig

Grundig 43 VLE 4820 Manuel utilisateur

Samsung

Samsung LN26C350D1D Manuel utilisateur
