Table of contents 3
Table of contents
1Important 4
1.1 Power requirements 4
1.2 Conformity 4
1.3 Recycling and disposal 5
1.4 Electric, Magnetic and
Electromagnetic Fields ("EMF") 5
1.5 Installation requirements 6
2 Your Wireless TV link 7
2.1 What’s in the box 7
2.2 Overview of the
Wireless TV link 7
3Gettingstarted 9
3.1 Connect transmitter 9
3.2 Connect receiver 10
3.3 Enjoy 10
3.4 Install the remote control
blaster cord 11
3.5 Remove interference on TV2 11
4 Technical Data 12
5 Frequently asked
questions 13
6INDEX 16
4Important
1Important
Take time to read this user manual before
you use your wireless TV link. It contains
important information and notes
regarding your wireless TV link.
1.1 Power requirements
• Connect the power adapters only to a
100-240V AC 50/60Hz power supply.
• The Electrical network is classified as
hazardous. The only way to power
down the charger is to unplug the
power supply from the electrical
outlet. Ensure that the electrical outlet
is always easily accessible.
Warning
To avoid damage or malfunction:
• Do not expose the wireless TV link to
excessive heat caused by heating
equipment or direct sunlight.
• Do not drop your wireless TV link or
allow objects to fall on your wireless
TV link.
• Do not use any cleaning agents
containing alcohol, ammonia, benzene,
or abrasives as these may harm the set.
• Do not use the product in places
where there are explosive hazards.
• Do not let small metal objects come
into contact with the product. This can
deteriorate audio quality and damage
the product.
• Active mobile phones in the vicinity
may cause interference.
• Do not open your product as you
could be exposed to high voltages.
• Do not allow the charger to come into
contact with liquids.
• Do not allow the TV link to come into
contact with liquids.
• Use only with provided power supply.
Manufacturer: Concord.
Model Name: CM-3AD09005.
• Power supply information for receiver
and transmitter
Input: AC100-240V/120mA,
50Hz/60Hz
Output: DC9V/500mA
About operating and storage
temperatures:
• Operate in a place where temperature
is always between 0 and 40ºC (32 to
103ºF).
• Store in a place where temperature is
always between -10 and 70ºC (14 to
157ºF).
1.2 Conformity
This product has been designed, tested
and manufactured according the
European R&TTE directive 1999/5/EC

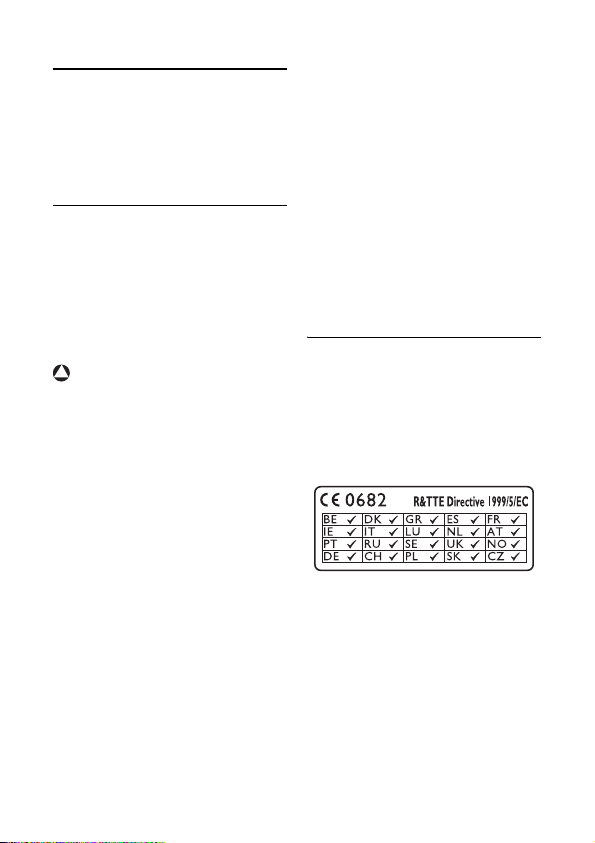

Following this directive, this product can
be brought into service in the following
states:
Class identifier. This is a class 1 product.
We, Philips, declare that the product is in
compliance with the essential
requirements and other relevant
provisions of Directive 1999/5/EC. You
can find the Declaration of Conformity
on www.p4c.philips.com.
!
!
Important 5
1.3 Recycling and disposal
Disposal instructions for old products.
The WEEE directive (Waste Electrical
and Electronic Equipment; 2002/96/EC)
has been put in place to ensure that
products are recycled using best available
treatment, recovery and recycling
techniques to ensure human health and
high environmental protection.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Do not dispose of your old product in
your general household waste bin.
Inform yourself about the local
separate collection system for
electrical and electronic
products marked by this symbol:
Use one of the following disposal options:
1. Dispose of the complete product
(including its cables, plugs and
accessories) in the designated WEEE
collection facilities.
2. If you purchase a replacement
product, hand your complete old
product back to the retailer. He
should accept it as required by the
WEEE directive.
Packaging information:
Philips has marked the packaging with
standard symbols designed to promote
the recycling and appropriate disposal of
your eventual waste.
A financial contribution has been
paid to the associated national
recovery & recycling system.
The labelled packaging material is
recyclable.
1.4 Electric, Magnetic and
Electromagnetic Fields
("EMF")
1. Philips Royal Electronics Manufactures
and sells many consumer oriented
products which usually, as with any
electronic apparatus, have the ability
to emit and receive electro magnetic
signals.
2. One of Philips' leading Business
Principles is to take all necessary
health and safety precautions for our
products, to comply with all applicable
legal requirements and to stay well
within the EMF standards applicable at
the time of producing the products.
3. Philips is committed to develop,
produce and market products that
cause no adverse health effects.
4. Philips confirms that if its products are
handled properly for their intended
use, they are safe to use according to
scientific evidence available today.
5. Philips plays an active role in the
development of international EMF and
safety standards, enabling Philips to
anticipate further developments in
standardisation for early Integration in
its products.
6Important
1.5 Installation requirements
The product transmits and receives radio
waves when it is switched on. The
product complies with the standards that
are defined for it.
As the product is based on RF
technology, the quality of the image can
be influenced by microwave ovens,
Bluetooth, Wifi etc.
Therefore the product can suffer from
the same kinds of interference as GSMs,
portable radios and other RF-based
products.
Your Wireless TV link 7
2 Your Wireless TV link
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
2.1 What’s in the box

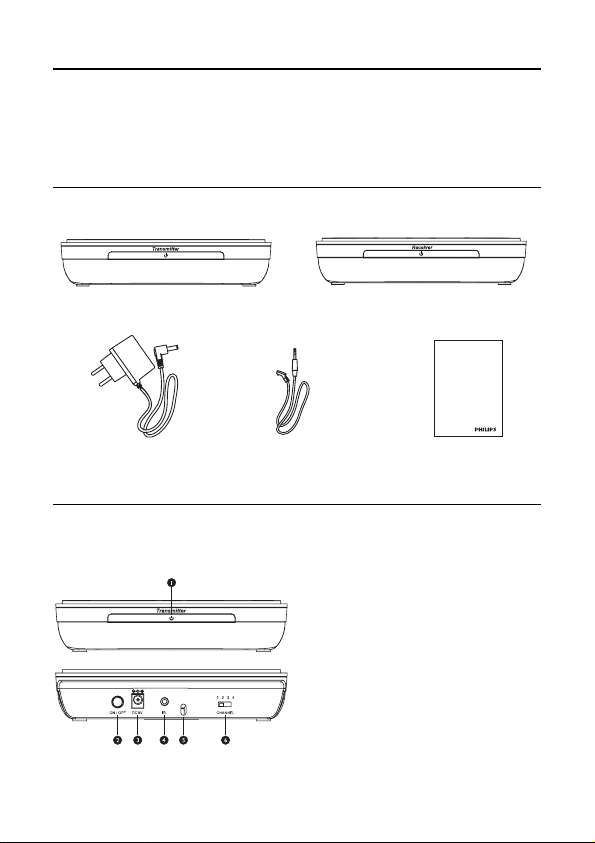

2.2 Overview of the Wireless TV link
Control and display elements
1Powerlight:
>green:on
2 On/off switch
3 Power input connector (DC 9V)
4 Remote control blaster cord port
5SCARTcable
6 Wireless channel selection switch
> Find the CHANNEL switch on
4 available channels
A. Transmitter B. Receiver
D. Remote control
blaster cord
E. User manual
C. Power adapter (2x)
Transmitter
8Your Wireless TV link

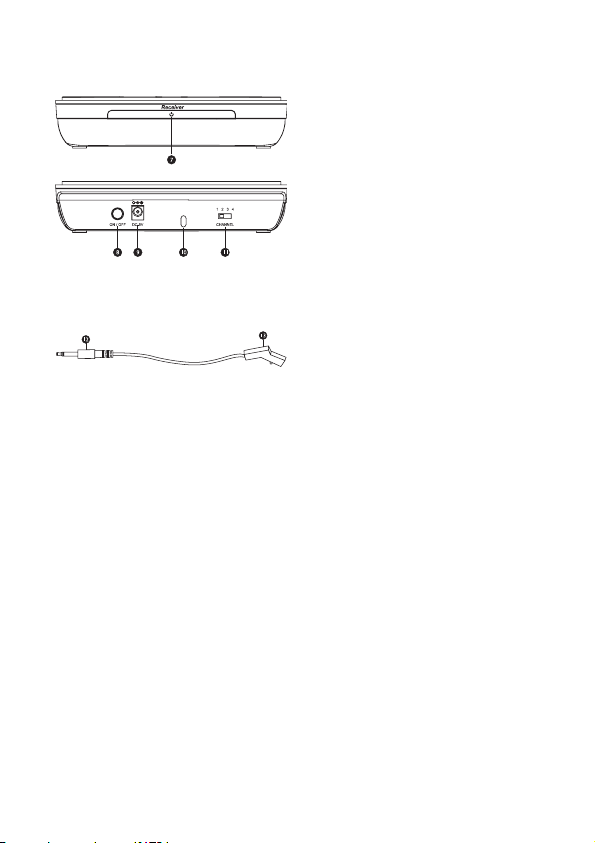

Control and display elements
7Powerlight:
>green:on
8 On/off switch
9 Power input connector (DC 9V)
10 SCART cable
11 Wireless channel selection switch
> Find the CHANNEL switch on
4 available channels
12Connector
13Blaster light
Receiver
Remote control blaster cord
Getting started 9
3 Getting started
3.1 Connect transmitter

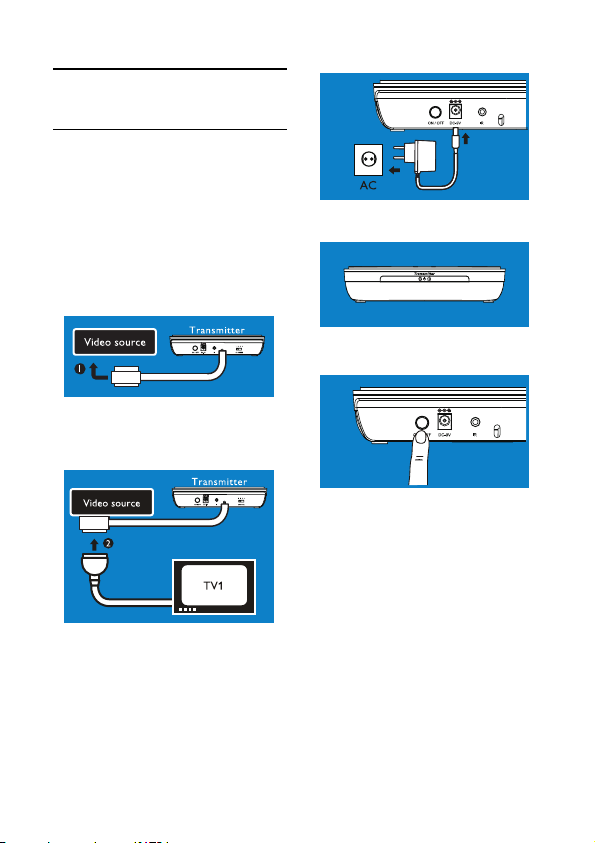

1. Connect the video source to the
transmitter
a. Take the supplied transmitter (A).
Find the SCART cable that is
connecting the video source to the
TV1. Disconnect this SCART cable.
Note: The video source can be a satellite
receiver, a VCR, a DVD player or
recorder...
2. Connect TV1
Plug the SCART cable from TV1 into
the SCART connector of the
transmitter (A).
3. Connect the power adapter
a. Take the supplied power adapter
(C) to plug the connector into the
DC 9V power connector on the
transmitter (A).
b. Plug the adapter into the power
outlet.
c. The green LED on the front panel
should be on.
Note: If it is not the case, press the ON/
OFF switch on the back of the product.
4. Check that TV1 is working well
a. Switch on TV1
b. Check that TV1 is working well.
c. Switch on the connected video
source.
d. Check if TV1 shows the image of
the video source.
> The transmitter is connected
correctly.
5. Connect the remote control blaster
cord (D) to the IR socket.
• Please reference to "3.4 Install the
remote control blaster cord" to
have more information.
10 Getting started

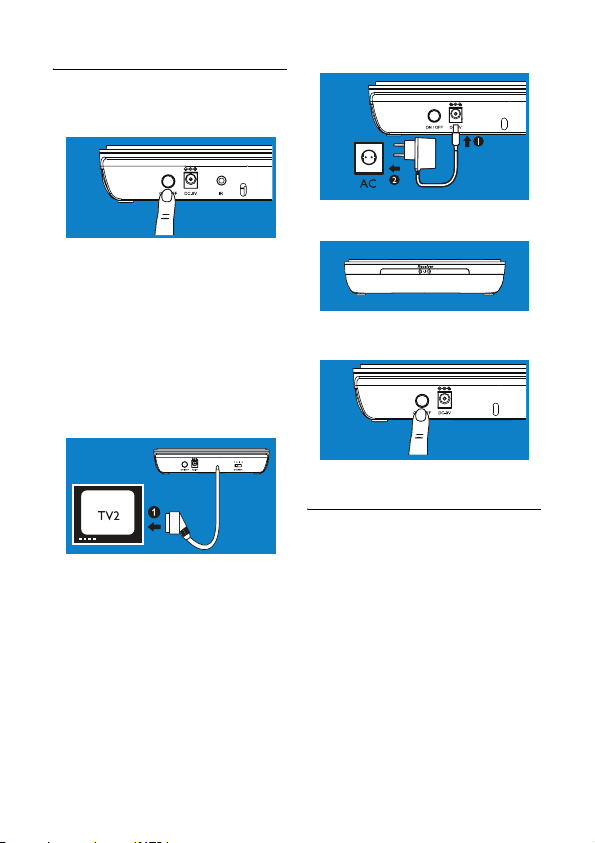

3.2 Connect receiver
Preparation
- Switch on the transmitter (A).
- Switch on the Video source.
- Take these items:
• Receiver (B)
• Power adapter (C)
• Remote control of the video
source
- Go to TV2.
1. Connect the receiver to the second
TV (TV2)
Plug the SCART cable of the receiver
(B) into the SCART port of TV2.
2. Connect the power adapter
a. Take the supplied power adapter
(C) to plug the connector into the
DC 9V power connector on the
Receiver (B).
b. Plug the adapter into the power
outlet.
c. The green LED on the front panel
should be on.
Note: If it is not the case, press the ON/
OFF switch on the back of the product.
3. Set the CHANNEL switch to the same
number that on the transmitter (A).
3.3 Enjoy
All the operations listed on 3.1 and 3.2
should have been done.
1. Switch on TV2.
2. Switch on the receiver (B).
3. Select the correct SCART input on
TV2.
4. Point the remote control of the video
source to the receiver (B).
5. Operate the video source with its
remote control.
6. Check if TV2 shows the image of the
video source.
> The receiver is connected
correctly.
