AG 1000 1952 rough/partially ,TRANSLATED from DUTCH via google docs and GOOGLE TRANSLATE
oct 2018
USING PHILIPS SERVICE DOCUMENTATIE VOOR DE PLATENWISSELAAR AG1000 1952
[referenced FIGURES start on page 21 of 36 of the 1952 PHILIPS SERVICE DOCUMENTATIE ] ..pg 59
here...
Last upload to google and also conv to pdf JAN 27 2019 redo EACH again at final
70pgs
......................................................................................................
P12-19 ...operation
P21- ...repair and adjustment specs
P59- ...figures
Denis Burke
Runnells,IA usa
Then downloaded the FR folder from google docs [complete w translated pages
p17 .... 70 total !!! [31 translated images] all collated into this .doc
MOST RECENT verify APPROACH..OCT 17 2018
MAKE IMAGE OF FR PDF W/ PRINTKEY 2000 [google would not convert the PDf French from RADMUES yesterday]...tho it still
uploads and coverts the DUTCH large BEST AG 1000 COMPLETE PDF FILE AND IS THEN EDITABLE..FR VS IS CLEANER THO LESS INFO @ END
PLACE THIS IMAGE ON DESKTOP.
IN CHROME UPPER LEFT
>APPS
..........>GOOGLE DRIVE....>IN MY DRIVE>UPLOAD FILES...>SELECT THE DESKTOP IMAGE IN JPG...>
>IN GOOGLE DOCS > FILE>OPEN...SHOWS UPPER PANE ORIGINAL AND LOWER PANE editable CONVERSION...>TOOLS>TRANSLATE...>
> SELECT OUTPUT LANGUAGE[GOOGLE WILL DETECT THE ORIGINAL LANGUAGE...>UPPER PANE IN THE ORIG IMAGE/LOWER PANE IS THE
EDITABLE TRANSLATED AND IS editable.
FRENCH OUTLINED BOXES COPIED FROM GOOGLE DOCS
First approach :
WAS
1
Upload PDF in dutch to google docs to get into editable DUTCH form...
Then take small groups manually into google translate to paste into this word.doc
...[use Babylon “GOOGLE TRANSLATE”decipher tricky tough words]
IN SMALL GROUPS /pieces AT A TIME:
In Chrome: upper left>APPS
GOOGLE DRIVE
MY DRIVE
GOOGLE DOCS etc UPLOAD FILES
THIS : AG 1000 SMALL GROUPS IS NOW UPLOADED TO GOOGLE DRIVE/MY DRIVE
AND MAY NOT BE SYNCRONIZED OR REFLECT ANY CHANGES AFTER 2:00 PM OCT 14 2018
Converting Files to PDF Using Google Drive. Navigate to Google Drive athttps://drive.google.com/. Log into the Google account in which your document is stored. Open the
document you want converted into PDF format. Click on “File” and point to“Download As.” Select “PDF Document.” Select the option to open or save the file.
PRINTER =DISKS? OR
Platendrukker =loading arm ..top w lrg center hole]
Wisselpen= tall stacker pen there is also a short center pen
Arretbeugel =arret beugel= stop/detent bracket
PLATENWISSELAAR..IN BABLE
Plate heat exchanger
] IN GOOGLE TRANSLATE [
PLATE CHANGER
]
NOTE ITEMS
95
P U ARM...........
62
PLATENDRUKKER......................
63
WISSELPEN/SPINDLE....
118
STIFT/PIN-PIVOT :
BENT
A BIT...
...............................................................................................................................
[referenced FIGURES start on page 21 of 36 of the 1952 PHILIPS SERVICE DOCUMENTATIE ]
2
………………………………………………………………………………………………………………………………
…………………………

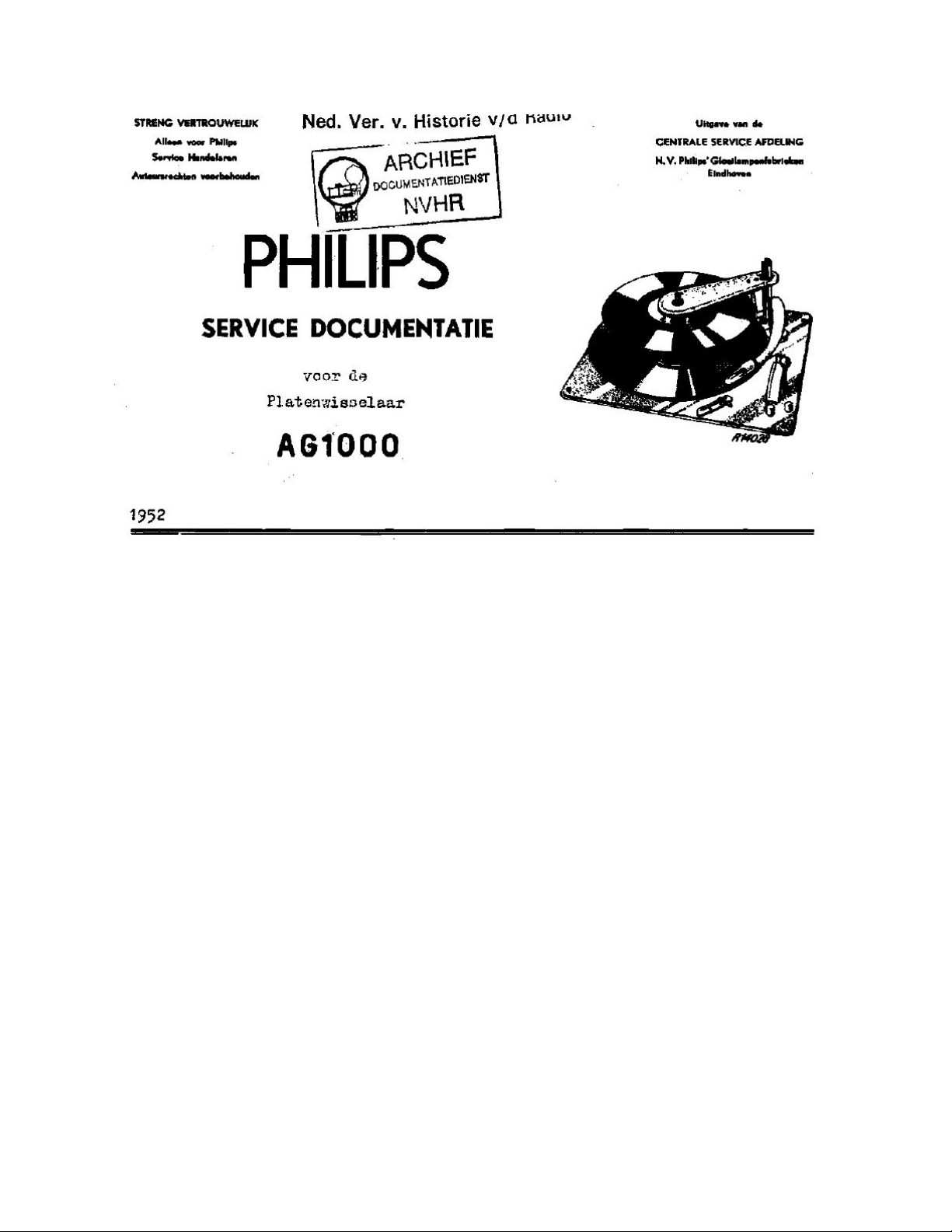

SERVICE DOCUMENTATION
DISC CHANGER AG1000
1952
...........................................................................................................
This changer is suitable for:
1. Normal on mini-groove slats.
2. Plate [record]diameters of 12 "(30 cm) and 10" (25 cm) of mixed, and 7 "(17,5 cm)
3. Three speeds: 78, 45 and 33 1/3 rpm.
4. Frequencies 40, 50 and 60 Hz, can be changed by an install of pulley on the motor .
3 stepped motor pullies /3 diff p/n FOR 3 DIFF FREQUENCIES 40hz/50hz/60hz
5. Mains voltages on the 110 V on 220 V can be switched by voltage wiring change on the motor.
3
6. Different female heads for oversee available heads, ...
SEE Chapter I, p. 2.
........................ supply freq motor shaft stepped pulley .......................
AG1000-01 AG1000-02 and -00
-00 220/110 Volt 50 Hz
-01 220/110 Volt 60 Hz p/n 49 938 17.0 pulley similar to this...
-02 220/110 Volt 40 Hz [rare... pre-1925 ..later in some regions]
4 step shown [AG1000 uses 3 speed/step A/B/C ]
Shaft I.D. 3.95mm [ 5/32”]
Shaft O.D. butt= 7.90mm [ 5/16”]
O.D. mm ...as found... ..... after shaving 20% off each A/B/C
33-1/3 Tip A 2.91 2.328
45rpm step B 3.72 2.976
78 rpm step C 6.04 4.832
Example only (poles unknown)
Motor rpm= [120 x f] /p=120x50/4=1500
120x60 /4=1800
1500/1800=1.2 is adapter diameter factor
................................................................................................................
Dimensions:
The dimensions of the mounting plate are 365 x 320 MM . The max. Height of the mounting plate is
130mm , and below the mounting plate is 70 mm.
Consumption: 8 watt
Weight: 5 kg
• This documentation covers the following topics:
I. The transducer/pickups heads, which can be used with this disc changer P4
4
II. Explanation for the spare parts supplied. P6
III. Legend of the figures. P5
IV. Connection and electrical data. P6
V General characteristics and order. P6
VI Operation of the disc changer. P10 [detail p12-p19
]
VII. Maintenance and transport.. P19
VIII Repair. P20
IX The setting of the disc changer. P21
See also needle pressure adj p17[ i.e. 36] fig 8 item 102
AG 1000
I. The transducer /pickups heads that can be used with
this disc changer.
The table below gives an overview of these headings with details concerning the display quality and the
used needles.
5
See p36 ... 7. [I] Adjusting the phono sensor pressure and also resting on roller switch
This 22GP235 mono replaces AG3016 mono
The 22GP230 stereo 1962 [aka AG3230 early GP230] were preceded by 1958 AG3060/63/66 all stereo
jan 2019 installed the PFANSTIEHL 591 SS77 BUT MAYBE NEEDS THE 946 SS50
Philips 22 GP 230/235 replica pickup 59EUR [$67 US] OCT 2018
Note: this GP235 cartridge is actually a STEREO item,but with a BRIDGE [see pg 10 ]
inserted at the plug in base, for use as MONO.
Pickup Type: Ceramic / Crystal
Mounting: manufacturer specific
Output voltage: 275Mv
[modern MM have 3-6mv ]
Amplifier connection: Line-in
Needle compliance: 3 x 10 - 6 cm / dyne (100 Hz)
Material: Sapphire,
Cut: spherical
Contact force: 4,0-6,0g
Weight: 12g
Dimensions: 14 (H) x 14 (W) x 58 (L) mm
[My YAMAHA AV inputs
PHONO 3.5MV 47K for MM
CD ETC 200MV 47K OHMS]
Observation 1:
With regard to the quality of reproduction these phonosensors are distinguished by
high quality of reproduction and average reproduction. The phono-picks with average
7
reproduction quality are provided with the letter M (see column 3) applied to the
metal closing plate of the pick-up. Needle pickups for microgroove or normal’standard’
groove discs are provided resp. red or green dots (column 2). Phonosensors with
appropriate needles for micro-groove and normal-groove discs do not have a colored
dot. The letters N or M in column 5 placed last the code number of a sapphire needle,
indicate that it is appropriate resp. for N 78 normal grove discs and / or for M
33-1/3 / 45 etc micro-groove discs.
Observation 2:
The above list may undergo some modifications after some time. eg by the addition of
other executions. Then some of the phonosensors mentioned there can be deleted.
Details about these changes will be provided by our RS communications
...................................................................................
II. Explanation concerning the separately supplied parts.
Center pen: This pen (63) is used for automatic play. [SPINDLE]
Short playpen: When single discs have to be listened to, which can not be played automatically
abnormal sizes, for example) the center pin can be replaced with this short playpen. The device is now
not operated automatically, but manually.
These 4 springs are used to suspend the disc changer elastically, the screws are
screwed into the housing, while the changer discs is attached to the intermedian
plate. By means of the separate fixing screws.
P.U.Unit:
These units delivered in tropical packaging must be attached to the pick-up arm. (See also Chapter I).
Note: Do not forget before commissioning it
card, keeping the drive wheel free from the MOTOR and the turntable.
III. Indication of the figures. [referenced FIGURES start on page 21 of 36 of the
1952 PHILIPS SERVICE DOCUMENTATIE ]
Fig.1. Principle diagram of motor with mains connection
2. Principle diagram of P.U. connection
3. Top view of the plate disc changer
8
4. The change spindle pins; for adjustment
5. Motor parts.
6. Start-stop mechanism
7. Speed control
8. The mechanism [ HET MECHANISME]
…………………………………
9. CONTROL DISC/Command disc and steering hooks
‘’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’’
IV. Connection and electrical data.
The mains cable must be connected to the two bottom connection points on the motor switch plate
(fig.1).
From both figures A and B (fig.1). it is easy to see how switching from 110 to 220V and vice versa
can be performed.
To connect to a different mains frequency 60/50/40hz, it is necessary to fit a different pulley (1) on the
shaft of the motor. NO LONGER AVAILABLE [I had mine reduced/machined locally in 3 20% steps for
60hz operation]
These pulleys are included in the parts list, stating the mains frequency for which they are intended.
When another pulley is applied, the number of turns of the plate must be adjusted
again, as indicated in IX-8. USE A STROBE
Connection of the P.U. unit takes place in the sealed junction box, which is mounted below the
mounting plate. The shielding of the P.U. cable is connected to the middle soldering lip (fig.2). Parallel to
the P.U. terminal, a resistor (R1 - FIG. 2) of 0.47 M ohm is connected for good adjustment of the
crystal P.U. unit.
[I added a MONO-RCA plug/jack pigtail.]
9
The pickup cord ends in a shielded connection box. To connect it to a radio receiver or an amplifier it is
necessary to make use of a shielded cord of weak[small] capacity with 2 conductors. The shield is
connected to the central lug (Fig. 2). To improve the reproduction characteristic, a parallel resistor on
the pick-up was mounted in the connection box. Resistance of: 0.47 M Ohms adaptation (R1 Fig. 2). i.e.
470k ohm
10
