General information

This Quick use guide gives a rough overview and helps

to quickly start with basic steps. Please read the supplied

user´s manual for detailed information.

Supplied accessories

12 batteries for the remote control, type AA

21 remote control

31 blank DVD+RW disc

41 SCART cable

51 cinch audio cable

61TV antenna cable

71 FM antenna cable

81 MW loop antenna

91 AC mains cable

07 speaker cables with colour coded ends

!2 front speakers and 2 rear speakers

@2 subwoofers integrated in the speaker stands

#1 centre speaker

Quick use guide LX9000R

English

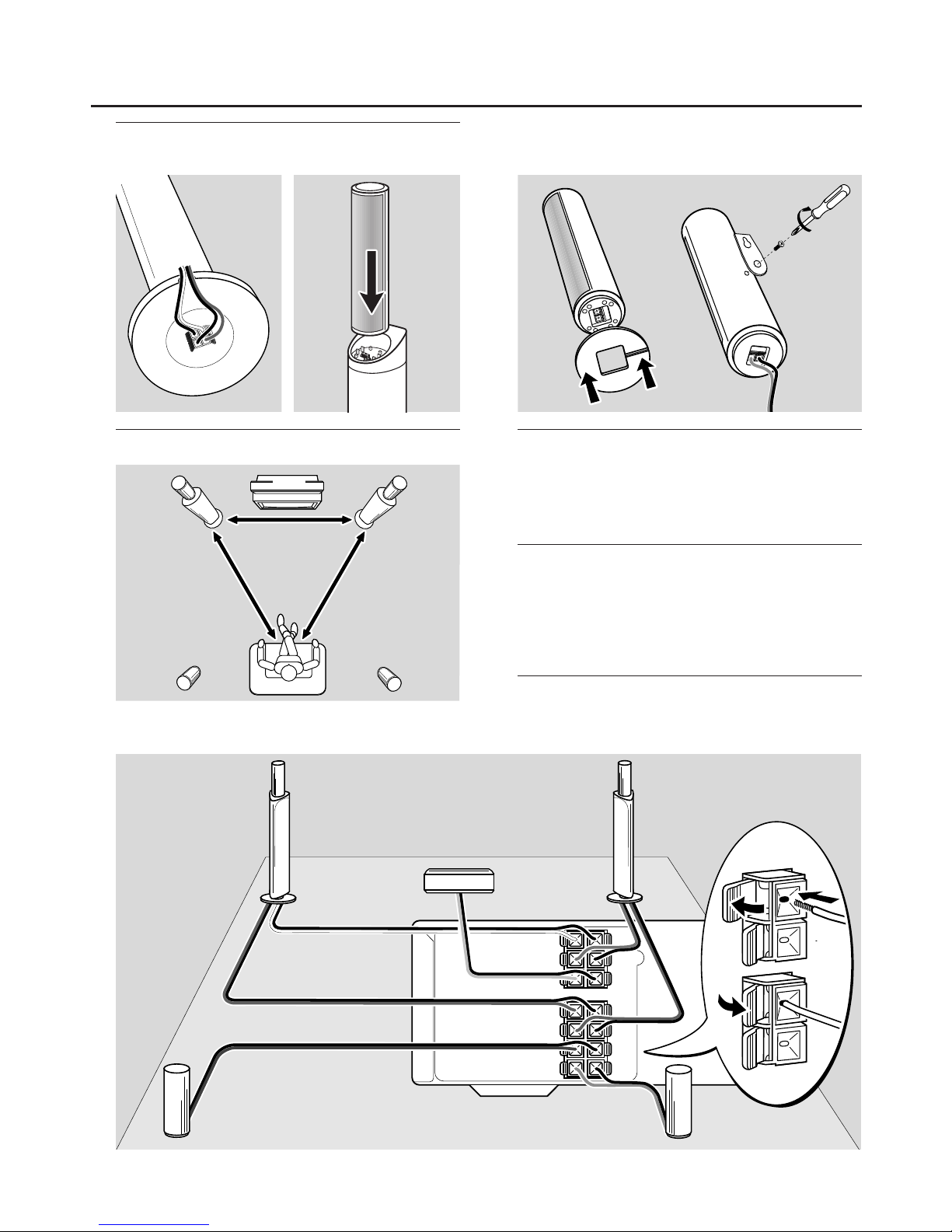

Assembling the speakers

Subwoofers and front speakers

Positioning the speakers

Rear speakers

Connecting the speakers

Connect the speakers using the supplied speaker cables.

Match the colours of the speaker sockets and the speaker

cables:

Speaker ++−−

Front Left white black

Front Right red black

Centre green black

Subwoofer Left violet black

Subwoofer Right violet black

Rear Left blue black

Rear Right grey black

Quick use guide LX9000R

CENT.

4 Ω

SURR

LEFT

4 Ω

SURR

RIGHT

4 Ω

SUB

LEFT

8 Ω

FRONT

LEFT

4 Ω

FRONT

RIGHT

4 Ω

SUB

RIGHT

8 Ω

front L

subwoofer L

rear L rear R

centre

front R

subwoofer R

front R,

subwoofer R

front L,

subwoofer L

rear L rear R

centre

to place the

rear speakers

on a shelf or

on the ﬂoor

to hang the

rear speakers

on the wall

Quick use guide LX9000R

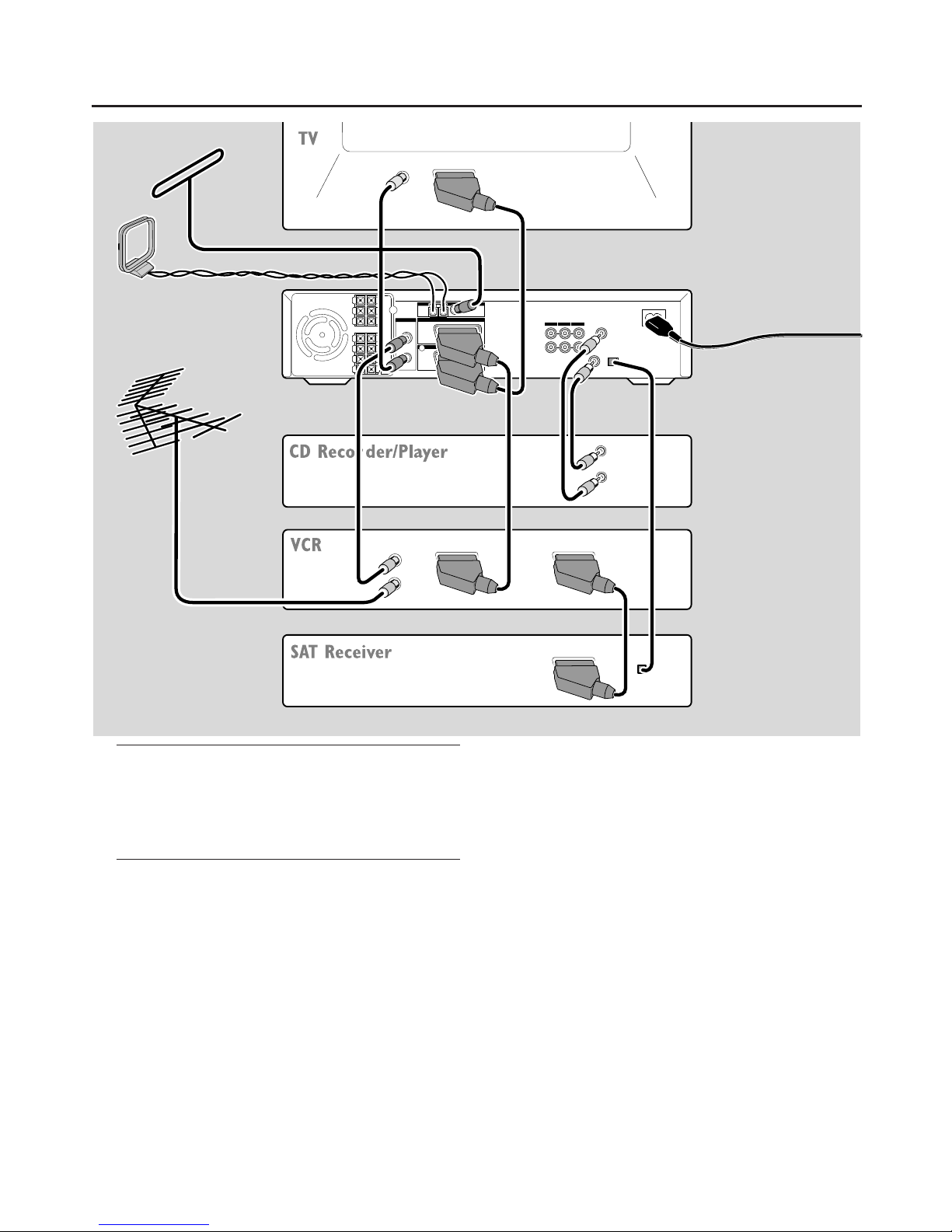

Connections

Scart inputs/outputs of your other appliances can be

named:

– TOTV/MONITOR, EURO-AV OUT,…

– AUX, EXT, I/0, EURO-AV IN,…

Initial installation

When you connect the DVD recorder system to the mains

supply for the ﬁrst time, you need to perform some basic

settings. Please observe theTV screen and the display of

the DVD recorder system.

1Switch on yourTV.

2Connect the supplied mains cable to AC MAINS ~ and to

the wall socket. If the DVD recorder system is in demo

mode, press 2to cancel the demo mode.

➜IS TV ON?is displayed on the DVD recorder system.

3If necessary set the TV to the correct audio/video channel

for the DVD recorder system. Such channels may be called

AUX or AUXILIARY IN,AUDIO/VIDEO or A/V IN, EXT1,

EXT2 or EXTERNAL IN, etc.These channels are often near

channel 00.

Note: If your TV supports EasyLink, the TV and the DVD

recorder system exchange information via the SCART cable.

In this case, EasyLink loading data fromTV, please

wait will appear on the TV. Some of the following settings will

be done automatically then.

4➜The menu Menu Language appears on the TV screen.

Press 3or 4to select the language in which the display

messages should appear on theTV screen.Then press OK.

5➜The menu Audio language appears.

Press 3or 4to select the language in which DVDs should

preferably be played, if the language is available on the disc.

Then press OK.

TV ANTENNA

TV OUT

EXT 2

EXT 1

MW FM

AUX I/0

TO TV I/0

DIGITAL OUT

DIGITAL IN

OPTICAL IN

LINE IN 1 LINE IN 2 LINE OUT

MAINS ~

RADIO

EXT. IN

TO TV

DIGITAL OUT

DIGITAL IN

OPTICAL

OUT

TV OUT

ANTENNA

EXT IN

ANTENNA IN

AM ANTENNA

FM ANTENNA

TV ANTENNA

Make sure all

other connections

have been made

before connecting

the mains cable to

AC MAINS ~ and

to the wall socket.

6➜The menu Subtitle Language appears.

Press 3or 4to select the language in which subtitles

should preferably be displayed, if subtitles in the language

are available on the disc.Then press OK.

7➜The menu TV Shape appears.

Press 3or 4to select the screen format.This setting will

have an effect only with DVDs supporting different screen

formats.

➜4:3 letterbox: for a wide-screen picture (cinema

format) on a conventional 4:3TV set with black borders

at the top and bottom of the screen.

➜4:3 panscan: for a full-height picture with cropped

edges.

➜16:9: for a wide-screen TV set.

Then press OK.

8➜The menu Country appears.

Press 3or 4to select the country where the

DVD recorder system is used. If your country does not

appear, select Other.Then press OK.

9➜If you have connected the antenna - press OK

appears.

If you connected the DVD recorder system to a

TV antenna or a cableTV system, press OK.

If not, connect the antenna, then press OK.

➜Searching forTV channels appears.The search

may take several minutes.

10 ➜Time,Year,Month and Date appear.

If the time and date are set correctly continue with step 13,

else press 4or 3repeatedly to select either Time,Year,

Month or Date.

11 Press 1or 2or 0–9 repeatedly to set the correct value.

12 Repeat steps 10–11 until all settings of the time and date

are correct.

13 Press OK.

➜CONTINUE WITH SPECIAL AUDIO SETTINGS is

scrolled on the DVD recorder system.

Next, you will be asked

– about the distances between the speakers and your

preferred listening position and

– to which socket you connected yourTV and other

appliances.

14 If you want to continue with these advanced settings:

Press OK. For details, see “Advanced settings” on page 17 in

the user´s manual.

If you do not want to continue, the standard settings

below will be used for the speaker distances and the

connections:

Press 4to select NO, then press OK to conﬁrm.

➜AUTOINSTALL is displayed.The DVD recorder system

searches for available radio stations and stores them in its

memory.

➜After the search INSTALLATION COMPLETE is

scrolled and a radio station is played.The DVD recorder

system is ready to play.

Standard settings for the speaker distances and

the connected appliances

To change these settings later on, see “When adding

appliances or changing the connections of appliances” and

“When changing the speaker setup” in the user´s manual.

appliance is connected to

TV EXT 1TOTV I/O

satellite receiver EXT 2 AUX I/O

VCR (video recorder) EXT 2 AUX I/O

game console EXT 2 AUX I/O

CD player DIGITAL IN

CD recorder LINE IN 1

tape deck LINE IN 2

Note:The satellite receiver,VCR and game console are

connected in a “chain”. See illustration on the page to the left.

Quick use guide LX9000R

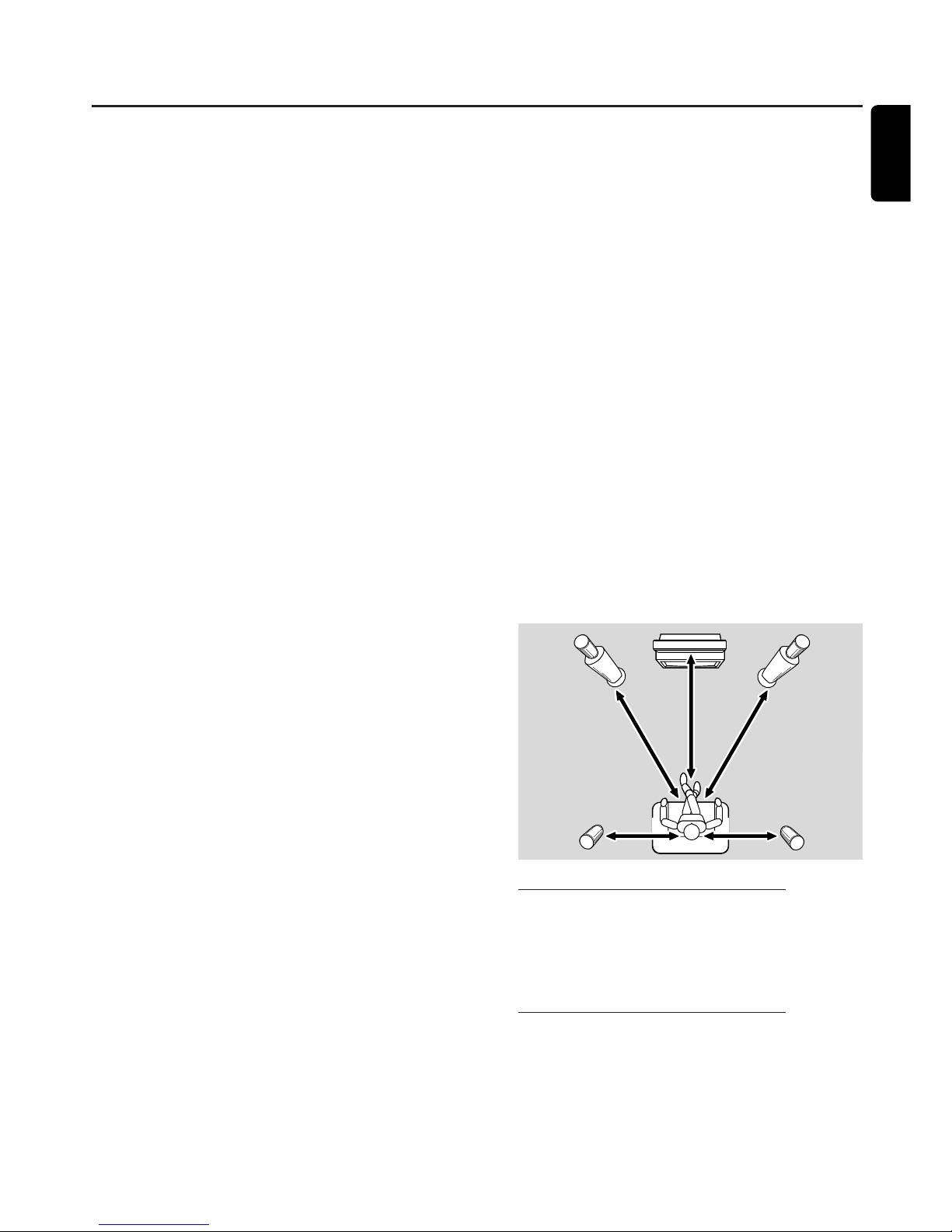

3 m 3 m

3 m

1.5 m 1.5 m

English

Discs for playback and recording

–DVD+R

can be recorded once and played

on standard DVD players and

DVD recorders, if ﬁnalised.

–DVD+RW

can be recorded, erased and

re-recorded many times and played on

DVD+RW compatible DVD players

and DVD recorders if ﬁnalised.

Discs for playback only

Discs with the following logos can be played:

Playback

1Press OPEN/CLOSE /on the set to open the drawer and

insert a disc (printed side up) in the tray.

2Press OPEN/CLOSE /on the set again. If necessary, press

PLAY/PAUSEÉÅ to start playback.

00To interrupt playback, press PLAY/PAUSEÉÅ.

00To resume playback, press PLAY/PAUSEÉÅ again.

3To stop playback press STOP.

Selecting a source

●Turn SOURCE on the DVD recorder system or keep a

source key on the remote control pressed for 1 second to

select either:

– the disc in the DVD recorder system

–MONITOR: the internalTV tuner of the DVD

recorder system (only selectable by pressing

DVD/MON on the remote control)

–TV: theTV

–CAM1: a camcorder connected to CAM1

–CAM2: a camcorder connected to CAM2

–SAT: a connected satellite receiver

–VCR: a connected VCR (video recorder)

–GAME: a connected game console

– the radio tuner of the DVD recorder system

–TAPE: a connected tape deck or similar audio

recording appliance

–CDR: a connected CD recorder

–CD: a connected CD player/changer

➜The sound of the source is played on the DVD recorder

system.

Note: If SOURCE NOT AVAILABLE is scrolled please read

“When adding appliances or changing the connections of

appliances” in the user´s manual.

Quick use guide LX9000R

Selecting a recording mode

●Before recording, press REC MODE repeatedly to select

the desired recording mode:

mode quality recording time

HQ better than DVD 60 minutes

SP DVD 120 minutes

SP+ better than S-VHS 150 minutes

LP S-VHS 180 minutes

EP better thanVHS 240 minutes

EP+ VHS 360 minutes

Recording aTV programme with

safe record

1Switch yourTV set on. If necessary set the TV to the

correct audio/video channel for the DVD recorder system.

Such channels may be called AUX or AUXILIARY IN,

AUDIO/VIDEO or A/V IN, EXT1, EXT2 or EXTERNAL IN,

etc.These channels are often near channel 00.

2Load a DVD+R disc or DVD+RW disc on which you want

to record in the tray.

3Press DVD/MON on the remote control as often as

necessary to see the currently selectedTV channel.

4Press CH+ or CH- on the remote control as often as

necessary to select the desired TV channel (programme

number) from which you wish to record.

5Keep REC/OTR on the remote control pressed until

SAFE RECO is displayed.

6Press STOP 9 to stop recording.

Recording from other appliances

1Switch yourTV set on. If necessary set the TV to the

correct audio/video channel for the DVD recorder system.

Such channels may be called AUX or AUXILIARY IN,

AUDIO/VIDEO or A/V IN, EXT1, EXT2 or EXTERNAL IN,

etc.These channels are often near channel 00.

2Load a disc on which you want to record in the tray.

3Press on the remote control either:

SAT: to record from a connected satellite receiver.

CAM1/2: to record from a connected video camera. Press

the button repeatedly to toggle between camera 1

(analogue input) and camera 2 (digital i.Link input).

VCR/GAME: to record from a connected video cassette

recorder or a game console. Press the button repeatedly to

toggle between video cassette recorder and game console.

4Press RECORD on the DVD recorder system or REC/OTR

on the remote control to start recording.

Note: Recordings on a DVD+RW disc are started from the

current position. From there on, earlier recordings may be

overwritten without notice, unless the disc is write protected.

00To interrupt recording press PLAY/PAUSEÉÅ.

00To resume recording press PLAY/PAUSEÉÅ again.

5Press STOP 9 to stop recording.

Quick use guide LX9000R

3103 306 1930.1 VieChr0316

Autres manuels pour ShowView LX9000R

Table des matières

Autres manuels Philips Intervenants

Philips

Philips SBT75/85 Manuel utilisateur

Philips

Philips DS9/37 Manuel utilisateur

Philips

Philips HTL1180B Manuel utilisateur

Philips

Philips HTL3110B Manuel utilisateur

Philips

Philips DGX220/00 Manuel utilisateur

Philips

Philips SGC5102BD - amBX 2.1-CH PC Multimedia Speaker... Manuel utilisateur

Philips

Philips EverPlay BT7900 Manuel utilisateur

Philips

Philips RWSS5512/00 Manuel utilisateur

Philips

Philips BT4080 Manuel utilisateur

Philips

Philips SPA7355/77 Manuel utilisateur

Philips

Philips AW9000 Manuel utilisateur

Philips

Philips TANX20 Manuel utilisateur

Philips

Philips HTB9150 Manuel utilisateur

Philips

Philips BT2500 Fiche d'information produit

Philips

Philips SB365 Fiche d'information produit

Philips

Philips SBT300/05 Manuel utilisateur

Philips

Philips HTL2160 Manuel utilisateur

Philips

Philips HTL5160B Manuel utilisateur

Philips

Philips SPA5210 Manuel utilisateur

Philips

Philips JS50 Manuel utilisateur

Philips

Philips CSP652/51 Manuel utilisateur

Philips

Philips HTL2163B Manuel utilisateur

Philips

Philips 3000 series Manuel utilisateur

Philips

Philips HTB9150 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
