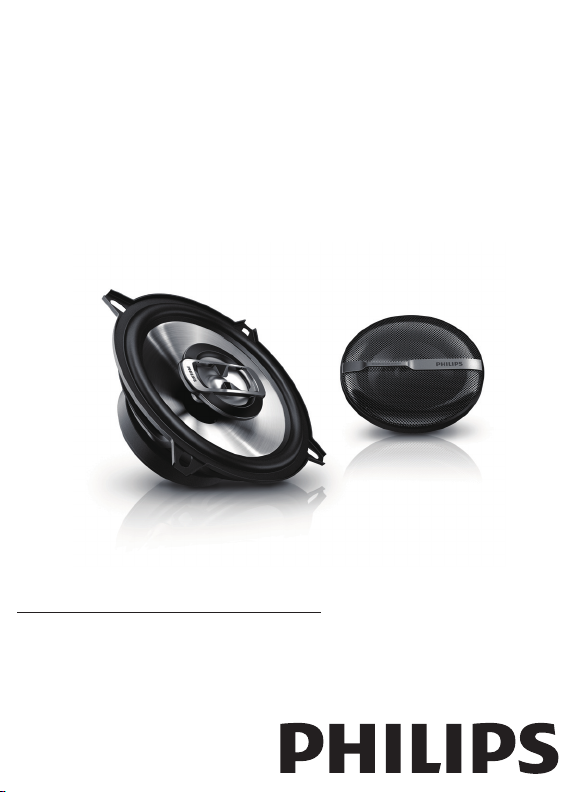

Philips CSP410 Manuel utilisateur

www.philips.com/welcome

CSP410

CSP510

CSP610

CSP6910

EN User manual

1. Important

Safety

Read and understand all instructions before you use the apparatus.•

If damage is caused by failure to follow instructions, the warranty

does not apply.

Use only the supplied mounting hardware for a safe and secure•

installation.

Do not continuously use the speaker system beyond the peak power•

handling capacity.

Keep credit cards, watches, recorded tapes etc. with magnetic coding•

away from the speaker system to prevent damage caused by the

magnets in the speakers.

Clean the apparatus with soft, damp cloth. Never use substances•

such as alcohol, chemicals or household cleaners on the apparatus.

Notice

Environmental information

All unnecessary packaging has been omitted. We have tried to make

the packaging easy to separate into three materials: cardboard (box),

polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused

if disassembled by a specialized company. Please observe the local

regulations regarding the disposal of packaging materials, exhausted

batteries and old equipment.

Anychangesormodicationsmadetothisdevicethatarenotexpressly

approved by Philips Consumer Lifestyle may void the user’s authority to

operate the equipment.

Specicationsaresubjecttochangewithoutnotice.TrademarksarethepropertyofKoninklijke

Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at

any time without being obliged to adjust earlier supplies accordingly.

2.Your car stereo speakers

Congratulationsonyourpurchase,andwelcometoPhilips!Tofully

benetfromthesupportthatPhilipsoffers,registeryourproductat

www.philips.com/welcome.

Introduction

With the speakers, you can enjoy high power music with vivid sound.

What’s in the box

Check and identify the contents of your package:

aSpeakers (x2)

bGrille net + Frame (x2)

cSpeaker wire (x2)

dScrew (x8)

eShrapnel (x8)

3. Installation

A depth of at least 48mm is required to mount

the subwoofer. Measure the depth of the area

where you are to mount the subwoofer, and

ensure that the subwoofer does not obstruct any

other components of the car.

Option 1: Mount on door (front or rear)

You can mount the speakers on the front/rear door of your car.

Note

•Make sure that nothing obstructs around the mounting location of the door.

A hole for mounting may already be cut out of the inner panel of the door

•

(front or rear). In this case, you need to modify the board only.

Ensure that the speaker terminals, frame or magnet do not interfere with any

•

inner parts, such as the window mechanism in the door (when you open or

close the window), etc. Also ensure that the speaker grille does not touch any

innerttings,suchasthewindowcranks,doorhandles,armrestsetc.

1 Turnoffthecarignitionkey.

If the power is on, the click noise generated by the• connection may damage the speakers.

2Cut out the mounting template from the packing box.

3Paste the template on the location selected for mounting the

speaker.

4Mark the cut-off hole and the 4 bolt holes.

5Cut out the marked area and drill the bolt holes.

6Remove the grille net.

7 Stripthespeakerwiresandconnectthemtotheamplier.

Black wire: connect to left speaker•

Black (white lined): connect to right speaker•

Amplifier

Right White lined White lined

Right

Left

Black

Left

CSP410

Note

•Match the “left”, “right”, “+” and “-” terminals correctly. Revised polarity may

degrade sound quality.

Two4-ohmspeakers,wiredinstereo,presenta4ohmloadtoeachchannel

•

oftheamplier.Mosttwochannelampliersworkwellinthisconguration.

However, if two 4-ohm speakers, wired in parallel to a bridged two -channel

amplier,presenta2-ohmmonoloadtotheamplier.Most2-channel

ampliersdonotsupport2-ohmmonooperation!Amplierdamagemay

result!

8Mount on the speaker as shown below.

9Press and insert the edges of the grille net.

Tip

Thespeakergrillecanbemountedwithoutthegrillenet,

•

if you like.

Option 2: Mount on rear tray

You can also mount the speakers into the surface of the rear tray.

Follow the steps in section “Option 1: Mount in door” to mount

the spkeakers into the rear tray:

4. Product information

Note

Product information is subject to change without•

prior notice.

Model CSP410 CSP510

Speaker type 10cm 2-way

coaxial speaker

13cm, 2-way

coaxial speaker

RMS power (Watts) 30W 35W

Peak music power

(Watts)

150W 180W

Sensitivity (dB/W/m) 88dB 89dB

Frequency response (Hz) 50-30kHz 45-30kHz

Impedance (ohms) 4 ohms 4 ohms

Magnet mass (Oz) 4.4Oz 6.4Oz

Model CSP610 CSP6910

Speaker type 16.5cm, 2-way

coaxial speaker

16x24cm, 3-way

triaxial speaker

RMS power (Watts) 40W 50W

Peak music power

(Watts)

210W 300W

Sensitivity (dB/W/m) 90dB 90dB

Frequency response (Hz) 40-30kHz 28-32kHz

Impedance (ohms) 4 ohms 4 ohms

Magnet mass (Oz) 7.6Oz 12.6Oz

5.Troubleshooting

Tokeepthewarrantyvalid,nevertrytorepairthesystemyourself.

If you encounter problems when using this apparatus, go to the Philips

web site (www.philips.com/welcome). When you contact Philips,

ensure that the apparatus is nearby and the model number and serial

number are available.

Name of the Parts

Hazardous/toxic Substance

Pb, Lead Hg, Mercury Cd, cadmium Chromium 6+ PBB PBDE

Housing O O O O O O

Loudspeakers O O O O O O

PWBs X O O O O O

Accessories (Remote

control & cables) X O O O O O

O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is

belowthelimitrequirementinSJ/T11363-2006.

X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used

forthispartisabovethelimitrequirementinSJ/T11363-2006.

Environmental Protection Use Period

Thislogoreferstotheperiod(10years)duringwhichthetoxicorhazardoussubstancesorelementscontainedinelectronic

information products will not leak or mutate so that the use of these [substances or elements] will not result in any severe

environmental pollution, any bodily injury or damage to any assets.
