User manual

Always there to help you

HTL1190B

Question?

Contact

Philips

1EN

Contents

1 Important 2

Help and support 2

Safety 2

Mains fuse 3

Care for your product 3

Care of the environment 4

Compliance 4

2 Your SoundBar 5

Main unit 5

Remote control 5

Connectors 6

3 Connect 7

Placement 7

Connect audio from TV and other devices 7

4 Use your SoundBar 8

Adjust the volume 8

Choose your sound 8

MP3 player 9

USB storage devices 10

Play audio through Bluetooth 10

Auto standby 11

Apply factory settings 11

Update software 11

5 Wall mount 11

6 Productspecications 12

7 Troubleshooting 13

2EN

1 Important

Read and understand all instructions before you

use your product. If damage is caused by failure

to follow instructions, the warranty does not

apply.

Help and support

For extensive online support, visit

www.philips.com/support to:

• download the user manual and the quick

start guide

• watch video tutorials (available only for

selected models)

• nd answers to frequently answered

questions (FAQs)

• email us a question

• chat with our support representative.

Follow the instructions on the website to select

your language, and then enter your product

model number.

Alternatively, you can contact Consumer Care

in your country. Before you contact, note down

the model number and serial number of your

product. You can nd this information on the

back or bottom of your product.

Safety

Riskofelectricshockorre!

• Before you make or change any

connections, make sure that all devices are

disconnected from the power outlet.

• Never expose the product and accessories

to rain or water. Never place liquid

containers, such as vases, near the product.

If liquids are spilt on or into the product,

disconnect it from the power outlet

immediately. Contact Consumer Care to

have the product checked before use.

• Never place the product and accessories

near naked ames or other heat sources,

including direct sunlight.

• Never insert objects into the ventilation

slots or other openings on the product.

• Where the mains plug or an appliance

coupler is used as the disconnect device,

the disconnect device shall remain readily

operable.

• Disconnect the product from the power

outlet before lightning storms.

• When you disconnect the power cord,

always pull the plug, never the cable.

Riskofshortcircuitorre!

• For identication and supply ratings, see

the type plate at the back or bottom of

the product.

• Before you connect the product to the

power outlet, ensure that the power

voltage matches the value printed on the

back or bottom of the product. Never

connect the product to the power outlet if

the voltage is different.

Riskofinjuryordamagetothisproduct!

• For wall mounting, this product must be

securely attached to the wall in accordance

with the installation instructions. Use

only the supplied wall mount bracket (if

available). Improper wall mounting may

result in accident, injury or damage. If you

have any query, contact Consumer Care in

your country.

• Never place the product or any objects

on power cords or on other electrical

equipment.

• If the product is transported in

temperatures below 5 °C, unpack the

product and wait until its temperature

matches room temperature before

connecting it to the power outlet.

• Parts of this product can be made of

glass. Handle with care to avoid injury and

damage.

3EN

Riskofoverheating!

• Never install this product in a conned

space. Always leave a space of at least four

inches around the product for ventilation.

Ensure curtains or other objects never

cover the ventilation slots on the product.

Riskofcontamination!

• Do not mix batteries (old and new or

carbon and alkaine, etc.).

• Danger of explosion if batteries are

incorrectly replaced. Replace only with the

same or equivalent type.

• Remove batteries if they are exhausted or

if the remote control is not to be used for

a long time.

• Batteries contain chemical substances, they

should be disposed of properly.

Riskofswallowingbatteries!

• The product/remote control may contain

a coin/button type battery, which can be

swallowed. Keep the battery out of reach

of children at all times! If swallowed, the

battery can cause serious injury or death.

Severe internal burns can occur within two

hours of ingestion.

• If you suspect that a battery has been

swallowed or placed inside any part of the

body, seek immediate medical attention.

• When you change the batteries, always

keep all new and used batteries out of

reach of children. Ensure that the battery

compartment is completely secure after

you replace the battery.

• If the battery compartment cannot be

completely secured, discontinue use of the

product. Keep out of reach of children and

contact the manufacturer.

This is CLASS II apparatus with double

insulation, and no protective earth provided.

Mains fuse

This information applies only to products with a

UK mains plug.

This product is tted with an approved non-

molded plug. If you replace the fuse, use one with:

• the ratings shown on the plug,

• a BS 1362 approval, and

• the ASTA approval mark.

Contact your dealer if you are not sure about

what type of fuse to use.

Caution:To conform with the EMC directive

(2004/108/EC), do not detach the plug from

the power cord.

How to connect a plug

The wires in the power cord are colored as

follows: blue = neutral (N), brown = live (L).

If the colors do not correspond with the colors

on your plug, identify the terminals in your plug

as follows:

1 Connect the blue wire to the terminal

marked N or colored black.

2 Connect the brown wire to the terminal

marked L or colored red.

3 Do not connect either wire to the earth

terminal in the plug, marked E (or e) or

colored green (or green and yellow).

Before you replace the plug cover, make sure that

the cord grip is clamped over the sheath of the

cable and not just over the two wires in the cable.

• Recording and playback of material may

require consent. See Copyright Act 1956

and The Performer’s Protection Acts 1958

to 1972.

Care for your product

Use only microber cloth to clean the product.

4EN

Care of the environment

Disposal of your old product and battery

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused.

This symbol on a product means that the

product is covered by European Directive

2012/19/EU.

This symbol means that the product contains

batteries covered by European Directive

2013/56/EU which cannot be disposed of with

normal household waste.

Inform yourself about the local separate

collection system for electrical and electronic

products and batteries. Follow local rules and

never dispose of the product and batteries

with normal household waste. Correct disposal

of old products and batteries helps prevent

negative consequences for the environment and

human health.

Removing the disposable batteries

To remove the disposable batteries, see battery

installation section.

Compliance

This product complies with the radio

interference requirements of the European

Community.

Hereby, Gibson Innovations declares that

this product is in compliance with the

essential requirements and other relevant

provisions of Directive 2014/53/EU.You

can nd the Declaration of Conformity on

www.p4c.philips.com.

5EN

2 Your SoundBar

Congratulations on your purchase, and

welcome to Philips! To fully benet from

the support that Philips offers, register your

SoundBar at www.philips.com/welcome.

Main unit

This section includes an overview of the main

unit.

Switch the SoundBar on or to standby.

b SOURCE

Select an input source for the SoundBar.

c Volume+/-

Increase or decrease volume.

d LED indicators

• STANDBY: Lights up when the

SoundBar is in standby.

• COAXIAL: Lights up when you switch

to coaxial input source.

• OPTICAL: Lights up when you switch

to optical input source.

• AUX: Lights up when you switch to

analog input source.

ab c d

• AUDIO IN: Lights up when you switch

to audio input source (3.5mm jack).

• USB: Lights up you switch to USB

source.

•

Lights up when you switch to

Bluetooth mode and Bluetooth devices

are paired.

Blinks when you switch to Bluetooth

mode and Bluetooth devices are not

paired.

Remote control

This section includes an overview of the

remote control.

a (Standby-On)

Switch the SoundBar on or to standby.

b Source buttons

• COAX: Switch your audio source to

the coaxial connection.

6EN

• OPT: Switch your audio source to the

optical connection.

• AUX: Switch your audio source to the

AUX connection.

• AUDIO IN: Switch your audio source

to the MP3 connection (3.5mm jack).

• : Switch to Bluetooth mode.

• USB: Switch your audio source to the

USB connection.

c +/- (Volume)

• Increase or decrease volume.

Mute or restore volume.

e BASS +/-

Increase or decrease bass.

f NIGHT

Turn night mode on or off.

g TREBLE +/-

Increase or decrease treble.

h SURR

Toggle between stereo and virtual

surround sound.

i AUDIO SYNC +/-

Applicable to COAXIAL (COAX) and

OPTICAL (OPT) sources only. Increase or

decrease audio delay.

j Play buttons

• : Play, pause or resume play in USB

mode and Bluetooth mode (only for

AVRCP-supported Bluetooth devices).

• / : Skip to the previous or next

track in USB mode and Bluetooth

mode (only for AVRCP-supported

Bluetooth devices).

Connectors

This section includes an overview of the

connectors available on your SoundBar.

a DIGITAL IN-OPTICAL

Connect to an optical audio output on the

TV or a digital device.

b AUX

Connect to an analog audio output on the

TV or an analog device.

c COAXIAL

Connect to a coaxial audio output on the

TV or a digital device.

Audio input from a USB storage device.

e AUDIO IN

Audio input from, for example, an

MP3 player (3.5mm jack).

f AC MAINS~

Connect to the power supply.

7EN

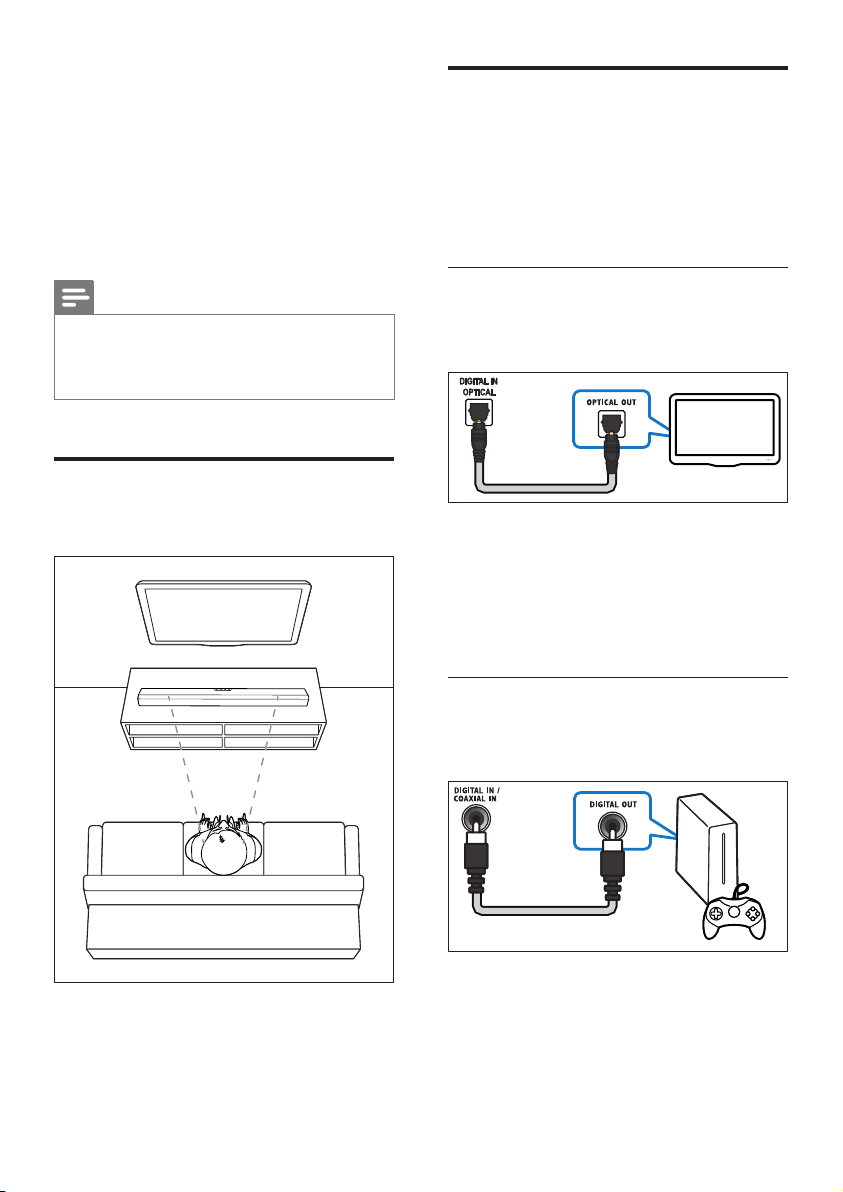

3 Connect

This section helps you connect your SoundBar

to a TV and other devices.

For information about the basic connections of

your SoundBar and accessories, see the quick

start guide.

Note

• For identication and supply ratings, refer to the type

plate at the back or bottom of the product.

• Before you make or change any connections, make sure

that all devices are disconnected from the power outlet.

Placement

Place your Soundbar as shown below.

Connect audio from TV and

other devices

Play audio fromTV or other devices through

your Soundbar.

Use the best quality connection available on

yourTV and other devices.

Option 1: Connect audio through a

digital optical cable

Best quality audio

1 Using an optical cable, connect the

OPTICAL connector on your SoundBar to

the OPTICAL OUT connector on the TV

or other device.

• The digital optical connector might be

labeled SPDIF or SPDIF OUT.

Option 2: Connect audio through a

digital coaxial cable

Best quality audio

1 Using a coaxial cable, connect the

COAXIAL connector on your SoundBar

to the COAXIAL/DIGITAL OUT

connector on the TV or other device.

• The digital coaxial connector might be

labeled DIGITAL AUDIO OUT.

8EN

Option 3: Connect audio through

analog audio cables

Basic quality audio

1 Using an analog cable, connect the AUX

connectors on your SoundBar to the

AUDIO OUT connectors on the TV or

other device.

DVD

4 Use your

SoundBar

This section helps you use the SoundBar to play

audio from connected devices.

Before you start

• Make the necessary connections

described in the Quick Start Guide

or download the User Manual from

www.philips.com/support.

• Switch the SoundBar to the correct source

for other devices.

Adjust the volume

1 Press +/- (Volume) to increase or decrease

a volume level.

• To mute sound, press .

• To restore the sound, press again or

press +/- (Volume).

Volume indicator

• The higher volume level you change to, the

more LED indicators light up. If you do not

press the volume button for three seconds,

the volume indicators light off.

• All the LED indicators blink three

times when a volume level is set to the

maximum or minimum.

• When sound is muted, the current source

indicator blinks.

Choose your sound

This section helps you choose the ideal sound

for your video or music.

Surround sound mode

Experience an immersive audio experience with

surround sound modes.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Système de haut-parleurs

Philips

Philips HTL4110B Manuel utilisateur

Philips

Philips A 3.300 Acoustic Power Manuel utilisateur

Philips

Philips Essence 5000 Series Manuel utilisateur

Philips

Philips FB900 Manuel utilisateur

Philips

Philips HTL2100 Manuel utilisateur

Philips

Philips FWM185/05 Manuel utilisateur

Philips

Philips Essence 5000 Series Manuel utilisateur

Philips

Philips Essence 5000 Series Manuel utilisateur

Philips

Philips DSS 940 Manuel utilisateur

Philips

Philips Essence 5000 Series Manuel utilisateur

Philips

Philips HTL1170B/F7 Manuel utilisateur

Philips

Philips HTL2160 Manuel utilisateur

Philips

Philips HTS3111/05 Manuel utilisateur

Philips

Philips A5.600 Seismic Power 600/MMS 506 Manuel utilisateur

Philips

Philips 8000 Series Manuel utilisateur

Philips

Philips DTM5095/93 Manuel utilisateur

Philips

Philips audio players Manuel utilisateur

Philips

Philips HTS5120 Manuel utilisateur

Philips

Philips MMS460 - MMS 460 5.1-CH PC Multimedia Home Theater Speaker... Manuel utilisateur

Philips

Philips MMS430G/00 Manuel utilisateur

Philips

Philips HTL6140B Manuel utilisateur

Philips

Philips RH567 Manuel utilisateur

Philips

Philips MX900 Manuel utilisateur

Philips

Philips CSS6530B Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
