Philips ProntoPro Next Generation Manuel utilisateur

ProntoPro

Intelligent Remote Control

User Guide

Table of Content

Taking a First Look ............................................................................ 3

Intelligent Remote Control............................................................... 3

Before You Start.............................................................................. 5

Getting Started ................................................................................... 7

Activating the Remote Control ........................................................ 7

Defining the Brands of Your Devices .............................................. 8

orking with the Home Panel....................................................... 13

Operating a Device........................................................................ 14

Adjusting the Settings ................................................................... 16

Getting the aximum out of it ........................................................ 19

Introduction.................................................................................... 19

Redefining Brands......................................................................... 21

Learning Commands..................................................................... 22

Labeling Elements......................................................................... 26

Adding and Moving ....................................................................... 28

Deleting and Restoring.................................................................. 29

Recording Macros and Setting Timers.......................................... 31

Using the Remote Control with Radio Frequency......................... 34

ProntoPro Edit ............................................................................... 38

Troubleshooting ............................................................................... 40

General Problems ......................................................................... 40

Programming Problems ................................................................ 41

Recharging Problems.................................................................... 42

FAQ .................................................................................................... 43

aintaining the Remote Control..................................................... 45

Important notices........................................................................... 45

Cleaning the Remote Control........................................................ 45

Overview of Symbols ....................................................................... 46

Specifications ................................................................................... 48

Index .................................................................................................. 49

Taking a First Look 3

Taking a First Look

Intelligent Remote Control

The Intelligent Remote Control can be used for most devices that understand infrared (IR) remote control signals. Its easy

to use touch screen with 256 colors and its intuitive interface makes it a perfect remote control for every user.

The Remote Control (RC) is completely customizable. In the memory of the Remote Control, RC codes are stored to

activate different brands for all kinds of video and audio devices. The Remote Control is set up by default to operate with

Philips or Marantz devices. When you have other brands, you simply define the brands of your devices when you use the

Remote Control for the first time.

The Remote Control can also learn RC codes from existing remote controls. It is designed to add devices and functions,

relabel buttons, record macros and set timers. With the ProntoPro Edit software you create your own control panels and

define your personal look.

If you want to operate devices from a distance or from an adjacent room, you can use the Remote Control with radio

frequency (RF) signals and an RF Extender.

The Appliance

Sending eye

Direct-access buttons

ction buttons

256 color LCD touch screen

Page Up button

Learning eye

Connection to the docking station

Serial port

Battery cover

Reset button

Page Down button

Contrast dial

Backlight button

Battery compartment

Latch

Taking a First Look 4

The Touch Screen

The Docking Station

The docking station is used

•to charge the Remote Control;

•to connect your Remote Control to your computer.

The serial port on the docking station can be used as an alternative for the serial port on the Remote Control.

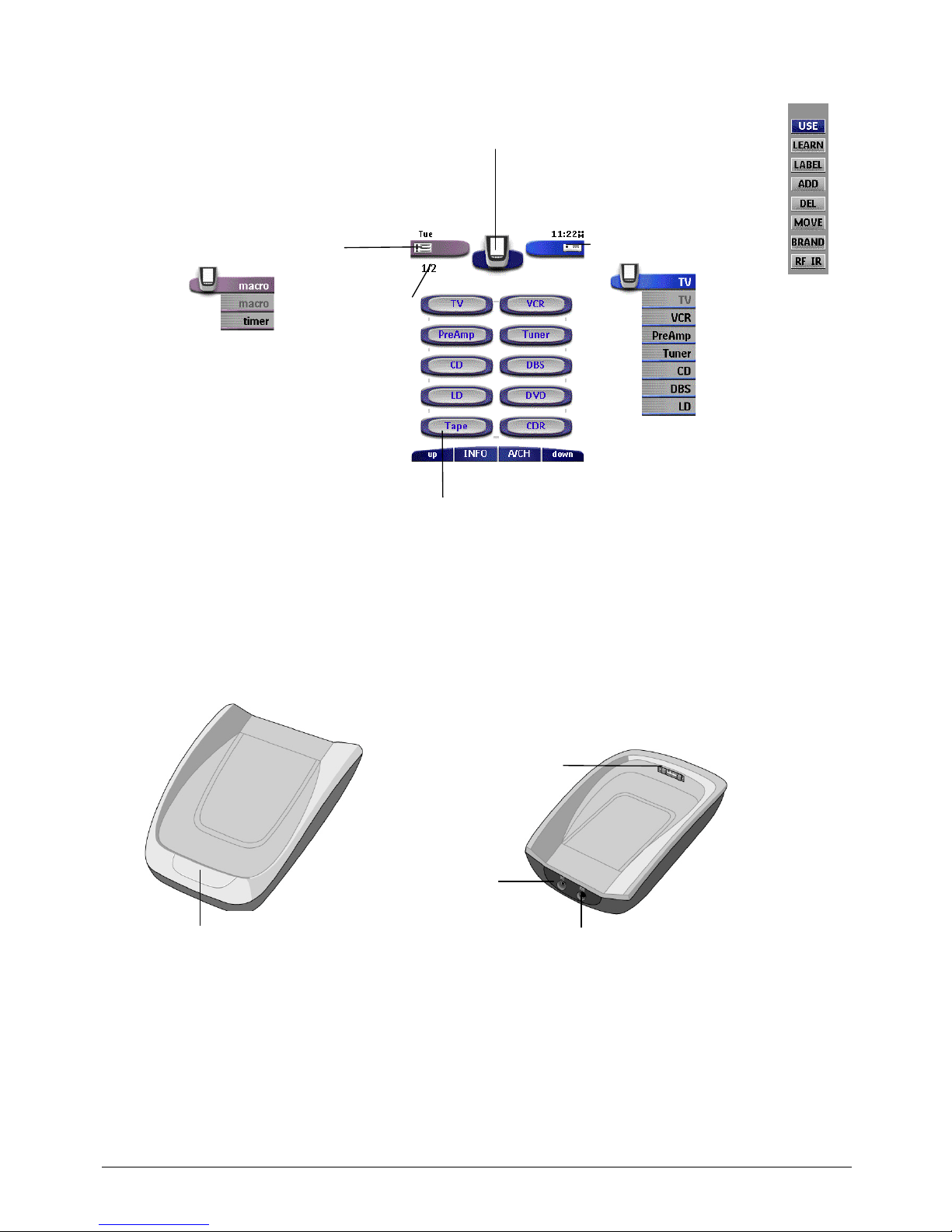

Macro tab: To activate the

Macro menu

Device tab: To activate

the Device menu

Control panel: To send

commands to devices

Panel number:

Shows active

control panel

Charging LED

Serial port

Connection for the

Remote Control

dapter connector

Remote Control icon:

Tap to enter the Mode menu and customize the

Remote Control

Touch and hold to enter Setup mode

Taking a First Look 5

Before You Start

When you use the Remote Control for the first time, you will have to:

•install the battery pack;

•place the Remote Control in the docking station and charge the Remote Control.

Use the docking station only with the Philips NiMH rechargeable battery pack.

We strongly advise you not to plug other appliances (like mobile phones, PDA’s, ) into the docking station. This

causes damage to the connector and the appliance.

Installing the Battery Pack

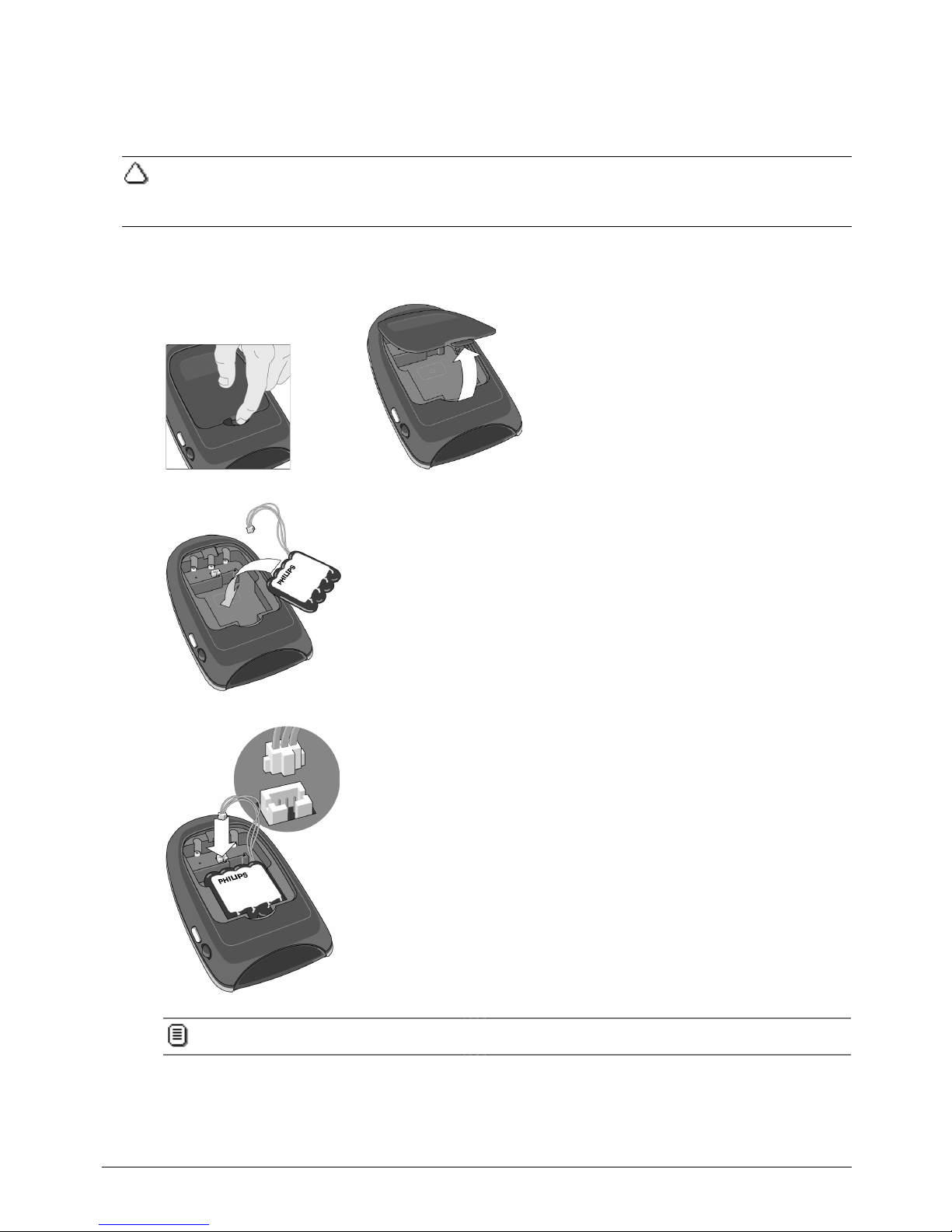

1. Press the latch on the battery cover and remove the battery cover from the Remote Control.

2. Place the battery pack in the battery compartment.

3. Plug the cable of the battery pack in the connector as illustrated.

4. Place the battery cover back on.

Make sure the cable of the battery pack does not get stuck between the mould and the battery cover.

After a few seconds, the Remote Control starts up automatically and an Introduction screen appears. The Remote

Control beeps twice to indicate that it has finished starting up.

Because the battery pack of the Remote Control is not fully pre charged, you will have to charge it as described

below.

Taking a First Look 6

Charging the Remote Control

For charging the Remote Control you use the docking station.

1. Plug the power adapter into a wall outlet and connect it to the docking station.

2. Place the Remote Control in the docking station.

Make sure you hold the Remote Control at an angle of 30° to 45° when you place the it in the docking station.

Charging starts immediately. The green charging LED on the front of the docking station indicates charging takes

place. When the Remote Control is fully charged, the LED goes off.

Normal charging time is 2 to 3 hours, depending on the condition of the battery pack.

You can operate the Remote Control while it is being charged.

The battery pack does not have to be entirely empty before recharging. You can place the Remote Control in

the docking station at any time.

When the battery pack is running low, the Low Battery icon flashes on the Remote Control icon . Recharge

the Remote Control as soon as possible to ensure perfect performance.

The Remote Control retains all settings when the battery pack has run out. You will only have to set the clock.

See “Adjusting the Settings” on page 16.

30° - 45°

Getting Started 7

Getting Started

Activating the Remote Control

Turning on the Display and the Backlight

The Remote Control’s display can be activated in three different ways:

•Tap the screen gently with your finger or a blunt, soft object like a pencil eraser.

The display is activated.

•Tilt the Remote Control more than 50 degrees as illustrated.

The display and the backlight of the direct access buttons are activated.

In the settings (p. 16) you can choose to deactivate the Pick Up sensor.

•Press the backlight button on the left side.

The display and the backlight of the direct access buttons are activated.

When you turn on the display you see the Home panel. If another panel is displayed, tap the Home button .

If the screen stays black or becomes blank, adjust the contrast using the contrast dial on the left side.

The Remote Control has a switch-off feature: it automatically turns off to save power.

In the settings (p. 16) you can define the switch-off time for the touch screen.

Activating odes

The Remote Control has different modes. In Use mode the Remote Control icon is entirely visible. If a label

(like or ) covers the icon, see page 20 to switch your Remote Control to Use mode.

50°

Getting Started 8

Defining the Brands of Your Devices

The Remote Control uses RC codes to activate devices. Because there are several brands using specific RC codes, you have

to define the brands of your devices.

On the Home panel you find buttons for most common video and audio devices. When you select a device on the Home

panel for the first time, you will notice that the Remote Control is set up by default to operate Philips or Marantz devices.

For all devices other than Philips or Marantz, you will have to define the brand before you can operate them with the

Remote Control.

1. Select a device on the Home panel.

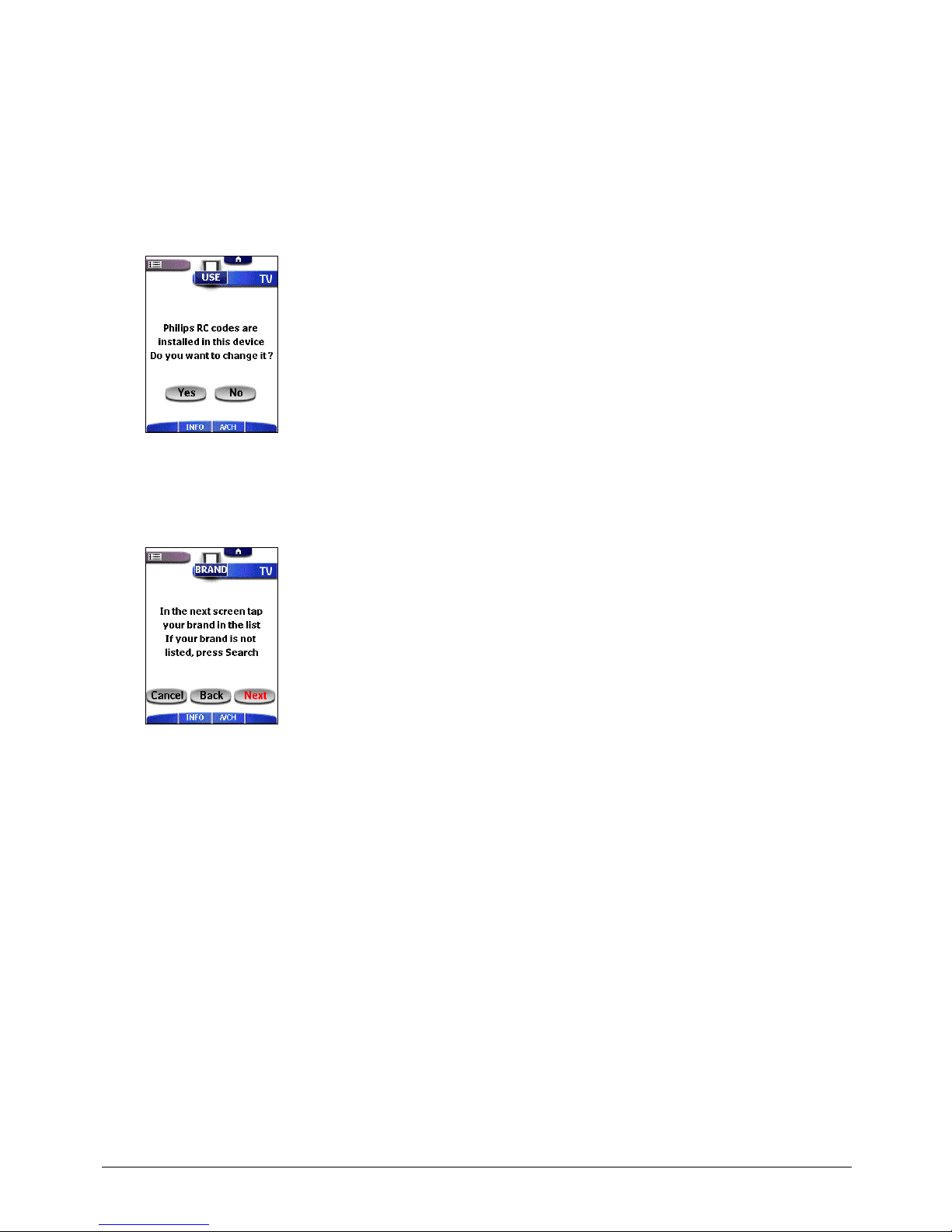

The following screen appears.

2. When the brand of your device is Philips or Marantz, click No.

The Remote Control switches to Use mode. To operate the device in Use mode, see p. 14.

When you want to adjust the Remote Control to operate with your brand, click Yes.

The Remote Control switches to Brand mode. Follow the instructions as described below.

There are three possible scenarios for defining brands:

•You can select the brand and the code set of your device.

•You can select the brand of your device and search the code set.

•You can search the brand of your device.

Getting Started 9

Selecting Brands and Code Sets

A list of brands and their corresponding RC codes are stored in the Remote Control’s memory.

You have to select your brand from the list. Because not every device of a certain brand uses the same RC codes, you

might also have to select a set of RC codes for your brand.

1. Tap Next.

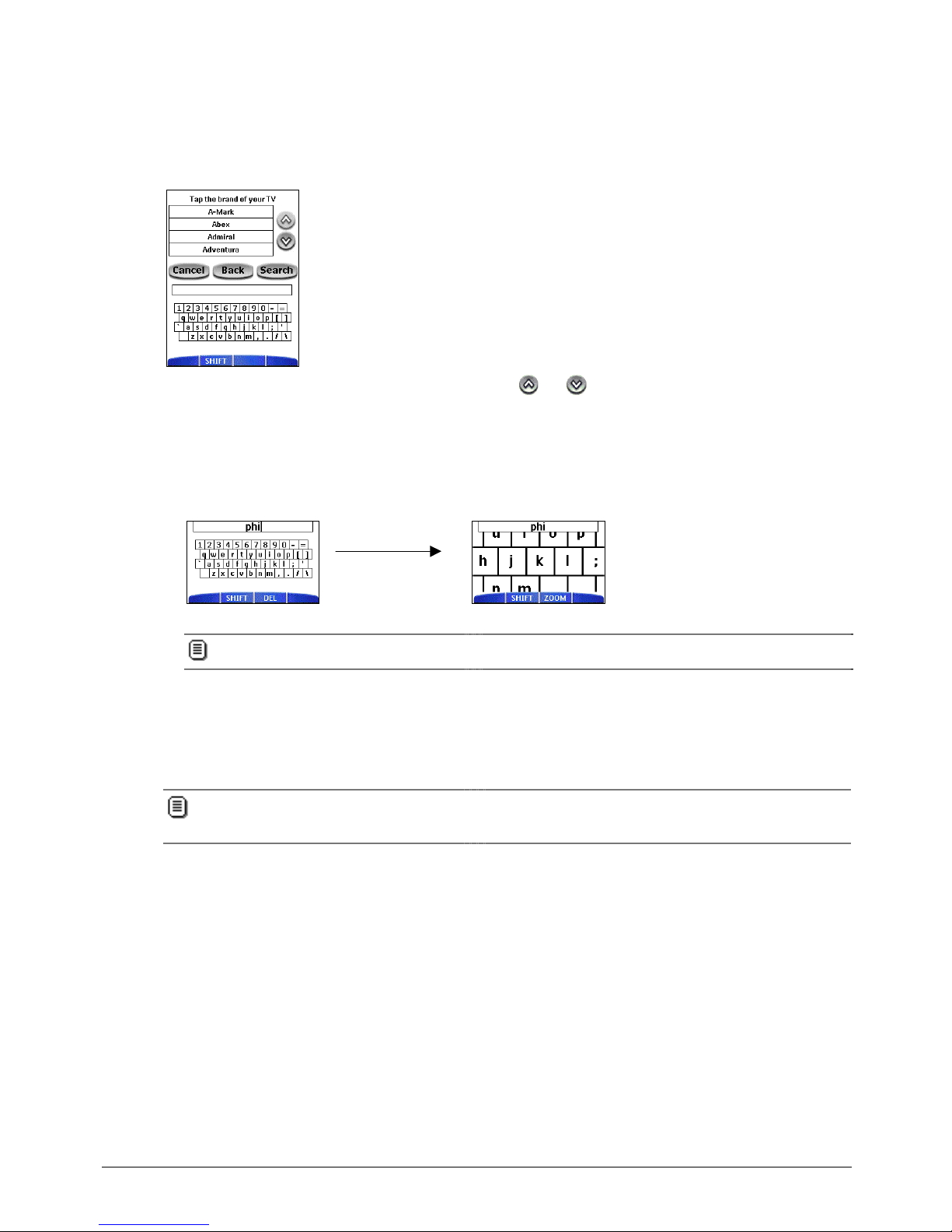

A scrollable list of brands for the selected device and a “virtual auto zooming” mini keyboard appears.

2. Navigate through the list of brands using the scroll buttons and to scroll up or down in the list of brands.

•By tapping the scroll buttons, you scroll through the brands one by one.

•By holding down the scroll buttons, the scrolling speed increases.

Navigate through the list of brands using the mini-keyboard to jump through the list of brands.

•To enter a character, tap the keyboard near the character you want to use.

The keyboard is zoomed in, allowing you to tap exactly the character you need.

After you have tapped the character, the keyboard is zoomed out. Repeat this action for every character.

You can zoom out again without tapping a character by pressing the right action button (labeled Zoom).

•To delete a character, press the right action button (labeled Del).

•To enter a space, tap the lower left corner of the keyboard. When the keyboard is zoomed in, tap the empty key.

Every time you enter a character the list displays the brands that match the character(s). The Remote Control

makes a pre selection of the (first) matching brand. You only have to type as many characters as needed to

display your brand.

When your brand is not displayed in the list of brands, you can use Search mode. See “Searching Brands and

Code Sets” on p. 11.

Getting Started 10

3. Select your brand in the list.

The selected brand is highlighted. The Search button switches into Next.

4. Tap Next.

When your brand uses only one set of RC codes, the Remote Control switches to Try mode. Continue with step 5.

When there are several code sets for your brand, a list of code sets for the selected brand appears.

You can select the code set for your device:

The RC code sets are ranked. The first code set in the list is used for most devices of the selected brand.

1. Select a code set from the list.

The selected code set is highlighted. The Search button switches to Next.

2. Tap Next.

The Remote Control switches to Try mode. Continue with step 5.

When you do not know which code set to select for your device, you can search the code set in Remote Control’s

memory:

1. Tap Search.

The Remote Control automatically searches through all available RC code sets to find the matching codes for

your device.

2. Tap Next to start sending appropriate commands for the selected device.

The progress bar indicates how many of the available code sets have been tried out.

Table des matières

Autres manuels Philips Télécommande

Philips

Philips SBCRU610 Manuel utilisateur

Philips

Philips SRU3004WM/17 Manuel utilisateur

Philips

Philips SRU1020/10 Manuel utilisateur

Philips

Philips SRU 5120/87 Manuel utilisateur

Philips

Philips SRP2008B/86 Manuel utilisateur

Philips

Philips SBC RU 510 Manuel utilisateur

Philips

Philips SBC RU 530 Manuel utilisateur

Philips

Philips Perfect replacement SRC3036WM Manuel utilisateur

Philips

Philips G96SVCAA01 Manuel utilisateur

Philips

Philips SBCRU460/00 Manuel utilisateur

Philips

Philips KWR164501/01 Manuel utilisateur

Philips

Philips SRU6080/37 Manuel utilisateur

Philips

Philips RC9800I/05 Manuel utilisateur

Philips

Philips Perfect replacement SRU5108 Manuel utilisateur

Philips

Philips SRU3040 Manuel utilisateur

Philips

Philips Prestigo SRU8015/10 Manuel utilisateur

Philips

Philips Pronto SBC RU 950 Manuel du système

Philips

Philips SBC RU 230/00 Manuel utilisateur

Philips

Philips TSU7000 Manuel utilisateur

Philips

Philips Environ3 61205A Manuel utilisateur

Philips

Philips SBCRU641 Manuel utilisateur

Philips

Philips SRU5110/86 Manuel utilisateur

Philips

Philips SRP 3004/53 Manuel utilisateur

Philips

Philips Perfect replacement SRP1003/27 Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
