Philips 9890 010 83921 Manuel utilisateur

0.1

BD_FS_IsoRAD_01



2004 Philips Medical Systems

4512 984 28681 REV AA

SYSTEM B

UCKY

IAGNOST

FS ISORAD

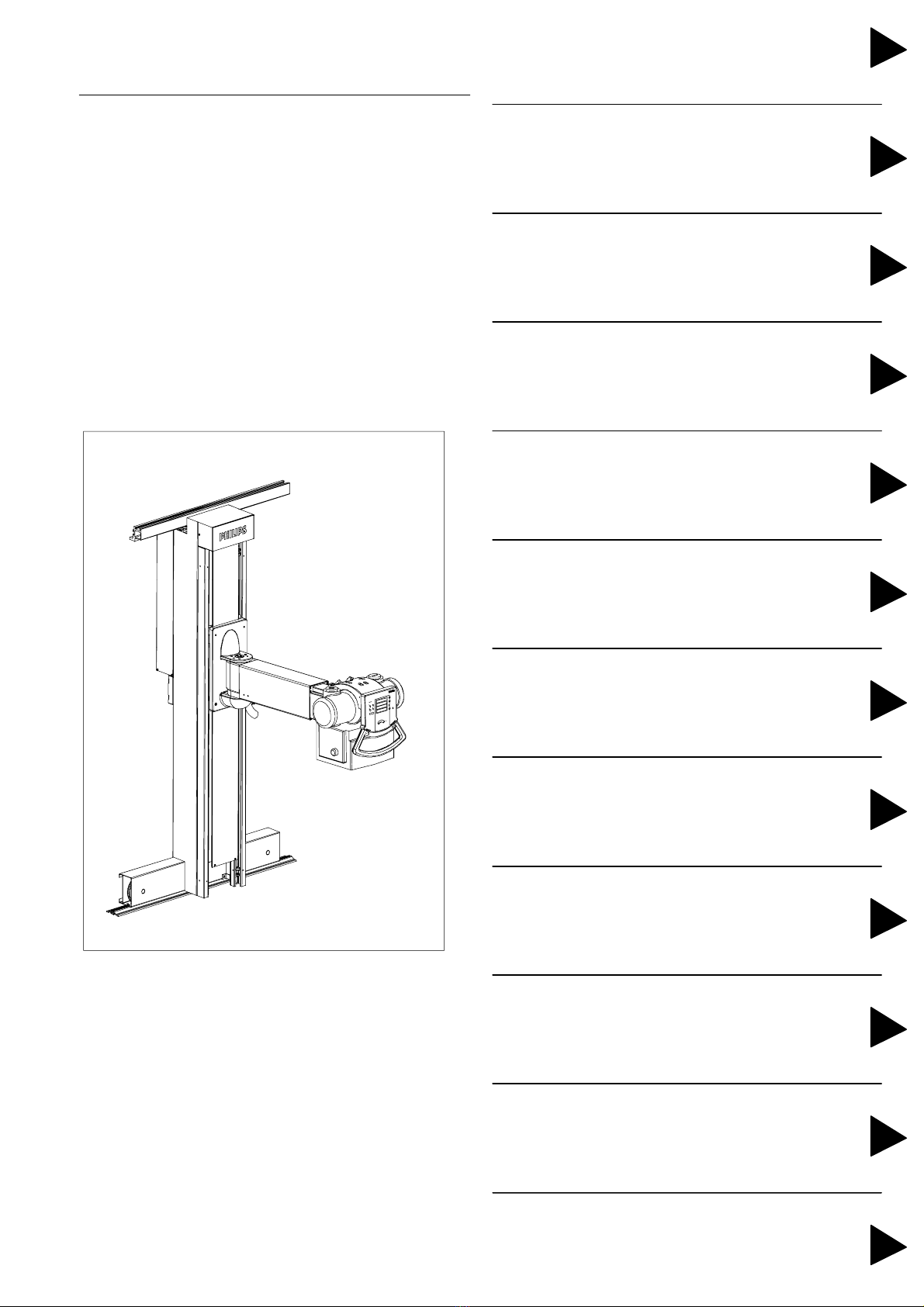

LIST OF DOCUMENTATION IN THIS BINDER:

⊗

SUBSYSTEM MANUAL BuckyDiagnost FS IsoRAD

{

UNIT MANUAL manual/automatic collimator

Note: ⊗indicates document present

INTRODUCTION AND TECHNICAL DATA

INSTALLATION

FAULT FINDING

REPLACEMENT

PROGRAMMINGS

ADJUSTMENTS

DRAWINGS

SCHEMATIC DIAGRAMS

WIRING DIAGRAMS

Philips Medical Systems

4512 984 28681 REV AA 1

BD_FS_IsoRAD_reg

SERVICE MANUAL

704

SUBSYSTEM

BuckyDiagnost FS IsoRAD

9890 010 83921

DMC Hamburg

Printed in Hamburg, Germany

2004 Philips Medical Systems

BuckyDiagnost FS IsoRAD

4512 984 28681 REV AA 3.1

E2004 Philips Medical Systems

BD_FS_IsoRAD_LOPAD

SERVICE MANUAL -- SUBSYSTEM

BuckyDiagnost FS IsoRAD Author: M. Bierstedt

Type No : 9890 010 83921

In case there are any questions concerning this manual,

please send this LOPAD via fax to 49/(0)40/5078 2481

File: BD_FS IsoRAD_28681AA

List of pages and drawings (LOPAD) Manual Order No: 4512 984 28681

released: 09/2004

0.1

3.1

_________________________________

1--0.1 (04.0)

1--1 ... 5 (04.0)

_________________________________

2--1 (04.0)

_________________________________

3--1 (04.0)

_________________________________

4--0.1 (04.0)

4--1 ... 10 (04.0)

_________________________________

5--1 (04.0)

_________________________________

6--0.1 (04.0)

6--1 ... 3 (04.0)

_________________________________

Z--0.1 (04.0)

Z--1.1 (04.0) A3

Z--1.2 (04.0) A3

Z--1.3 (04.0) A4

Z--1.7 (01.0) A4 4512 982 0078.

2Z--10 (b/04.0) A3 4512 983 07571

_________________________________

Z--0.2 (04.0)

Z1--1 (04.0) A3

Z1--2 (03.0) A3 BuckyDiagnost FS

Z1--3 (04.0) A3

Z1--4 (04.0) A3 BuckyDiagnost FS

Z1--5 (03.0) A3 BuckyDiagnost FS

Z1--7 (04.0) A4 BuckyDiagnost FS

Z2--1 (04.0) A3

Z2--2 (04.0) A3

Z2--3 (03.0) A4 4512 983 07941

Z2--2.2 (04.0) A3 BuckyDiagnost CS

BuckyDiagnost FS IsoRAD INTRODUCTION AND TECHNICAL DATA

BuckyDiagnost FS IsoRAD (04.0)



2004 Philips Medical Systems

1_inh

1--0.1

INTRODUCTION AND TECHNICAL DATA

Contents

TEXT

Contents 1--0.1............................................................

1. Introduction and technical data 1--1.......................................

1.1. Purpose of the manual 1--1.................................................

1.2. Items supplied 1--1........................................................

1.3. Compatibility 1--2..........................................................

1.4. Technical data 1--2........................................................

1.4.1. Mechanical data 1--2.......................................................

1.4.2. Environmental data 1--2....................................................

1.4.3. Electrical data 1--3.........................................................

1.4.4. Tools / Material required 1--3................................................

1.5. Safety information 1--4.....................................................

1.6. Compliance information 1--4................................................

1.7. Equipment identification and labeling 1--4.....................................

1.8. Abbreviations and definitions 1--5............................................

1.9. Manual history 1--5........................................................

BuckyDiagnost FS IsoRAD INTRODUCTION AND TECHNICAL DATA

BuckyDiagnost FS IsoRAD (04.0) 1--1



2004 Philips Medical Systems

1_Introduction and technical data_BW

1. Introduction and technical data

1.1. Purpose of the manual

This documentation is valid for BuckyDiagnost FS IsoRAD (FS = floor stand).

The floor stand IsoRAD is part of the BuckyDiagnost IsoRAD system (shelter version).

The FS IsoRAD has a special design and is not available for other systems of the BuckyDiagnost family.

1.2. Items supplied

FS IsoRAD

-- Column with weight counter-balanced holder for

X-ray tube assembly

-- Long tube carrier arm, extendable

-- Control handle option

-- Automatic collimation and cassette size sensing

-- Rail system, floor mounted

-- High-voltage cable, length depending on shelter

-- Installation cable, length depending on shelter

BuckyDiagnost FS IsoRADINTRODUCTION AND TECHNICAL DATA

BuckyDiagnost FS IsoRAD(04.0)1--2



2004 Philips Medical Systems

1_Introduction and technical data_BW

1.3. Compatibility

The BuckyDiagnost FS IsoRAD is compatible with the following components:

Control handle options

Automatic collimator (Nicol)

SRO 2550/ROT 350

Set of cables standard (various lengths)

Set of cables options (various lengths)

Set of parts for sensing

Set for cassette size sensing

Compatibility with other subsystems:

Generator OPTIMUS RAD US

BuckyDiagnost VE

BuckyDiagnost TH2

1.4. Technical data

1.4.1. Mechanical data

For information about mechanical data refer to chapter Z ’Drawings’.

1.4.2. Environmental data

Operation Stock / Transport

Temperature in °Celcius 0/+40 -- 40 / + 75

Temperature in °Celcius / Hour N/A N/A

Humidity in % (non--condensing) 5/95 5/95

Gradient in % / hour N/A N/A

Vibrations / Shock range in Hz 5 -- 500 5 -- 500

Vibrations / Shock amplitude in mm N/A N/A

Vibrations / Shock acceleration in g0.25 peak 1.0 peak

Shock acceleration in g5 peak 10 peak

Shock pulse duration in msec 11 11

Air pressure in Hecto-pascal 700 / 1100 700 / 1100

Acoustic noise level : N/A

Air cooling : N/A

EMC : IEC 950

BuckyDiagnost FS IsoRAD INTRODUCTION AND TECHNICAL DATA

BuckyDiagnost FS IsoRAD (04.0) 1--3



2004 Philips Medical Systems

1_Introduction and technical data_BW

1.4.3. Electrical data

Equipment related:

Power required : max. 600 VA

Nominal voltages : 230 VAC

Supply configurations : 230 VAC

Voltage variation : N/A

Voltage impulse : N/A

Voltage surge : N/A

Voltage sag : N/A

Static frequency variation : 50 or 60 Hz ±1Hz

Dynamic frequeny variation : N/A

Harmonic voltage distortion

(single, total)

:N/A

Neutral to ground voltage variation : N/A

Neutral to ground volate impulse : N/A

Nominal current : standby (50/ 60 Hz) 0.5/ 0.6 A

maximum current (50/ 60 Hz) 2.3 / 2.6 A

Nominal frequency : 50 Hz / 60 Hz

Heat emission

standby : N/A

in operation : N/A

Operating voltages:

230 VAC +10 ... 15%

1.4.4. Tools / Material required

The FS IsoRAD is already installed and aligned in the shelter.

For replacement activities see chapter 4.

BuckyDiagnost FS IsoRADINTRODUCTION AND TECHNICAL DATA

BuckyDiagnost FS IsoRAD(04.0)1--4



2004 Philips Medical Systems

1_Introduction and technical data_BW

1.5. Safety information

The general legal and factory safety recommendations for this X-ray equipment and the following

recommendations must be strictly observed!

Start of installation, operation and maintenance work and especially electrical work must only be executed by

trained and authorized persons. This equipment must only be serviced by properly educated service specialists

who have received general and system--specific training as performed by Philips Medical Systems.

WARNING

The system/component must be switched OFF during replacement work. Any X-ray unit produces ionizing

radiation which may be harmful if not properly controlled. Therefore, it is recommended that this equipment be

operated in accordance with the guidelines set down by the national council on radiation protection.

___________________

WARNING

The light source of the light pointer is a Class II laser. Never look into thebeam directly.

With Class II lasers the eye is protected from brief,

random glances into the laser beam by theeyelid closure reflex.

Class II lasers may therefore be used without taking any further

precautions provided it is necessary neither to intentionally look into the beam for a period

longer than 0.25 s nor to repeatedly look into the laser beam or directly reflected laser beam.

___________________

For continuous duty Class II lasers the maximum

limit for accessible radiation is 1mW. The laser

light is emitted from openings in the lower side of

the controlhandle. The laser apertures are marked

by the yellow/black laser triangle in close

proximity to the laser aperture.

1.6. Compliance information

N/A

1.7. Equipment identification and labeling

Refer to drawing 2Z--10.

Laser aperture Laser aperturesliding lever

BuckyDiagnost FS IsoRAD INTRODUCTION AND TECHNICAL DATA

BuckyDiagnost FS IsoRAD (04.0) 1--5



2004 Philips Medical Systems

1_Introduction and technical data_BW

1.8. Abbreviations and definitions

Abbreviation Explanation

BIST Build-In Self Test

FS Floor Stand

PMS Philips Medical Systems

POST Power-On Self Test

PRD Product Reference Data

RO Rotalix

SID Source Image Distance

SRO Super Rotalix

TC Tool Code

TF Table Fixed

TH Table Height adjustable

VE Vertical

VR Vertical Radiography

VT Vertical Tiltable

1.9. Manual history

Date Version Name Reason of changes

16.08.04 1.0 M. Bierstedt

BuckyDiagnost FS IsoRAD INSTALLATION

BuckyDiagnost FS IsoRAD (04.0) 2--1

2004 Philips Medical Systems

2_Installation_04_BW

1 Installation

The FS IsoRAD is already installed and aligned in the shelter.

For replacement activities refer to section 4.
