Philips Tangent FXS Manuel utilisateur

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Tangent™Track Lighting System FXS

Page 1 of 2 Suspension Track

95 5/8 in [2429 mm]

1 3/8 in [34 mm]

3/8 in [9 mm]

3/16 in

47 5/8 in [1210 mm]

95 5/8 in [2429 mm]

143 5/8 in [3648 mm]

1 3/8 in

[34 mm ]

3/8 in [9 mm]

3/16 in 3/16 in

Ordering Information

Catalog No. Finish Description Track Mountings

FXS04

FXS08

FXS12

FXS52

FXS53

FXS54

FXS55

FXS67

FXS68

FXS84

FXS86

FXT08

FX100

Clear Anodized

Silver

Clear Anodized

Silver

Clear Anodized

n/a

4’ Tangent Suspension Beam Track

8’ Tangent Suspension Beam Track

12’ Tangent Suspension Beam Track

Suspension Variable Angle Coupler, Mechanical Only

Suspension Variable Angle Coupler, Electro/Mechanical

Suspension Mini Coupler, Electro/Mechanical

Suspension Mini Coupler, Mechanical Only

Tangent Suspended Power Feed Canopy, 10'

Tangent Suspension Non-Powered Cable Kit, 8'

Tangent Suspension 18" Stem Kit

Tangent Suspension 48" Stem Kit

8’ Tangent Suspended Truss Track

Bending Tool

Tangent Suspended Track and Suspended

Truss Track may be suspended with stems at a

maximum of 6’ on center. Additional suspension

points may be necessary when creating patterns

or for balancing loads.

Features

Tangent Suspended Track and Truss Track are a one-circuit electrical distribution

system designed to support and supply all Tangent lighting units in a flexible

manner. The track can be installed individually in straight runs or in a variety of

patterns using the appropriate connectors. The track may also be field bent by

hand or with an FX100 bending tool into curves with a minimum radius of 3'. All

track lengths can be field cut.

1. Tangent Suspended Track: Anodized aluminum with a clear protective

coating

2. Truss Track: Anodized aluminum with a clear protective coating

3. Insulating Liner: Clear polycarbonate; houses conductors

4. Conductor (2): Tin plated copper

5. Polarity Dimple: Identifies the 120V line conductor

6. End Cap: Silver painted polycarbonate

Finish

Tangent Suspended Track and Truss track are anodized aluminum with a clear

protective coating. Connectors and end caps are painted in a coordinating silver

finish. All painted finishes are baked enamel.

Electrical

Capacity is 20 amps at 120 volts, 60Hz per branch circuit. The track units are

polarized and continuously grounded throughout. Electrical conductors are

contained in the polycarbonate extrusion. Track is intended for wiring to branch

circuit building wire with ground. All wiring must be in accordance with National

and Local Codes.

Labels

cULus

FXS04

FXS08

FXS12

FXS52

FXS53

FXS54

FXS55

FXS67

FXS68

FXS82

FXS84

FXS86

FXT08

FX100

95 5/8 in [2429 mm]

1 3/8 in [34 mm]

3/8 in [9 mm]

3/16 in

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Tangent™Track Lighting System FXS

Page 2 of 2 Suspension Track

Variable Angle Connector, Mechanical Only

Permits mechanical attachment of two track

sections while maintaining electrical separation.

Allows for left and right angles with a total of 216°

of rotation. Not a feed point.

Bending Tool

Used to field bend all Tangent Track into Curves

with a minimum radius of 3ft.

Variable Angle Connector, Electro/Mechanical

Joins tracks together electrically and mechanically.

Allows for left and right angles with a total of 216°

of rotation. The variable angle connector is polar-

ized and pre-wired. Not a feed point.

Suspension Non-Powered Cable Kit 8'

Mounts to 4" or 3" octagonal outlet box supports

Suspension Track and Truss Track at any point.

Cable has an adjusting collar for suspension height

adjustability. Do not exceed 6' between cables. Use

additional cables for added support. May be field

cut. Cable mounts to track or connectors.

1/4 in

Stainless Steel

Aircraft Cable

1/32 in

Canopy

Diameter

4 5/8 in

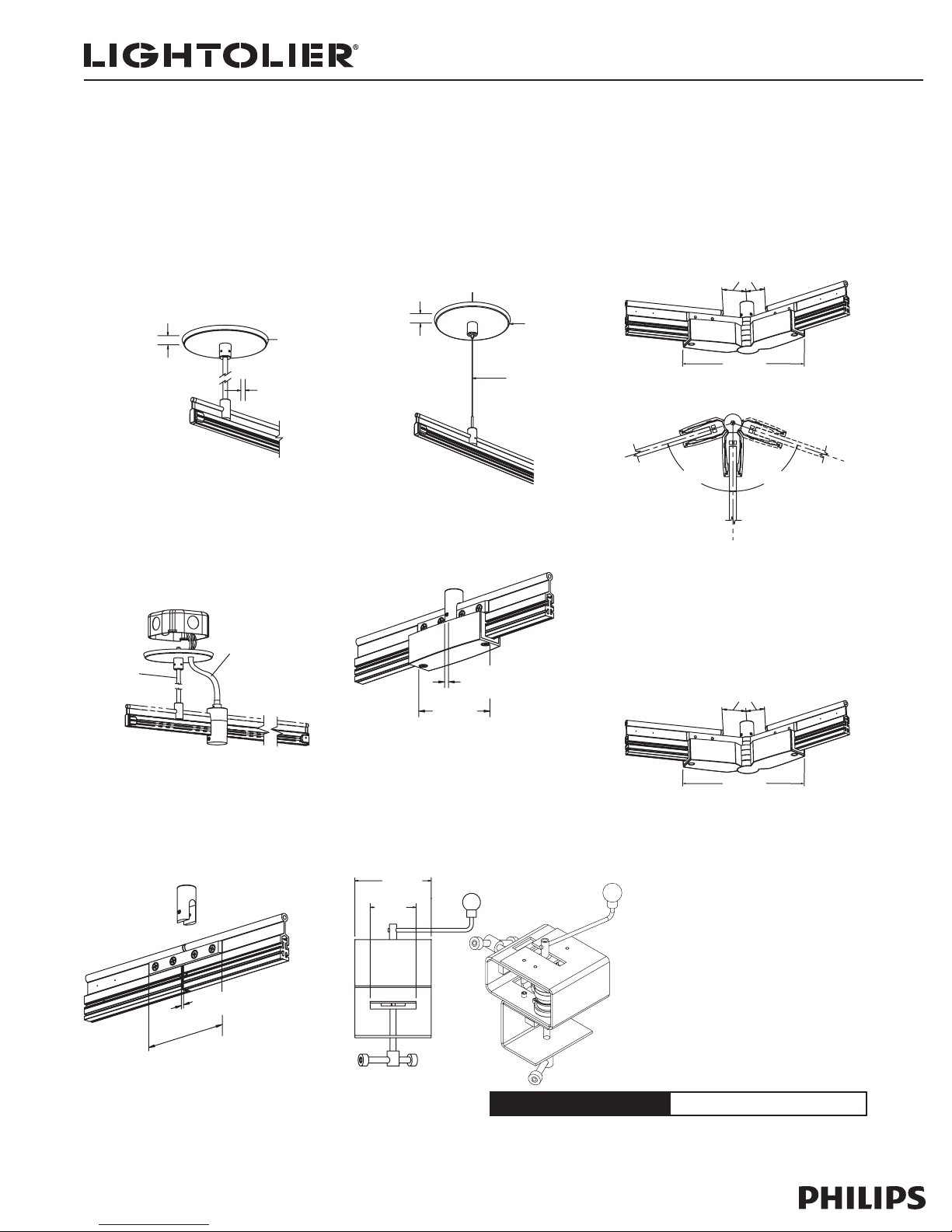

Track Mounting, Power Feed Systems and Connectors

Suspended Power Feed Canopy, 10'

Mounts anywhere along track for power feed from

a 4" octagonal outlet box.

Max load 20 amps @ 120V, 60Hz.

Order stem or cable separately.

Stem or cable

not included

Cord not for

mechanical support

Suspension Mini Coupler, Electro/Mechanical

Joins tracks together electrically and mechanically.

The mini-coupler is polarized. Not a feed point.

.090 in [2.3 mm] Space Between

Two Tracks

3 1/8 in

[79.3 mm]

3 1/8 in

[79.3 mm]

.090 in

[2.3 mm]

Stem Mounting Kits

Mounts to a 4" or 3" octagon outlet box. When

making run of track, do not exceed 6' between

stems. Use additional stems for added support.

Power is fed to the track with Suspended Power

Feed Canopy. Stem can be field cut. For Individual

FXS12 Installations 3 stems are required

Not recommended for wall mounting.

Stem mounts to track, or connectors.

1/4 in Canopy

Diameter

4 5/8 in

Steel Rod

1/4 in

1 in [25.4 mm]

5 1/3 in

[136.44 mm]

FXS84 18" Silver

FXS86 48" Silver FXS68 Silver

FXS53 Silver

71°

MIN

71°

MIN

1 in [25.4 mm]

5 1/3 in

[136.44 mm]

FXS52 Silver

FXS54 Silver

5.00 in

127 mm

3.00 in

76 mm

FX100 Silver

FXS55 Clear Anodized

FXS67 Silver

Suspension Mini Coupler, Mechanical Only

Permits mechanical attachment of two track sec-

tions while maintaining electrical separation. Not

a feed point.
