Lytespan®Track Lighting System 23S20T4

Page 1 of 2 Alcyon HID 20W CMH T4 GU6.5 TAL Step Spot

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier is a Philips group brand

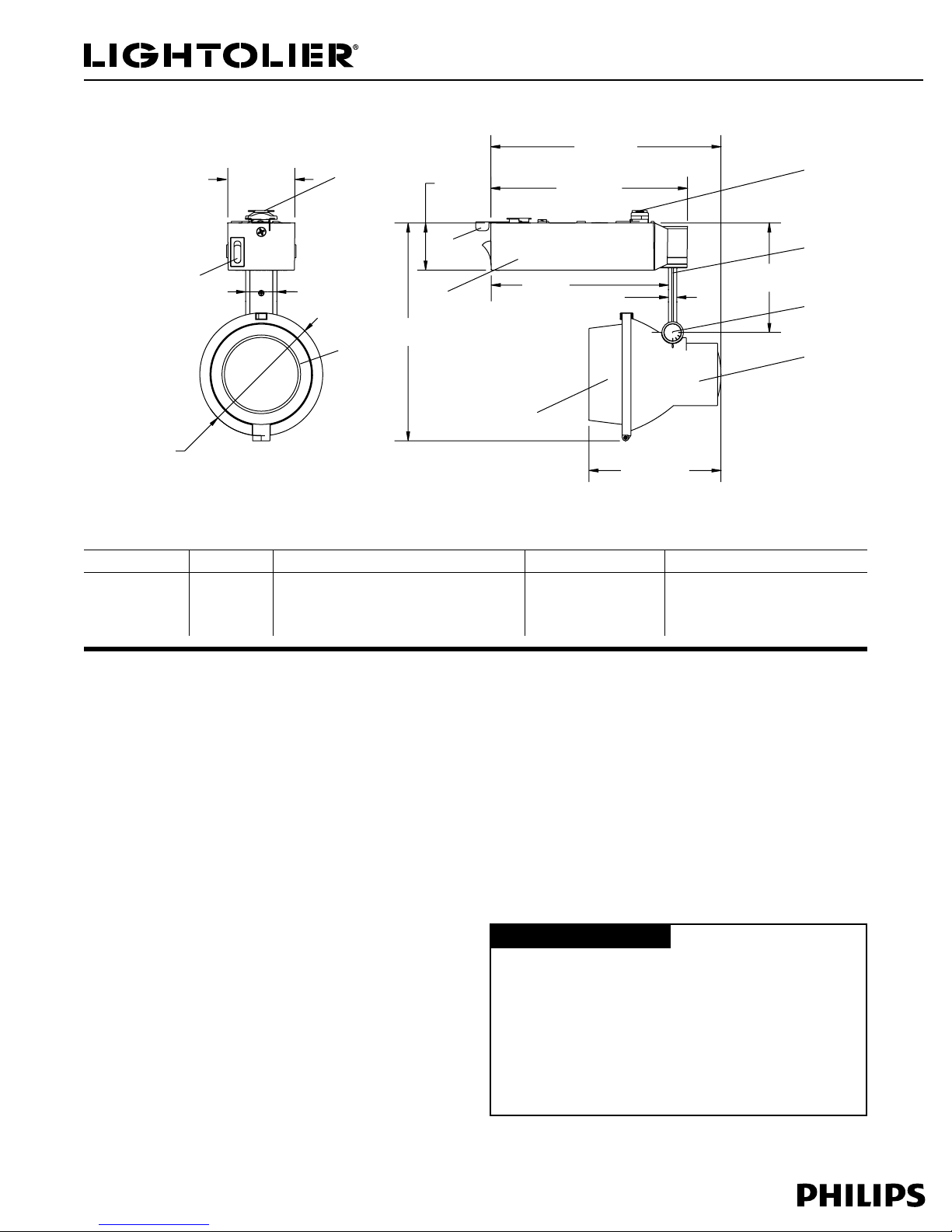

7/8 in

[23 mm]

1 15/16 in

[49 mm]

6 5/8 in

[169 mm]

5 11/16 in

[144 mm]

1 3/8 in

[35 mm]

6 5/16 in

[160 mm]

3 13/16 in

[97 mm]

5 1/8 in

[130 mm]

3 9/16 in

[90 mm]

1/4 in

[6 mm]

3 3/16 in

[80 mm]

Ordering Information

Catalog No. Finish Mounting Lamps Reflectors

23S20T4AL Aluminum For use with Lytespan Radius, Basic and Advent 20W T4 GU6.5 Base 23MHRF, 23MHRS, 23MHRNF

23S20T4BK Black Track. Not compatible with extension wands Ceramic Metal Halide 23MHRFCCZ, 23MHRSCCZ, 23MHRNFCCZ

23S20T4WH White or slope ceiling adapters. For monopoint REFLECTORS SOLD SEPARATELY

applications refer to spec sheet 6171.

Features

1. Track Attachment Fitting: Locking lever for mechanical/

electrical connection.

2. Brass Contact: Extends for connection to second circuit (Advent track only).

3. Horizontal Pivot: Wireless stem profile with 365° horizontal rotation.

Position may be locked using an allen key.

4. Vertical Pivot: 0-90° vertical adjustment with aiming indicator. Position

may be locked using an allen key.

5. Fixture Housing: Die cast aluminum

6. Ballast Housing: Molded polycarbonate

7. Safety Lens: Tempered 1/8" glass. Meets or exceeds UL safety requirement

for metal halide lamps.

8. On/Off Switch: Rocker switch to disconnect power to the ballast.

9. Accessory Cartridge: Hinged and captive; retaining ring included. Inside

painted black to reduce glare.

10.Safety Locking Lever: Locks ballast housing to track.

Finish

All Painted finishes are baked enamel.

Accessories

Accessory Holder: Integral

Accessories: Accepts 1 snoot plus 2 lenses or 1 louver plus 1 lens.

When using 2 accessories, remove safety lens provided.

Lens: AF25, ADF25 Series

Louver: AL25HC

Reflector

Interchangeable reflectors available to allow for desired beam spread.

REFLECTORS SOLD SEPARATELY.

Electrical

Electronic Ballast

Input Voltage: 120V, 50/60Hz

Power Factor: High

Input Power: 24.5W

Max. Input Current: 0.20A

ANSI Code: M156

Do not use on dimming circuit.

Labels

UL, cUL

Lytespan®Track Lighting System 23S20T4

Page 2 of 2 Alcyon HID 20W CMH T4 GU6.5 TAL Step Spot

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lightolier is a Philips group brand

11122 9000

20W T4, 23MHRS

10°

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

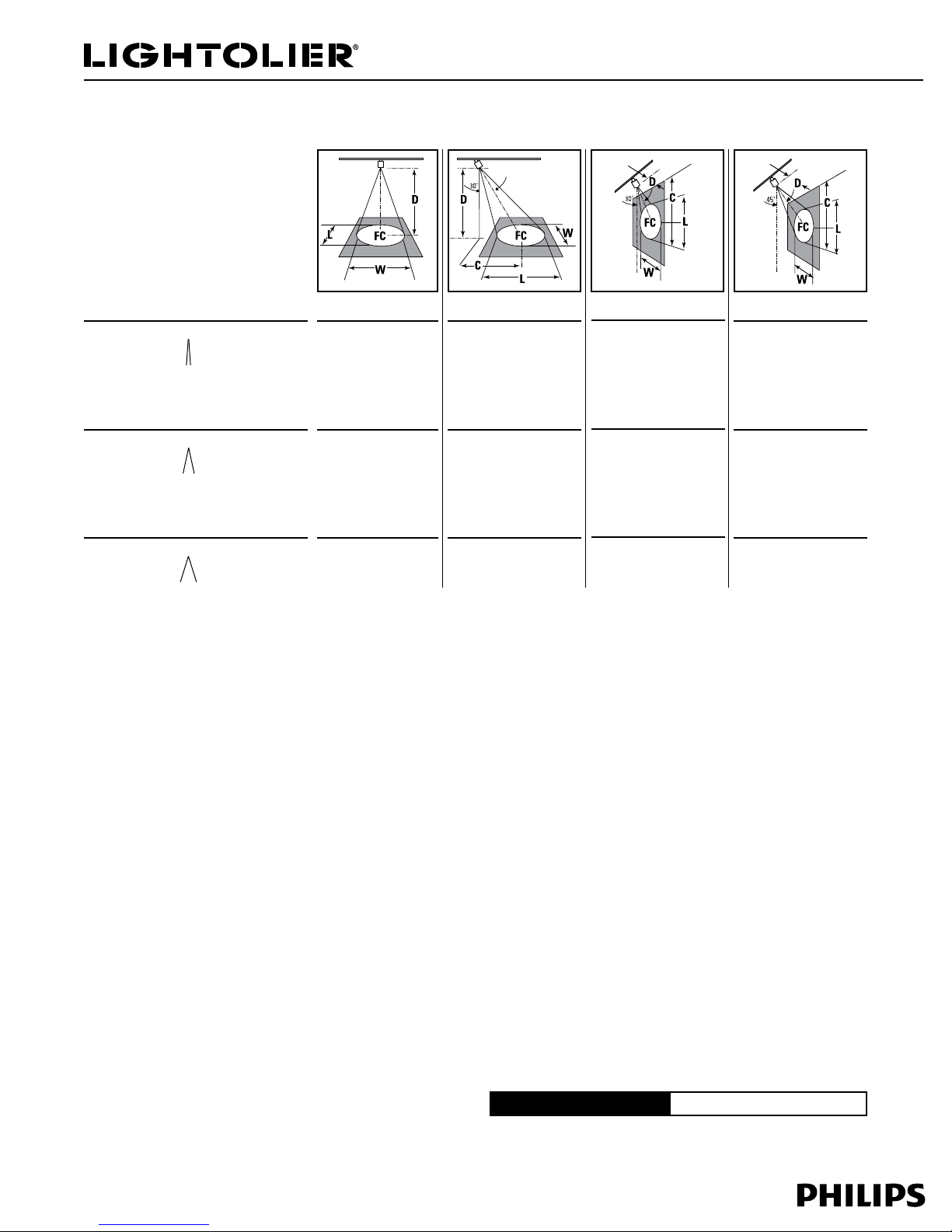

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length DDistance

WBeam Width AAiming Angle

C Distance to center beam FC Footcandles

Land W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp

manufacturers for availability and performance.

CBCP = Center Beam Candle Power.

D FC L W D C FC L W D C FC L W D C FC L W

8' 4.6' 113 1.9' 1.6'

10' 5.8' 72 2.3' 2.0'

12' 6.9' 50 2.8' 2.4'

14' 8.1' 37 3.3' 2.8'

4' 4.0' 246 1.4' 1.0'

5' 5.0' 157 1.8' 1.2'

6' 6.0' 109 2.1' 1.5'

7' 7.0' 80 2.5' 1.7'

3' 5.2' 154 2.1' 1.0'

4' 6.9' 87 2.9' 1.4'

5' 8.7' 56 3.6' 1.7'

6' 10.4' 39 4.3' 2.1'

10' 111 1.7' 1.7'

12' 77 2.1' 2.1'

14' 57 2.4' 2.4'

16' 43 2.8' 2.8'

2386 9000

20W T4, 23MHRNF

25°

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.) D FC L W D C FC L W D C FC L W D C FC L W

6' 3.5' 43 3.6' 3.1'

8' 4.6' 24 4.8' 4.1'

10' 5.8' 15 6.0' 5.1'

12' 6.9' 11 7.2' 6.1'

2' 2.0' 211 1.9' 1.3'

3' 3.0' 94 2.8' 1.9'

4' 4.0' 53 3.7' 2.5'

5' 5.0' 34 4.7' 3.1'

2' 3.5' 75 4.2' 1.8'

3' 5.2' 33 6.2' 2.7'

4' 6.9' 19 8.3' 3.5'

5' 8.7' 12 10.4' 4.4'

6' 66 2.7' 2.7'

8' 37 3.5' 3.5'

10' 24 4.4' 4.4'

12' 17 5.3' 5.3'

1849 9000

20W T4, 23MHRF

35°

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.) D FC L W D C FC L W D C FC L W D C FC L W

6' 3.5' 33 5.2' 4.4'

8' 4.6' 19 7.0' 5.8'

10' 5.8' 12 8.7' 7.3'

12' 6.9' 8 10.4' 8.7'

2' 2.0' 163 2.8' 1.8'

3' 3.0' 73 4.2' 2.7'

4' 4.0' 41 5.6' 3.6'

5' 5.0' 26 7.0' 4.5'

2' 3.5' 58 7.2' 2.5'

3' 5.2' 26 10.8' 3.8'

4' 6.9' 14 14.4' 5.0'

5' 8.7' 9 18.0' 6.3'

6' 51 3.8' 3.8'

8' 29 5.0' 5.0'

10' 18 6.3' 6.3'

12' 13 7.6' 7.6'

Note: For Champagne Bronze (CCZ), multiply FC values by 0.64. CCZ Champagne Bronze reector "warms" the beam to 2700K.
