Lytespan® Track Lighting System 22MW4

Page 1 of 2 Alcyon™ Micro Flood T4 12V

Ordering Information

Catalog No. Finish Mounting Lamps

22MW4WH

22MW4BK

22MW4AL

Matte White

Matte Black

Metallic Aluminum

All Lytespan Track Systems.

Does not mount on ProSpec Track.

12V 50W Max. T4 2-pin GY6.35 base lamp. (Clear Only)

Use Philips or Sylvania lamps only, must be 1 3/4" MOL.

Transverse or C-6 filament recommended.

Features

1. Transformer: Class two electronic transformer for 12v halogen lamps

2. Track Attachment Fitting: Molded polycarbonate; rotates into track

3. Brass Contact: Extends for connection to second circuit

(Advent Lytespan track only)

4. Horizontal Pivot: Wireless stem profile with infinite horizontal rotation

5. Vertical Pivot: 0-90° vertical adjustment

6. Socket: Bi-pin multipoint contact low voltage halogen socket

7. Housing: Die cast aluminum

8. Smoothing Lens: Meets UL standards for use with unshielded lamps

Finish

All Painted finishes are baked enamel.

Dimming

Use only dimmers specifically designed for use with electronic transformers.

Low voltage fixtures may produce audible sound when dimmed.

Accessories

Accessory Holder: None

Accessories: None

Lens: None

Louver: None

Snoot Accessory: None

Labels

UL, cUL

1 1/2 in

[40 mm]

1/2 in

[12 mm]

2 3/4 in

[72 mm]

4 1/2 in

[113 mm]

1 in

[24 mm]

4 3/4 in

[120 mm]

5 1/2 in

[138 mm]

2 1/2 in

[63 mm]

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lytespan® Track Lighting System 22MW4

Page 2 of 2 Alcyon™ Micro Flood T4 12V

2’

Lighting Data

1’ 51 36 7 1 1

2’ 45 30 12 2 1

3’ 19 15 9 3 1

4’ 8 7 5 3 1

5’ 4 4 3 2 1

6’ 2 2 2 2 1

7’ 1 1 1 1 1

8’ 1 1 1 1 1

Footcandles on Wall

Track 2 Feet From Wall Single Unit Multiple Units

71 78 70

72 67 71

38 35 37

20 18 19

12 11 11

8 8 7

5 5 5

4 4 3

2’

56 15 56

49 24 49

20 18 20

10 10 10

6 6 6

4 4 4

3 3 3

2 2 2

4’

Distance From Ceiling

50˚

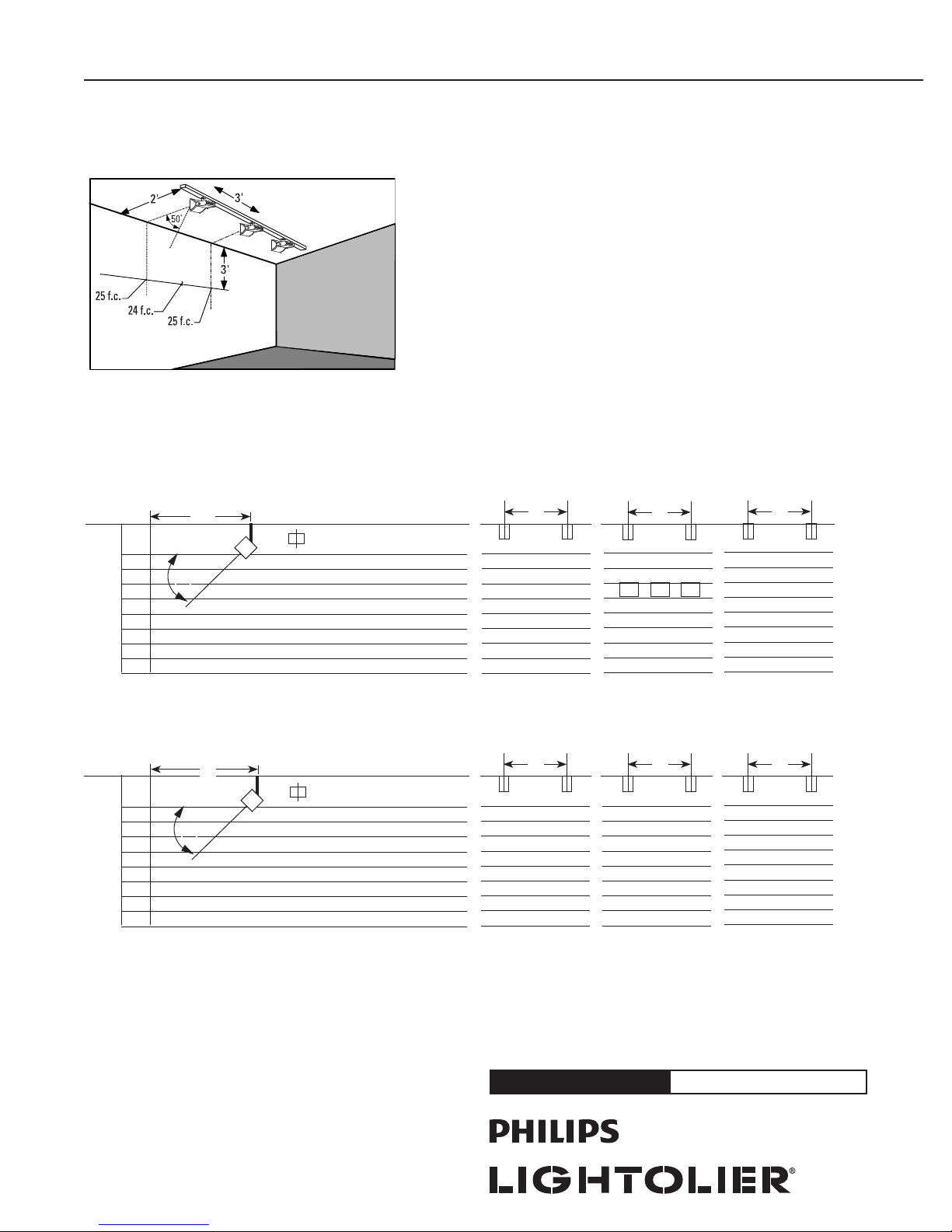

EXAMPLE: With track located 2’ from wall and multiple units spaced

3’ on center and aimed 50˚ from horizontal, the illumination on wall 3’

from ceiling will be 25 f.c. beneath units and 24 f.c. between units.

1’ 23 21 11 3 1

2’ 23 17 11 4 1

3’ 20 16 11 5 2

4’ 12 10 8 5 2

5’ 6 5 4 3 2

6’ 3 3 3 2 2

7’ 2 2 2 2 1

8’ 1 1 1 1 1

28 33 28

31 31 31

32 30 32

22 21 23

13 13 14

9 8 9

6 6 6

4 5 4

24 23 24

25 22 25

24 23 24

17 16 17

10 10 10

7 6 7

5 5 5

4 4 4

23 14 23

23 16 23

22 17 22

14 13 14

8 8 8

5 5 5

4 4 4

3 3 3

Track 3 Feet From Wall Single Unit Multiple Units

3’ 4’ 5’

Distance From Ceiling

50˚

Footcandles on wall:

0’ 1’ 2’ 3’ 4’

Beam Center

La mp Information:

50W 12V T4

Lumens: 950

Rated Avg. life: 2,000 hrs.

58 45 58

52 44 52

25 24 25

13 13 13

8 8 8

6 5 6

4 4 4

3 3 3

3’
