Philips Lytespan LCAWTSB Manuel utilisateur

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

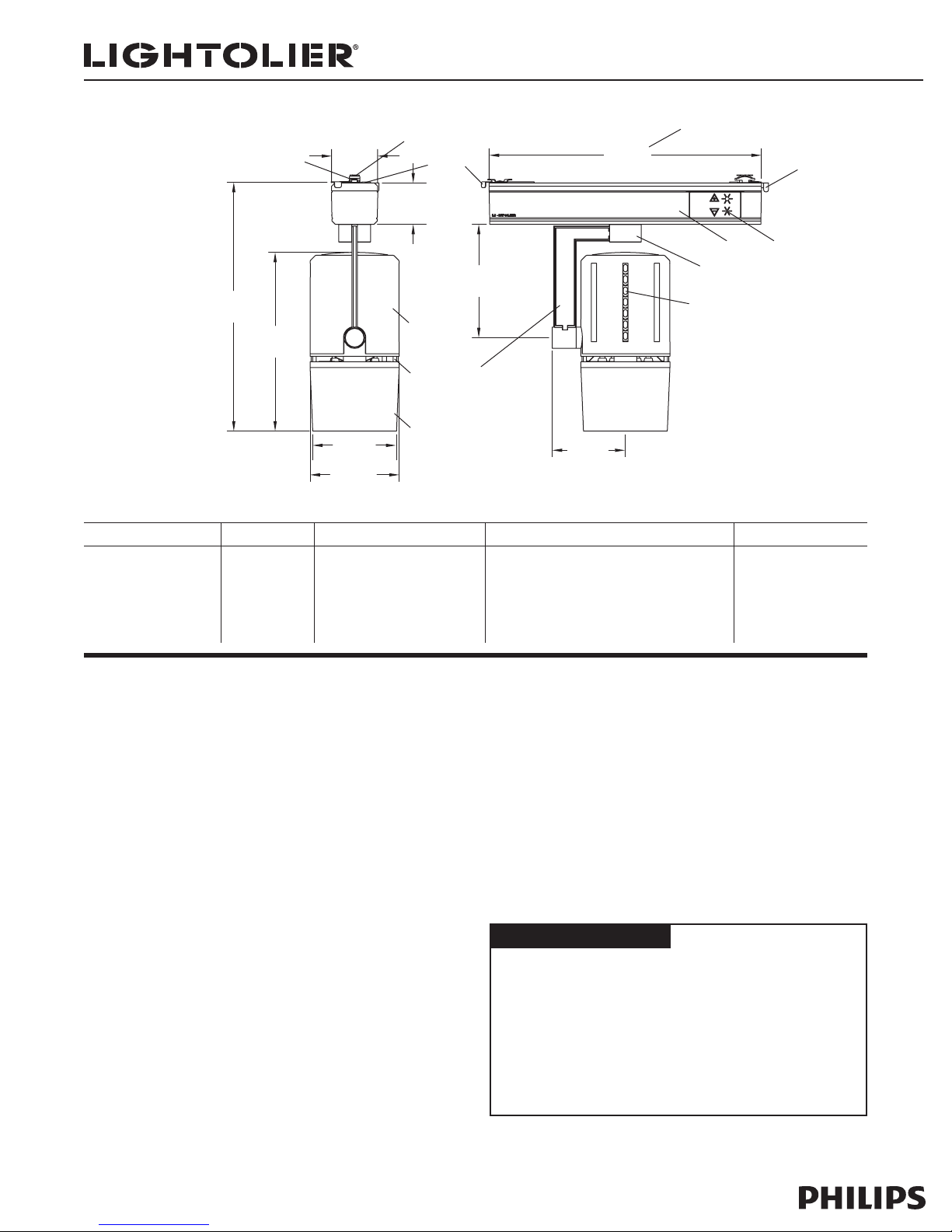

Lytespan Track Lighting LCAWTSB

Page 1 of 2 ColorSpot 4-Button Low Voltage LED

2-1/8"

(55.0mm)

11-3/4"

(297.2mm)

8-3/8"

(213.5mm)

4-1/4"

(176.4mm)

(100.1mm)

5-3/8"

(135.4mm)

(49.5mm)

10,11

14,15

12-3/4"

(325.2mm)

3-1/2"

(87.5mm)

Features

1. Lytespan Attachment Fitting: Molded polycarbonate. Integral color.

Rotate into track for mechanical/electrical connection.

2. Moveable Contact: Solid brass. Extend, for connection to 2nd circuit in

Advent track.

3. Ground Contact: Solid brass

4. Polarity Keyway

5. Push Lever: Die-casted. Engages unit to track.

6. Locking Lever: 24 gauge spring steel. For mechanical connection to track.

7. 4-Button Controller: 4 button interface allows preset values to be selected

by scrolling through them in order or in reverse order (2 buttons) and to vary

the intensity up and down (2 buttons). Molded polycarbonate dark grey color

with light grey pict-o-grams.

8. Synchronizer: Printed circuit board (PCB) mounted. 120V input, with a

sensitive capter and hearing captation for the 4-button controller.

9. Thermal Management System: Keeps the LED at appropriate temperature.

10.PSU Housing/Cover: Die-cast aluminum

11. Power Supply Unit: High power factor solid state unit. Thermally protected,

Class 2.

12.Pivot Mounting: Die-cast aluminum. Permanently tensioned. 300° horizontal

rotation and 180° vertical adjustment.

13.Arm Housing/Cover: Die-cast aluminum. Hides leads.

14.LED Housing: 24 gauge steel. 4 slots and a perforated back for ventilation to

keep diodes cooler.

15.6-Cluster LED: 6 clusters of 4 lighting emission diodes (LED) mounted

in circle with the optic placed in front of light emitting region produce a

maximum optical intensity (20° of diffusion) of the LEXEL™. The Thermal

Management Systems keep the temperature as low as possible.

Features (continued)

16.Mounting Belt: Die-cast aluminum. 4 slots for ventilation and mounting

of spot components.

17. Accessory Cartridge: Die-cast aluminum. Captive; retaining ring included.

To hold diffusers.

Dimming

Not compatible w/dimmers.

Finish

All painted finishes are baked powder or enamel.

Labels

cULus, Certified for dry locations only.

Catalog No. Finish Specifications Mounting

LCAWTSBWH

LCAWTSBBK

LCAWTSBAL

White

Black

Aluminum

120V - 60Hz Monopoint/Multipoint

Basic, Radius, Advent Track Ceiling

Stem Mounted Track

Extension Wands/Slope Ceiling Adapter

Recessed Track

ProSpec Track

Yes

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan Track Lighting LCAWTSB

Page 2 of 2 ColorSpot 4-Button Low Voltage LED

Features

• RGGB Array – 24 high brightness LEDs

• Can be set to match any other white source (CFL, HID, etc.)

• Color sensor/feedback system continuously

monitors color and adjusts LED channels to

maintain color/CCT with no shift over life

• Light intensity sensor adjusts voltage to LEDs to

maintain the selected light output for life.

• Self-contained, intelligence complete with power supply/

control electronics, simplifies network design

• Internal mixing optics provide smooth even beam

of light and minimize the RGB dot effect

• No multiple shadows or color fringing

• Thermally optimized heat sink for consistent

output and long life (50K hrs @ 100%)

• Available in either 4-Button control model

with presets or DMX control model.

Catalog Number Controls Finish Wattage Voltage

LCAWTSXWH DMX (RJ45)

Matte White

34W to 64W 120V

LCAWTSBWH 4-Button

LCAWTSXBK DMX (RJ45)

Matte Black

LCAWTSBBK 4-Button

LCAWTSXAL DMX (RJ45) Matte

Aluminum

LCAWTSBAL 4-Button

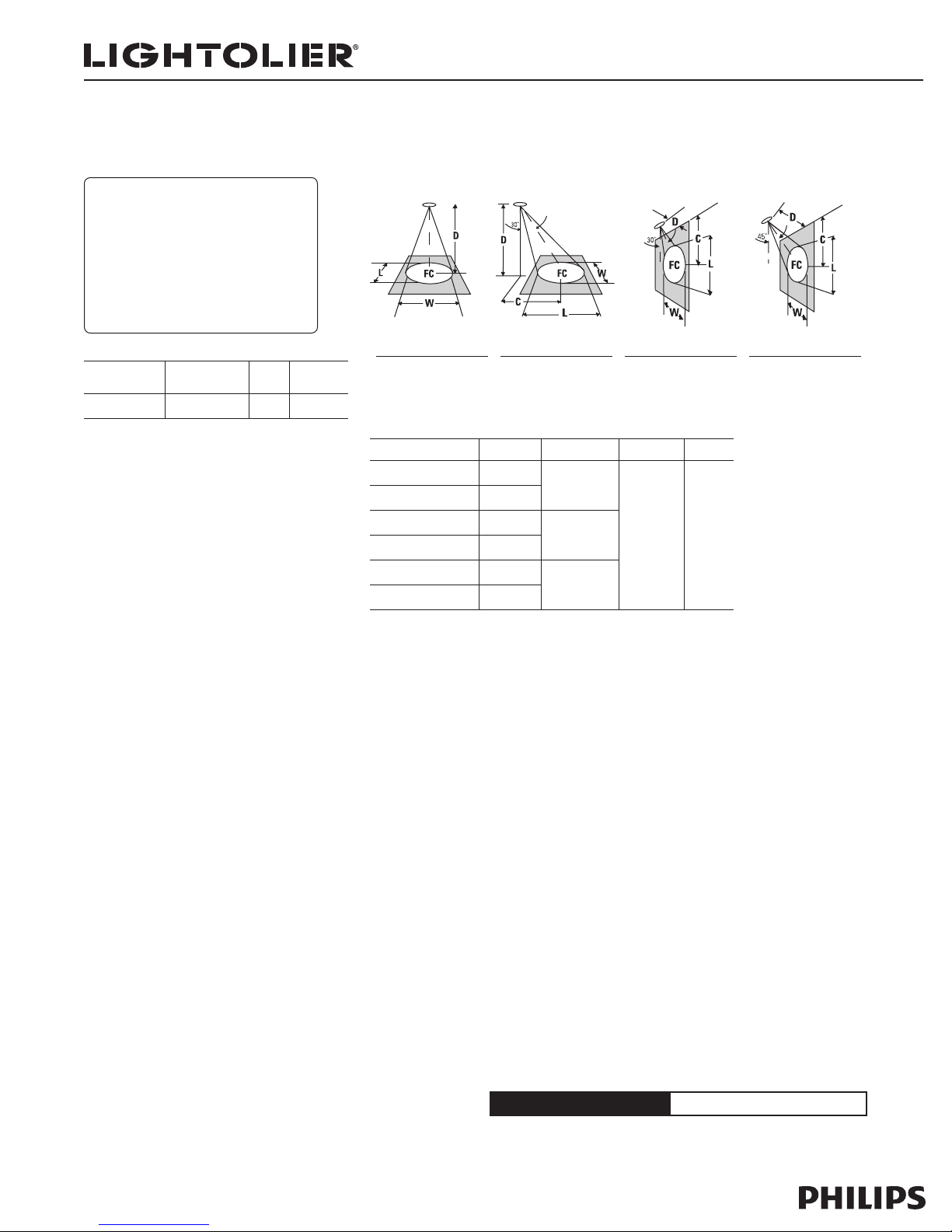

6' 166 2.2' 2.2'

8' 94 3.0' 3.0'

10' 60 3.7' 3.7'

12' 42 4.4' 4.4'

6' 3.5' 108 3.0' 2.6'

8' 4.6' 61 4.0' 3.4'

10' 5.8' 39 5.0' 4.3'

12' 6.9' 27 6.0' 5.1'

0° 30° Horizontal 30° Vertical 45° Vertical

D FC L W D C FC L W

Aiming Angle:

2' 3.5' 187 3.3' 1.8'

3' 5.2' 83 5.0' 2.2'

4' 6.9' 47 6.6' 3.0'

5' 8.7' 30 8.3' 3.7'

D C FC L W

3' 3.0' 235 2.3' 1.6'

4' 4.0' 132 3.1' 2.1'

5' 5.0' 85 3.8' 2.6'

6' 6.0' 59 4.6' 3.1'

D C FC L W

Lamp

Beam Spread

(To 50% CBCP) CBCP

Rated

Life (hrs.)

Lexel LED 20° 5984 50,000

L = Beam length D = Distance

W = Beam Width A= Aiming Angle

C = Distance to center beam FC = Footcandles

Land W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp

manufacturers for availability and performance.

CBCP = Center Beam Candle Power.
