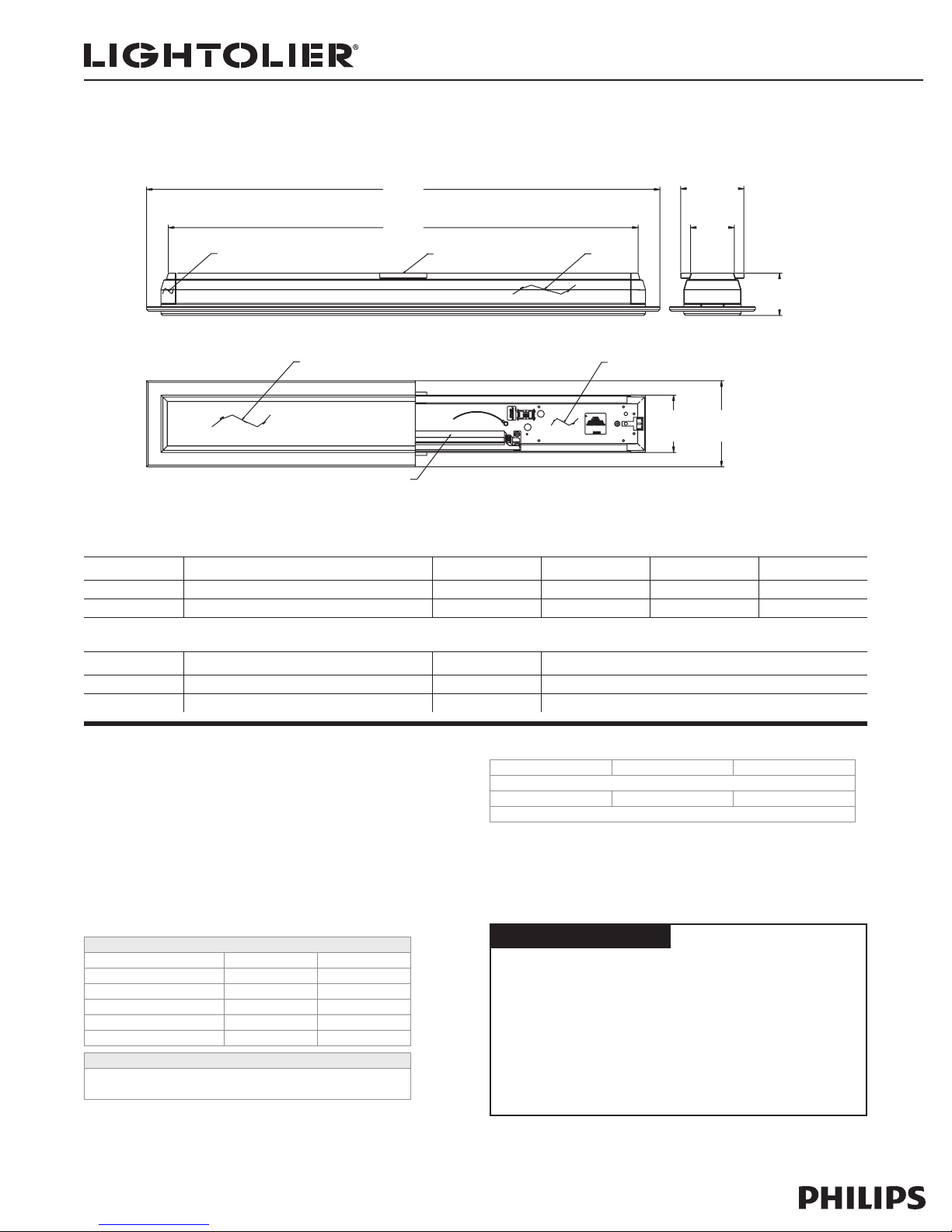

Brisa™ Linear Planar Surface Mount FP21U

Page 1 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

Features

1. Housing Ends: Die-cast aluminum.

2. Housing Sides: Extruded aluminum.

3. Back Pan: Stamped 18ga. (0.048") sheet metal.

4. Diffuser: Planar clear glass with opal diffuse glass or planar clear acrylic

with opal diffuse acrylic.

5. Junction Box Cover: (2) Die-cast aluminum, easy installation

(provided with luminaire).

6. Fixture Mounting Plate: Mounts directly to a 4" octagonal J-Box

(Not Shown in Drawing).

Electrical

7. Ballast

A. Electronic 120-277V

Voltage 120V 277V

Total Input Watts 25W 25W

Max. Line Current (Amps) 0.21A 0.10A

Power Factor 0.98 0.90

THD 20% 20%

Min. Starting Temp 0°F, -18°C 0°F, -18°C

B. Emergency

Bodine LP550 emergency battery pack with integral tests light and

switch.

8. Luminaire-Ballast Disconnect: Meets NEC 410.130(G)

and CEC Disconnect Requirements.

Lamping (by others)

General Electric Osram/Sylvania Philips

(1) 21W T5 Linear Fluorescent

F21W/T5/*/ECO FP21/* F21T5/*/ALTO

*Manufactures Color Temperature Designation

Finish

Satin Aluminum

Labels

cULus Listed. Suitable for Damp Locations.

ULus Listed, Dry Locations only for Emergency Units.

Fixture Ordering Information

Catalog No. Description Finish Wattage Volts Lamp

FP21U Linear Planar Surface Mount Satin aluminum 21W 120-277V (1) T5

FP21UEM Linear Planar Surface Mount w/Emergency Satin aluminum 21W 120-277V (1) T5

Diffuser Ordering Information

Catalog No. Description Finish Dimensions (Nominal)

FPA2 Acrylic Planar Diffuser Opal 5" X 36"

FPG2 Glass Planar Diffuser Opal 5" X 36"

4 3

33 9/16"

[853mm]

[76mm]

4 9/16"

[115mm]

36 11/16"

[932mm]

[76mm]

4 1/8"

[104mm]

6 1/8"

[156mm]

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Brisa™ Linear Planar Surface Mount FP21U

Page 2 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

150

225

300

0°30°

60°

90°

DECORATIVE LUMINAIRE DECORATIVE LUMINAIRE

CAT. # FP21U / FPA2 21W SYLVANIA T-5 LAMPS.

LUMEN RATING = 1890 LMS. BALLAST/ ADVANCE ICN-2S28

FP21U / FPA2

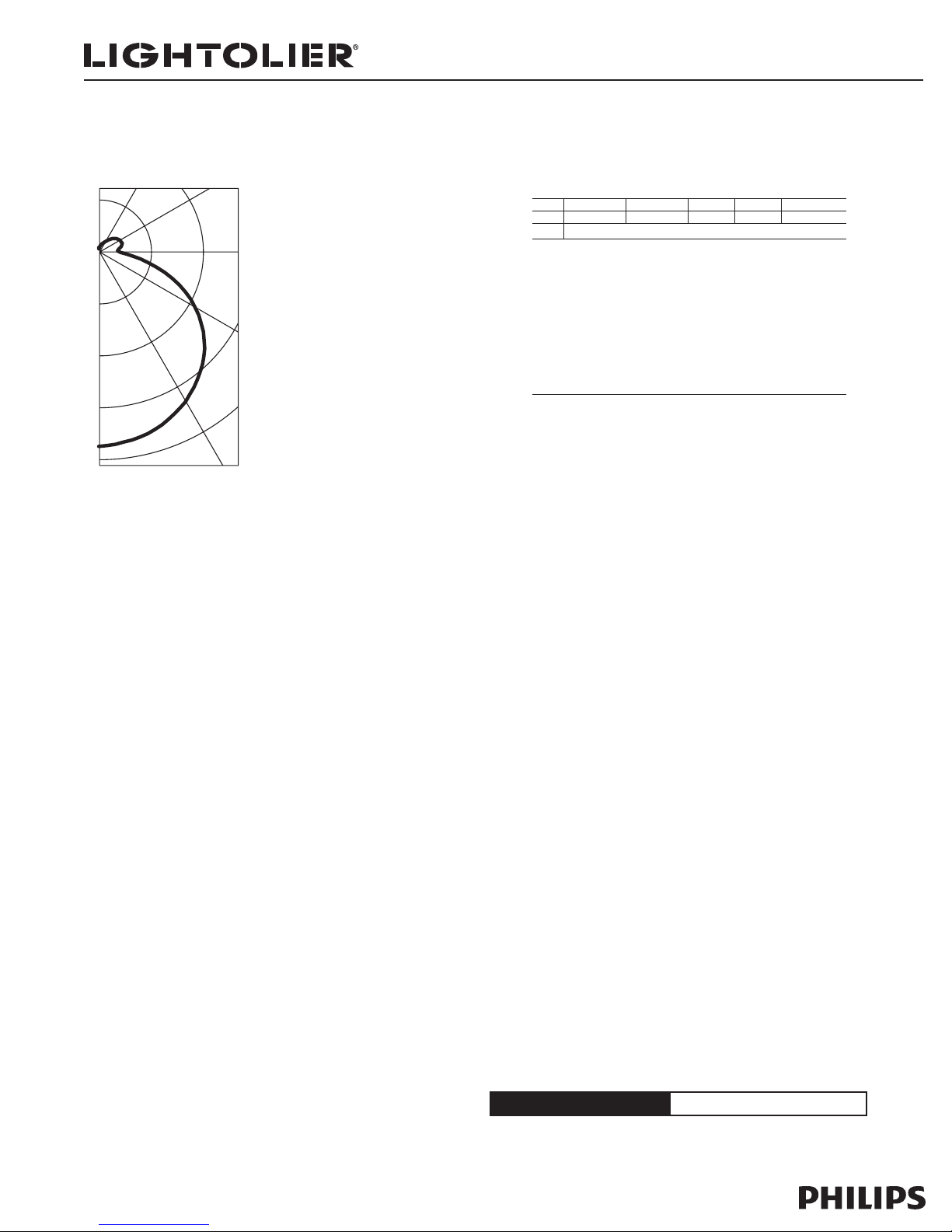

Candlepower Summary

Angle Along 22.5. 45 67.5 Across. Output

Lumens

0 280 280 280 280 280

5 281 279 278 279 278 27

15 271 270 269 272 271 77

25 253 253 255 258 257 118

35 226 228 233 238 238 146

45 193 197 206 213 213 158

55 154 161 172 178 179 152

65 110 118 129 136 137 125

75 62 70 80 85 85 82

85 17 26 35 39 40 38

90 7 15 24 28 29

95 7 15 23 27 28 23

105 9 15 26 32 34 25

115 10 14 24 32 35 23

125 9 14 21 29 32 19

135 8 12 17 23 26 13

145 7 9 14 17 18 8

155 6 7 9 12 13 4

165 6 5 6 7 9 2

175 7 7 6 5 4 1

180 6 6 6 6 6

Certied Test Report no.3651FR

Computed by LSI Program **TEST-LITE**

SC(ALONG) = 1.3, SC(ACROSS) = 1.4

Prepared For:

Lightolier

Fall River, MA

TESTED ACCORDING TO IES PROCEDURES. TEST DISTANCE EXCEEDS FIVE

TIMES THE GREATEST LUMINOUS OPENING OF LUMINAIRE.

Zonal Lumens and Percentages

Zone Lumens % Lamp %Luminaire

0-30 221 11.70 21.28

367 19.43 35.32

676 35.82 65.11

921 48.77 88.66

554 29.34 53.34

244 12.95 23.55

117 6.24 11.34

1039 55.01 100.00

0-40

0-60

0-90

40-90

60-90

90-180

0-180

** Efciency = 55.0% **

Coefﬁcients of Utilization

Ceiling 80% 70% 50% 30% 10%

Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR Zonal Cavity Method - Effective Floor Reflectance = 20%

Room Cavity Ratio

0 .64 .64 .64 . 64 .62 .62 .62 . 62 .58 .58 . 58 .54 .54 . 54 .50 .50 .50 .49

1 .58 .56 .53 .51 .56 .54 .52 .50 .50 .49 .47 .47 .46 .44 .44 .43 .42 .40

2 .53 .48 .45 .41 .51 .47 .43 .40 .44 .41 .39 .41 .39 .37 .39 .37 .35 .34

3 .48 .42 .38 .35 .46 .41 .37 .34 .39 .35 .32 .36 .34 .31 .34 .32 .30 .28

4 .44 .38 .33 .29 .42 .36 .32 .29 .34 .30 .28 .32 .29 .26 .30 .28 .25 .24

5 .40 .33 .28 .24 .38 .32 .27 .24 .30 .26 .23 .28 .25 .22 .27 .24 .21 .20

6 .37 .29 .25 .21 .35 .29 .24 .21 .27 .23 .20 .25 .22 .19 .24 .21 .19 .17

7 .34 .26 .22 .18 .33 .26 .21 .18 .24 .20 .17 .23 .19 .17 .22 .19 .16 .15

8 .31 .24 .19 .16 .30 .23 .18 .15 .22 .18 .15 .21 .17 .14 .19 .16 .14 .13

9 .29 .21 .17 .13 .28 .21 .16 .13 .19 .16 .13 .18 .15 .12 .18 .14 .12 .11

10 .27 .19 .15 .12 .26 .19 .15 .12 .18 .14 .11 .17 .13 .11 .16 .13 .11 .10

Determined In Accordance With Current IES Published Procedures

Luminaire Input Watts = 25.0
