Guardsman Vandal Resistant

Ceiling/Wall Fluorescent, T5 or T8, GSW Series

Page 1 of 3

Job Information Type:

Job Name:

Cat. No.:

Notes:

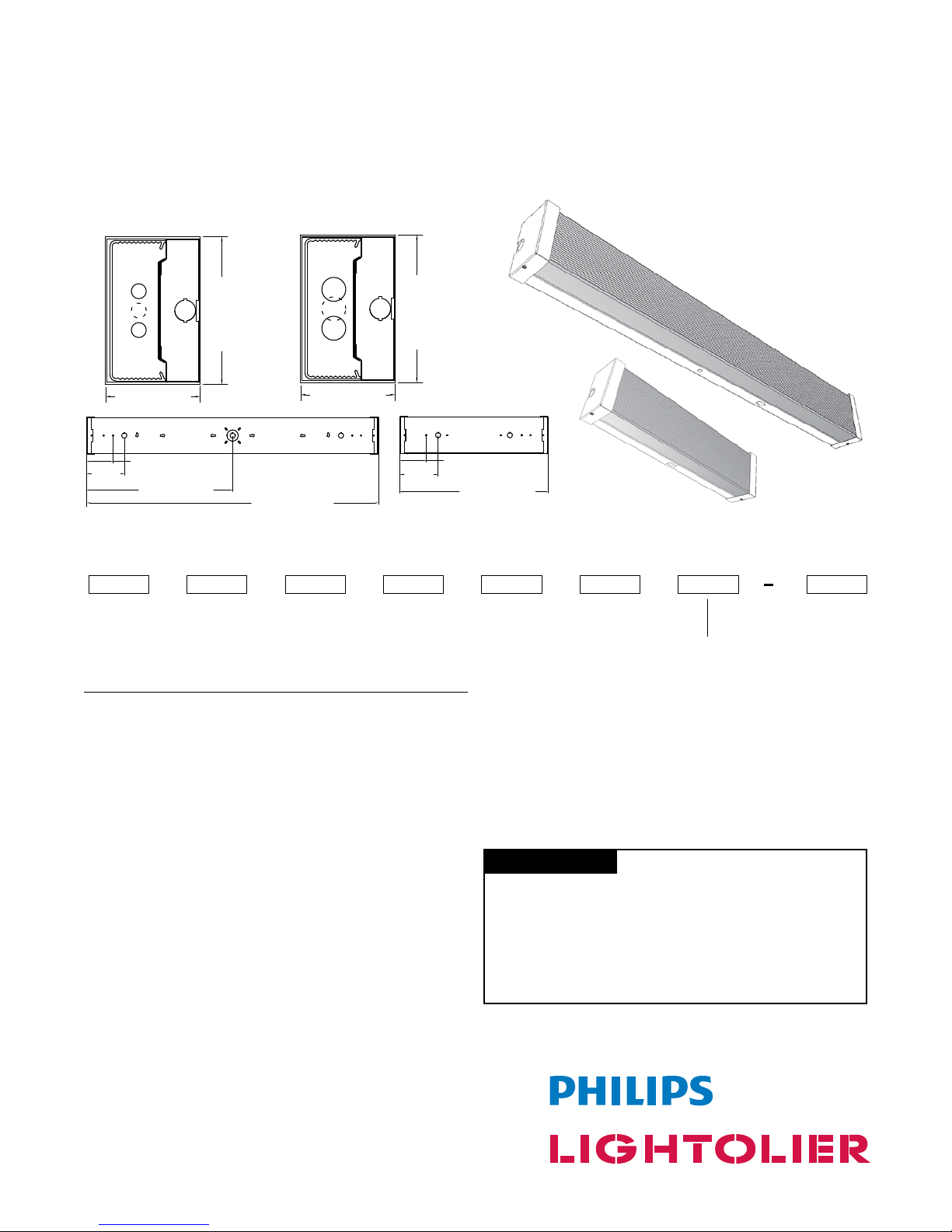

Ordering Information

Guardsman

Surface/Wall

Vandal Resistant

Fluorescent

Features

• Excellent for locations where vandal resistance is required,

areas such as hallways stairwells, locker rooms, parking garages

and psychiatric hospitals.

• For ceiling or wall mounted applications.

• Can be vertically or horizontally mounted on wall.

• 20 gauge cold rolled steel, post painted, baked white enamel

housing.

• 20 gauge cold rolled steel post painted baked white enamel,

primary, end caps.

• Vandal proof, secondary, 18 gauge cold rolled steel post painted

baked white enamel, factory installed, end caps secured to end

of housing with spanner head tamper proof screws.

• Linear prismatic lens 50% DR (impact resistant) and 50%

standard acrylic with nominal thickness of 1/8", withstands 70 ft.

lbs impact without breaking.

• Nominal 2' and 4' lengths.

• 73.9% efficient (T8 lamps).

6 " 4 4 (108mm

48 2 mm

4-3/8" (111mm)

6-3/8"

(162mm)

24-3/4" (629mm)

6-1 9m

1 m

24-3/8" (619mm)

6-1/4"

(159mm)

4-3/8" (111mm)

48-3/4" (1238mm)

5 m

3 15/16" (100mm)

(

/4 5 m)

6 4" 9 )

6 4" 9mm)

11m

- /

16 mm

2 / 6 9 )

6-1/4" (159mm)

3-15/16" (100mm)

-1 (1

3-15 1 (100mm

-1 1

- 5 1 (100mm)

6-1/4" (159mm)

3-15/16" (100mm)

/4"

3 1

T5 Lamps T8 Lamps

Voltage

120 =120v

277 =277v

UNV =120-277v

Add

appropriate

suffix to catalog

no., i.e.: (C)

Options

Lamp

Qty.

1= 1 Lamp

2= 2 Lamps

Lamps

(by others)

14 = T5 2' Length

17 = T8 2' Length

28 = T5 4' Length

32 = T8 4' Length

54 = T5HO 4'

Length

Fixture

Length

Lens

Type

(Nominal Size)

Ballast

Type

2=24"

4=48"

V= High impact 50%

DR acrylic linear

prismatic lens

<20THD <10THD

1 or 2 Lamp Elec. T8 —HI*

1 or 2 Lamp Elec. T8 —P2‡

1 or 2 Lamp Elec. T5 —PG‡

LOL Dimming T5 PF

LOL Dimming T8 PS

*Instant Start Standard

‡Program Rapid Start (UNV only)

NOTE: For T8 UNV, you must use HI Ballast Code.

Job Information Type:

Guardsman Vandal Resistant

Ceiling/Wall Fluorescent, T5 or T8, GSW Series

Page 2 of 3

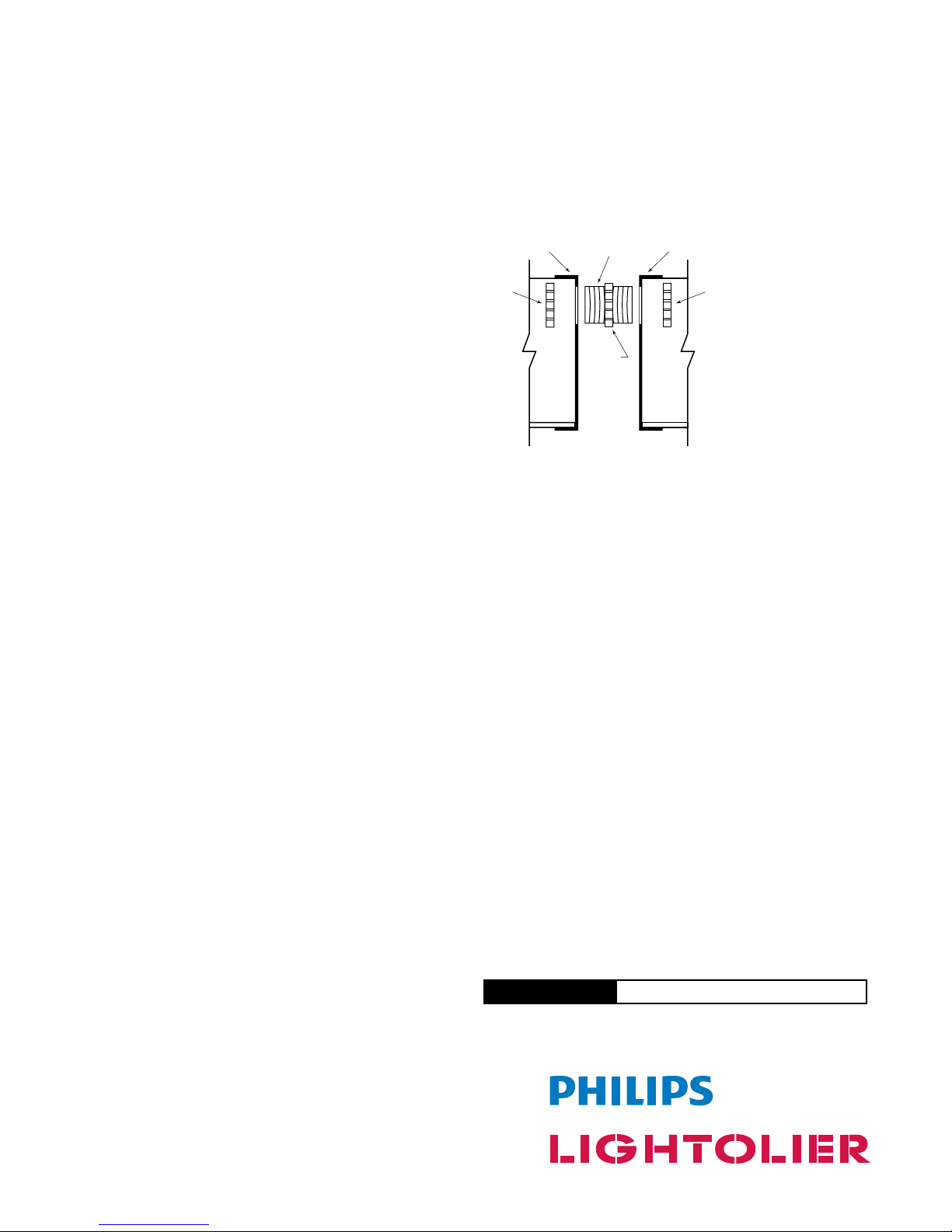

Mounting Methods

End Cap End Cap

Nut Nut

Nut

Threaded

Nipple

For continuous row mounting. Required

to space fixtures evenly, allowing ends to

be removed and installed.

Specifications

Materials: Chassis Parts–Die-formed code gauge cold

rolled steel. End Caps–(Primary) 20 gauge cold rolled steel,

(Secondary) Vandal proof 18 gauge cold rolled steel.

Finish: Chassis exterior–Post painted white baked acrylic

enamel. End Caps–Post painted baked white enamel. Rust

preventative undercoating.

Refractor: Low brightness linear prismatic lens, 50% DR (impact

resistant) and 50% standard acrylic, 1/8" thickness, withstands 70

ft. lbs impact.

Electrical: Thermally protected class “P” ballast C.B.M.

approved, non PCB. If K.O. is within 3" of ballast, use wire

suitable for at least 90°.

Labels: I.B.E.W./UL and ULc listed. UL listed for damp locations

This product may have a mercury containing lamp. Manage in

accord with Disposal Laws. See: www.lamprecycle.org

Options & Accessories

Fusing: Internal fast blow fusing: Suffix: A.

Internal slow blow fusing: Suffix: C.

Radio Interference Filter: 120 or 277 volt, 50 or 60 Hz. One

per fixture standard. Suffix: R. One per ballast. Suffix: B.

Emergency Power Pack: Factory installed emergency power

pack includes charger and inverter concealed in fixture channel.

Upon loss of AC power, operates one lamp at reduced light.

T8 Suffix: E1. (consult factory for T5 option)

Stem and Canopy Sets: Suspends fixture 6", 12", 18" or 24"

from surface. Catalog Number: ASC6 CSP (6")

ASC12 CSP (12")

ASC18 CSP (18")

ASC24 CSP (24")

Philips Lightolier

e: [email protected]

t: (508) 679-8131, Technical info. (978) 657-7600

w: www.lightolier.com

GSW Series July 28, 2011

Specifications are subject to change without notice.

Job Information Type:

Guardsman Vandal Resistant

Ceiling/Wall Fluorescent, T5 or T8, GSW Series

Page 3 of 3

Vertical

Angle

Horizontal

Angle Zonal

Lumens

045 90

0553 553 553

5549 553 557 53

15 526 541 554 153

25 482 509 529 234

35 418 454 481 283

45 337 381 417 293

55 234 300 341 264

65 140 217 268 212

75 66 154 216 158

85 13 99 164 105

90 379 151

95 382 158 91

105 294 150 90

115 283 131 76

125 372 112 59

135 353 85 38

145 336 57 21

155 523 36 10

165 917 23 5

175 910 11 1

180 8 8 8

Vertical

Angle

Horizontal

Angle Zonal

Lumens

045 90

01176 1176 1176

51162 1175 1188 112

15 1116 1155 1184 326

25 1028 1093 1134 502

35 899 973 993 598

45 724 696 665 542

55 483 485 526 443

65 235 367 508 377

75 110 309 468 319

85 20 229 404 243

90 6202 364

95 6 203 351 208

105 5185 300 180

115 5155 253 143

125 5124 201 103

135 588 142 63

145 658 94 34

155 634 56 15

165 614 24 4

175 5 2 3

180 2 2 2

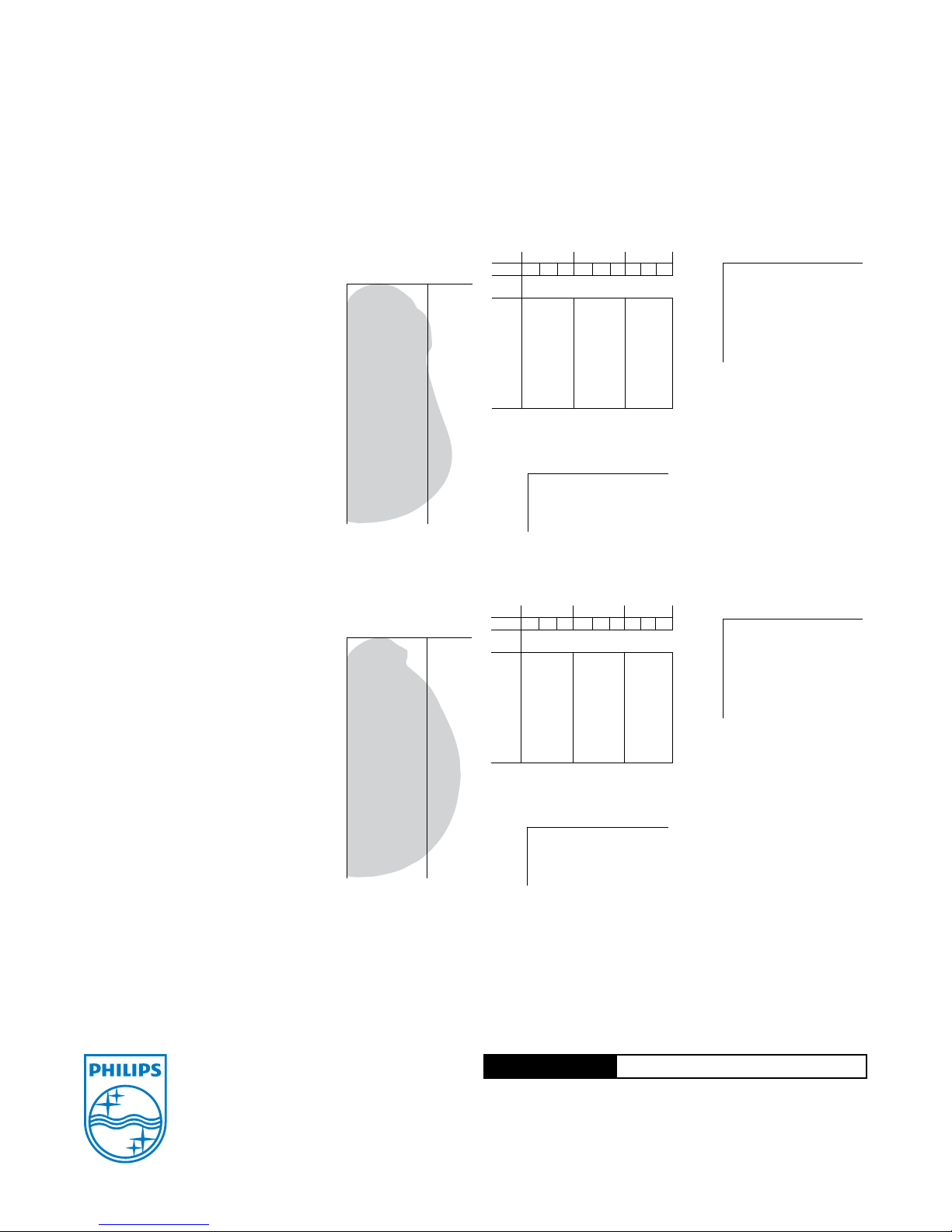

Photometry

Report Number: G2010301

Catalog Number: GS4V232UNVHI

Lamps: (2) F032T8

Luminaire: GSW Series 4' luminaire

Ballast: RIC2S40TP

Report is based on 2850 lumens per lamp.

Efciency: 73.9%

CIE Type: Direct/Indirect

Plane: 0-Deg. 90-Deg.

Spacing Criteria: 1.1 1.2

Shielding Angles: 90 90

Plane: 0-Deg. 90-Deg.

Luminous Length: 6.000 48.000

Model No. GS4V232UNVHI

LER =66.9 IW =55.4 BF =0.88

Comparative yearly lighting energy cost per

1000 lumens = $3.59

Candela Distribution Coefficients of Utilization

Ceiling 80% 50% 30%

Wall 70 50 30 50 30 10 50 30 10

Zonal Cavity Method

Effective Floor Reflectance = 20%

Room Cavity Ratio

176 72 69 64 61 59 58 56 55

269 63 57 55 51 48 51 48 45

363 55 49 49 44 40 45 41 38

458 49 42 43 38 34 40 36 32

553 44 37 39 34 30 36 32 28

649 39 33 35 30 26 33 28 25

745 36 29 32 27 23 30 25 22

842 33 26 29 24 21 27 23 20

940 30 24 27 22 19 25 21 18

10 37 28 22 25 20 17 24 19 16

Zonal Lumen Summary

Zone Lumens % Lamp % Fixt.

0- 30 940 16.5 22.3

0- 40 1538 27. 0 36.5

0- 60 2523 44.3 59.9

0- 90 3463 60.8 82.2

90-120 531 9.3 12.6

90-130 634 11.1 15.1

90-150 732 12.8 17.4

90-180 751 13.2 17. 8

0-180 4214 73.9 100.0

Average Luminance data

in candela / sq. meter

Angle 0˚ 45˚ 90˚

45 3992. 4363. 4830.

55 2937. 3485. 4620.

65 1648. 3204. 5869.

75 946. 3573. 8263.

85 231. 4105. 16163.

Report Number: G2010304

Catalog Number: GS2V217UNVHI

Lamps: (2)F17 T8

Luminaire: GSW Series 2' luminaire

Ballast: ICN-2P32-SC

Report is based on 1400 lumens per lamp.

Efciency: 76.6%

CIE Type: Direct/Indirect

Plane: 0-Deg. 90-Deg.

Spacing Criteria: 1.1 1.2

Shielding Angles: 90 90

Plane: 0-Deg. 90-Deg.

Luminous Length: 6.000 48.000

Model No. GS2V217UNVHI

LER =66.9 IW =29.8 BF =0.93

Comparative yearly lighting energy cost per

1000 lumens = $3.59

Candela Distribution Coefficients of Utilization

Ceiling 80% 50% 30%

Wall 70 50 30 50 30 10 50 30 10

Zonal Cavity Method

Effective Floor Reflectance = 20%

Room Cavity Ratio

188 88 88 77 77 77 71 71 71

279 75 71 66 63 61 61 59 57

372 65 59 57 53 50 53 49 46

465 57 50 50 45 41 46 42 39

559 50 43 44 39 35 41 37 33

655 45 38 40 34 30 37 32 29

750 40 33 36 30 26 33 29 25

847 36 30 33 27 23 30 26 22

943 33 27 30 24 21 28 23 20

10 40 30 24 27 22 19 26 21 18

Zonal Lumen Summary

Zone Lumens % Lamp % Fixt.

0- 30 439 15.7 20.5

0- 40 722 25.8 33.7

0- 60 1279 45.7 59.6

0- 90 1755 62.7 81.8

90-120 257 9.2 12.0

90-130 316 11.3 14.7

90-150 375 13.4 17. 5

90-180 391 13.9 18.2

0-180 2145 76.6 100.0

Average Luminance data

in candela / sq. meter

Angle 0˚ 45˚ 90˚

45 4845. 4785. 4649.

55 3982. 4259. 4153.

65 3031. 3671. 3721.

75 2048. 3349. 3615.

85 753. 3147. 3592.
