Philips Coreline XL Manuel utilisateur

BGP221/231

Coreline XL

1/24

583 4430 000 21035 A

Printed in Spain

Data subject to change without notice

BVP140

0,25m

At 0º 0,04m2

Inrush Current (230VAC) (Apk/ms)

Luminaire Surge Protection

Luminaire Surge Protection with SPD Optional

53/300

6KV DM/ 8KV CM

10KV

RG1

Type of electrical protection installation

Maximum number of luminaires to install

2 driver 150W

MCB16A B TYPE 4

C TYPE 6

MCB10A B TYPE 2

C TYPE 4

Tc max. of PCBA = 90ºC

Measurement in LED nr D20.

At 15º 0,1m2At 90º 0,26m2

2/24

standard citytouch

830

LED240-4S

120

24000 178

50 35 -40 17 Kg 19 Kg

LED260-4S 26000 196

LED280-4S 28000 215

LED300-4S 30000 230

LED320-4S 32000 250

LED340-4S

160

34000 250

LED360-4S 36000 270

LED380-4S 38000 285

LED399-4S 40000 305

Outdoor Indoor

standard citytouch

740/

757

LED240-4S

120

24000 140

50 35 -40 17 Kg 19 Kg

LED260-4S 26000 154

LED280-4S 28000 166

LED300-4S 30000 180

LED320-4S 32000 194

LED340-4S 34000 210

LED360-4S 36000 225

LED380-4S 38000 240

LED399-4S 40000 250

LED420-4S

160

42000 250

LED440-4S 44000 265

LED450-4S 45000 270

LED460-4S 46000 280

LED480-4S 48000 295

LED490-4S 49000 300

Indoor

WARNING

This luminaire must be installed by qualied personnel only

Disconnect before servicing

Use gloves to install/service the luminaire

The space between U-shape bracket and luminaire could be a pinch point

Keep hands clear during operation.

Always follow this mounting instructions to x the luminaire

Never modify the luminaire nor the xation locations for

installation

Risk of accident due to incorrect tightening torque

3/24

COMUNICATION BOX VERSION

STANDARD VERSION

4/24

LUMINAIRE FIXATION

A: Two screws B: One screw

Do not forget to screw the

bolt with the torque indicated

For

B-type

installation>3m,

additional 2nd xation device

is mandatory

Not allowed for comunication

box version.

5/24

Never include more screws than indicated in

this mounting instruction

Fixation screws, washers or nuts:

- Standard version and MSP: Stainless steel

- EN-10027-2: 1.4301 (X5CrNi18-10)

- AISI: 304

- ISO: A2

- SPO version: Steel with Xylan treatment (no

stainless steel!)

If steel cable is used as 2nd xation device:

- Minimum section have to be of 3 mm

- Maximum allowed length of 500 mm

- Minimum M5 stainless steel or M5 Xylan in

SPO (no stainless steel!).

- SPO version: steel cable with Xylan

treatment (no stainless steel!).

Unscrew Bolts (2x)

Do not forget to screw the

bolt with the torque indicated

SET TILT

Set tilt of luminaire

Fix screws (2x)







In case of doubt check that

the sequence of washers,

screw and dial is correct

6/24

COMUNICATION BOX INSTALLATION / FIXATION

THE MANIPULATION OF THIS TAG INVOLVES THE

LOSS OF THE WARRANTY OF THE PRODUCT

7/24

PSU, PSA (D13), PSDD (D18), PSM (D28) CONNECTION

Mains connection Class-I Mains connection Class-II

Ø7-14 mm (wire section 1 - 2,5 mm2) Ø6-9 mm (wire section 1 - 2,5 mm2)

LLINE

(Brown) LLINE

(Brown)

GROUND

(Yellow &

Green)

- -

NNEUTRAL

(Blue) NNEUTRAL

(Blue)

PSD DALI (D9) CONNECTION

Mains connection Class-I Mains connection Class-II

Ø7-14 mm (wire section 1 - 2,5 mm2) Ø7-14 mm (wire section 1 - 2,5 mm2)

LLINE

(Brown) LLINE

(Brown)

GROUND

(Yellow &

Green)

- -

NNEUTRAL

(Blue) NNEUTRAL

(Blue)

DALI DALI

(Black) DALI DALI

(Black)

DALI DALI

(Grey) DALI DALI

(Grey)

PSR Lineswitch (D11,D12) CONNECTION

Mains connector Class-I Mains connector Class-II

Ø7-14 mm (wire section 1 - 2,5 mm2) Ø7-14 mm (wire section 1 - 2,5 mm2)

LLINE

(Brown) LLINE

(Brown)

GROUND

(Yellow &

Green)

- -

NNEUTRAL

(Blue) NNEUTRAL

(Blue)

LS LS

(Black) LS LS

(Black)

8/24

TYPES OF CONNECTION

COLOSIO CONNECTOR

TECHNO CONNECTOR

9/24

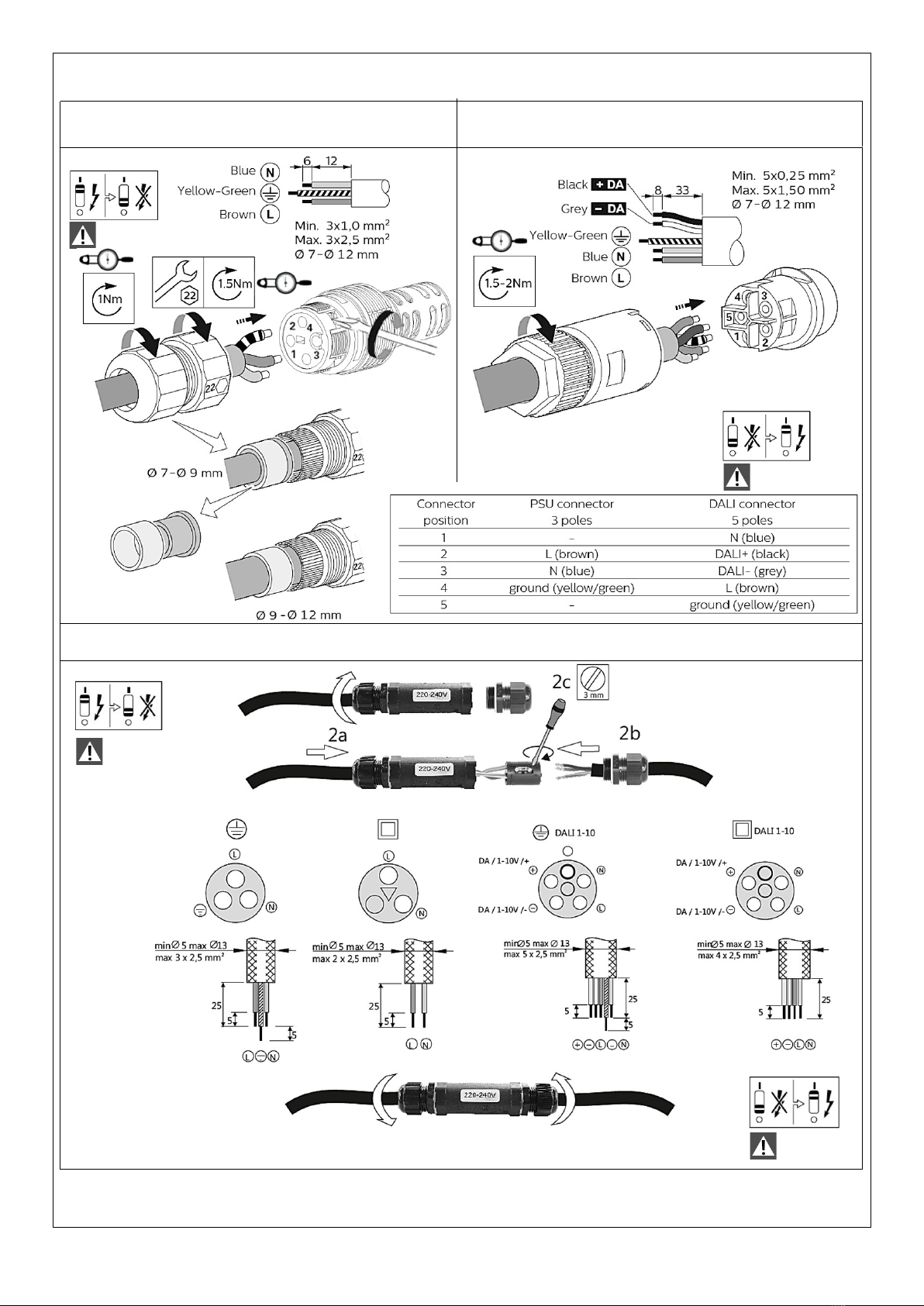

PSU WITH 3 POLES CONNECTOR PSD DALI WITH 5 POLES CONNECTOR

POWER OFF

POWER ON

POWER OFF

- If the external exible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service

agent or a similar qualied person in order to avoid a hazard.

- The maintenance of the luminaire can´t be done on the pole.

POWER OFF

POWER ON

1.6

10/24

GLASS MAINTENANCE INSTRUCTION
