Philips PerfectCare Aqua GC8620 Manuel utilisateur

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

ServiceManual

Philips Consumer Lifestyle

PerfectCare Aqua

GC8620

12/07

PRODUCT INFORMATION

Fast & powerful crease removal

• Soleplate: SteamGlide

• OptimalTemp

• Continuous steam output

• Continuous steam output: 120 g/min

• Steam boost: 180 g

• Vertical steam

• Steam pressure: Up to 5 bar

• Steam tip

• Power: 2400 W

Easy to use

• Water tank capacity: 2200 ml

• Filling and emptying water: Extra large filling hole

• Refill any time

• Heat-up time: 2 min

• Hose storage: Hose storage compartment

• Power cord length: 1.8 m

• Hose length: 1.6 m

• Safe for all fabrics: Even for delicates like silks

• Low water alarm

Calc management

• Suitable for tap water

• Calc clean solution: Easy De-calc

• Calc clean reminder

Safety Information

• This product meets the requirements regarding

interference suppression on radio and TV.

• After the product has been repaired, it should function

properly and has to meet the safety requirements and

legal regulations as officially laid down at this moment.

GC8620

2-12

TECHNICAL INFORMATION

Voltage : 220 - 240 V

Frequency : 50 - 60 Hz

Power : 2400 W

Dimension (F-box) : 362 (D) x 270 (W) x 263 (H) mm

Weight of iron : 1 kg

Weight of iron + base : 4.5 kg

Water advice

Suitable for tap water use. Advice to mix with equal

portion of distilled water or use only distilled water if the

tap water is very hard.

Soleplate: Steam Glide

New SteamGlide soleplate is the best Philips soleplate. It

has great scratch resistancy, glides excellent and is easy to

clean.

OptimalTemp Technology

- Always deliver 1 perfect setting for all your clothes

thanks to:

1. Cylonic steam chamber

2. Advance Smart control processor

- 100% easy to use, no adjustment required.

- 100% safe on all delicate fabrics.

- 100% fast on the toughest fabrics.

Tested and approved by experts

Tested and approved by independent textile experts

institutes.

Steam pressure: Up to 5 bar

Double your ironing speed with pressurized steam.

2.2L fully visible water tank

Large water tank ensures long hours of ironing without

rell of water tank.

Easy De-Calc

Easy De-Calc, hassle free & effective scale removal to

extend the life of your steam generator.

GC8620

3-12

DISASSEMBLY ADVICE - IRON

LIGHT STRIP CAP ASSY 1

INLAY AND LIGHT STRIP ASSY 2

REFLECTOR MOLDED 3

LED MICROSWITCH HOLDER ASSY 4

TRIGGER SPRING 5

TRIGGER MOLDED 6

MICA PLATE 7

PLASTIC WASHER (1x) 8 (FRONT)

DECORATION CAP PRINTED 9

Remove Screw A

Disassemble LIGHT STRIP 1

Fig 1. Using “-” screw driver to lift up the Inlay and release

the catch at the end of the handle.

Apply forces

Fig 2. Position of the catch to be applied forces

at the end of the handle.

Remove Screw B

Disassemble INLAY AND LIGHT STRIP ASSY 2

Disassemble REFLECTOR MOLDED 3

Remove Screw C

Disassemble LED MICROSWITCH HOLDER

ASSY 4

Disassemble TRIGGER SPRING 5

Disassemble TRIGGER MOLDED 6

Remove Screw D

Disassemble MICA PLATE 7

Disassemble PLASTIC WASHER (1x) 8

Remove Screw E1, E2

Remove Screw F

Disassemble DECORATION CAP PRINTED 9

RYTON RING 10

DEVIATOR HOUSING MOLDED 11

IRON THERMISTOR ASSY 12

PLSTIC WASHER (2x) 8 (REAR)

HOSE CORD MOUNTED ASSY 14

HOUSING PRINTED 15

SOLEPLATE MOUNTED ASSY 16

Remove Screw A

Disassemble LIGHT STRIP 1

Remove Screw B

Disassemble INLAY AND LIGHT STRIP ASSY 2

Disassemble REFLECTOR MOLDED 3

Remove Screw C

Remove Screw E1, E2

Remove Screw D

Disassemble MICA PLATE 7

Disassemble PLASTIC WASHER (1x) 8

Disassemble RYTON RING 10

Remove Screw G1, G2, G3, G4

Disassemble DEVIATOR HOUSING MOLDED 11

Remove Screw H

Disassemble IRON THERMISTOR ASSY 12

Remove Screw I1, I2

Disassemble PLASTIC WASHER (2x) 8

Disconnect Wires

Release Hose clip (2x)

Remove Screw J

Disconnect Wires

Disassemble HOSE CORD MOUNTED ASSY 14

Disassemble HOUSING PRINTED 15

Disassemble SOLEPLATE MOUNTED ASSY 16

GC8620

4-12

PARTS LIST - IRON

Pos Service code Description

4239 021 70734

4239 021 70843

4239 026 49561

4239 021 71942

Light strip cap assy

Inlay and light strip assy

Reector molded

LED microswitch holder assy

4239 014 54961

4239 026 50372

4239 010 12911

4239 026 49501

Trigger spring

Trigger molded

Mica plate

Plastic washer

4239 021 70901

4239 015 70153

4239 026 49491

4239 021 69942

Decoration cap printed

Ryton ring

Deviator housing molded

Iron thermistor assy

4239 021 71993

4239 021 70692

4239 021 70651

Hose cord mounted assy

Housing printed

Soleplate mounted assy

GC8620

5-12

Rubber

bung

Rubber pad

E1 E2

EXPLODED VIEW - IRON

GC8620

6-12

FILLING DOOR MOLDED 17

TRAY RUBBER CAP 19

TRAY CAP MOLDED 20

TRAY PRINTED 21

WATER TANK ASSY 23

Disassemble FILLING DOOR MOLDED 17

Remove TRAY RUBBER CAP 19 (4x)

Remove Screw K1, K2, K3, K4

Remove TRAY CAP MOLDED 20 (2x)

Remove Screw L1, L2

Disassemble TRAY PRINTED 21

Remove Screw N1, N2, N3, N4, N5

Disassemble WATER TANK ASSY 23

RINSE CAP ASSY 24

SAFETY CAP 25

INOX CLAMP 26

BRAIDED RUBBER HOSE BOILER 27

ELECTROVALVE 28

SPACER TOP 29

RINSE HOUSING CAP PRINTED 30

RINSE HOUSING MOLDED 31

O-RING 32

BOILER ASSY 33

BOILER SUPPORT BRACKET 34

SPACER BOTTOM 35

BOILER THERMISTOR ASSY 36

Disassemble RINSE CAP ASSY 24

Remove Screw N1, N2, N3, N4, N5

Disassemble WATER TANK ASSY 23

Remove SAFETY CAP 25

Release INOX CLAMP 26 (2x)

Disassemble BRAIDED RUBBER HOSE BOILER 27

Release Hose clip

Disconnect Wires

Disassemble ELECTROVALVE 28

Remove Screw O1, O2

Remove Screw P

Remove SPACER TOP 29

Remove Screw Q

Disassemble RINSE HOUSING CAP PRINTED 30

Remove Screw R

Disassemble RINSE HOUSING MOLDED 31

Disassemble O-RING 32

Disassemble BOILER ASSY 33

Disassemble BOILER SUPPORT BRACKET 34

Remove SPACER BOTTOM 35

Disassemble BOILER THERMISTOR ASSY 36

DISASSEMBLY ADVICE - STAND

GC8620

7-12

POWER BUTTON PRINTED 37

BUTTON FRAME PRINTED 38

POWER BOARD PCB-PUMP

SERVICE KIT 39

POWER CORD EU 40

STAND BOTTOM MOLDED 41

Remove Screw N1, N2, N3, N4, N5

Disassemble WATER TANK ASSY 23

Remove Screw S1, S2, S3

Disassemble POWER BUTTON PRINTED 37

Disassemble BUTTON FRAME PRINTED 38

Remove Screw T

Release INOX CLAMP 26 (2x)

Disassemble BRAIDED RUBBER HOSE BOILER 27

Disconnect Wires

Disassemble POWER BOARD PCB-PUMP

SERVICE KIT 39

Remove Screw U1, U2

Disassemble Cord clamp

Disassemble POWER CORD EU 40

Disassemble STAND BOTTOM MOLDED 41

DISASSEMBLY ADVICE - STAND

PARTS LIST - STAND

Pos Service code Description

4239 026 50134

4239 015 59731

4239 026 51861

4239 021 70852

4239 021 71523

Filling door molded

Tray rubber cap

Tray cap molded

Tray printed

Water tank assy

4239 021 70862

4239 015 59791

4239 010 10261

4239 015 59771

4239 017 12802

Rinse cap assy

Safety cap

Inox clamp

Braided rubber hose Boiler

Electrovalve

4239 026 51241

4239 021 72612

4239 026 49732

4239 015 59751

4239 021 69891

Spacer top

Rinse housing cap printed

Rinse housing molded

O-ring

Boiler assy

4239 026 42581

4239 026 32181

4239 021 69951

4239 021 70772

4239 021 70762

Boiler support bracket

Spacer bottom

Boiler thermistor assy

Power button printed

Button frame printed

4239 022 67101

2422 070 98399

2422 070 98412

4239 026 50432

Power board PCB-Pump service kit

Power Cord EU

Power Cord UK

Stand bottom molded

GC8620

8-12

EXPLODED VIEW - STAND

GC8620

9-12

U1 U2

N4 N5

PRQ

EXPLODED VIEW - STAND

GC8620

10-12

Pump

Boiler Heater

Earth Inter-

connection

Thermal Fuse

PCBA

E-valve

Hosecord

(to Iron)

STAND

Flex

Boiler Earth

Point

Flex

Neutral

Iron

Live

Pump-EV-

Live

WA1 - PCB to

EV-Pump-Live

WA2 - PCB to

Pump-Ctrl

WA19 : HE (L)

- Fuse (L)

WA7 - PCB

to EV-Ctrl

WA20 : HE (N)

- Fuse (N)

WA6 : Fuse

(N) - PCB

WA5 : Fuse

(L) - PCB

Flex Live

Boiler Live

Iron

Neutral

Thermistor

Boiler

Ctrl

Pump

Ctrl

Boiler

Neutral

Comms

Thermistor

WA3 : Earth

Wire_Boiler

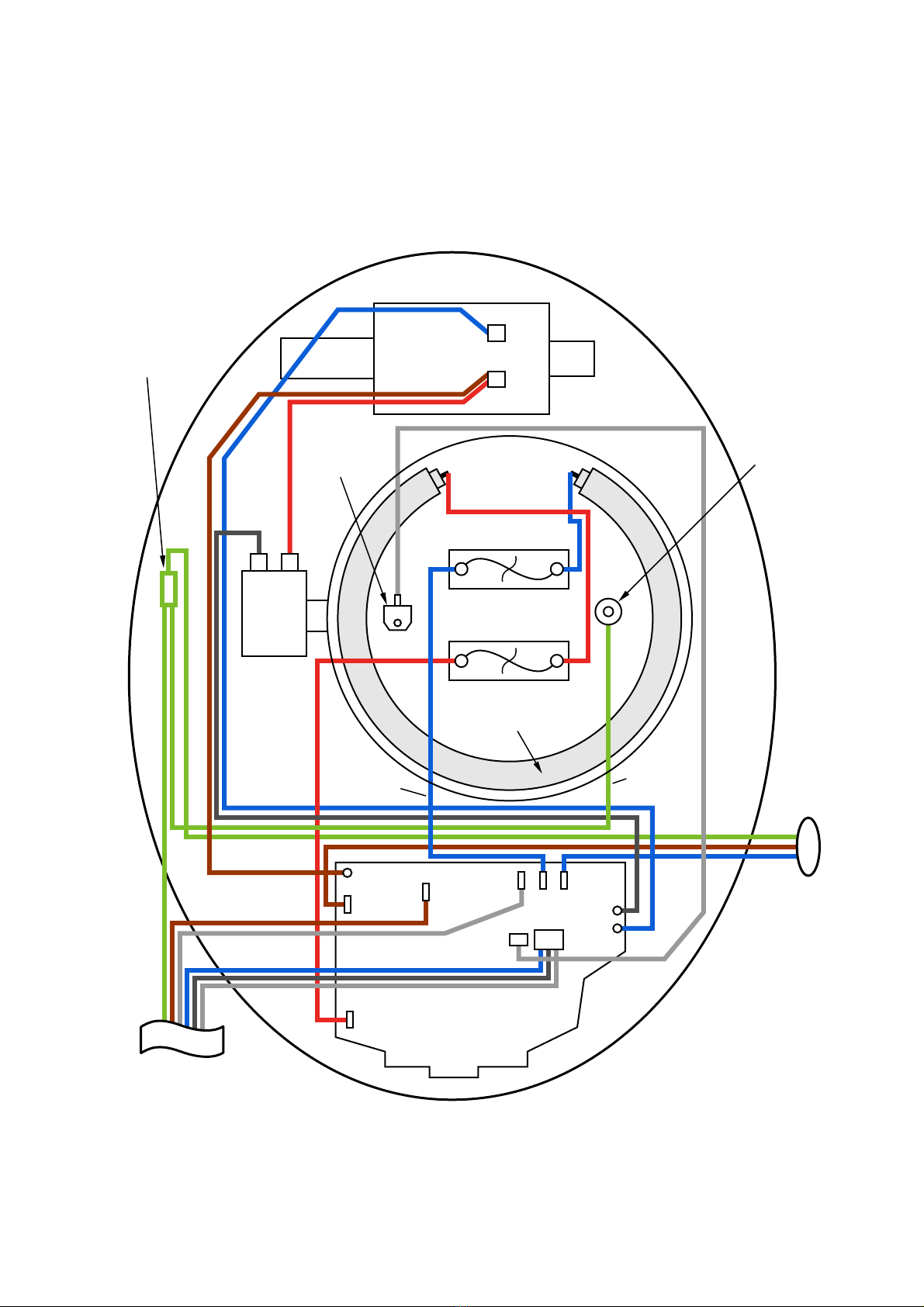

WIRING DIAGRAM STAND
