Philips PerfectCare 6000 Series Manuel utilisateur

Published by Philips Domestic Appliances Page 1of 34 For internal use only

Document No. : CSW-07-081-21362

PERFECTCARE 6000 SERIES

PSG6042

PSG6064

PSG6066

PSG6020

PSG6022

PSG6024

PSG6026

GC 4541

GC 4564

Published by Philips Domestic Appliances Page 2of 34 For internal use only

Document No. : CSW-07-081-21362

Contents

Page

1. Important Repair Instructions 3

2. Product Information

- Functions/ Features Information 6

- Product Matrix 7

- Wiring Diagram 9

3. Troubleshooting Guide 11

4. Disassembly and Reassembly Instructions 13

5. Service Lists 27

6. Revision History 34

Published by Philips Domestic Appliances Page 3of 34 For internal use only

Document No. : CSW-07-081-21362

Important Repair Instructions

1. Only skilled personnel should carry out the repair.

2. Verification test to carry out as follows, to determine the problem:

a. Ensure product are properly assembled

b. Power on

c. Water Tank to be filled up to Maximum level

3. Refer to Troubleshooting guide for part repair/replacement.

4. After repaired, the appliance must function properly, following test to be carried out:

a. POWER-ON CHECK

Powered-ON with socket equipped with Residual Current Circuit Breaker (RCCB) or Earth Leakage Circuit

Breaker (ELCB) to ensure no electrical hazard risk to end consumer.

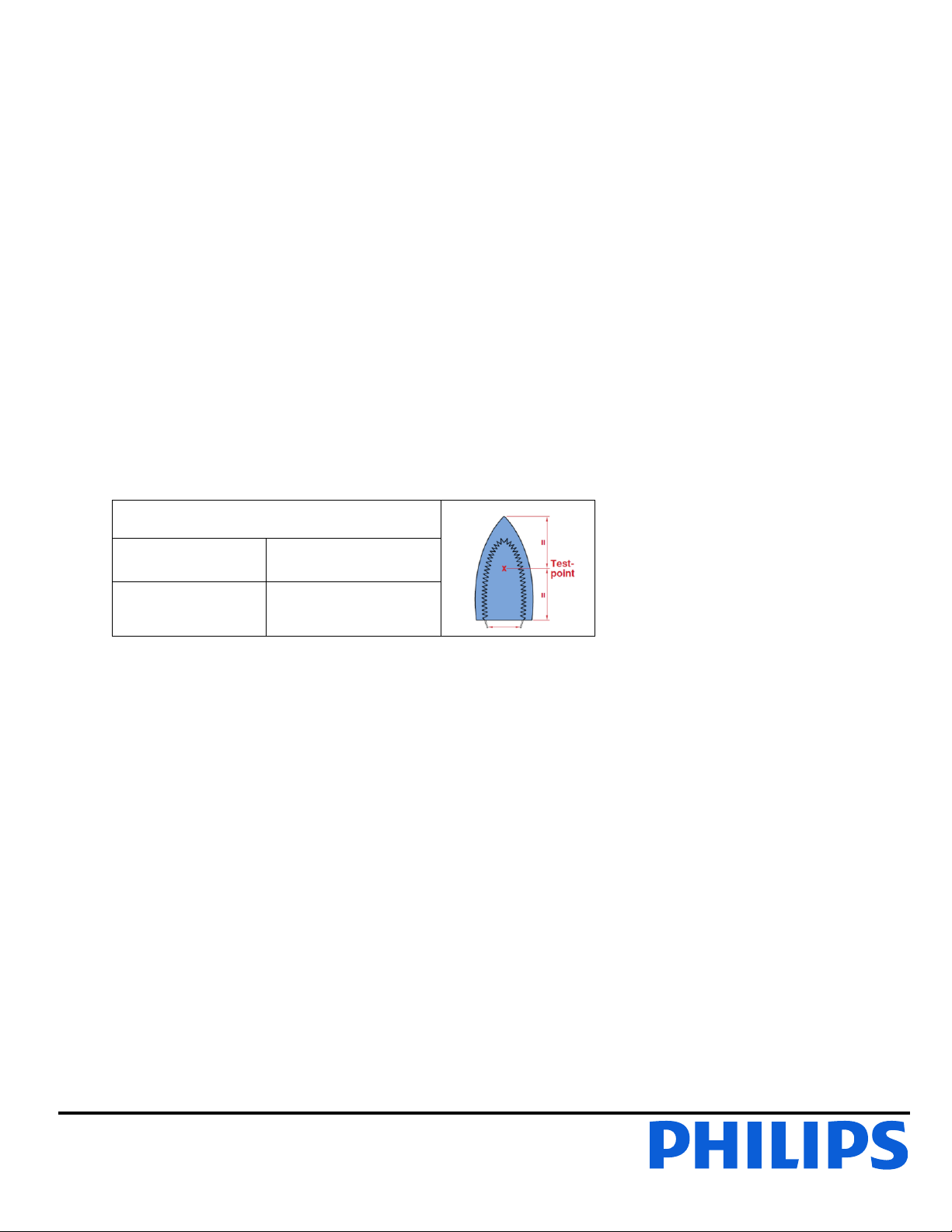

b. Soleplate temperature

Check the soleplate temperature at maximum setting within IEC requirment.

Measure the temperature of the Soleplate after the iron has reached steady state i.e connected to the mains

for at least 15 minutes. The table below shows the temperature requirement.

Soleplate temperature (Deg C)

Minimum

Maximum

101 Deg C

145 Deg C

c. Water leakage

Check that there is no water leakage from any part of product during operation.

d. Functionality

Check the functionality of the product such as:

- Steaming

- PCBA (Refer to point 5).

- Buttons: no sluggish, no jammed and loosenness

e. Loose part

Check that there are no loose parts such as extra screws in the product that can cause short circuit or product

malfunction.

Published by Philips Domestic Appliances Page 4of 34 For internal use only

Document No. : CSW-07-081-21362

Important Repair Instructions (Continue)

5. Self-Check mode

Self-Check mode is NOT an exhaustive diagnosis, but a quick preliminary check on all the hardware function.

5.1 The following to be carried out before Self-Check mode:

i) Power meter should be in-placed to monitor system power.

ii)Make sure Soleplate is <100°C

iii)Place Soleplate in the Horizontal Position (0 + 1°)

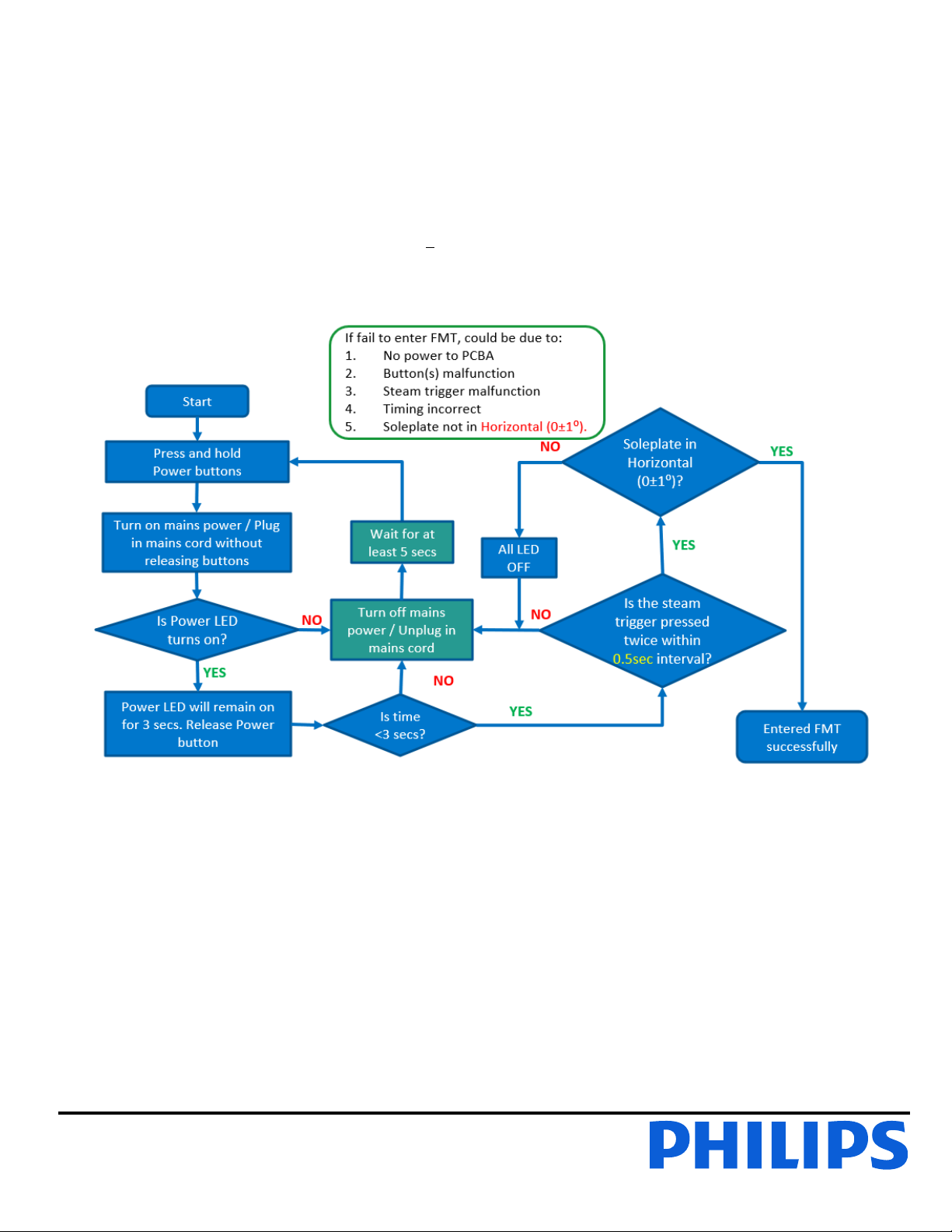

5.2 Reset product to Factory Mode Test (FMT) Flow

Published by Philips Domestic Appliances Page 5of 34 For internal use only

Document No. : CSW-07-081-21362

Important Repair Instructions (Continue)

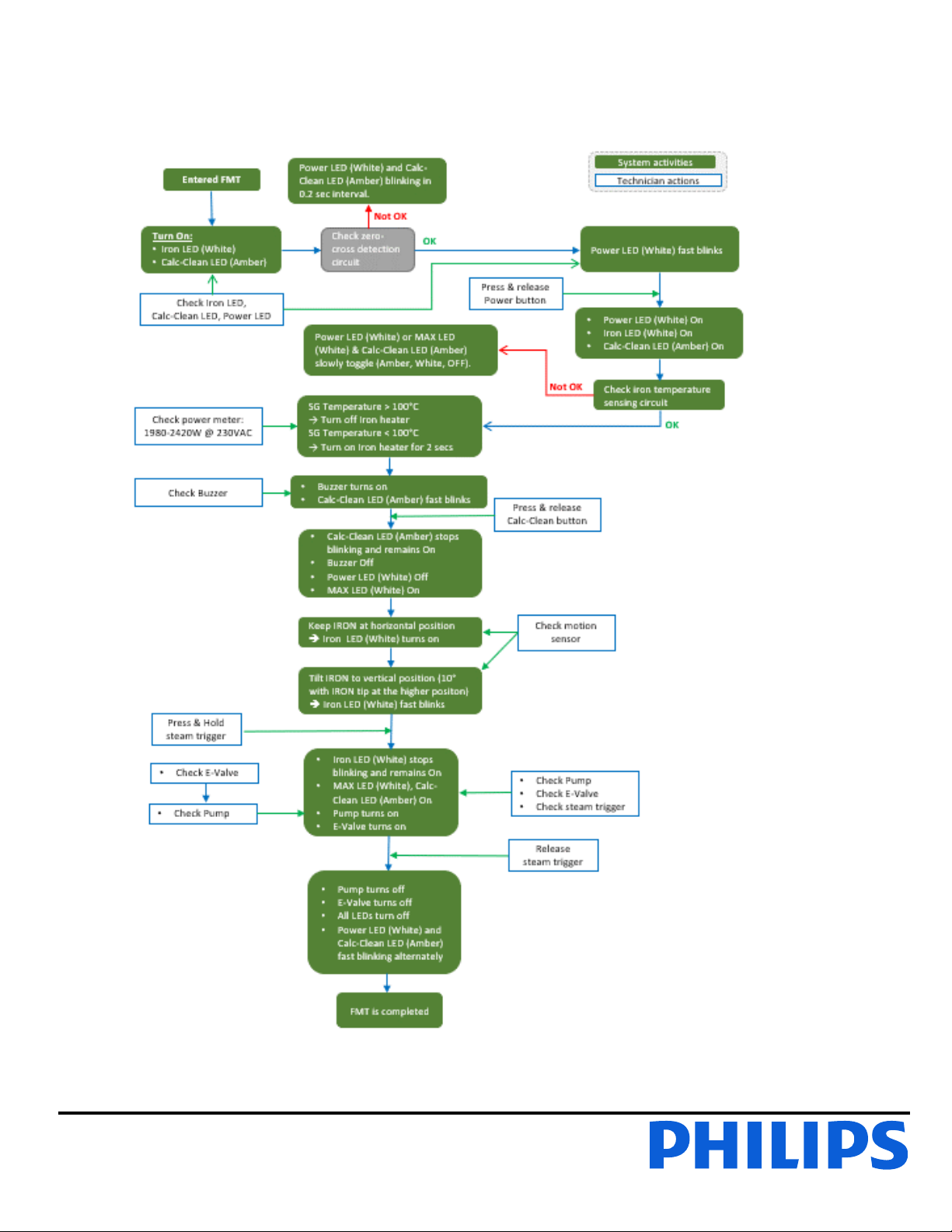

5.3 Process Self Check Mode, start Self Check Mode

Max 5 seconds

Published by Philips Domestic Appliances Page 6of 34 For internal use only

Document No. : CSW-07-081-21362

Product Information

Functions/ Features Information

Fast & Powerful Crease Removal

Easy to use

•Smooth scratch-resistant SteamGlide Advanced

•Auto Shut-off

Soleplate

•Safe on all ironable fabrics: Even delicates like silk

•Optimal TEMP Technology

•Detachable water tank

•No temparature settings needed

•Ready to use: Light indicator, sound indicator

•Powerful steam

•Refill anytime during use

•Precision Steam tip

•Suitable for tap water

Scale Management

Storage

•Descaling and cleaning: Smart Calc Clean

•Carry Lock: For transportation and safety

•Descaling reminder: Sound, Light

•Hose Cord: Hose storage compartment

•Power Cord: Velcro fix

Compact & Convenient

•Lightweight and compact for easy use and storage

Size & weight

•Large detachable water tank for easy refilling

•Product dimensions (WxHxL): 168 x 269 x 368 mm

•Carry lock for safe and easy transport

•Weight of Iron: 1.3 kg

•Weight of Iron & base: 2.75 kg

Published by Philips Domestic Appliances Page 7of 34 For internal use only

Document No. : CSW-07-081-21362

Product Information

Product Matrix

CTN

PSG6020

PSG6022

PSG6024

PSG6026

Colour

Light Slate/

Purple

Light Slate/

Blue Pavone

Deep Azur/

Light Slate

Purple Magic/

Light Slate

Steam rate up to (g/min)

130

Steam boost up to (g)

500

Max pressure (bar)

6.5

Power (W)

2400

Heat up time (mins)

Optimal Temp

Yes

Soleplate

SteamGlide Plus

Quiet technology

Vertical Steam

Yes

Auto shut-off

Yes

Eco setting

Water Tank capacity (L)

1.8

Detachable water tank

Yes

Carry lock

Yes

Calc Solution

Smart Calc Clean

Cord length (m)

1.65

Cord storage

Velcro fix

Hose length (m)

1.6

Hose storage

Compartment

Published by Philips Domestic Appliances Page 8of 34 For internal use only

Document No. : CSW-07-081-21362

Product Information

Product Matrix

CTN

PSG6042

PSG6064

PSG6066

Colour

Reno /

Celestial Blue

Deep Black/

Chalky Camel

Louros Blue/

Chalky Camel

Steam rate up to (g/min)

130

Steam boost up to (g)

550

600

Max pressure (bar)

Power (W)

2400

Heat up time (mins)

Optimal Temp

Yes

Soleplate

SteamGlide

Advanced

SteamGlide

Advanced

SteamGlide

Advanced

Quiet technology

Vertical Steam

Yes

Auto shut-off

Yes

Eco setting

Water Tank capacity (L)

1.8

Detachable water tank

Yes

Carry lock

Yes

Calc Solution

Smart Calc Clean

Cord length (m)

1.65

Cord storage

Velcro fix

Hose length (m)

1.6

Hose storage

Compartment

Published by Philips Domestic Appliances Page 9of 34 For internal use only

Document No. : CSW-07-081-21362

Product Information

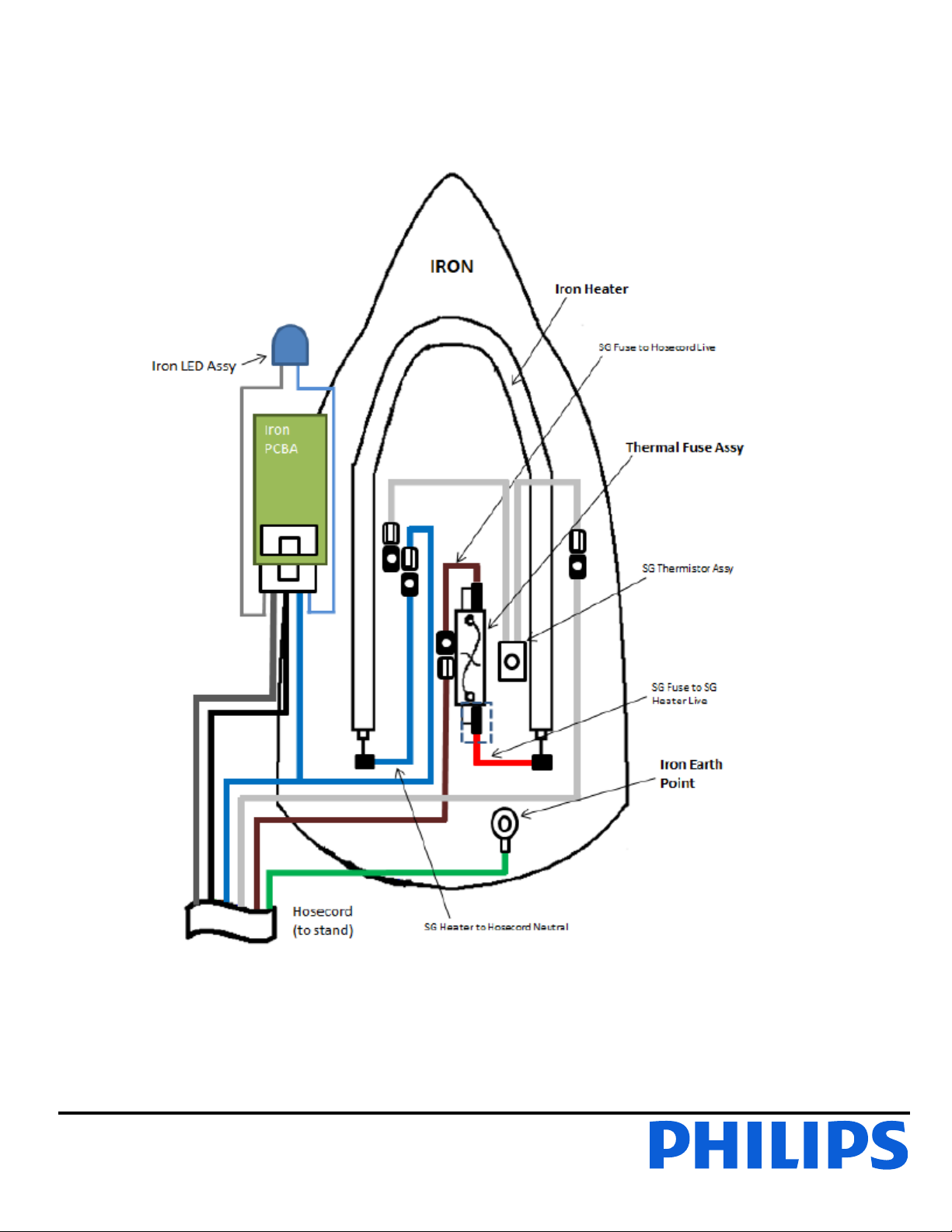

Wiring Diagram - IRON

Published by Philips Domestic Appliances Page 10 of 34 For internal use only

Document No. : CSW-07-081-21362

Product Information

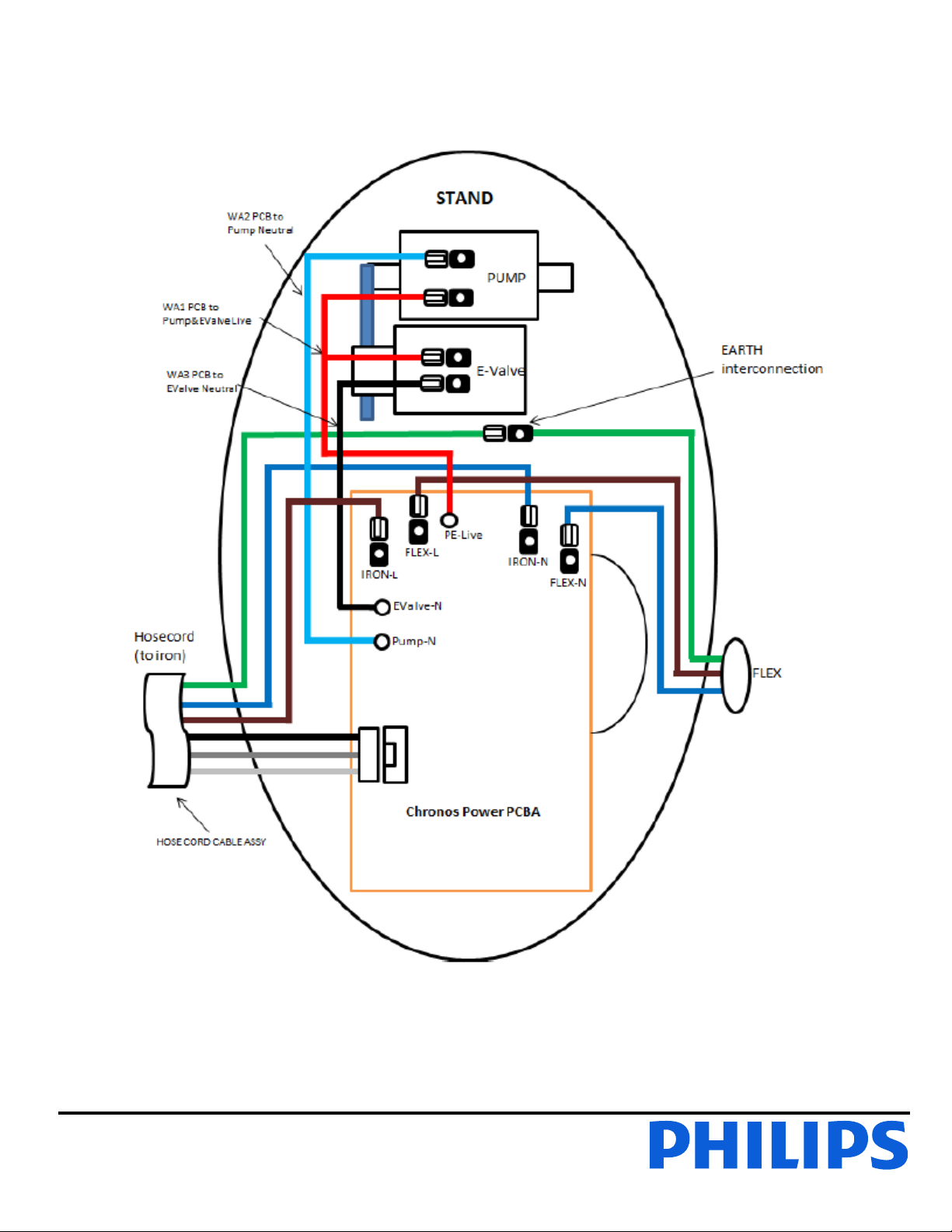

Wiring Diagram - STAND
