ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Boiler Steam Iron

GC8280

09/04

PRODUCT INFORMATION

Features

Iron

- Careeza Soleplate

- Continuous steam in horizontal & vertical position

- Adjustable steam rate up to 140 g/min

- Easy control & informative LCD display

- Calc clean reminder via LCD display

- Programmable automatic shut off

- Programmable automatic steam lock

- Automatic drip stop

- Soft touch hand grip

- Steam tip for hard-to-reach places

- Steam hose length : 1.7m

Stand

- Anti-corrosion Inox boiler

- Boiler sensing : Electronic

- Boiler pressure : 5.0 bar

- Fast heat-up : Steam ready in 2 mins.

- Cord length : 2.5m

- Hose cord storage

- Easy to rinse

- Iron lock for safe storage

- Detachable tank : 1.4 L

Safety Information

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down as this moment.

TECHNICAL INFORMATION

Voltage : 220 - 240 V

Frequency : 50 - 60 Hz

Power Iron : 800 W

Boiler : 1370 W

Dimension (F-box) : 350 x 350 x 250 mm (L x W x H)

Weight (with packing) : 6.4 kg

Water advice

If the tap water in your area is very hard, it is advisable to mix

the tap water with an equal amount of demineralised water.

Careeza soleplate

Scratch resistant, non-stick, easy to clean & very durable.

Easy control & informative display on iron LCD

Clear visual & audible feedback on the status of iron.

Calc-clean reminder. Pre-programmed precise temperature

settings for 12 fabrics.

Fast ironing

Steam ready in 2 minutes & up to 5 bar of steam pressure

penetrating deeper into the fabrics.

Iron lock

Safely store the iron on the stand.

Easy to rinse

The new design of the rinse cap makes it very easy to rinse

the boiler regularly. Simply unscrew the cap and pour out the

“dirty” water into the sink.

No hassle with coins, extra tubes or anything of this sort.

Large detachable water tank

1.4 Liter water tank allows up to 3 hours freedom of ironing

without reﬁlling.

GC8280

2-9

BACKPLATE 1

HOSE CORD ASSY 3

POWER BOARD CAP 13

Fig 1. Connections of HOSE CORD ASSY 3

Steam hose Power cord

Steam hose Blue

Green/

Yellow

Brown

Clamping plate

1 2

B1 B2

Remove Screws B1, B2

Remove Clamping plate

Remove Connections 1, 2, 3, 4, 5 (Fig 1)

Disassemble HOSE CORD ASSY 3

C2 C3

Fig 2. Connections of SIQ CONTROLLER 11

Remove Connections 6, 7, 8 (Fig 2)

Remove Screws C2, C3, C4, C5

Disassemble POWER BOARD CAP 13

INLAY 4

SIQ CONTROLLER 11

DISASSEMBLY ADVICE - IRON

Fig 3. Rear catch of INLAY 4

Release Rear catch of INLAY 4 (Fig 3)

Disassemble INLAY 4

Fig 4. Inlay mounted assy

D1 D2

Remove Screws D1, D2 (Fig 4)

Disassemble SIQ CONTROLLER 11

HOUSING 12

SOLEPLATE COVER 15

HEAT BARRIER 16

BRAIDED RUBBER HOSE 18

THERMISTOR ASSY 22

SOLEPLATE ASSY 23

Remove Screw C1

Disassemble HOUSING 12

Remove Screws E1, E2, E3

Disassemble SOLEPLATE COVER 15

Remove Screws F1, F2

Disassemble HEAT BARRIER 16

Remove Screw G

Disassemble THERMISTOR ASSY 22

Remove Hose clip H

Disassemble BRAIDED RUBBER HOSE 18

GC8280

3-9

PARTS LIST - IRON & ELECTRICAL DIAGRAM

STAND IRON

Boiler Electronics

On/Off switch

Steam up switch

Steam down

Thermal

Fuse

Thermal

Fuse

Boiler

Heating

Element

Reed

Switch

Thermistor

Heating

Element

Pump

Electro-

valve

Power LED x 1

Steam LEDs x 4

Tank Empty LED x 1

Thermistor

Electronic

Controller

Fig 5. Electrical diagram

Pos Service code Description

4239 026 21900

4239 026 22600

4239 021 31850

4239 026 21880

4239 021 32940

4239 021 32590

4239 026 22320

4239 015 56210

4239 015 55970

4239 026 21810

4239 021 42260

4239 021 31880

4239 026 22140

4239 015 53580

4239 021 32190

4239 026 21750

4239 015 70150

4239 015 56540

4239 010 09350

4239 010 10280

4239 010 10110

4239 021 18120

4239 021 43520

Backplate IQ moulded

Swivel (Green)

Hose cord assy (IQ)

Inlay IQ (Soft Touch)

Display cap assy

Temperature button printed

Mode button

Rubber LCD

Rubber trigger

Trigger IQ moulded

SIQ controller

Housing IQ printed

Power board cap

Rubber bung

Soleplate cover IQ painted

Heat barrier

Ryton ring

Braided rubber hose (inlet)

Brass joint

Hose clip - braided rubber hose

Hose clip

Thermistor assy

Soleplate assy IQ - 230 V

= changed

GC8280

4-9

EXPLODED VIEW - IRON

Hose clip H

C3 B2

GC8280

5-9

TRAY RUBBER (MAIN) 30

TRAY 33

STAND TOP 34

FRONT PANEL PRINTED 37

BOILER ASSY EE 38

ELECTROVALVE 40

POWER BOARD 43

CONTROL BOARD 44

PUMP ASSY 45

INLET TUBE 46

DE-AIR TUBE 47

RINSE RUBBER COUPLING 50

RINSE BUSH 51

SAFETY CAP ASSY 52

REED SWITCH ASSY 53

Remove WATER TANK ASSY 70

Remove TRAY RUBBER (MAIN) 30 (3x)

Remove Screws J1, J2, J3

Disassemble TRAY 33

Remove Screws K1, K2, K3, K4

Disconnect INLET TUBE 46

Disconnect DE-AIR TUBE 47

Remove SAFETY CAP ASSY 52

Remove RINSE BUSH 51

Remove RINSE RUBBER COUPLING 50

Disassemble STAND TOP 34

Remove Screws L1, L2

Disassemble FRONT PANEL PRINTED 37

12 11

109

Pos. Connected to Pos. Connected to

9 Reed switch 11 Thermistor

10 Power board 12 Hosecord (Black)

Fig 6. Connections on CONTROL BOARD 44

DISASSEMBLY ADVICE - STAND & DETACHABLE WATER TANK

Remove Connections 9, 10, 11, 12 (Fig 6)

Remove Screws M1, M2, M3 (Fig 6)

Disassemble CONTROL BOARD 44

Pos. Connected to Pos. Connected to

13 Pump-Control 18 Electrovalve-Live

14 Pump-Live (Brown) 19 Hosecord (Blue)

15 Boiler-Heating Element 20 Hosecord (Brown)

16 Boiler-Fuse 21 Cordset (Brown)

17 Electrovalve-Control 22 Cordset (Blue)

Fig 7. Connections on POWER BOARD 43

WATER TANK ASSY 70

TANK WASHER 71

TANK COUPLING 73

TANK LEVER 75

PICK UP TUBE 77

FILTER ASSY 78

Remove Screws N1

Disassemble TANK WASHER 71

Remove SCREWS N2, N3

Disassemble TANK COUPLING 73

GC8280

6-9

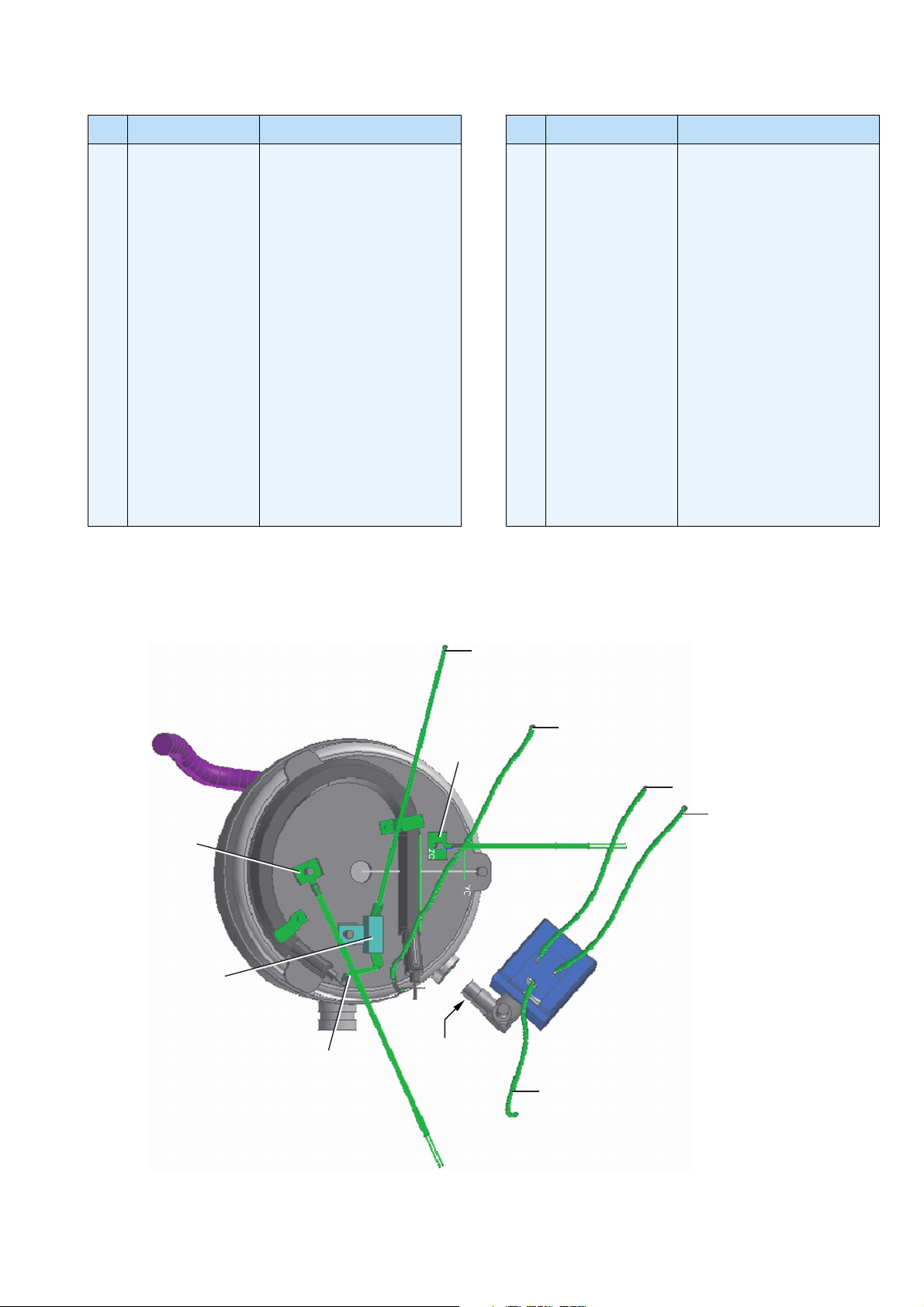

PARTS LIST - STAND & BOILER WIRING DIAGRAM

Wire WE4: PCB-Fuse

Wire WE3: PCB-HE

Wire WE6: PCB-EV B

Wire WE5: PCB-EV A

Wire WE8: Earth-EV

Wire WE7:

HE Fuse

Electrovalve

Thermistor

Fuse

(Thermofuse)

Loctite

Darbond

620

Fig 8 . Boiler Assy EE - Wiring Diagram

Abbreviations

HE : Heating Element

EV : Electrovalve

PCB : Power Board

Pos Service code Description

4239 015 56010

4239 015 56030

4239 015 56500

4239 010 09320

4239 026 22480

4239 026 21930

4239 026 22510

4239 022 56510

4239 021 31920

4239 026 22280

4239 017 09890

4239 015 56160

4239 010 09390

4239 021 31970

4239 021 31960

4239 021 32480

4239 015 56140

4239 015 56150

Tray rubber (Main)

Tray rubber (Rear)

Tray rubber (Front)

Tray (Safe storage)

Stand top (Green)

Nipple plate

Cord storage lever (Green)

Front panel printed - IQ

Boiler assy EE

C-Wall

Electrovalve

Braided hose

Inox clamp

Power board

Control board

Pump assy

Inlet tube

De-air tube

Pos Service code Description

4239 015 55980

4239 015 55990

4239 015 56050

4239 026 22490

4239 022 56490

4239 021 31820

4239 026 22050

4239 000 09780

4239 026 22270

4239 015 52340

4239 026 05990

4239 015 56000

4239 026 22410

4239 026 22420

4239 026 22000

4239 026 22020

4239 026 22040

4239 022 58590

Boiler rubber support A

Boiler rubber support B

Rinse rubber coupling

Rinse bush

Safety cap assy

Reed switch assy

Reed switch holder

Cordset EU

Stand bottom EE

Bung (Stand)

Filling cup

Power button cap (Silver)

Power button frame

Steam button frame

Light guide (ring)

Light guide (Steam)

Light guide (TE-RR)

Safety valve sealing ring

GC8280

7-9

EXPLODED VIEW - STAND

62 60

49 53

47 46

GC8280

8-9

EXPLODED VIEW & PARTS LIST - DETACHABLE WATER TANK

N2 N3

Pos Service code Description

4239 021 32960

4239 026 22130

4239 015 55390

4239 026 22110

4239 015 56060

Water tank assy (Green)

Tank washer

Sealing ring

Tank coupling

Tank coupling seal

Pos Service code Description

4239 026 22540

4239 010 09330

4239 015 56070

4239 021 31860

Tank lever (Green)

Spring

Pick-up tube

Filter assy

GC8280

9-9

- Due to the high wattage of the iron, only the specified cord set must be used.

- Should damage be observed on the HOSE-CORD ASSY 3 or CORDSET 55, they must be replaced.

Continued usage is not allowed.

- To avoid damage to the sealing & components of the BOILER ASSY 38, NEVER clean the boiler assy with vinegar, descaling

agent or other corrosive chemicals.

- When replacing ELECTROVALVE 40 or PUMP ASSY 45, please be reminded to apply loctite at the joints for good sealing.

- After the product has been repaired, it should function properly and has to meet the safety requirements & legal regulations as

laid down & officially established at this moment.

- The following tests are common checks that are conducted on a repaired product before it is returned to the consumer.

1. Soleplate temperature

Check that soleplate temperature is within IEC requirement.

Measure the temperature of the soleplate after the iron has reached steady state i.e connected to the mains for at least 15 minutes.

The table below shows the temperature requirement.

Marking

Soleplate temperature (Deg C)

Material, for example

Test-

point

Minimum Maximum Nominal + Tolerance

•(1 dot) 70 120 95 ± 25 Acetate, elastane, polyamide, polyproylene

•• (2 dots) 100 160 130 ± 30 Cupro, polyester, silk, triacetate, viscose, wool

••• (3 dots) 140 210 175 ± 35 Cotton, linen

2. Leakage current

Check that leakage current is within IEC requirement.

Measure leakage current between LIVE/NEUTRAL & EARTH.

IEC requirement is that at 230 V supply, the EARTH leakage current must be less than 0.75 mA.

3. Water leakage / Functionality

Check that there is no water leakage from any part of the product during operation.

Check that the functionality of the product (product dependent) eg. steaming, variable steam, SOS, ASO etc is working properly.

4. Loose part

Check that there are no loose parts eg. extra screw in the product that can cause short-circuit or product malfunction.

REPAIR INSTRUCTIONS

Autres manuels pour GC8280

Table des matières

Autres manuels Philips Fer

Philips

Philips PerfectCare Pure GC7600 series Manuel utilisateur

Philips

Philips EasyCare GC8351 Manuel utilisateur

Philips

Philips COMFORT GC1121 Manuel utilisateur

Philips

Philips GC4900 Manuel utilisateur

Philips

Philips GC9642 Manuel utilisateur

Philips

Philips GC3600 Series Manuel utilisateur

Philips

Philips EcoCare GC 3720 Manuel utilisateur

Philips

Philips 7400 Series Manuel utilisateur

Philips

Philips Mistral Series Manuel utilisateur

Philips

Philips HI5914 Manuel utilisateur

Philips

Philips GC9241 Manuel utilisateur

Philips

Philips EasySpeed GC1020 series Manuel utilisateur

Philips

Philips Azur Performer Plus GC4521/21 Manuel utilisateur

Philips

Philips PowerLife GC2510 Manuel utilisateur

Philips

Philips GC9500 Series Manuel utilisateur

Philips

Philips Azure Cordless HI575 Manuel utilisateur

Philips

Philips GC7430 Manuel utilisateur

Philips

Philips GC7000 Series Manuel utilisateur

Philips

Philips InstantCare GC7541/02 Manuel utilisateur

Philips

Philips GC3584/30 Manuel utilisateur

Philips

Philips GC7330 Manuel utilisateur

Philips

Philips WardrobeCare GC9940 Manuel utilisateur

Philips

Philips GC9500 Series Manuel utilisateur

Philips

Philips GC4930 series Manuel utilisateur

Manuels Fer populaires d'autres marques

Clatronic

Clatronic DB 3703 Manuel utilisateur

TEFAL

TEFAL FV4093Z0 Manuel utilisateur

Gorenje

Gorenje SIH 2200 BS Manuel utilisateur

Bosch

Bosch 2 Series Manuel utilisateur

Riffel

Riffel Catena KB-819 Manuel utilisateur

Texi

Texi Hestia Manuel utilisateur

Maxwell

Maxwell MW-3010 Manuel utilisateur

TREVIDEA

TREVIDEA Girmi ST60 Manuel utilisateur

Primula

Primula Vapormat Manuel utilisateur

Magio

Magio MG-541 Manuel utilisateur

Scarlett

Scarlett SC-1334S Manuel utilisateur

Bosch

Bosch Sensixx B22L Manuel utilisateur

Vitek

Vitek VT-1247 VT Manuel utilisateur

Cleanmaxx

Cleanmaxx 3397 Manuel utilisateur

dyras

dyras ESI-2400AC Manuel utilisateur

GE 169061 Manuel utilisateur

Gorenje

Gorenje SIH 2200 GC Manuel utilisateur

AEG

AEG DBS 5591 Manuel utilisateur
