Philips Azur GC4310 Manuel utilisateur

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Steam Iron Azur Precise

GC4310

06/10

PRODUCT INFORMATION

Features

- Color : Blue

- Careeza soleplate

- Steam output (40 gram/min)

- Shot Of Steam, SOS (100 gram/min)

- Vertical SOS (100 gram/min)

- Spray feature

- Tank capacity (350 ml)

- Cord winder

- Cord length (3 m)

- Drip stop feature

- Anti-calc feature

- Self clean feature

- Steam tip

Safety Information

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements and

legal regulations as officially laid down at this moment.

TECHNICAL INFORMATION

Voltage : 100 - 240 V

Frequency : 50 - 60 Hz

Power : 2000 - 2400 W

Dimension (F-box) : 335 (L) x 144 (W) x 182 (H) mm

Weight : 1.58 kg

Water Advice

Suitable for tap water use. Advice to mix with equal portion

of distilled water or use only distilled water if the tap water is

very hard.

Self Clean

When the self clean button is pressed, a sudden release of

water into the soleplate loosen scale particles by thermal

shock. These particles are then ﬂushed out through the steam

vents by the water.

Careeza Soleplate

Careeza is a multi-layer chemical substance that gives an

excellent gliding effect and better care for the garment.

Vertical Steam

When the iron is kept in a vertical position, the SOS button

can be used to iron hanging fabrics such as curtains.

Anti Drip

Water is only released into steam chamber via the tank

valve when the soleplate temperature is high enough. If the

temperature is too low, the tank valve is closed by means of a

bi-metal disc.

Steam Tip

Concentrated steam delivered in the hard to reach places by

pointed shape and the elongated steam slots.

GC4310

THERMOSTAT DIAL ASSY 1

RATTLE SPRING 2

LINNE

B.WOLLE

WOLLE

NYLON

YLLE

SEIDE

SILKE

BOMULE

LEINEN

BACKPLATE ASSY 3

CORDSET 4

BALL SWIVEL 5

Remove Screw A

Remove Screws B1, B2

FILLING DOOR 6

INLAY 7

SOS KNOB 11

SPRAY KNOB 12

LAMP ASSY 13

Remove Screw A

Remove Backplate assy 3

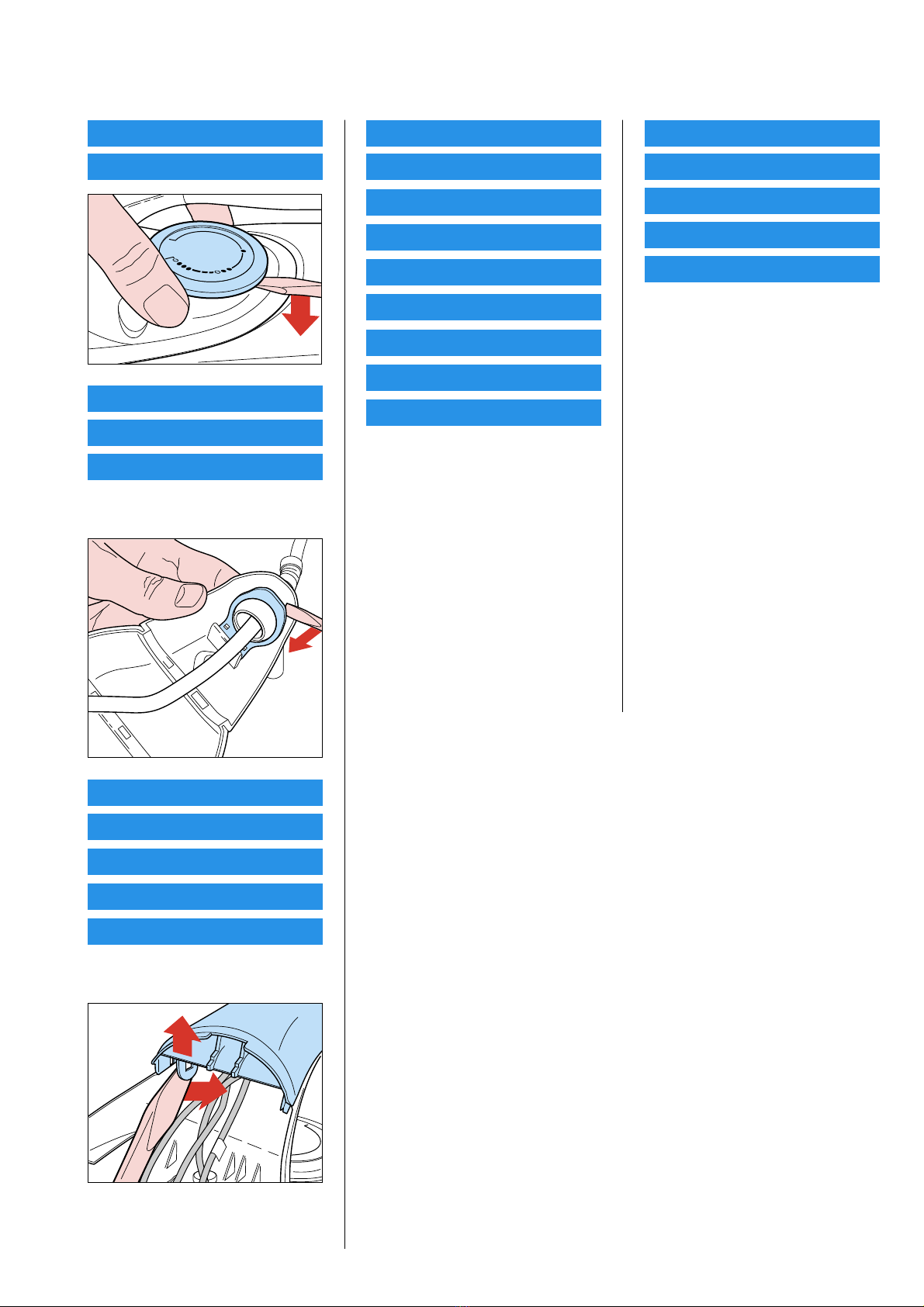

DISASSEMBLY ADVICE

REPAIR INSTRUCTIONS

- Due to the high voltage of the iron, ONLY the specified cordsets must be used.

- Thermostat (Pos 101) fitted to the soleplate (Pos 26) was pre-adjusted by the

suppliers and secured by glue. To avoid mal-function of the iron, NEVER adjust

the thermostat.

- No information about the type number and voltage is stamped onto the typeplate.

When replacing the back plate (typeplate is at the bottom), engrave at least the type

number & voltage on the typeplate with a sharp object.

- Parts with numbers from 100 and higher cannot be ordered separately.

OPTIONAL (accessories)

- No specific issues

STEAM SLIDER 9

DOSING ASSY 10

TANK SEAL 14

HOUSING 15

AESTHETICS RING 16

SPRAY NOZZLE ASSY 18

PUMP ASSY 19

THERMOSTAT BUSH 20

WATER TANK ASSY 21

Remove Screw A

Remove Backplate assy 3

Remove Inlay 7

Remove SOS knob 11

Remove Spray knob 12

Remove Screws C1, C2

Remove Dosing assy 10

Remove Thermostat dial assy 1

Remove Screws D1, D2

Remove Screws E1, E2

Remove Housing 15

Remove Screws F1, F2

Remove Water tank assy 21

COVER 22

RYTON RING 23

SOS SEAL 24

DOSING SEAL 25

SOLEPLATE ASSY 26

Remove Screw A

Remove Backplate assy 3

Remove Inlay 7

Remove SOS knob 11

Remove Spray knob 12

Remove Screws E1, F1, F2

Remove Water tank assy 21

Remove Screws G1, G2, G3

Remove Heat shield

Remove Cover 22

2-4

GC4310

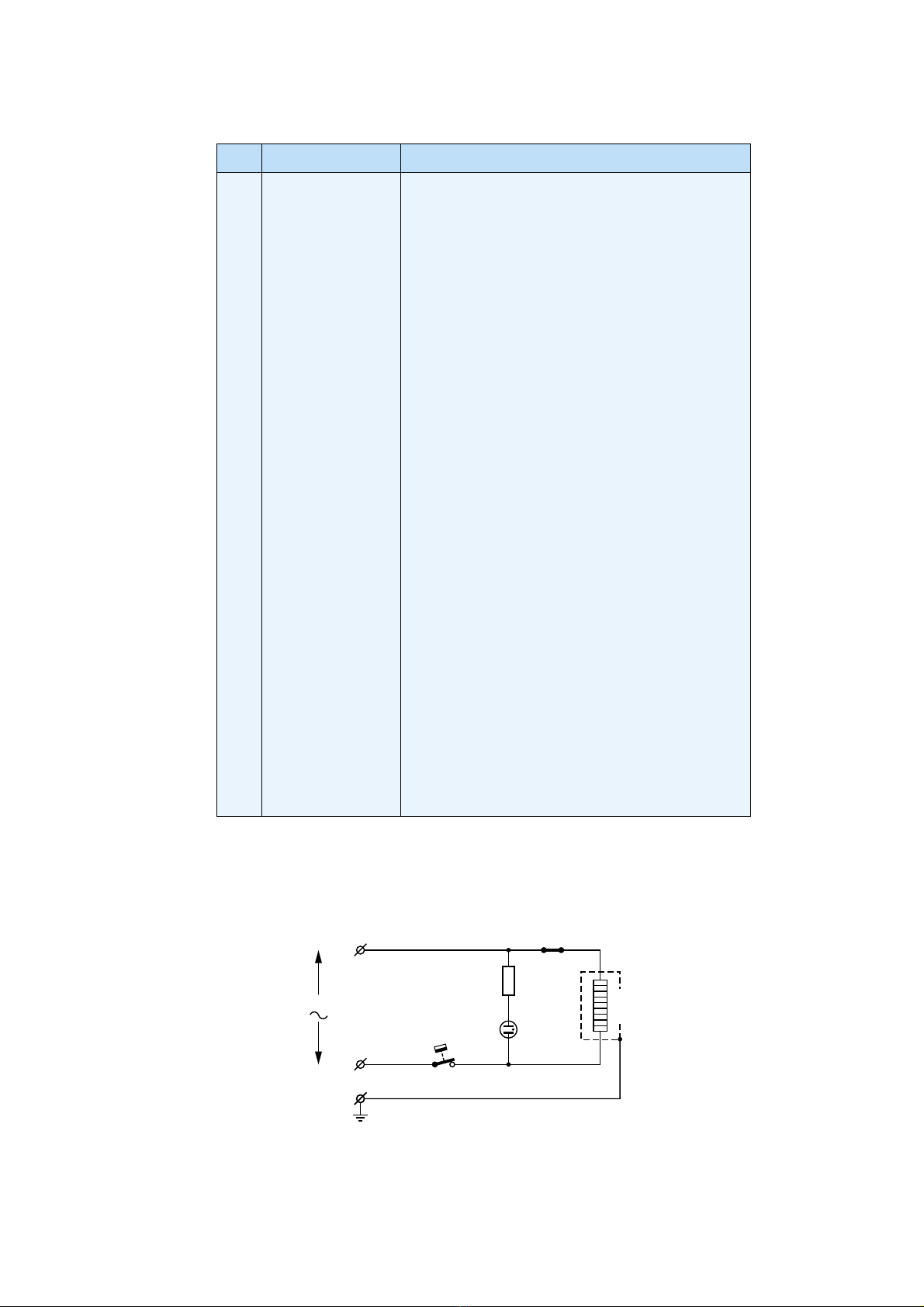

PARTS LIST

RESISTOR

LAMP

FUSE

HEATING

UNIT

INPUT

THERMOSTAT

3-4

Pos Service code Description

4239 022 54700

4239 022 55270

4239 014 53350

4239 022 54860

4239 000 07760

4239 000 09680

4239 000 09650

4239 025 92070

4239 021 25870

4239 021 25910

4239 026 17270

4239 026 18560

4239 022 54900

4239 026 18500

4239 026 18530

4239 021 03140

4239 015 55610

4239 021 26210

4239 021 25760

4239 026 18340

4239 021 03040

4239 020 90560

4239 026 17320

4239 022 54920

4239 021 27760

4239 021 25720

4239 025 98250

4239 015 54410

4239 015 55620

4239 021 22390

4239 021 26760

4239 026 05990

Thermostat dial assy (Ger/Swe) GC4310

Thermostat dial assy (Eng/Jap) GC4310

Rattle spring

Backplate assy GC4310

Cordset - EU

Cordset - Japan

Cordset - Taiwan

Ball swivel

Filling door assy (Trans Blue)

Inlay printed - No soft touch

Lamp cover

Steam slider (Trans Blue)

Dosing assy

SOS knob (Twilight Blue)

Spray knob (Twilight Blue)

Lamp assy

Tank seal

Housing printed

Aesthetics ring sprayed (Dark Blue)

Self-clean knob (Twilight Blue)

Spray nozzle assy

Pump assy

Thermostat bush

Water tank assy (Trans Blue)

Water tank assy - Japan

Cover sprayed (Dark Blue Metallic)

Ryton ring

SOS seal

Dosing seal

Soleplate assy 230 V

Soleplate assy 100 V

Filling cup

GC4310

EXPLODED VIEW

MAX

D1 D2

101 23

2019 17

4-4
