Philips QC5053/00 Manuel utilisateur

QC5053, QC5050, QC5010

ENGLISH 6

 12

 19

 25

 31

 37

 43

 50

 56

 62

 69

 75

 82

 88

 94

 100

Introduction

Congratulations on your purchase and welcome to Philips! To fully benet

from the support that Philips offers, register your product at www.philips.

com/welcome.

Your new Philips super-easy hair clipper adapts to the contours of the

head and enables comfortable use.To enjoy using the hair clipper we

advise you to read the following information.

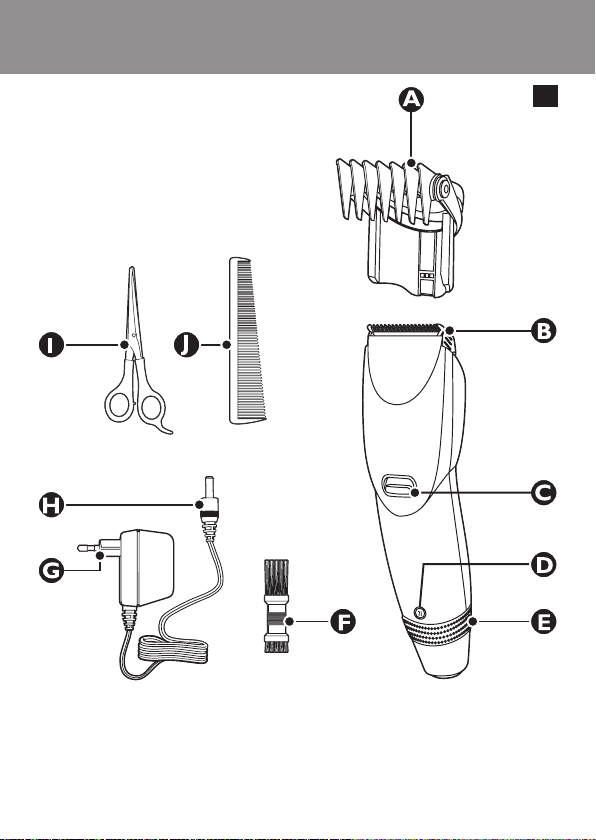

General description (Fig. 1)

ASmall comb

BMain cutting element

COn/off slide

DLength indicator

ELength lock (locks the hair length setting)

FCleaning brush

GAdapter

HAppliance plug

IScissors (QC5050 only)

JStyling comb (QC5050 only)

Important

Read this user manual carefully before you use the appliance and save it

for future reference.

Danger

- Keep the appliance and the adapter dry (Fig. 2).

Warning

- Check if the voltage indicated on the appliance corresponds to the

local mains voltage before you connect the appliance.

- The adapter contains a transformer. Do not cut off the adapter to

replace it with another plug, as this causes a hazardous situation.

- This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision

ENGLISH

or instruction concerning use of the appliance by a person

responsible for their safety.

- Children should be supervised to ensure that they do not play with

the appliance.

Caution

- Only use the adapter supplied.

- Do not use a damaged adapter.

- Use, charge and store the appliance at a temperature between 15°C

and 35°C.

- If the adapter is damaged, always have it replaced with one of the

original type in order to avoid a hazard.

- Do not use the appliance when one of the attachments is damaged

or broken as this may cause injury.

- This appliance is suitable for mains voltages from 220 to 240 volts.

- This appliance is only intended for clipping human scalp hair. Do not

use it for another purpose.

- Noise level: Lc = 61 dB [A]



This Philips appliance complies with all standards regarding

electromagnetic elds (EMF). If handled properly and according to the

instructions in this user manual, the appliance is safe to use based on

scientic evidence available today.

Charging (QC5050 only)

Charge the appliance for 8 hours (NiCd battery) or 12 hours (NiMh

battery) before you start to use it for the rst time.

A fully charged appliance has a cordless clipping time of up to 35 minutes

(NiCd battery) or 50 minutes (NiMh battery).

Do not charge the appliance for more than 24 hours.

1 Switch off the appliance before you charge it.

2 Insert the appliance plug into the appliance (Fig. 3).

3 Insert the adapter into the wall socket.

ENGLISH 7

,The charging light goes on to indicate that the appliance is

charging (Fig. 4).

The charging light does not go out or change colour when the

appliance is fully charged.

Optimising the lifetime of the battery

After the appliance has been charged for the rst time, do not recharge it

between clipping sessions. Continue to use it and recharge it only when

the battery is (almost) empty.

- Discharge the battery completely twice a year by letting the motor

run until it stops.

- Do not keep the appliance plugged into a wall socket all the time.

- If the appliance has not been used for a long time, it must be

recharged for 8 hours (NiCd battery) or 12 hours (NiMh battery).

Corded clipping

QC5050 only:

Do not run the appliance from the mains when the battery is fully

charged.

,To use the hair clipper connected to the mains: switch the hair

clipper off, connect it to the mains and wait a few seconds before

switching it on.

QC5010 only:

1 Insert the appliance plug into the appliance. (Fig. 3)

2 Insert the adapter into the wall socket.



Clipping with comb attachment

- The hair length after cutting is indicated in millimetres on the display.

The settings correspond to the remaining hair length after cutting.

- The hair length after cutting is only visible when the comb is attached.

ENGLISH8

1 Slide the comb attachment into the guiding grooves of the

appliance (‘click’). (Fig. 5)

Make sure that the arms of the comb attachment have been properly slid

into the grooves on both sides.

2 Set the comb to the desired hair length (3, 6, 9, 12, 15, 18 or 21

millimetres) by turning the length lock (Fig. 6).

3 Switch on the appliance (Fig. 7).



- We advise you to start clipping at the highest setting and to reduce

the hair length in small steps until you reach the desired hair length.

- If a lot of hair has accumulated in the comb, remove the comb

attachment and blow and/or shake the hair from the comb. Removing

the comb does not change the selected hair length setting.

- Write down the hair length settings used to create a certain hairstyle

as a reminder for future clipping sessions.

Clipping without comb attachment:

You can use the clipper without comb attachment to contour the

neckline and the area around the ears.

- Remove the comb attachment by pulling it off the appliance (Fig. 8).

Never pull at the exible top of the comb attachment. Always pull at the

bottom part.

- The comb attachment keeps the cutting unit at a certain distance

from your head.This means that, if you use the clipper without the

comb attachment, your hair will be cut off very close to the skin.

Cleaning

Clean the appliance every time you have used it.

Do not use abrasives, scourers or liquids such as alcohol, petrol or

acetone to clean the appliance.

The appliance and the adapter may only be cleaned with the brush

supplied.

1 Switch off the appliance and unplug it before you clean it.

ENGLISH 9

2 Remove the comb attachment by pulling it off the appliance (Fig. 8).

3 Push the middle part of the cutting unit upwards with your thumb

until it opens and then pull it off the appliance (Fig. 9).

Be careful that the cutting unit does not fall to the oor.

4 Clean the cutting unit with the brush supplied (Fig. 10).

5 Also clean the inside of the appliance with the brush

supplied (Fig. 11).

6 Place the lug of the cutting unit into the slot and push the unit back

onto the appliance (‘click’) (Fig. 12).

This appliance does not need any lubrication.

Replacement

A worn or damaged cutting unit should only be replaced with an original

Philips cutting unit.

1 Push the middle part of the cutting unit upwards with your thumb

until it opens and then pull it off the appliance (Fig. 9).

Be careful that the cutting unit does not fall to the oor.

2 Place the lug of the new cutting unit into the slot and push the unit

back onto the appliance (‘click’) (Fig. 12).

Environment (QC5050 only)

- Do not throw away the appliance with the normal household waste

at the end of its life, but hand it in at an ofcial collection point for

recycling. By doing this, you help to preserve the

environment (Fig. 13).

- The built-in rechargeable battery contains substances that may

pollute the environment.Always remove the battery before you

discard and hand in the appliance at an ofcial collection point.

Dispose of the battery at an ofcial collection point for batteries. If

you have trouble removing the battery, you can also take the

appliance to a Philips service centre.The staff of this centre will

ENGLISH10
