Philips HQ 8894 Manuel utilisateur

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Shaver

HQ8894

SENSOTEC

04/09

PRODUCT INFORMATION

General:

- Rechargeable / Main shaver

- Constant motor voltage

- Electronic push on/off

- Washable

Safety information

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Voltage : 100 - 240 Volt 50 - 60 Hz

- Motor voltage : 3,6 Volt

- Speed of cutters : > 2100 r.p.m.

- Shaving heads : HQ8 - 4222 036 05820

- Battery capacity indication : Polymer LED

- Battery full indication : Polymer LED

- Battery low indication : Polymer LED

- Charge indication : Polymer LED

- Battery : Li-ion

- SAP coding : HQ8894

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

Disassembly:

- Remove shaving unit, to prevent damages during

repairing.

- Remove screws A1 (2x).

- Take cover from housing (trimmer must be opened).

- Remove bracket large (17).

(see figure 1)

- The PCB-board can now be

removed out of the housing.

- Remove the connecting strip

from the motor by

dis soldering.

- Remove screws B1 (2 x), now

the motor and hairchamber

can be removed out of the

housing.

- Detach the motor springs (14) from the gearwheel unit

with a small screwdriver.

Assembly:

- Think by assembly on the

hooks from the connecting

strip assy. (see figure 2)

REPAIR INSTRUCTION

- No specific issues

OPTIONAL (accessories)

- No specific issues

figure 1

figure 2

HQ8894

2-3

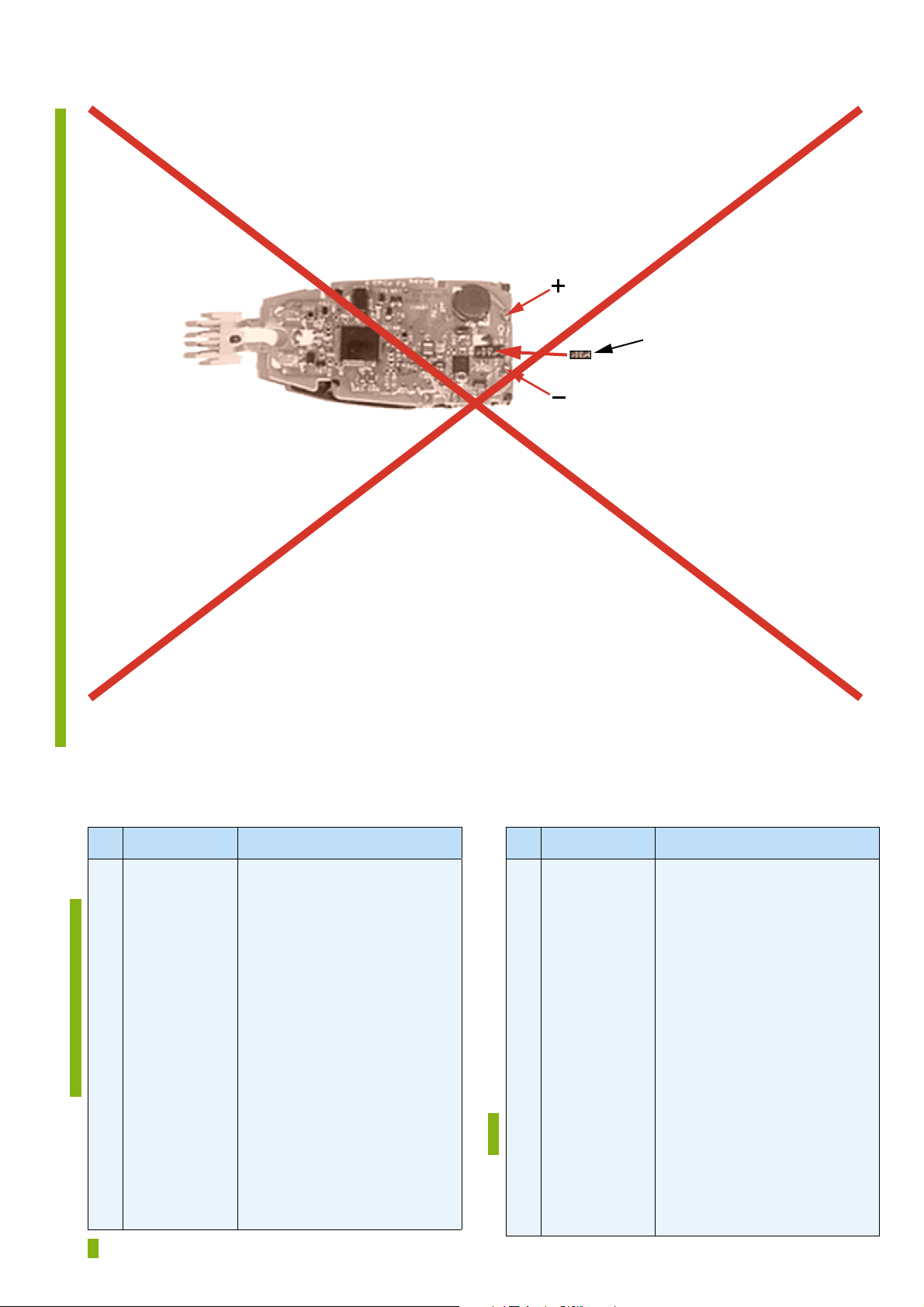

FAST SOLUTION FOR THE NEXT PROBLEM:

- The shaver stops while the the batteries are just recharged.

- No signal that the shaver has to be recharged.

- Stops during shave.

- Still minutes left on the display

Note:

Capacitor provided may deviate from type shown.

Warning:

While soldering, be careful not to make a short circuit between the battery (

) terminal coil and motor (+) terminal.

This may cause permanent damage to the battery and electronics

Mounting:

Mount the capacitor as shown (see picture) on the solder points of the connecting strip assy.Be sure to connect the (

) terminal of

the capacitor (

) (see silkscreen mark on top of the PCB) and the (+) terminal to the (+)Reversed mounting may cause permanent

damage to the shaver.

Use only the new mains from Euroservice Eindhoven.

PARTS LIST

Service code number

4222 036 10460

Pos Service code Description

4222 036 05770

4222 036 06380

4222 036 06790

4222 036 04080

4222 036 04020

4222 036 03970

4222 036 04090

4222 036 06800

4222 036 05110

4222 036 04030

4222 036 04000

4222 036 08930

4222 036 04040

4222 036 05800

4222 036 05810

4222 036 05820

4222 036 06390

4222 036 05840

4222 036 06450

4222 036 05410

cleaning brush

housing

power plug EUR curl

power plug EUR str

power plug AUS curl

power plug GBR curl

power plug GBR str

power plug CAN/TW/VEN curl

power plug CAN/TW/VEN str

power plug MEX curl

power plug KOR curl

power plug JAP curl

power plug PRC curl

protecting cap

bracket

HQ8 shaving heads

mains

holder assy

hair chamber

driving unit

Pos Service code Description

4822 466 12233

4822 522 10763

4222 036 01800

4822 492 71735

4222 036 09020

4222 036 05870

4222 036 05880

4222 036 06400

4222 036 06410

4222 036 06420

4222 036 05910

4222 036 06480

4222 036 06470

4222 036 06460

4222 036 10890

4222 036 10860

4222 036 08470

4222 036 05930

4222 036 06430

4222 036 06440

dust seal

pinion

motor

motor spring

connecting strip assy

trimmer assy

bracket large

spacer AA

Li-ion Batt

cover

rubber seal

poly-led assy

poly-led bracket

poly-led reﬂector

stand EUR

clock

screw J0

screw 1ADU

pouch

stand

= changed

HQ8894

3-3

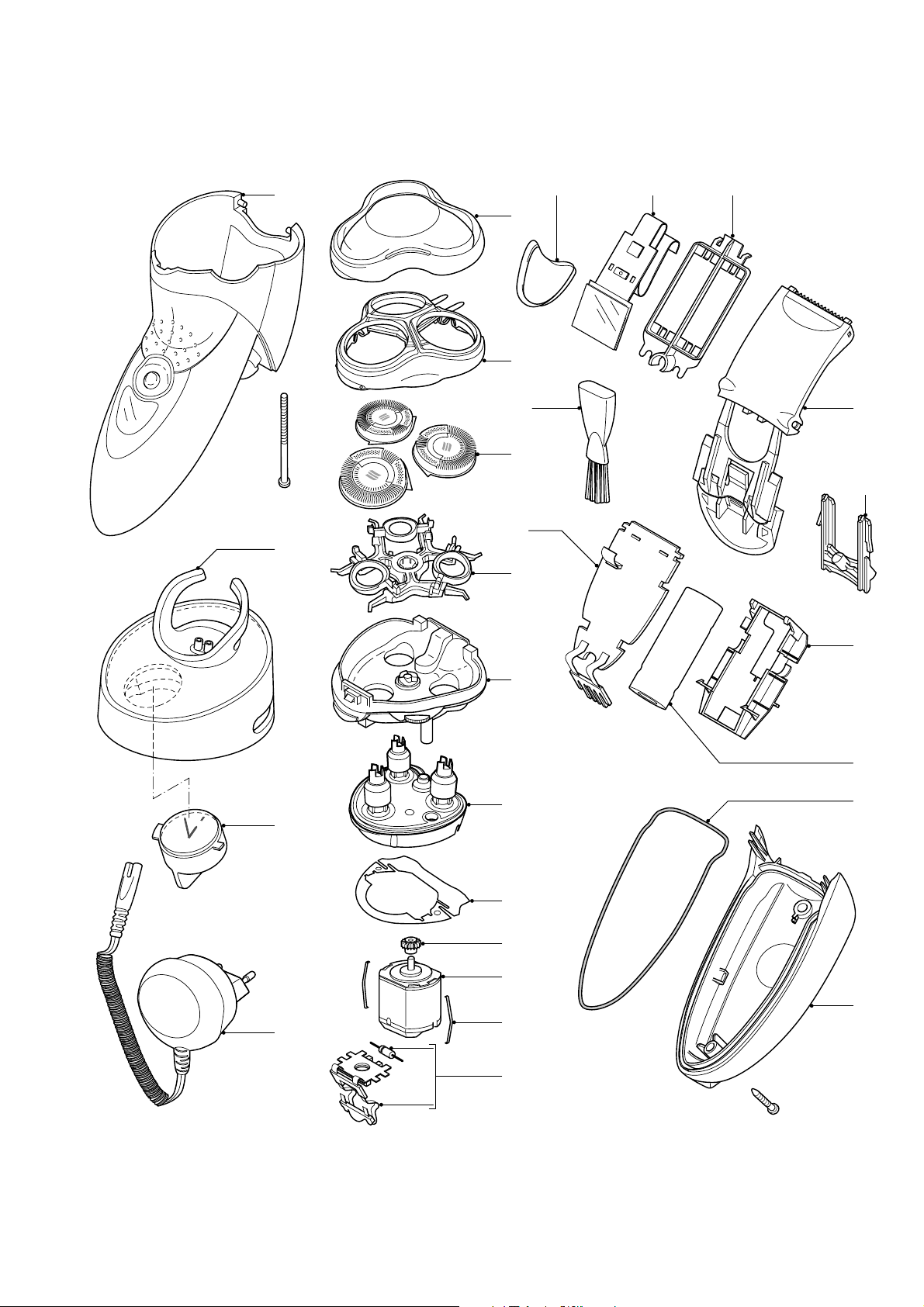

EXPLODED VIEW

–

24 22 23
