AZ 1110/14 page 3

DYNAMIC

•CD

•RADIO

•TAPE

POWER OFF

DBB

BOOST

POWER ON

SHUFFLE

MODE

STOP

PLAY•PAUSE

FM -

AM -

100

104

108

MHz

530

650

830

1000

1200

1600

KHz

OPEN

PAUSE

PLAY

RECORD

STOP • OPEN

PAUSE

PLAY

RECORD

STOP • OPEN

#% $

CONTROLS

1DBB (Dynamic Bass Boost) – to increase the bass level

2VOLUME – to adjust the volume level

3Cassette keys

PAUSE ;– to interrupt playback

STOP•OPEN 9/– to stop playback and open the cassette compartment

SEARCH 5– to fast forward the tape

SEARCH 6– to fast rewind the tape

PLAY 1– to start playback

RECORD 0– to start recording

4CD buttons

PLAY•PAUSE 2; – to start or interrupt CD playback

STOP 9– to stop playback

SEARCH ∞§– to skip or search a passage or a track

MODE – to select a different playback mode e.g. to SHUFFLE or REPEAT and to program track

numbers

5CD display – to indicate CD functions

6Cassette compartment

7TUNING – to tune to radio stations

8Tuning dial pointer

9Band selector – to select the wave band (FM-LW-MW)

0OPEN – to open the CD door

!Source selector – POWER ON/OFF switch and to select the sound source: CD - RADIO - TAPE

@p– 3.5 mm headphone socket

Note:

Connecting headphones will automatically disconnect the speakers

#Telescopic aerial – To improve FM reception

$MAINS – for mains lead

%Battery door – to open the battery compartment

Both the model and production numbers can be found on the bottom of the set.

BACK PANEL

TOP and FRONT PANEL

AZ 1110/14 page 4

English

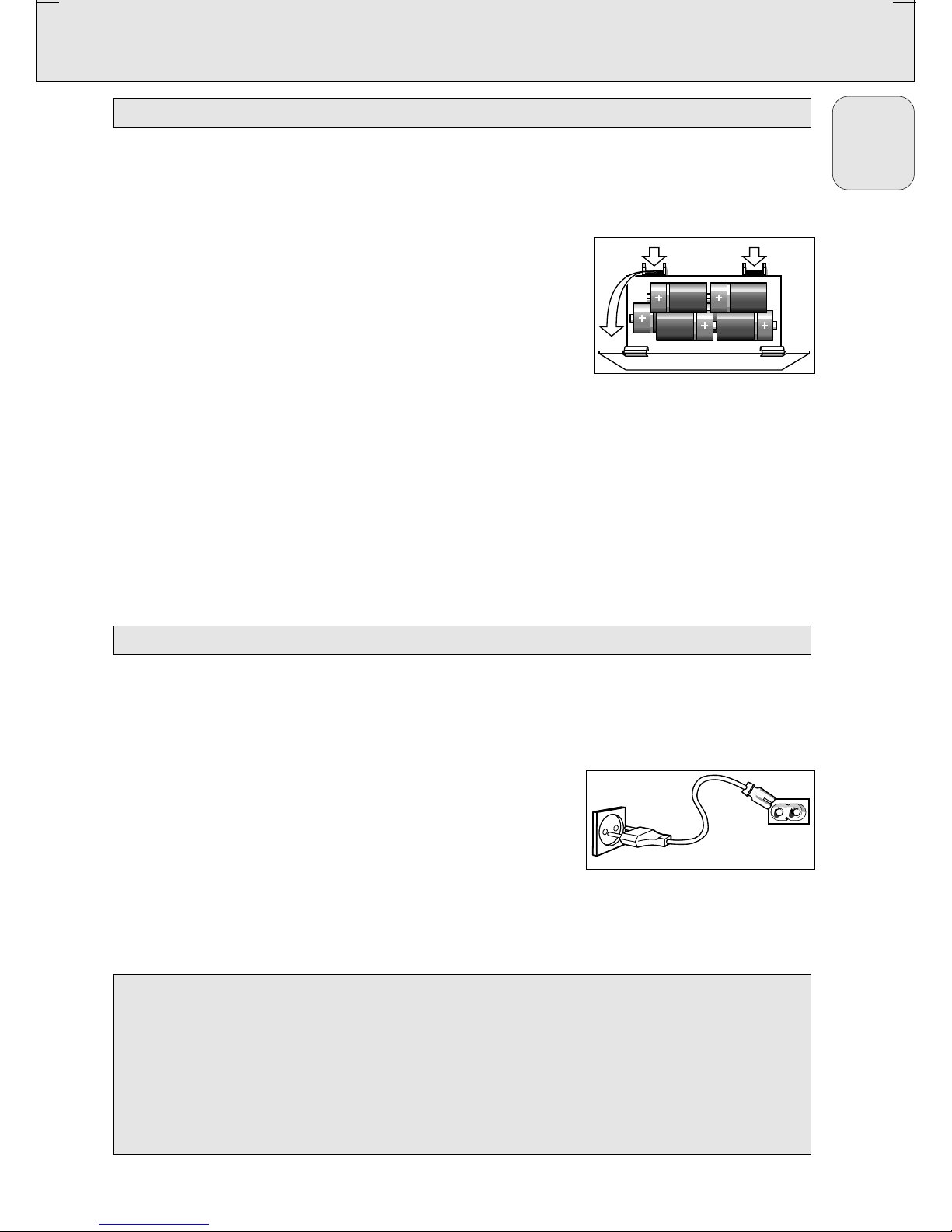

POWER SUPPLY

Whenever convenient, use the mains supply if you want to conserve

battery life. Make sure you remove the mains plug from the set and

wall socket before inserting batteries.

Batteries (optional)

Open the battery compartment and insert as shown six batteries,

type R20, or D-cells.

Replace the compartment door, making sure the batteries are

firmly and correctly in place.

Remove the batteries if exhausted or if they will not be used

again for a long period.

Batteries contain chemical substances, so they should

be disposed of properly.

– The incorrect use of batteries can cause electrolyte leakage and

will corrode the compartment or cause the batteries to burst.

Therefore:

– Do not mix battery types, e.g. alkaline with zinc carbonate.

– When inserting new batteries, replace all batteries at the same

time.

Note:

The battery supply is switched off when the set is connected

to the mains.

Check if the mains voltage as shown on the type plate (on the

bottom of the set) corresponds to your local mains voltage. If it

does not, consult your dealer or service organisation.

If your set is equipped with a voltage selector, set it to the local

mains voltage.

Connect the mains lead to the MAINS socket and the wall

socket.

– The set is now ready to use.

To switch off the mains supply completely, pull the mains plug

out of the wall socket.

– Disconnect the mains lead when you change over to battery

supply, or to protect the set during heavy thunderstorms.

Environmental information

All redundant packaging material has been omitted. We have done our utmost to make the packaging

easily separable into three mono materials: cardboard (box), expandable polystyrene (buffer) and

polyethylene (bags, protective foam sheet).

Your set consists of materials which can be recycled if dissassembled by a specialized

company. Please observe the local regulations regarding the disposal of packaging

materials, exhausted batteries and old equipment.

MAINS

BATTERIES

AZ 1110/14 page 5

English

6 x D-cells - R20

MAINS

OPERATION RADIO

To switch on the set, use the source selector

Adjust the sound using the VOLUME control and DBB switch.

To switch off the set, set the source selector to TAPE/OFF

position, with the cassette keys released.

Set the source selector to RADIO.

Adjust the sound using the VOLUME control and the DBB

switch.

Select the wave band using the FM-LW-MW band selector.

Tune to a radio station using the TUNING knob.

– For FM, pull out the telescopic aerial. To improve FM-

reception, incline and turn the aerial. Reduce its length if the

FM-signal is too strong (very close to a transmitter).

– For AM, (MW and LW) the set is provided with a built-in

aerial, so the telescopic aerial is not needed. Direct the aerial

by turning the whole set.

To switch off the set, set the source selector to TAPE/POWER

OFF position, with the cassette keys released.

RADIO

GENERAL OPERATION

AZ 1110/14 page 6

English

DYNAMIC

•CD

•RADIO

•TAPE

POWER OFF

DBB

BOOST

POWER ON

DYNAMIC

•CD

•RADIO

•TAPE

POWEROFF

DBB

BOOST

POWERON

SHUFFLE

MODE

STOP

PLAY•PAUSE

FM-

AM-

100

104

108

MHz

530

650

830

1000

1200

1600

KHz

OPEN

PAUSE

PLAY

RECORD

STOP• OPEN

PAUSE

PLAY

RECORD

STOP• OPEN

DYNAMIC

•CD

•RADIO

•TAPE

POWEROFF

DBB

BOOST

POWERON

SHUFFLE

MODE

STOP

PLAY•PAUSE

FM-

AM-

100

104

108

MHz

530

650

830

1000

1200

1600

KHz

OPEN

PAUSE

PLAY

RECORD

STOP• OPEN

PAUSE

PLAY

RECORD

STOP• OPEN

AM (MW-LW)

CD PLAYER

– Total track number: in stop position.

– Current track number: during CD play.

– Current track number flashes: in PAUSE mode.

–SHUFFLE/REPEAT mode: the respective mode is activated.

–PROGRAM: program function is active. P also appears briefly

when you store a track.

– No display: error in CD operation or with the CD

(see Troubleshooting).

Set the source selector to CD.

To open the CD compartment, press OPEN on the CD door.

Insert the audio CD, printed side facing up.

To close the CD compartment, push the door down.

– The CD player scans the contents of the CD and the total

number of tracks is displayed

Press PLAY•PAUSE 2; to start playback.

Adjust the sound using the VOLUME control and the DBB switch.

To interrupt playback, press PLAY•PAUSE 2;.

Press PLAY•PAUSE 2; again to continue playback.

Press STOP 9to stop CD playback.

Set the source selector to TAPE/OFF position to switch off the

set.

Note:

CD playback will also stop when:

– the CD has reached the end;

– the CD door is opened;

– the source selector is in the RADIO or TAPE/OFF position.

Selecting a different track during playback

– You can jump to the next track by pressing SEARCH §once. If

you want to skip more than one track, press SEARCH §more

than once until the display shows the desired track number.

– If you want to repeat the running track from the beginning,

press

∞SEARCH once. If you want to repeat one of the previous

tracks, press ∞SEARCH more than once until the display

shows the required track number.

Starting with a particular track

In the STOP position you can select a desired track using the

∞SEARCH or SEARCH §button.

Press PLAY•PAUSE 2; to start playback.

SEARCH ∞ or §

PLAYING A CD

CD DISPLAY INDICATION

AZ 1110/14 page 7

English

SHUFFLE

REPEAT

ALL

PROGRAM

SHUFFLE

STOP

PLAY•PAUSE

SEARC

OPEN

SEARC

OPEN

SHUFFLE

MODE

PLAY

RECORD

STOP • OPEN

PLAY

RECORD

STOP • OPEN

CD PLAYER

Searching for a passage within a track

You can search for a passage within a track. The CD is played at

low volume and at high speed, however, the sound is still

recognizable.

Keep the ∞SEARCH or SEARCH §button pressed during

playback, and release the button as soon as you recognize the

required passage:

– Normal CD playback will resume from this point.

The MODE button allows you to select four different modes. The

modes can be selected or changed during playback.

During playback only, press MODE until the desired function

appears on the display.

REPEAT - Continuous playback of the current track.

SHUFFLE - Tracks are played in random order.

REPEAT ALL, SHUFFLE - Continiuous playback of tracks in

random order.

REPEAT ALL - Repeats the entire CD.

– During playback you can use ∞SEARCH or SEARCH §to

skip tracks.

To leave the SHUFFLE mode, press the MODE button repeatedly

until the various SHUFFLE/REPEAT modes are no longer shown

on the display. You can also press STOP 9to quit playback.

You may store at most 20 tracks in the memory in the desired sequence. You may store any track more

than once.

Programming track numbers

In the stop position select the desired track using ∞SEARCH

or SEARCH §until the display shows the desired track number.

Store the desired track by pressing MODE once.

– The display shows P and PROGRAM followed by your

selected track number.

Select and store all desired tracks of a CD in this way.

Checking a program

To review the set program, in the stop position press and hold

MODE for more than 2 seconds.

– The display will show the track numbers you have selected in

sequence.

To start playback of the program, press PLAY•PAUSE 2;.

– Playback starts with the first track of the program. After the

last track, playback stops and the display shows the CD’s

total number of tracks.

PROGRAMMING TRACK NUMBERS

SHUFFLE/REPEAT

AZ 1110/14 page 8

English

REPEAT

ALL

REPEAT



x 1

x 2

x 3

x 4

REPEAT

ALL



SHUFFLE



SHUFFLE

MODE

PLA

RECORD

PLAY

RECORD

CD PLAYER CASSETTE RECORDER

Erasing a program

You can erase a program by:

– opening the CD door.

– setting the source selector to the TAPE or RADIO position.

– pressing STOP twice during playback/in the stop position.

Set the source selector to TAPE.

Press STOP•OPEN 9/to open the cassette holder.

Insert a recorded cassette.

Press PLAY 1and playback will start.

Adjust the sound using the VOLUME, and DBB controls.

For brief interruptions, press PAUSE ;. Press PAUSE ;again to

resume playback.

By pressing 5or 6, fast winding of the tape is possible in

both directions.

To stop playback, press STOP•OPEN 9/.

– The keys are automatically released at the end of the tape.

Set the source selector to TAPE/POWER OFF position (with the

cassette keys released) to switch off the set.

General information on cassette recording

– Recording is permissible insofar as copyright or other rights of

third parties are not infringed.

– This deck is not suited for recording on CHROME (IEC II) or

METAL (IEC IV) type cassettes. For recording you should use

NORMAL type cassettes (IEC I) on which the tabs have not

been broken.

– The recording level is set automatically. Altering the VOLUME

control or, DBB switch will not affect the recording in progress.

– No recording will take place during the first 7 seconds, when

the leader tape passes the recorder heads.

– To prevent the accidental erasure of a recording, keep the

cassette side to be safeguarded in front of you and break out

the left tab. Recording on this side is no longer possible.

CASSETTE RECORDING

CASSETTE PLAYBACK

PROGRAMMING TRACK NUMBERS

AZ 1110/14 page 9

English

DYNAMIC

•CD

•RADIO

•TAPE

POWER OFF

DBB

BOOST

POWER ON

BOO

Y•

PAUSE

PLAY

RECORD

STOP • OPEN

PAUSE

PLAY

RECORD

STOP • OPEN

CASSETTE RECORDER

Set the source selector to RADIO.

Tune to the desired radio station using the TUNING knob.

Press STOP•OPEN 9/to open the cassette holder.

Insert a blank cassette.

Press RECORD 0to start recording.

For brief interruptions, press PAUSE ;. To resume recording,

press PAUSE ;again.

To stop, press STOP•OPEN 9/.

Set the source selector to CD.

Insert a CD and if desired, program track numbers.

Press STOP•OPEN 9/to open the cassette holder.

Insert a blank cassette.

Press RECORD 0to start recording.

– Playing of the CD program starts automatically from the

beginning of the program. It is not necessary to start the CD

player separately.

For brief interruptions, press PAUSE ;. To resume recording,

press PAUSE ;again.

To stop recording press STOP•OPEN 9/.

To select and record a particular passage within a track

Press ∞SEARCH or SEARCH §to select a passage.

Put the CD player in PAUSE ;position at the selected passage.

– Recording will start from this exact point when you press

RECORD 0.

CD SYNCHRO START RECORDING

RECORDING FROM THE RADIO

AZ 1110/14 page 10

English

DYNAMIC

•CD

•RADIO

•TAPE

POWER OFF

DBB

BOOST

POWER ON

LAY•PAUSE

PAUSE

PLAY

RECORD

STOP • OPEN

PAUSE

PLAY

RECORD

STOP • OPEN

Y•PA

USE

PAUSE

PLAY

RECORD

STOP • OPEN

PAUSE

PLAY

RECORD

STOP • OPEN

SHUFFLE

MODE

PLAY

RECORD

PLAY

RECORD

MAINTENANCE

– Place the set on a hard, flat surface so that it does not tilt.

– Do not expose the set, CDs, batteries or cassettes to humidity,

rain, sand, direct sunlight or other places where high temper-

atures can occur, such as in the vicinity of heating apparatus or

in motor cars parked in the sun.

– Do not cover the set. The amplifier produces heat which must

dissipate freely, so make sure that there is sufficient ventilation

around the set. A minimum gap of 15 cm is necessary.

– The mechanical parts of the CD player and the cassette deck

contain self-lubricating bearings and must not be oiled or

lubricated.

– A chamois leather slightly moistened with water is sufficient

for cleaning the housing. Do not use cleaning agents containing

alcohol, spirits, ammonia or abrasives as these may harm the

housing.

– The lens of the CD player should never be touched.

– The lens may cloud over if the set is moved from cold to warm

surroundings. The CD player will not start. Give the player some

time to acclimatise.

– To take a CD out of its box, press the centre spindle while

lifting the CD. Always pick up the CD by the edge and replace

the CD back in its box after use to avoid scratching and dust.

– To clean the CD, wipe in a straight line from the centre towards

the edge using a soft, lint-free cloth. Do not use cleaning

agents as they may damage the disc.

– Never write on a CD or attach stickers to it.

To ensure a good recording and playback quality, clean the

indicated parts A,Band Cafter every 50 hours of operation or,

on average, once a month. Use a cotton bud slightly moistened

with alcohol or a

special head cleaning fluid.

• Press PLAY 1and clean the rubber pressure roller C.

• Then press PAUSE ;and clean the capstan Band the heads A.

• After cleaning, press STOP•OPEN 9/.

Cleaning of the heads Acan also be done by playing a cleaning

cassette through once.

RECORDER MAINTENANCE

CD MAINTENANCE

PRECAUTIONS & GENERAL MAINTENANCE

AZ 1110/14 page 11

English

DYNAMIC

•CD

•RADIO

•TAPE

POWEROFF

DBB

BOOST

POWERON

SHUFFLE

MODE

STOP

PLAY•PAUSE

FM-

AM-

100

104

108

MHz

530

650

830

1000

1200

1600

KHz

OPEN

PAUSE

PLAY

RECORD

STOP• OPEN

PAUSE

PLAY

RECORD

STOP• OPEN

AABC

TROUBLESHOOTING

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING: Under no circumstances should you try to repair the set yourself, as this would

invalidate the guarantee.

AZ 1110/14 page 12

English

PROBLEM

Set does not react to

operation of any control.

Display does not function

properly.

No sound.

Bad sound.

Severe radio hum or noise.

Poor radio reception.

Poor cassette sound quality.

Recording does not work.

CD playback does not work.

The CD skips tracks.

POSSIBLE CAUSE

– Electrostatic discharge.

– VOLUME is not adjusted.

– Headphones are connected.

– Batteries are exhausted.

– Batteries are incorrectly

inserted.

– Mains lead is not securely

connected.

– Batteries are exhausted.

– Set too close to TV, VCR or

computer.

– Weak radio signal.

– Dust and dirt on the heads,

capstan or pressure roller.

– Use of incompatible cassette

types (METAL or CHROME).

– Cassette tab(s) may be broken

out.

– CD is badly scratched or dirty.

– No CD inserted.

– CD inserted upside down.

– Laser lens is steamed up.

– MODE pressed but no tracks

selected during programming.

– CD is damaged or dirty.

– PROGRAM/SHUFFLE is active.

REMEDY

• Switch off the set, disconnect

the mains plug and reconnect

after a few seconds.

• Switch off the set, disconnect

the mains plug and reconnect

after a few seconds.

• Adjust the VOLUME.

• Disconnect headphones.

• Insert fresh batteries.

• Insert the batteries correctly.

• Connect the mains lead

properly.

• Replace batteries.

• Increase the distance.

• FM: aim and extend the

telescopic aerial for best

reception;

• AM (MW-LW): rotate the

entire set.

• Clean the heads etc., see

Maintenance.

– Only use NORMAL (IEC I) for

recording.

• Apply a piece of adhesive tape

over the missing tab space.

• Replace or clean the CD, see

Maintenance.

• Insert CD.

• Insert CD with printed side

facing up.

• Wait until lens has

acclimatized.

• Select tracks or erase

program.

• Replace or clean the CD.

• Switch off the PROGRAM/-

SHUFFLE function.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Lecteur CD

Philips

Philips AZ1020/17 Manuel utilisateur

Philips

Philips AZ1022/05 Manuel utilisateur

Philips

Philips AZ7381 Manuel utilisateur

Philips

Philips CDI 220/00 Manuel utilisateur

Philips

Philips eXpanium eXp 511 Manuel utilisateur

Philips

Philips CDC735 Manuel utilisateur

Philips

Philips AX2201 Manuel utilisateur

Philips

Philips AX5311 Manuel utilisateur

Philips

Philips AZ7383 - Cd Personal Manuel utilisateur

Philips

Philips AZ6822 - Portable Radio Cass Rec Manuel utilisateur

Philips

Philips AZ6834 - Portable Radio Cass Rec Manuel utilisateur

Philips

Philips CD 210 Manuel utilisateur

Philips

Philips AZ2035/17 Manuel utilisateur

Philips

Philips AZ1040/05 Manuel utilisateur

Philips

Philips AZ1202 Manuel utilisateur

Philips

Philips CD 620 Manuel utilisateur

Philips

Philips AZ6834 - Portable Radio Cass Rec Manuel utilisateur

Philips

Philips AZ 9003/01 Manuel utilisateur

Philips

Philips AZ1140/00 Manuel utilisateur

Philips

Philips CD Soundmachine AZ1837 Manuel utilisateur

Philips

Philips AZ 7275 Manuel utilisateur

Philips

Philips FW-C330 Manuel utilisateur

Philips

Philips MG9218 Manuel utilisateur

Philips

Philips AZ3811 Manuel utilisateur

Manuels Lecteur CD populaires d'autres marques

RCA

RCA RP-7923 Manuel utilisateur

Pioneer

Pioneer DEH-P3550MP XM Manuel utilisateur

Lasonic

Lasonic MSU-2020 Manuel utilisateur

THOMSON

THOMSON RCD150 Manuel utilisateur

Denon

Denon DCD-1420 Manuel utilisateur

Panasonic

Panasonic SJ-MR100 Manuel utilisateur

Onkyo

Onkyo DX-7210 Manuel utilisateur

Sony

Sony MZ-R3 Manuel utilisateur

Denon

Denon DVM-4800 Manuel utilisateur

JBL

JBL MR-32 Manuel utilisateur

RCA

RCA RCD152 Manuel utilisateur

Technics

Technics SL-PS770A Manuel utilisateur

Clarion

Clarion compact disc Manuel utilisateur

Sony

Sony MZ-M10 Manuel utilisateur

Rotel

Rotel RCD 975 Manuel utilisateur

Pioneer

Pioneer CLD-D790 Manuel utilisateur

Optimus

Optimus CD-8250 Manuel utilisateur

Audiovox

Audiovox CE101A - annexe 1 Manuel utilisateur
