Philips CED1900 Manuel utilisateur

www.philips.com/welcome

User manual

Always there to help you

CED1900

Question?

Contact

Philips

1EN

Contents

1 Safety 3

2 Your car entertainment system 4

Introduction 4

What's in the box 4

Overview of the main unit 5

Overview of the remote control 6

3 Install the car entertainment system 8

Connect wires 8

Mount into the dashboard 12

4 Get started 13

Prepare the remote control 13

Turn on 13

Use the home menu 14

Set the date and time 15

Adjust the screen brightness 15

Switch display designs 15

5 Play from hard media 17

Load a disc 17

Connect a USB storage device 17

Insert an SD/SDHC card 18

Control play 18

Browse recorded les 20

About DivX® videos 20

6 Listen to radio 22

Switch to radio mode 22

Set up 22

Tune to a radio station 22

Store radio stations in memory 23

Tune to a preset radio station 23

Use RDS related features 23

7 Use the navigation system 25

Insert the map data card 25

Navigate your road trip 25

8 Use Bluetooth devices 26

Activate the Bluetooth function 26

Pair a device 26

Play audio from a connected device 28

Make a call 29

9 Play from an iPod/iPhone 32

Compatible iPod/iPhone models 32

Connect your iPod/iPhone 32

Control play 32

Charge your iPod/iPhone 33

10 Adjust sound 34

Adjust the volume level 34

Mute sound 34

Enable the maximum sound 34

Enable the DBB sound effect 34

Enable the FullSound effect 34

Select a preset sound equalizer 34

Others 35

11 Adjust settings 37

Access system setup menus 37

Adjust general settings 37

View system information 38

Adjust Navigation settings 38

Adjust Bluetooth settings 39

12 Others 40

Play external audio/video input 40

Use rear monitors 40

Use buttons on the steering wheel 41

Set the rear view camera 42

Reset the system 42

Replace the fuse 42

Upgrade the rmware 43

13 Product information 44

14 Troubleshooting 46

General 46

About the Bluetooth device 46

2EN

15 Notice 48

Compliance 48

Care of the environment 48

Trademark notice 48

3EN

1 Safety

Read and understand all instructions before you

use the device. If damage is caused by failure to

follow instructions, the warranty does not apply.

• Use of controls or adjustments or

performance of procedures other than

herein may result in hazardous radiation

exposure or other unsafe operation.

• The device is designed for negative ground

(earth) 12 V DC operation only.

• To reduce the risk of trafc accidents, do

not watch video when driving.

• To ensure safe driving, adjust the volume to

a safe and comfortable level.

• Improper fuses can cause damage or

re. When you need to change the fuse,

consult a professional.

• Use only the supplied mounting hardware

for a safe and secure installation.

• To avoid short circuits, do not expose the

device, remote control or remote control

batteries to rain or water.

• The device shall not be exposed to

dripping or splashing.

• Do not place any sources of danger on

the device (e.g. liquid lled objects, lighted

candles).

• Never insert objects into the ventilation

slots or other openings on the device.

• Never place any objects other than discs

into the disc tray/slot.

• To avoid exposure to laser radiation, do

not disassemble the device.

• Risk of damage to the screen! Never touch,

push, rub or strike the screen with any

object.

• Never use solvents such as benzene,

thinner, cleaners available commercially, or

anti-static sprays intended for discs.

• Clean the device with soft, damp cloth.

Never use substances such as alcohol,

chemicals or household cleaners on the

device.

• Risk of swallowing batteries! A coin

type battery is bundled, which can be

swallowed. Keep the battery out of reach

of children at all times!

4EN

2 Your car

entertainment

system

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product

at www.philips.com/welcome.

Introduction

With the car entertainment system, you can

• listen to music,

• watch videos,

• view pictures,

• listen to FM (RDS included) and AM/MW

radio,

• make phone calls via Bluetooth, and

• navigate your road trip.

What's in the box

Check and identify the contents of the package:

1Main unit 2Remote

control

3ISO male connector

X 2

4Rubber

cushion

5Screw X 4 (M5x8mm) 6Hexagon

head

screw

7Remote control

battery

8User

manual

9Quick start guide

ef g

h i

5EN

Overview of the main unit

• Press to eject the disc.

• Press to access the navigation system.

• Press and hold to adjust the brightness

of LCD screen.

• Press to turn on the unit.

• Press and hold to turn off the unit.

• Press to mute the speakers or release

them from mute status.

d RESET

• Press to reset the system.

• Insert an SD/SDHC card.

f MAP

• Insert a microSD card that stores the

digital map data.

g iR sensor

• The sensor that receives infra-red

signals from the remote control.

h AV-IN

• Connect to the audio and video

output sockets of an external player by

a composite AV cable.

• Connect to a USB storage device or

iPod/iPhone.

j LCD screen

k +/-

• Press to increase or decrease the

volume.

l MIC

• The built-in microphone for phone

calls.

6EN

Overview of the remote

control

a SOURCE

• Press repeatedly to select a source.

• Press to eject the disc.

• Return to the previous menu or mode.

d VOLUME + / -

• Press to increase or decrease the

volume.

• Access the home menu.

• Enable or disable the maximum sound.

• Switch to video playback mode.

• Enable or disable the FullSound effect.

i DVD AUDIO

• Select an audio language or audio

channel.

j DBB

• Enable or disable the DBB (Dynamic

Bass Boost) sound effect.

k EQ

• Select a preset sound equalizer.

l MUSIC ZONE

• Select a music listening zone.

• Turn on or off the screen.

• Switch to the control interface for

front source or rear source.

o TOP MENU

• Return to top menu.

p DVD MENU

• Access the DVD menu.

• Switch to music playback mode.

• Switch to picture slideshow mode.

• Start, pause, or resume the play.

t OK

• Conrm an option.

u / /TRACK -/TRACK +

• Skip to the previous or next track,

chapter, or le.

• For DVD, press and hold to select a

speed for fast backward or forward

search.

v BAND

• Select a tuner band.

w / /PRESET +/PRESET -

• Tune to the previous or next preset

radio station.

7EN

• Skip to the previous or next folder.

• Press to turn on the system.

• Press and hold to turn off the system.

• Press to mute the speakers or release

them from mute status.

y NAVI

• Press to access the navigation system.

8EN

3 Install the car

entertainment

system

Always follow the instructions in this chapter in

sequence.

These instructions are for a typical installation.

However, if your car has different requirements,

make the adjustment accordingly. If you have

any question regarding installation kits, consult

your local retailer.

Note

•This system is designed for negative ground (earth) 12V

DC operation only.

•Always install this system in the car dashboard. Other

locations can be dangerous as the rear of the system

heats up during use.

•To avoid short-circuit: before you connect, make sure

that the ignition is off.

•Make sure that you connect the yellow and red power

supply leads after all other leads are connected.

•Make sure that all loose leads are insulated with

electrical tape.

•Make sure that the leads do not get caught under

screws iron parts that will move (e.g. seat rail).

•Make sure that all ground (earth) leads are run to a

common ground (earth) point.

•Use only the supplied mounting hardware for a safe

and secure installation.

•Improper fuses can cause damage or re. When you

need to change the fuse, consult a professional.

•When you connect other devices to this system, make

sure that the rating of the car circuit is higher than the

total fuse value of all the connected devices.

•Never connect speaker wires to the metal body or

chassis of the car.

•Never connect speaker wires with stripes to one

another.

Connect wires

Note

•Make sure that all loose leads are insulated with

electrical tape.

•Consult a professional to connect wires as instructed

below.

•Before connection, check the car's wiring carefully.

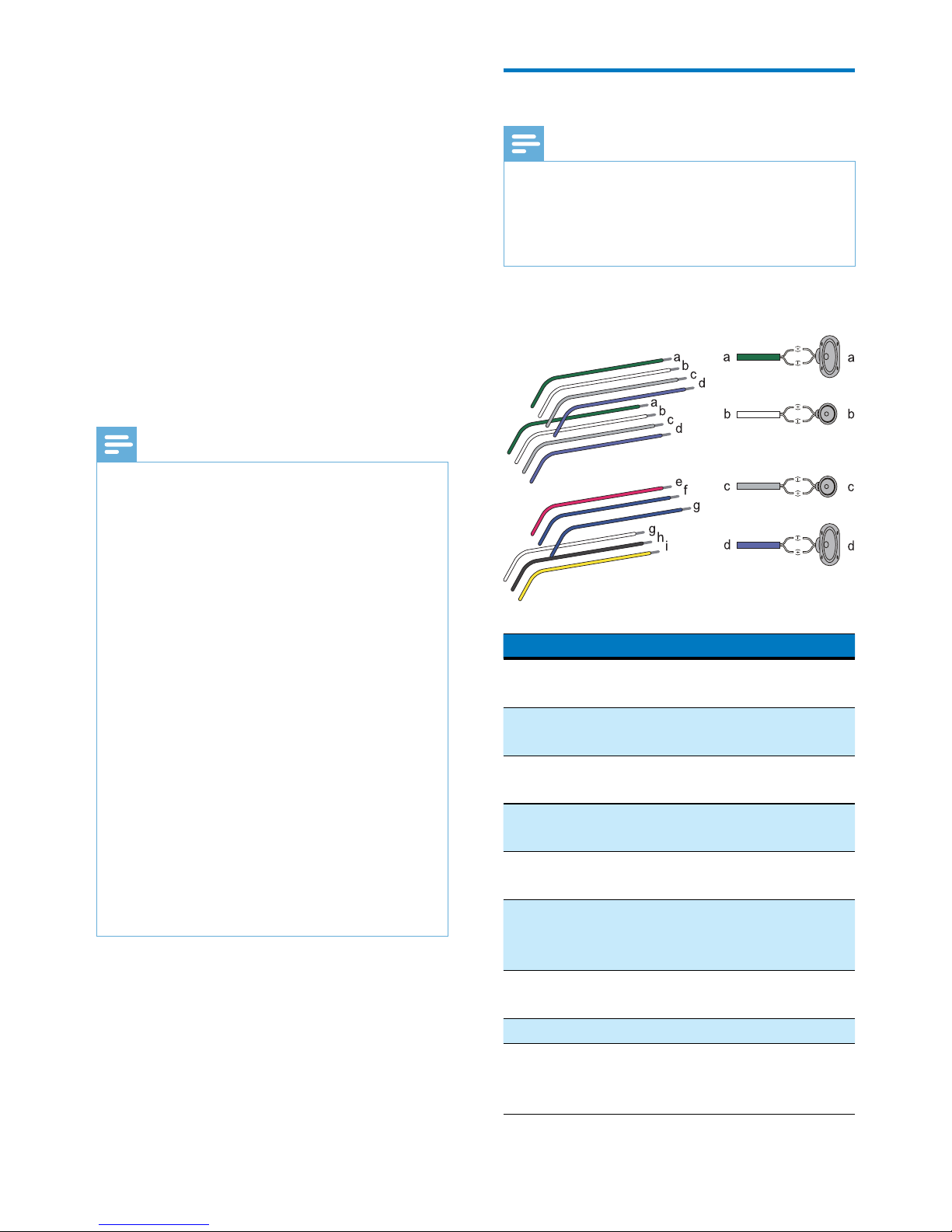

1 Connect the ISO male connectors.

ISO male connectors Connect to

1 Green strip, black-

edged green strip

Rear left speaker

2 White strip, black-

edged white strip

Front left speaker

3 Gray strip, black-

edged gray strip

Front right speaker

4 Purple strip, black-

edged purple strip

Rear right speaker

e Red strip Ignition key +12V

DC when ON/ACC

f Blue strip Motor/electric

antenna relay

control lead

g Blue strip, white strip Amplier relay

control lead

h Black strip Ground

i Yellow strip The +12V car

battery which is

energized at all times

Autres manuels pour CED1900

Table des matières

Autres manuels Philips Récepteur de voiture

Philips

Philips CE130 Manuel utilisateur

Philips

Philips CEM220/55 Manuel utilisateur

Philips

Philips CED228/98 Manuel utilisateur

Philips

Philips CE138/85 Manuel utilisateur

Philips

Philips CE132G Manuel utilisateur

Philips

Philips CE135BT Manuel utilisateur

Philips

Philips CEM2000/51 Manuel utilisateur

Philips

Philips CE130 Manuel utilisateur

Philips

Philips CED110 Manuel utilisateur

Philips

Philips CEM250 Manuel utilisateur

Philips

Philips CEM3000/51 Manuel utilisateur

Philips

Philips CEM2000B Manuel utilisateur

Philips

Philips CE138 Manuel utilisateur

Philips

Philips CEM3000 Manuel utilisateur

Philips

Philips CEM2250/51 Manuel utilisateur

Philips

Philips CarStudio CEM1100 Manuel utilisateur

Philips

Philips CE120 Manuel utilisateur

Philips

Philips CarStudio CEM2101R/51 Manuel utilisateur

Philips

Philips CEM3000 Manuel utilisateur

Philips

Philips CarStudio CEM2250 Manuel utilisateur

Philips

Philips CED1800BT Manuel utilisateur

Philips

Philips CEM3000X/78 Manuel utilisateur

Philips

Philips CEM200 Manuel utilisateur

Philips

Philips CarStudio CEM2101R/51 Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
