1 Important

Safety

Read and understand all instructions•

before you use the apparatus. If damage

is caused by failure to follow instructions,

the warranty does not apply.

This unit is designed for negative ground•

(earth) 12 V DC operation only.

Use only the supplied mounting hardware•

for a safe and secure installation.

Do not connect any active speakers (with•

built-in amplier) to the speaker terminals

of the unit. Doing so may damage the

active speakers.

To ensure safe driving, adjust the volume•

to a safe and comfortable level.

To avoid short circuit, do not expose the•

apparatus, remote control or remote

control batteries to rain or water.

Never expose the apparatus to direct•

sunlight, naked ames or heat.

Clean the apparatus with soft, damp•

cloth. Never use substances such as

alcohol, chemicals or household cleaners

on the apparatus.

Notice

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to

separate into three materials: cardboard (box),

polystyrene foam (buffer) and polyethylene

(bags, protective foam sheet.)

Your system consists of materials which can

be recycled and reused if disassembled by

a specialized company. Please observe the

local regulations regarding the disposal of

packaging materials, exhausted batteries and

old equipment.

Overview of the main unit

aOUTPUT L/R

Connect additional amplier for •

additional speakers.

bFRONT INPUT L/R

Connect car audio with RCA cable.•

cFRONT INPUT L/R

Adjust input level (0.3V to 6V).•

dHI INPUT

Connect car audio with the supplied•

high input connector.

eFRONT FREQ

Adjust frequency of HPF or LPF from•

30Hz to 400Hz.

fFRONT HPF/OFF/LPF

Select High-pass-lter (HPF), Low-•

pass-lter(LPF) or OFF (at) mode.

gPROTECT

Lights in red when the PROTECTOR•

is activated.

hPOWER

Light in blue when power is turned on.•

iBASS BOOST

Boost the frequencies at around•

45Hz to a maximum of 12dB.

jREAR HPF/OFF/LPF

Select High-pass-lter (HPF), Low-•

pass-lter(LPF) or OFF (at) mode.

abdcegfhijklm

FR FL

on p

2 Your car power

amplifier

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product

at www.philips.com/welcome.

Introduction

With the amplier, you can enjoy high quality

sound performance with powerful bass and

beats.

What’s in the box

Check and identify the contents of your

package:

a Amplier

bScrew_4x25mm (x4)

cFuse (x2)

dHi input connector

English

kREAR FREQ

Adjust frequency of HPF or LPF from•

30Hz to 400Hz.

lREAR INPUT LEVEL

Adjust input level (0.3V to 6V).•

mREAR INPUT L/R

Connect car audio with RCA cable.•

nPOWER (GND/REM/+12V)

Connect +12V DC power cable,•

ground wire and remote wire..

oFuse: 20A x 2

pSPEAKER OUTPUT

Connect to speakers or subwoofers.•

Connect speakers

Note

Use speakers with an impedance of 2 to 8 ohm•(4 to 8 ohm when used as a bridged amplier).

Match the “left”, “right”, “+” and “-” terminals

•

correctly. Revised polarity may degrade sound

quality.

Option 1: Mono bridged mode: connect

2 speaker

Option 2: Stereo mode: connect 4 speakers

Option 3:Tri-mode: connect 6 speakers

FR FL

4 ohm

speaker

4 ohm

speaker

FR FL

4 ohm

speaker 4 ohm

speaker

4 ohm

speaker

4 ohm

speaker

FR FL

4 ohm

speaker

4 ohm

speaker 4 ohm

speaker

4 ohm

speaker

8 ohm

speaker

8 ohm

speaker

3 Installation

Installation

You can mount the amplier either under a seat

or on the rear tray.

Note

To avoid interference, do not place the•amplier too close to the car audio or antenna.

The supplied mounting screws are 25mm long.

•

Make sure that the mounting board is thicker

than 25mm.

1Place the unit on the location for

installation.

2Mark the positions of the four screw

holes.

3Drill the holes with driller of

approximately 4mm in diameter.

4Mount the unit with the supplied screws.

English

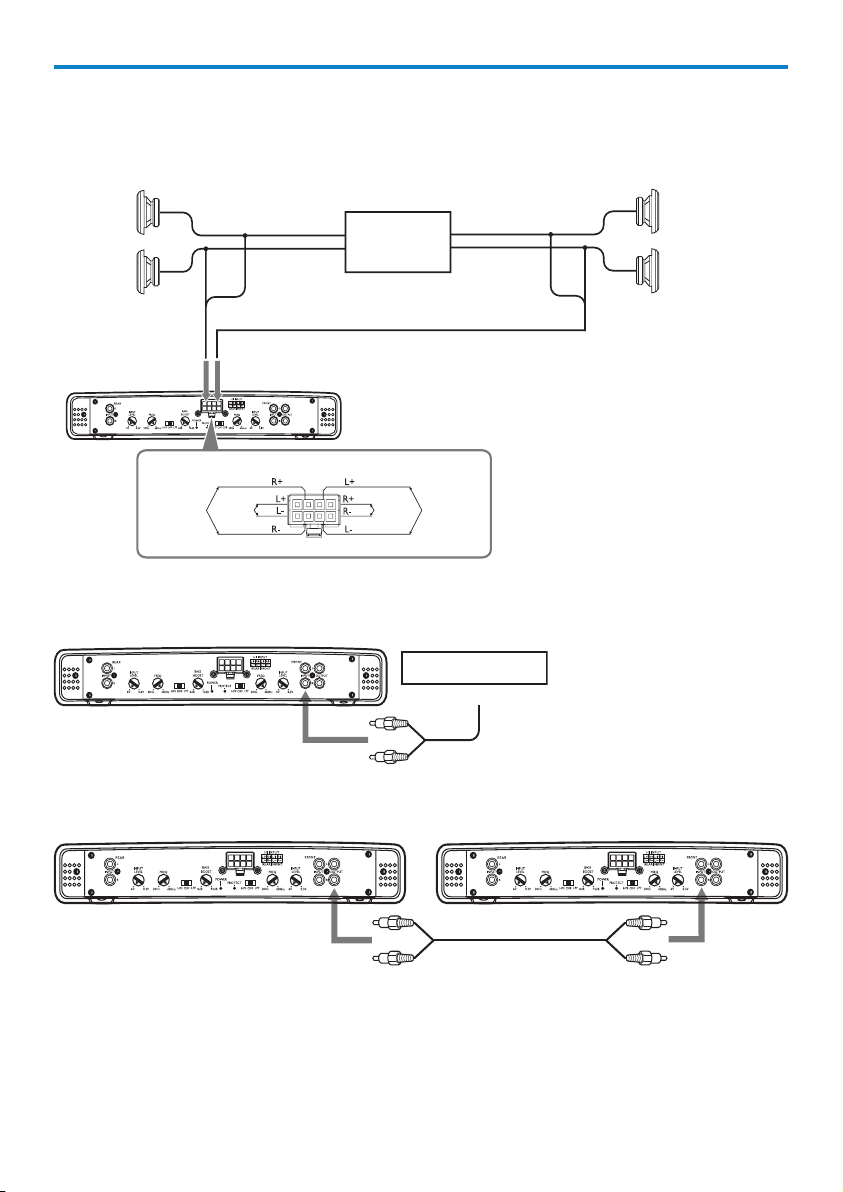

Connect car audio

Option 1: High level input connection

Connect the amplier to your car audio with the supplied High level input connector.

Option 2: Line input connection

Connect the amplier to the car audio with an RCA cable (not supplied)

Option 3: Line output connection

Connect the amplier to another amplier.

Left speaker

Right speaker

Left speaker

Right speaker

Car audio unit

Green

Purple/Black

Green/BlackGrey/Black

Purple

Grey

White/Black

White

HI INPUT

LINE OUT

Car audio unit

Connect power

1Make the power connection as illustrated below:

Connect the ground wire from the car to the• GND socket.

Connect the remote wire from the car audio to the• REM socket.

√ With this connection, you can turn on/off the amplier with the car udio.

Connect the power wire from the car battery to the• +12V socket.

Tip

If your car audio does not have remote output, connect the remote input terminal (REM) to the accessory•

power supply.

FR FL

to a metal point of the car

Car audio unit

Remote output

Fuse (40 A)

+12 V car battery

less than 450 mm (18 in)

English

1Rotate FREQ to select frequency.

Adjust input level

You can adjust the input voltage from 0.3V to 6V.

1Rotate INPUT LEVEL to adjust input

voltage.

Adjust bass boost

You can punch extra bass for 0 to 12dB.

1Rotate BASS BOOST to punch for extra

bass.

About the protector

indicator

The amplier has a built-in protection circuit to

protect the transistors and speakers when:

The unit is overheated. Or•

A DC current is generated. Or•

The battery voltage is over low or•

over high. Or

4 Use your power

amplifier

Select crossover frequency

mode

You can select crossover frequency mode as

below:

HPF

(high-

pass-lter)

mode

Select this mode when mid-

range speakers and tweeters are

connected for high frequency

output.

LPF (Low-

pass-lter)

mode

Select this mode when woofer

and subwoofer is connected for

low frequency output.

OFF (at)

mode

Select this mode when tri-mode

speaker connection is used.

1Slide HPF/OFF/LPF to the selected

positon.

Adjust frequency

You can adjust frequency of HPF or LPF from

30HZ to 400Hz.

Note

When the•HPF/OFF/LPF switch is set at OFF

position, the frequency adjustment does not

work.
