PerkinElmer FT-IR Manuel utilisateur

L1050070A

PerkinElmer Ltd, Chalfont Road, Seer Green,

Beaconsfield, BUCKS, HP9 2FX, United Kingdom.

Produced in the UK.

General Purpose Optical Bench with

External LiTaO3Detector Accessory

A Spectrum 100 Series or Spectrum 400 Series FT-IR instrument can be fitted with a General

Purpose Optical Bench. The optical bench is supplied with a parabolic mirror assembly, and an

external LiTaO3detector/pre-amplifier module. The optical bench is bolted to the external

accessory bracket, which is fitted in the handhold on the right of the instrument.

Figure 1 General Purpose Optical Bench with External LiTaO3Detector

This document describes how to:

•Install a window in the right-hand external beam port;

•Fit, and remove, the optical bench;

•Fit the mirror and detector/pre-amplifier modules to the optical bench;

•Configure Spectrum or Spectrum Express software to use an external detector;

•Use Spectrum or Spectrum Express software to select the accessory;

•Optimizing the performance of the detector/pre-amplifier;

•Connect another type of detector/pre-amplifier to the instrument.

Optical bench

Mirror assembly

LiTaO3 detector /

pre-amplifier module

External

beam port

Fixing bolt

Fixing block

L1050070A

Warnings and Safety Information

Electrical safety

Fitting the external beam port window requires you to open the main cover of the

spectrometer.

WARNING

Switch off the mains power supply to the spectrometer, wait 60 seconds,

and disconnect the power cable before you open the cover of the

spectrometer. This makes sure that you are safe from electrical shock and

laser radiation.

The detector/pre-amplifier module is powered by the instrument; no separate power supply is

required. The instrument has no provision for powering any other component. If necessary, you

must provide a separate power supply and ensure that the arrangement meets all the

applicable safety standards.

External electromagnetic interference and electromagnetic compatibility

The General Purpose Optical Bench with External LiTaO3Detector accessory is supplied for use

as an experimental test bed. The user-configurable nature of this product means that

PerkinElmer cannot guarantee the level of immunity to external electromagnetic interference

(EMI) or the possibility that the product may itself cause interference to other nearby

equipment. It is therefore the responsibility of the user to consider Electromagnetic

Compatibility (EMC) issues when selecting a suitable site for the system and to install any

additional EMC protection that may be required for that location.

CAUTION

Some components when mounted on the optical bench may need to be

connected to instrument earth. Connect earth leads to the underside of the

optical bench at a position in the 3 x 3 block of mounting points in the far

right corner, where the anodized surface of the underside of the bench has

been removed. No other position is suitable.

CAUTION

Disconnection of a protective earth terminal could damage the

pre-amplifier/detector module.

L1050070A

Radiation emitted by the Spectrum 100/400 source

Humidity

Contamination

Safe handling

CAUTION

Caution should be exercised when the beam from an NIR source is directed

onto the external LiTaO3detector. Unless there is a suitable attenuator in

place, the detector could be permanently damaged.

CAUTION

The NIR source is a quartz halogen bulb that emits ultraviolet, visible and

infrared radiation. The majority of this energy is in the infrared region. Do not

stare into the beam produced by this bulb. For further safety and warning

information see the Spectrum 100 Series User’s Guide (L1050021) or

Spectrum 400 Series User’s Guide (L1050056). These are distributed as .pdf

files on the Spectrum Manuals CD (L1050002).

CAUTION

Never remove the window in the external beam and leave this port open to

atmosphere. If the spectrometer is fitted with KBr optics, do not exchange the

window if the humidity is >45% relative humidity.

The humidity sensitive optics will be damaged if subjected to a relative

humidity in excess of the specified level.

CAUTION

Be careful not to touch, or otherwise contaminate, sensitive optical

components such as the parabolic mirror assembly.

These precision optical devices are easily scratched and may not be easy to

clean.

WARNING

The spectrometer is a heavy precision instrument, so two people are required

for safe handling.

CAUTION

Do not attempt to lift the instrument, or to move it to another location, when

the optical bench, or any other external accessory, is attached.

The optical alignment of the external accessory bracket may be disturbed.

L1050070A

Fitting and Removing the Optical Bench

In the first instance, the General Purpose Optical Bench is installed by a PerkinElmer Service

Engineer, who will install: a right-hand beam moveable mirror and any other internal parts

required; a KBr window; and an external accessory bracket in the handhold on the right of the

instrument (if not already fitted). This external accessory bracket should not be removed.

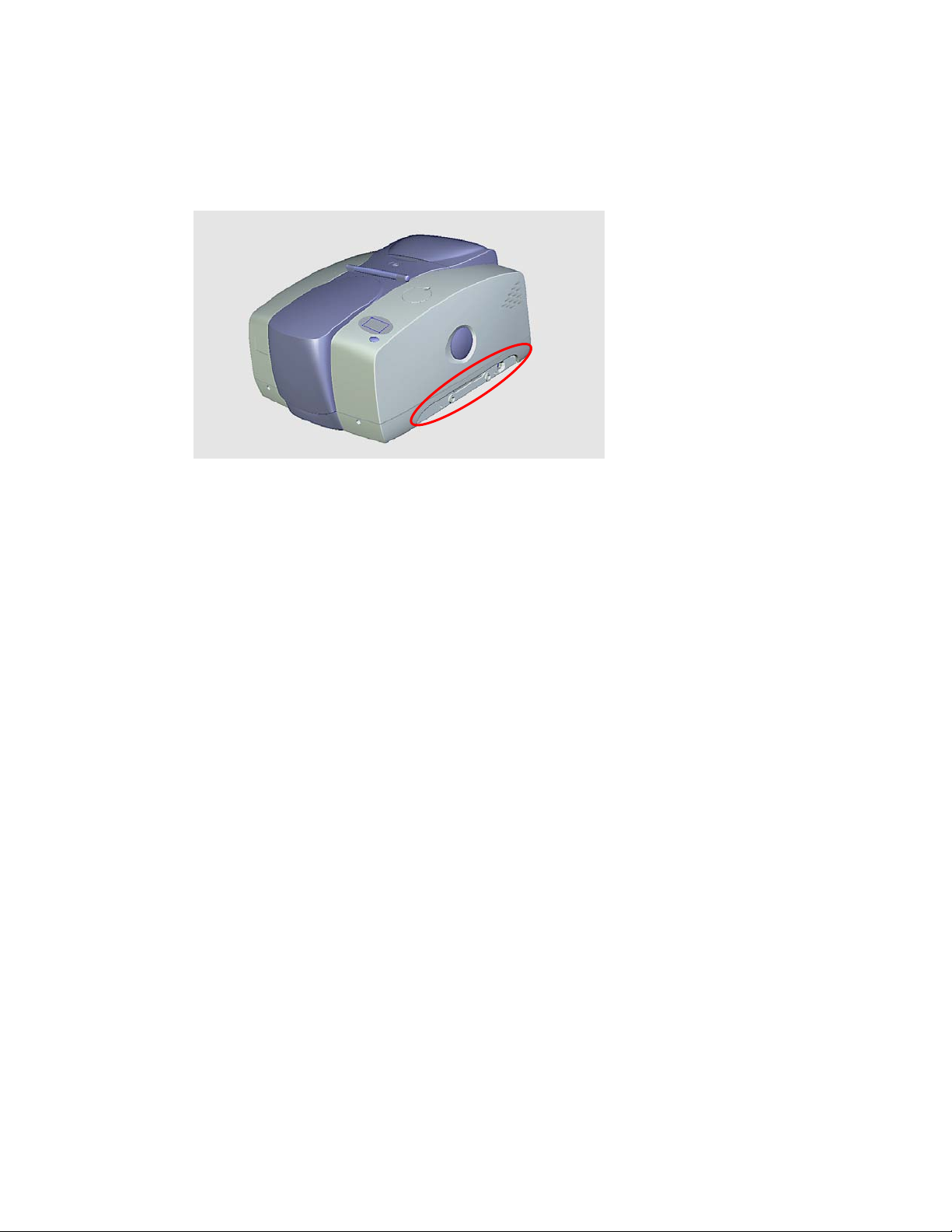

Figure 2 Handhold with external accessory bracket fitted

The optical bench should not be removed unless:

•You want to use the external beam port on the right of the instrument with a different

external accessory;

•The spectrometer must be moved to a new location.

For information about moving your spectrometer, refer to the

Spectrum 100 Series User’s

Guide

(L1050021) or

Spectrum 400 Series User’s Guide

(L1050056). These are distributed

as .pdf files on the

Spectrum Manuals CD

(L1050002).

Before you begin, make sure you have read and understood the “Warnings and Safety

Information” beginning on page 2.

Fitting a Window in the Right-hand External Beam Port

1. Switch off the spectrometer, and then remove the power cable.

2. Undo the locks on the front of the spectrometer, and then open the main cover

For detailed instructions, refer to the

Advanced Maintenance

section of the

Spectrum 100

Series User’s Guide

(L1050021) or

Spectrum 400 Series User’s Guide

(L1050056). These

are distributed as .pdf files on the

Spectrum Manuals CD

(L1050002).

3. Using the hexagonal wrench supplied, slacken and remove the M2.5 screws securing the

right-hand external beam port cover to the main cover.

4. Remove the beam port cover and seal. Retain for further use.

L1050070A

5. Ensure the seal is fitted to the window and is correctly seated (Figure 3).

Figure 3 Seal fitted to window

6. Fit the window to the main cover from the outside in.

Ensure the seal is fully seated and the key on the window lines up with the notch in the

main cover.

Figure 4 Window installed in main cover

7. Secure the window to the main cover by fitting the screws and washers and tightening the

screws using the hexagonal wrench (Figure 4).

8. Close and secure the main cover.

9. Plug in and switch on the instrument.

Seal

Main cover

Screw and washer

Notch and key

Main cover

Window

L1050070A

Fitting the optical bench

Before you begin, make sure that:

•The instrument’s external beam port is fitted with a suitable window;

•There is at least 500 mm (18 inches) of free bench space to the right of the instrument;

•An external accessory bracket is fitted in the handhold on the right of the instrument;

•The spectrometer is switched off and disconnected from the power supply.

1. If necessary, remove the fixing block from the underside of the left edge of the optical

bench.

Use a suitable hexagonal key to undo the two M6 socket head bolts from the threaded

fixing positions at the near left and far left corners of the optical bench until the fixing

block is free.

2. Place a spring washer and then a plain washer on each bolt, push the M8 bolts supplied

through the plain holes in the fixing block, and then carefully align the bolts with the

threaded holes in the external accessory bracket.

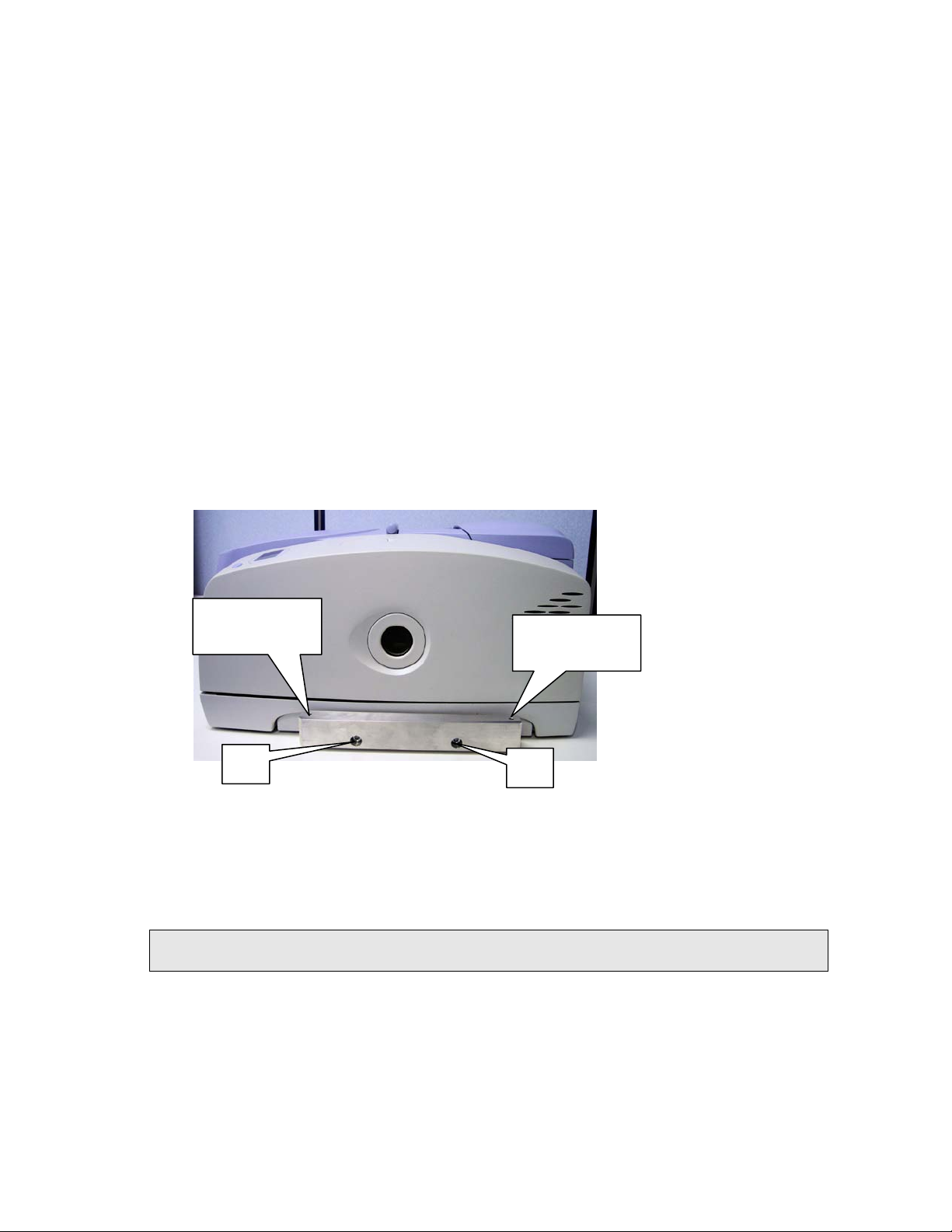

Figure 5 Attaching the fixing block to the external accessory bracket

3. Use a 6 mm hexagonal key to turn each bolt until it engages in the external accessory

bracket, make sure the bolts are perpendicular to the bracket, and then carefully and

evenly tighten the bolts.

NOTE: If these bolts engage incorrectly, the accessory may be misaligned or its fixings

damaged.

Threaded fixing

point for optical

bench

Threaded fixing

point for optical

bench

bolt

L1050070A

4. Screw the two M6 socket head bolts into the threaded fixing positions at the near-left and

far-left corners of the optical bench, align the optical bench with the fixing block, and then

carefully and evenly tighten the bolts.

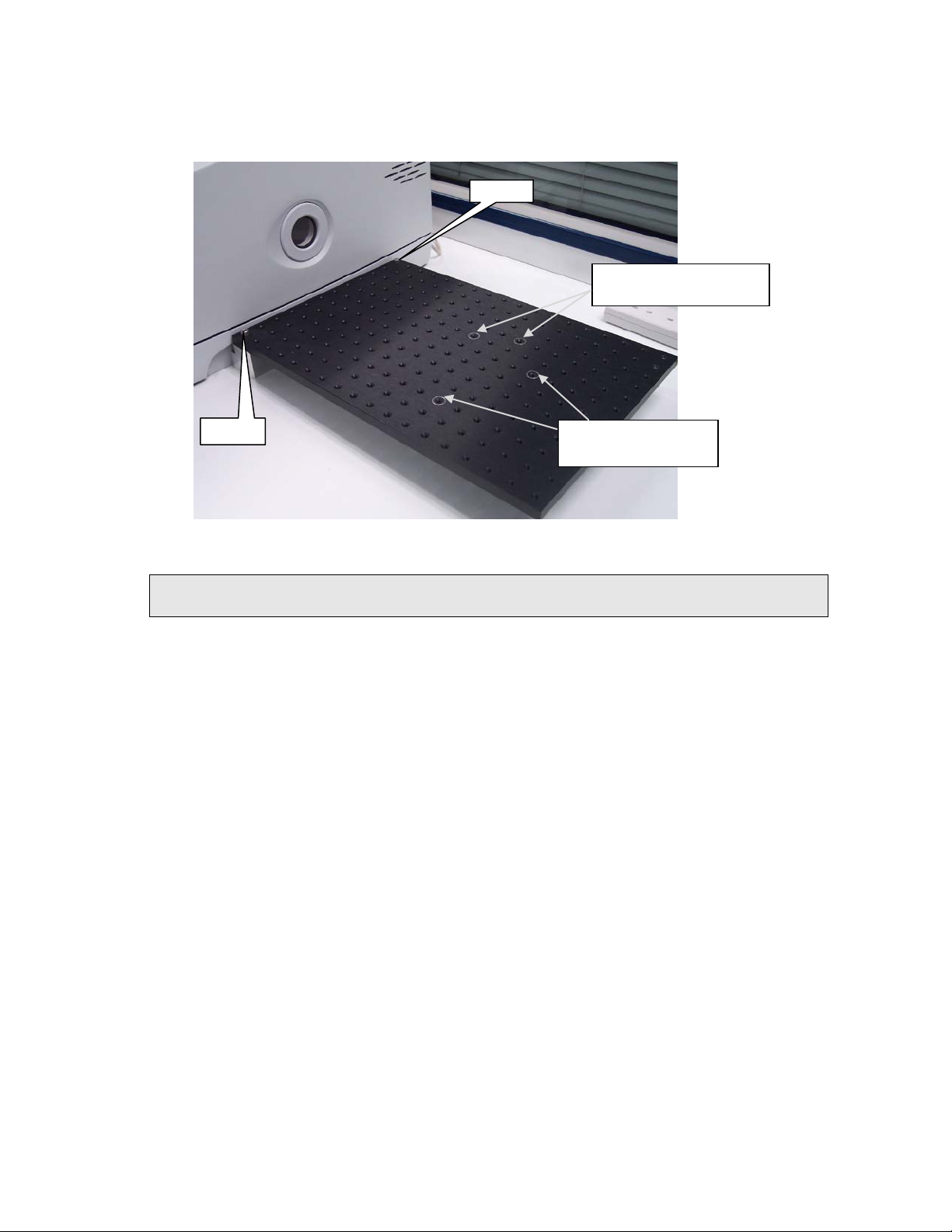

Figure 6 Bench fitted to fixing block

NOTE: If these bolts engage incorrectly, the accessory may be misaligned or its fixings

damaged.

Removing the optical bench

Before you begin, make sure that:

•The spectrometer is switched off and disconnected from the power supply;

•All the components associated with the optical bench are disconnected from the

spectrometer, and that no component is powered.

1. Use a hexagonal key to carefully and evenly undo the two M6 socket head bolts from the

threaded fixing positions at the near-left and far-left corners of the optical bench until the

bench is free of the fixing block.

2. Lift the optical bench off the fixing block and carefully place it to one side.

3. Using a 6 mm hexagonal key, undo the two M8 socket head bolts that attach the fixing

block to the external accessory bracket.

The fixing block is attached to the external accessory bracket using two M8 socket head

bolts, two plain washers and two spring washers.

Do not attempt remove the accessory bracket itself.

It may be convenient to refit the fixing block to the optical bench for safe storage.

M6 bolt

Detector/preamplifier

default fixing positions

Mirror module default

fixing positions

L1050070A

Fitting the Detector/Pre-amplifier and Mirror Modules

Both modules are fixed to the optical bench using M6 bolts. The default fixing positions for the

pillars are marked on the optical bench; see Figure 6.

Detector/pre-amplifier module

1. Connect the earth lead from the optical bench to the detector/pre-amplifier module.

Figure 7 Detector/pre-amplifier earthing points

The earth should be connected to the underside bench at a position in the 3 x 3 block of

mounting points in the far right corner where the anodized surface has been removed. No

other position is suitable.

It should be connected to the detector/pre-amplifier module via the underside of the

circuit board on the base of the module.

See Figure 7.

2. Bolt the detector module sub-base to the optical bench using two M6 bolts.

NOTE: One of the bolt holes is easily accessible on the left side of the detector/preamplifier

module. The other is accessed through a hole drilled in the upper plate, behind the

circuit board. You should fit the bolt into the lower plate and then secure with an Allen

key, through the top plate, as shown in Figure 8.

CAUTION

Take care not to touch the detector window or any of the circuit-board

components of the detector/preamplifier module, as they may be damaged by

static electricity.

Detector/preamplifier

earthing points

Base of detector/

preamplifier module

L1050070A

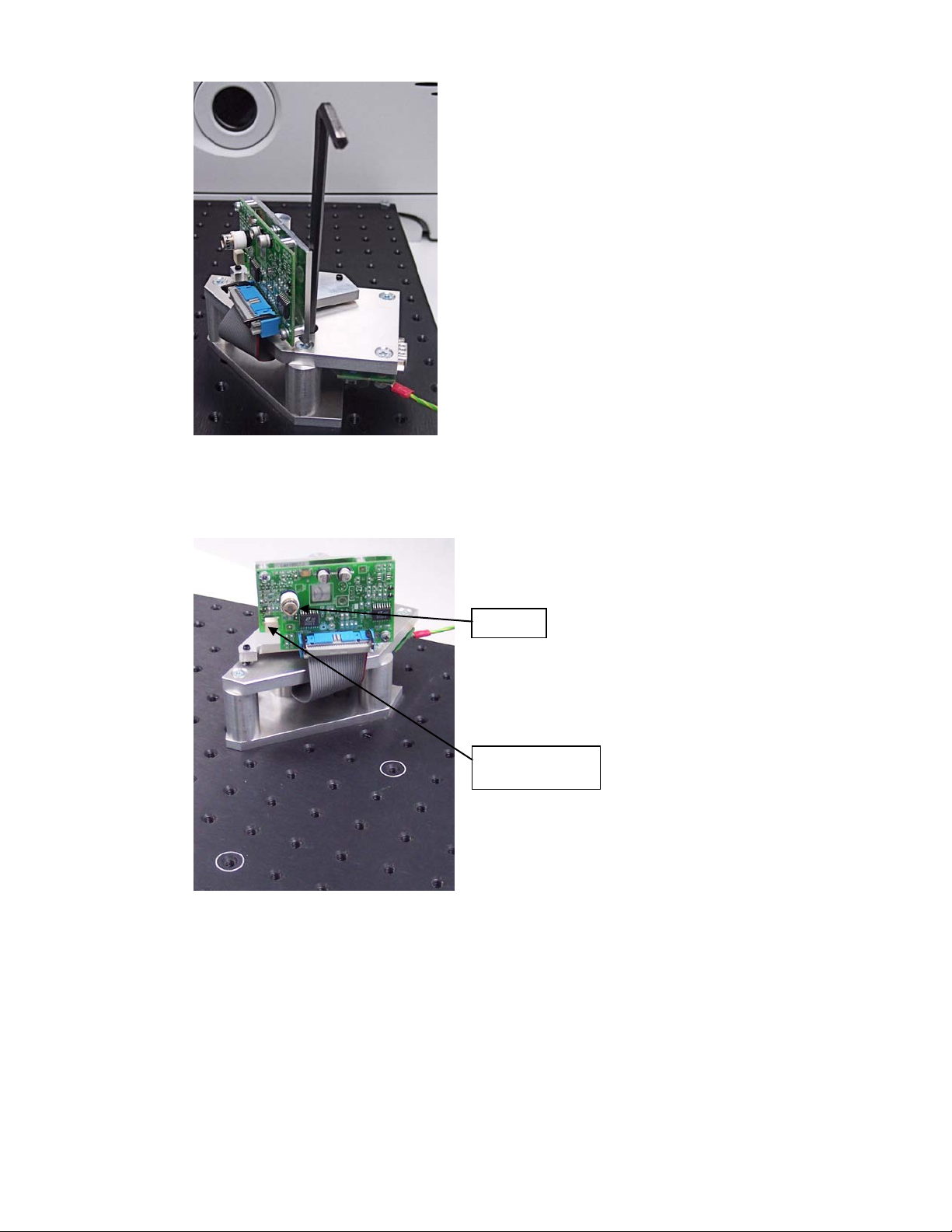

Figure 8 Fixing the detector/preamplifier module to the bench

3. Ensure that the detector/preamplifier module is fixed to the bench so that the detector is

facing the position on the bench where you will fit the mirror module.

Figure 9 Detector/preamplifier fitted to the bench

4. The gain adjustment potentiometer (Figure 9) allows adjustment to give an acceptable

signal level.

To ensure that some signal is present but the pre-amplifier is not overloaded when the

power is applied, turn the gain potentiometer screw fully counter-clockwise until it “clicks”

(its minimum setting) and then give it two turns clockwise.

5. Connect the detector/pre-amplifier module to the instrument EXT.R connector.

For more information about aligning the detector and adjusting the gain potentiometer setting,

see “Optimizing Performance” on page 16.

Detector

Gain adjustment

potentiometer

L1050070A

Mirror module

Bolt the two pillars and cross-bar that support the parabolic mirror to the optical bench,

oriented to that the mirror faces the detector. See Figure 6 for details of fixing position.

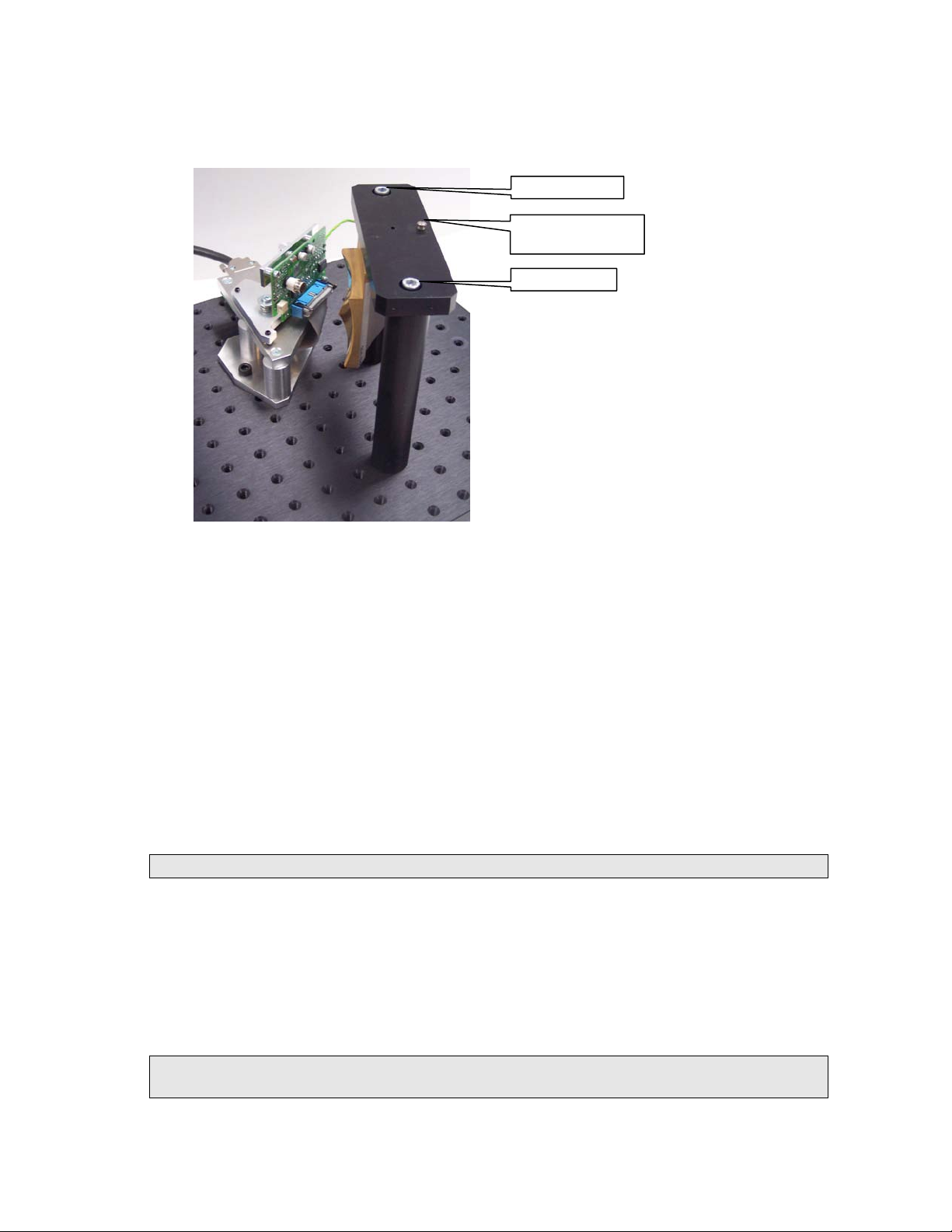

Figure 10 Mirror assembly fitted to bench

Later, you can adjust the vertical alignment of the parabolic mirror to the detector using the

adjustment screw in the cross bar. See “Optimizing Performance” on page 16.

Configuring Spectrum or Spectrum Express Software to Use

an External Detector

The General Purpose Optical Bench with External LiTaO3Detector accessory is supported by

Spectrum version 6.3.5 (or later) for the Spectrum 400 Series Spectrometers, or Spectrum

version 6.3.3 (or later), or Spectrum Express version 1.2 (or later), for the Spectrum 100 Series

Spectrometers.

This section describes how to create a modified instrument configuration file for use with an

external detector.

NOTE: It is not necessary to power the instrument to complete this procedure.

1. Browse to C:\pel_apps\bin\

The instrument configuration file is named C*****.cfg, where ***** is the five-digit serial

number of the instrument.

The spectrometer serial number is located on its base casting, in the sample compartment,

under the sample accessory baseplate.

2. Copy the appropriate C*****.cfg file and save it as, for example, C*****.intdet

NOTE: Make sure you save this backup of the original instrument configuration file. If you

remove the optical bench, you will re-instate this file.

M6 fixing bolt

Vertical alignment

adjustment screw

Table des matières

Autres manuels PerkinElmer Équipement de laboratoire

PerkinElmer

PerkinElmer TriNEST Manuel utilisateur

PerkinElmer

PerkinElmer Lambda 365 Manuel utilisateur

PerkinElmer

PerkinElmer Clarus SQ 8 MS Series Instructions d'installation

PerkinElmer

PerkinElmer LAMBDA 265 Manuel utilisateur

PerkinElmer

PerkinElmer OPERETTA Manuel utilisateur

PerkinElmer

PerkinElmer IVIS Lumina XRMS III Series Manuel utilisateur

PerkinElmer

PerkinElmer Raman Micro 200 Series Manuel utilisateur

PerkinElmer

PerkinElmer Lambda 365 Peltier Temp Ctrl Unit Multi Manuel utilisateur

PerkinElmer

PerkinElmer chemagic 360-D Manuel utilisateur

PerkinElmer

PerkinElmer OilExpress System Manuel utilisateur

PerkinElmer

PerkinElmer Raman IdentiCheck Manuel utilisateur

PerkinElmer

PerkinElmer Lambda 465 Manuel utilisateur

PerkinElmer

PerkinElmer SPECTRUM TWO N Manuel utilisateur

PerkinElmer

PerkinElmer OilExpress 4 Manuel utilisateur

PerkinElmer

PerkinElmer S20 Series Manuel utilisateur

PerkinElmer

PerkinElmer AVIO 200 Instructions d'installation

PerkinElmer

PerkinElmer AVIO 500 Manuel utilisateur

PerkinElmer

PerkinElmer OMNI International Bead Ruptor 96 Manuel utilisateur

PerkinElmer

PerkinElmer FLEXAR SQ 300 MS Manuel utilisateur

PerkinElmer

PerkinElmer Raman Flex 400 Series Manuel utilisateur

PerkinElmer

PerkinElmer IVIS Lumina S5 Manuel utilisateur

PerkinElmer

PerkinElmer PINAACLE 900 Series Manuel utilisateur

PerkinElmer

PerkinElmer VesselVue Manuel utilisateur

PerkinElmer

PerkinElmer Wallac 1420 Manuel utilisateur

Manuels Équipement de laboratoire populaires d'autres marques

Qiagen

Qiagen DML 3000 Manuel utilisateur

Queensgate

Queensgate NANOSCAN OP400 Manuel de programmation

Conviron

Conviron GEN1000-GE Manuel utilisateur

Parr Instrument

Parr Instrument 4560 Mode d’emploi

IKA

IKA IC control Manuel utilisateur

Integra

Integra DOSE IT Manuel utilisateur

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manuel utilisateur

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manuel utilisateur

NI PXI-5422 Manuel

Collomix

Collomix Aqix Manuel utilisateur

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manuel utilisateur

Ocean Insight

Ocean Insight FLAME-NIR+ Manuel utilisateur

Parker

Parker ALIGN-MG-NA Manuel utilisateur

BD 644787 Manuel utilisateur

DENTAURUM

DENTAURUM Compact Megaplus Manuel utilisateur

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manuel utilisateur

VWR

VWR SAS Super IAQ Manuel utilisateur

illumina

illumina MiSeqDx Manuel utilisateur
