PROF NET: Changeover from ASi gateways type K20 to KE5

Contents

2022-11

1 Introduction................................................................................................................ 4

2 Switch connections ................................................................................................... 5

3 Transfer Configuration ............................................................................................1

4 PROFINET Integration............................................................................................. 11

2022-11

PROF NET: Changeover from ASi gateways type K20 to KE5

ntroduction

1 Introduction

Changeover from ASi gateways with PROFINET interface type K2 to the

new VBG-EP1-KE5-D*

With these instructions, you can easily switch from previously used K20 gateways to the new

KE5 gateways. The following advantages result from a change:

•Extensive web server for easy configuration and diagnostics

•Easy commissioning via your mobile device

•REST AP interface enabling the implementation of oT solutions

•Multiprotocol functionality supports PROF NET and EtherNet/ P

•Quick setup via push button

PROF NET: Changeover from ASi gateways type K20 to KE5

Switch connections

2022-11

2 Switch connections

Ethernet

Change Ethernet

Remove the Ethernet connections from the K20 sockets PROF NET 1 and PROF NET 2

nsert the Ethernet connectors into the sockets X1 and X2 at the VBG-EP1-KE5-D*.

Figure 2.1

PN EIP

Hold to

config.

Memory

AUX

ASi Power

Config

ASi Line 2

ASi Power

Config

ASi Line 1

PROFINET 1 →X1

PROFINET 2 →X2

2022-11

PROF NET: Changeover from ASi gateways type K20 to KE5

Switch connections

ASi Power Supply

Change power supply to VBG-EP1-KE5-D

Take the power supply connections out of the K20 sockets ASi PWR+/-.

Plug the connections of the power supply into the sockets 03 and 01 on the VBG-EP1-KE5-D.

Figure 2.2

Note

f you are using a K20 gateway with integrated data decoupling so far, you need a special ASi

power supply for the supply of the KE5 gateway.

PN EIP

Hold to

config.

Memory

AUX

ASi Power

Config

ASi Line 2

ASi Power

Config

ASi Line 1

ASi PWR+ →03

ASi PWR– →01

PROF NET: Changeover from ASi gateways type K20 to KE5

Switch connections

2022-11

Change power supply to VBG-EP1-KE5-DMD

Take the power supply connections out of the K20 sockets ASi1 PWR+/- and ASi2 PWR+/-.

Plug the connections of the power supply into the sockets 13 and 11 for ASi network 1 and 03

and 01 for ASi network 2.

Figure 2.3

PN EIP

Hold to

config.

Memory

AUX

ASi Power

Config

ASi Line 2

ASi Power

Config

ASi Line 1

ASi2 PWR+ →13

ASi2 PWR– →11

ASi1 PWR+ →03

ASi1 PWR– →01

2022-11

PROF NET: Changeover from ASi gateways type K20 to KE5

Switch connections

ASi Network

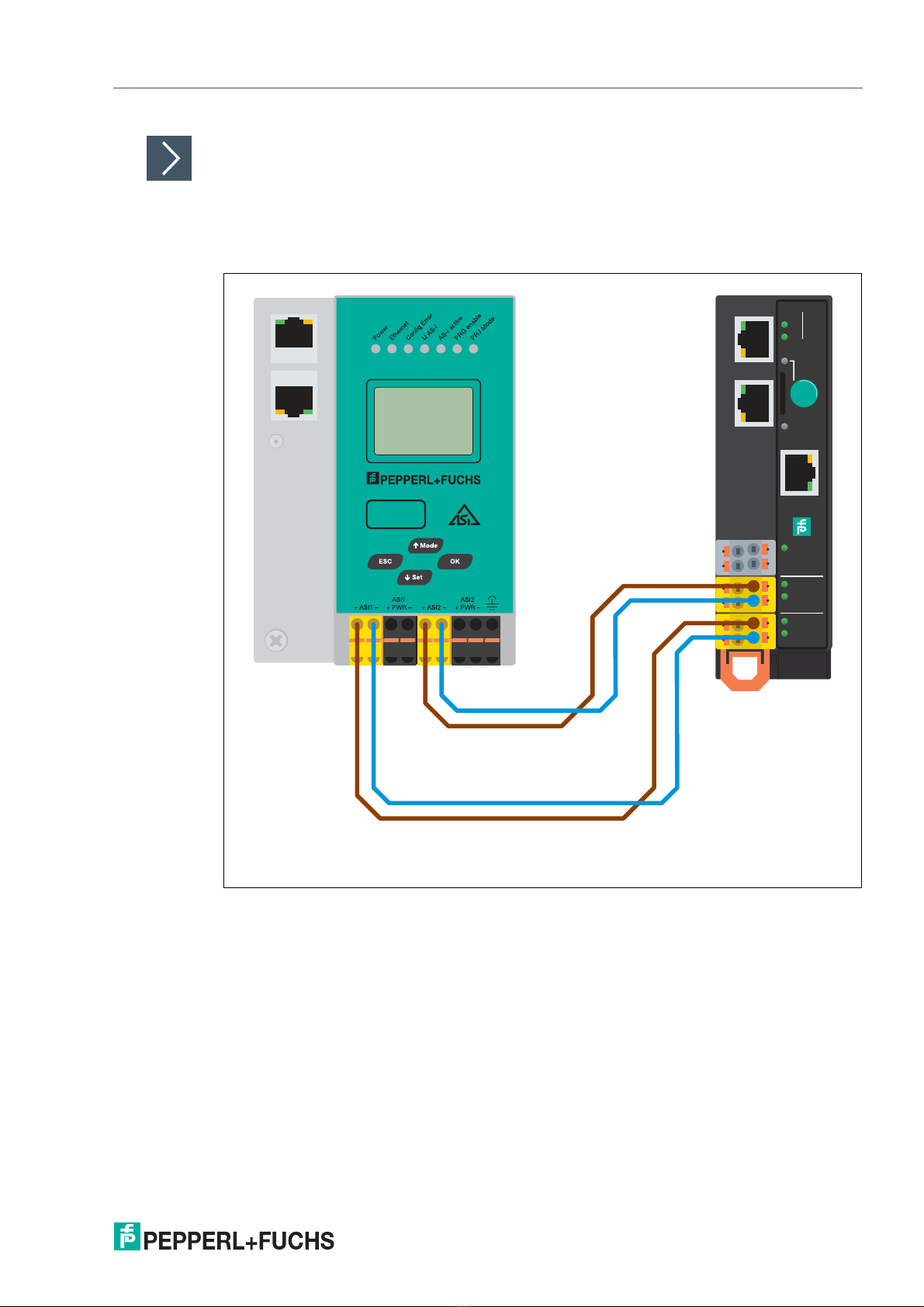

Change ASi network to VBG-EP1-KE5-D

Take the connectors of the ASi network out of the K20 sockets ASi +/-.

Plug the connectors for the ASi network into the sockets 04 and 02.

Figure 2.4

PN EIP

Hold to

config.

Memory

AUX

ASi Power

Config

ASi Line 2

ASi Power

Config

ASi Line 1

ASi+ →04

ASi– →02

PROF NET: Changeover from ASi gateways type K20 to KE5

Switch connections

2022-11

Change ASi network to VBG-EP1-KE5-DMD

Take the connectors of the ASi network 1 and 2 out of the K20 sockets ASi1 +/- and ASi2 +/-.

Plug the connectors for ASi network 1 into the sockets 04 and 02 for ASi network 2 into the

sockets 14 and 12

Figure 2.5

PN EIP

Hold to

config.

Memory

AUX

ASi Power

Config

ASi Line 2

ASi Power

Config

ASi Line 1

ASi2+ →14

ASi2– →12

ASi1+ →04

ASi1– →02

2022-11

PROF NET: Changeover from ASi gateways type K20 to KE5

Transfer Configuration

3 Transfer Configuration

Store ASi configuration on KE5 gateway

Connect the VBG-EP1-KE5-D*, see chapter 2.

Press and hold the pushbutton for 5 seconds.

The ASi 1 LEDs flash yellow.

The configuration of the ASi network 1 can be saved.

Press and hold the pushbutton for 5 seconds.

The Memory LED flashes green

The configuration of ASi network 1 is stored.

Press the pushbutton briefly.

The ASi 2 LEDs flash yellow.

The configuration of the ASi network 2 can be saved.

Press and hold the pushbutton for 5 seconds.

The Memory LED flashes green

The configuration of ASi network 2 is stored.

Note

Switching between ASi network 1 and 2 at VBG-EP1-KE5-DMD

Note

The device reboots automatically after saving the configuration.
