Operating Manual

To ensure the best performance from your camera,

please read the Operating Manual before using the camera.

To ensure the best performance from your camera,

please read the Operating Manual before using the camera.

Welcome to the Fantastic World of Pentax

Medium Format Photography

This medium format 672camera gives an image area four

times larger than that of the 35 mm SLR camera, assuring

the photographer of fine-grained, superior quality image

definition on enlargements.

The Aperture-Priority AE Mode and the metering modes of

the Multi (6) Segment Metering, Center-Weighted Metering

and Spot Metering Modes are available when the AE

Pentaprism Finder 672is attached.

Read this instruction manual carefully to get a full

explanation of operations before use.

The operating manual explains the camera with an optional

AE Pentaprism 672attached.

Icon indicators used in this manual

PENTAX and SMC PENTAX are trademarks of HOYA

CORPORATION.

Lenses and accessories produced by other manufacturers

are not made to our precise specifications and therefore

may cause difficulties with or actual damage to your

Pentax camera. We do not assume any responsibility or

liability for difficulties resulting from the use of lenses and

accessories made by other manufacturers.

Operation direction

Automatic operation

Attention

Lamp blinking

Correct

Incorrect

FOR SAFE USE OF YOUR CAMERA

Although we have carefully designed this camera for safe

operation, please be sure to follow precautions given on this

page.

WARNING

This mark indicates precautions that, if not followed, could

result in serious injury to the operator.

CAUTION

This mark indicates precautions that, if not followed, could

result in minor or medium injury to the operator or damage

to the equipment.

WARNING

●Wrapping the strap around your neck is dangerous.

Make sure that small children do not get the strap

caught around their neck.

●Do not look directly at the sun through the camera, as

viewing the sun for an extended period may damage

your eyes.

CAUTION

●Never try to disassemble, short or recharge the battery.

Also, do not dispose of the battery in fire, as it may

explode.

●Remove the batteries from the camera immediately if

they become hot or begin to smoke. Be careful not to

burn yourself during removal.

Precautions for Your Camera

Your Pentax camera is high-precision mechanism. Handle it with great care.

Precautions when taking pictures

●Do not use the camera where it may come in contact

with rain, water, or any other liquid, because the

camera is not weather, water, or liquid resistant. Should

the camera get wet from rain, splashing water, or any

other liquid, wipe it off immediately with a dry soft cloth.

●Do not drop the camera or allow it to hit solid objects. If

the camera suffers a shock or impact, take it to a

Pentax service center for inspection.

●Be careful not to subject the camera to strong

vibrations, shock or pressure. Use a cushion to protect

the camera when carrying it in a motorcycle, car, boat,

etc.

●Condensation on the interior or exterior of the camera

may be extremely harmful to the camera mechanism

as it may cause rust. Furthermore, if the camera is

taken from warm temperature to subfreezing on or vice

versa, the formation of condensation may cause

damage. In such case, put the camera into a case or

plastic bag so that any changes in temperature

difference is minimized. Do not remove it from the bag

until temperature has stabilized.

Precautions for storage

●Avoid leaving the camera for extended periods in

places where the humidity and temperature are very

high, such as in a car.

●Do not store the camera in a closet with mothballs or in

an area where chemicals are handled. Store it in a

place with good dry air circulation to prevent the growth

of fungus.

Precautions for proper care

●Never touch the shutter curtain or mirror with your

finger or any other object.

●Use a blower and lens brush to remove dust

accumulated on the lens or viewfinder.

●Never use solvents such as paint thinner, alcohol or

benzene to clean the camera.

Electrical problems may often be caused by water, dirt or

dust at points of electrical contact. Also check for battery

leakage, traces of dirt of grease, or corrosion due to

salinity or gas. If you cannot correct the problems, have

your camera inspected at a Pentax service center.

Repairs of this nature are not covered under the terms of

the warranty and charges may be assessed.

Precautions for Battery Usage

Other precautions

●The temperature range at which this camera functions

properly is 50 °C to –10 °C (122 °F to 14 °F).

●A camera which has been submerged in water usually

cannot be repaired. If such an accident should occur, it

is advisable to contact a Pentax Service Center

immediately.

●To maintain optimum performance, it is recommended

that the camera be inspected every one or two years. If

the camera has not been used for an extended period,

or is being prepared for an important photographic

session, it is recommended that you have the camera

inspected or test shoot with it.

●Repairs deemed necessary due to usage of this

product in an industrial or commercial application may

not be covered under the terms of the Pentax warranty.

●The Pentax warranty provides only for the repair of

defects in materials or workmanship. Damage of any

kind cannot be repaired at no charge under the terms

of the warranty. If the difficulty is caused as a direct

result of the product being used in conditions as

outlined in the “Precautions for Your Camera” section

or any other operation contrary to the instructions

outlined in this manual, charges will be assessed and a

repair quotation will be provided.

●Use two CR123A lithium batteries.

●Do not store the camera in a closet with mothballs or in

an area where chemicals are handled. Store it in a

place with good dry air circulation to prevent the growth

of fungus.

●Misuse of the battery can cause hazards such as

leakage, overheating, explosion, etc. The battery

should be inserted with the “+” and “–” sides facing

correctly.

●Battery performance may be temporarily hindered in

low temperatures, but will recover in normal

temperatures.

●Keep spare batteries on hand for convenient

replacement when shooting outdoors or while traveling.

●Replace the batteries at the same time. Do not mix

battery brands, types, or old batteries with new ones,

as this may cause explosion or overheating.

Table of Contents

FOR SAFE USE OF YOUR CAMERA..................... 1

Precautions for Your Camera .................................. 2

Precautions for Battery Usage................................. 3

Names of Working Parts.......................................... 6

Indicators ................................................................. 8

To Take the Following Kinds of Pictures ................. 9

To Start Taking Pictures Right Away..................... 10

Structure of this Manual......................................... 12

Attaching the Camera Strap............................. 13

Loading the Batteries ....................................... 14

Turning the Power ON ..................................... 16

Low Battery Warning........................................ 17

Attaching the Lens ........................................... 18

Depressing the Shutter Release Button........... 20

About Interchangeable Viewfinder ................... 21

Setting the Film Speed (ISO)........................... 24

Loading the Film .............................................. 25

Unloading the Film........................................... 31

Adjusting the Viewfinder Diopter...................... 33

Installing the Correction Lens .......................... 34

Using the Apperture-Priority AE Mode............. 35

Using the Multi (6)-Segment Metering Mode ... 36

Holding the Camera......................................... 38

Taking a Picture............................................... 39

Using the Self-Timer Mode.............................. 43

Eyepiece Shutter ............................................. 44

Multiple-Exposure Mode.................................. 45

BASIC OPERATION [PREPARATION]

BASIC OPERATION [SHOOTING]

ADVANCED OPERATION

Table of Contents

Selecting an Exposure Mode........................... 47

●Using the Aperture-Priority AE Mode........ 47

●Using the Metered Manual Mode.............. 49

●Using the Bulb Exposure Mode ................ 52

About Exposure Compensation....................... 54

Switching the Metering Mode .......................... 55

●Using the Center-Weighted

Metering Mode ..................................... 55

●Using the Spot Metering Mode ................. 56

Using the Memory Lock Function .................... 57

Using a PENTAX Dedicated External Flash.... 58

Slow-Speed-Sync Shooting............................. 63

Checking the Depth-of-Field............................ 64

Mirror Look-Up................................................. 65

Time Exposure Mode ...................................... 66

Infrared Index .................................................. 68

Accessories (Optional) .................................... 69

●Interchangeable Focusing Screen ............ 70

Aperture and Shutter Speed Effects................ 73

Custom Function ............................................. 75

Troubleshooting ............................................... 76

Error Display in the Event of Incorrect

Operation ..................................................... 77

Specifications ................................................... 78

WARRANTY POLICY....................................... 80

OTHERS

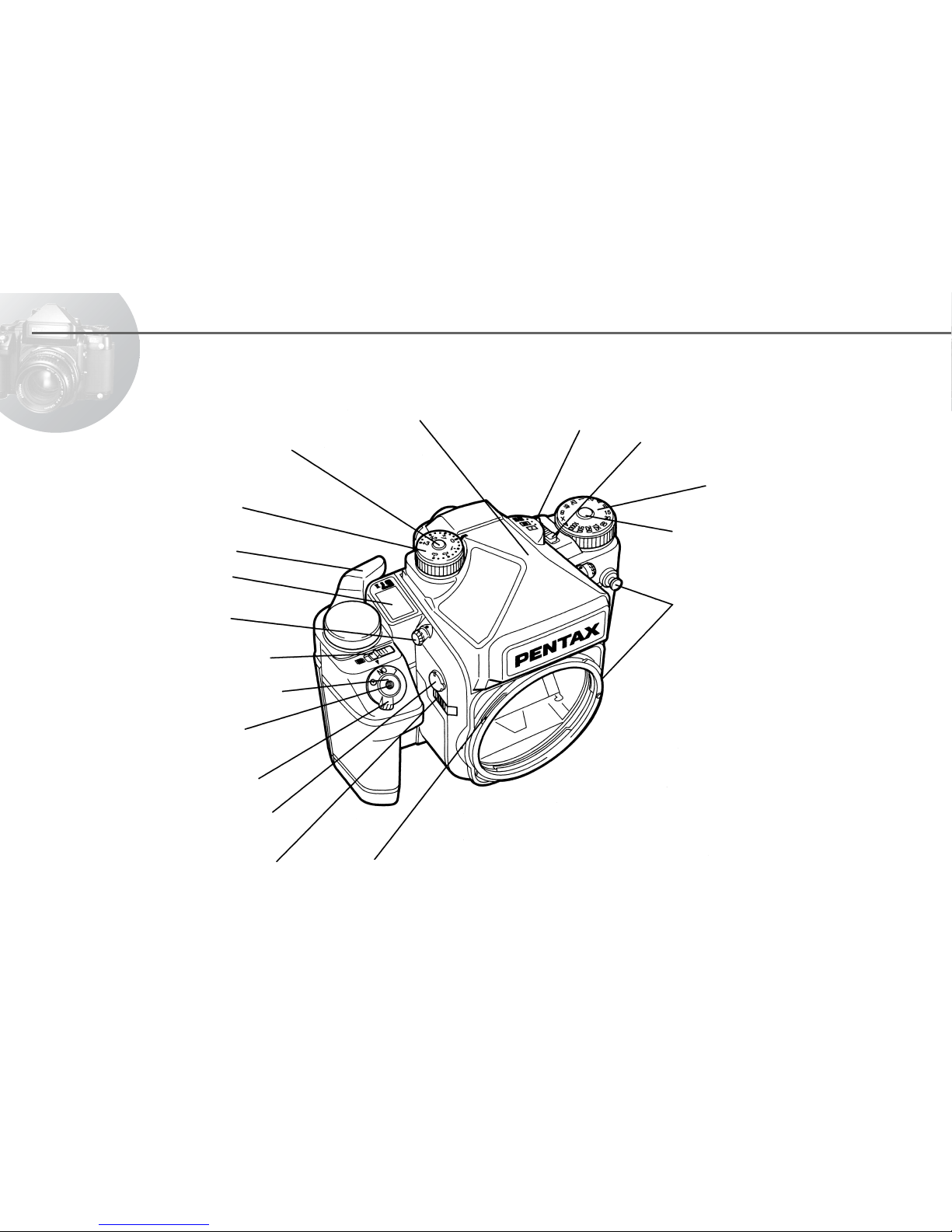

Names of Working Parts

AE Pentaprism Finder 672[Page 21]

Exposure compensation dial release

button [Page 54]

Exposure compensation dial [Page 54]

Wind lever [Page 28, 41]

LCD panel [Page 8]

Viewfinder unlock button

[Page 22]

Shutter release button [Page 20]

Multi-exposure lever [Page 45]

Cable release socket [Page 53]

Main switch [Page 16]

Mirror lock-up lever [Page 65]

Time exposure set lever [Page 66] Lens mount index [Page 18]

Metering mode selector [Page 36, 55, 56]

Film speed set lever [Page 24]

Shutter speed dial

[Page 47, 49, 52]

Shutter speed dial lock button

[Page 35, 50]

Strap lugs [Page 13]

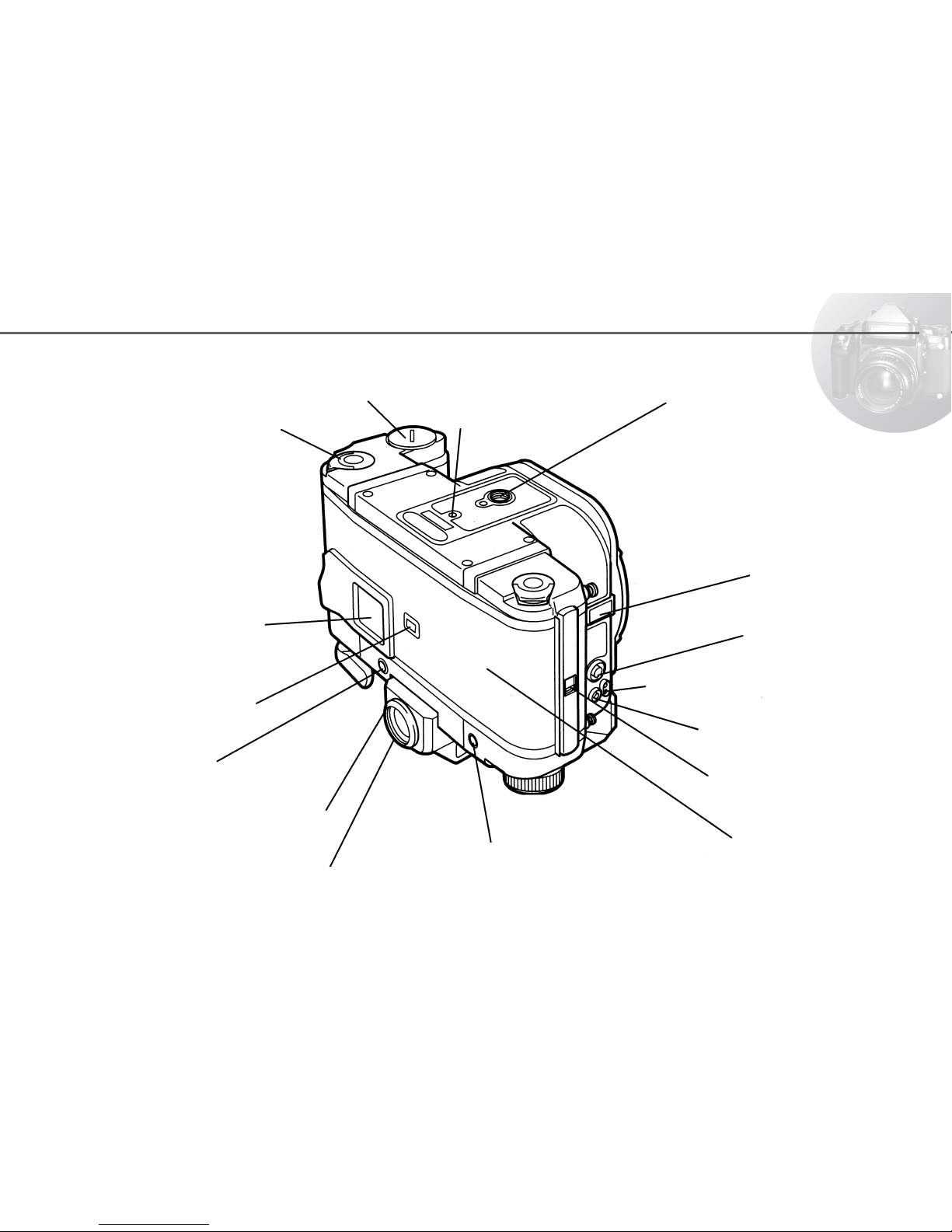

Top front

Accessory guide hole

Battery chamber cover [Page 14]

Film spool retainer knob [Page 26]

Memo holder [Page 29]

Film type indicator [Page 25]

Memory lock button [Page 57]

Eyepiece shutter lever [Page 44]

Diopter adjustment dial [Page 33]

Film speed set button [Page 24] Back cover

Back cover release lever

[Page 25]

X-sync terminal [Page 62]

Tripod socket

Dedicated flash contacts [Page 59]

5Psync terminal [Page 58]

Lens release lever [Page 19]

Bottom back

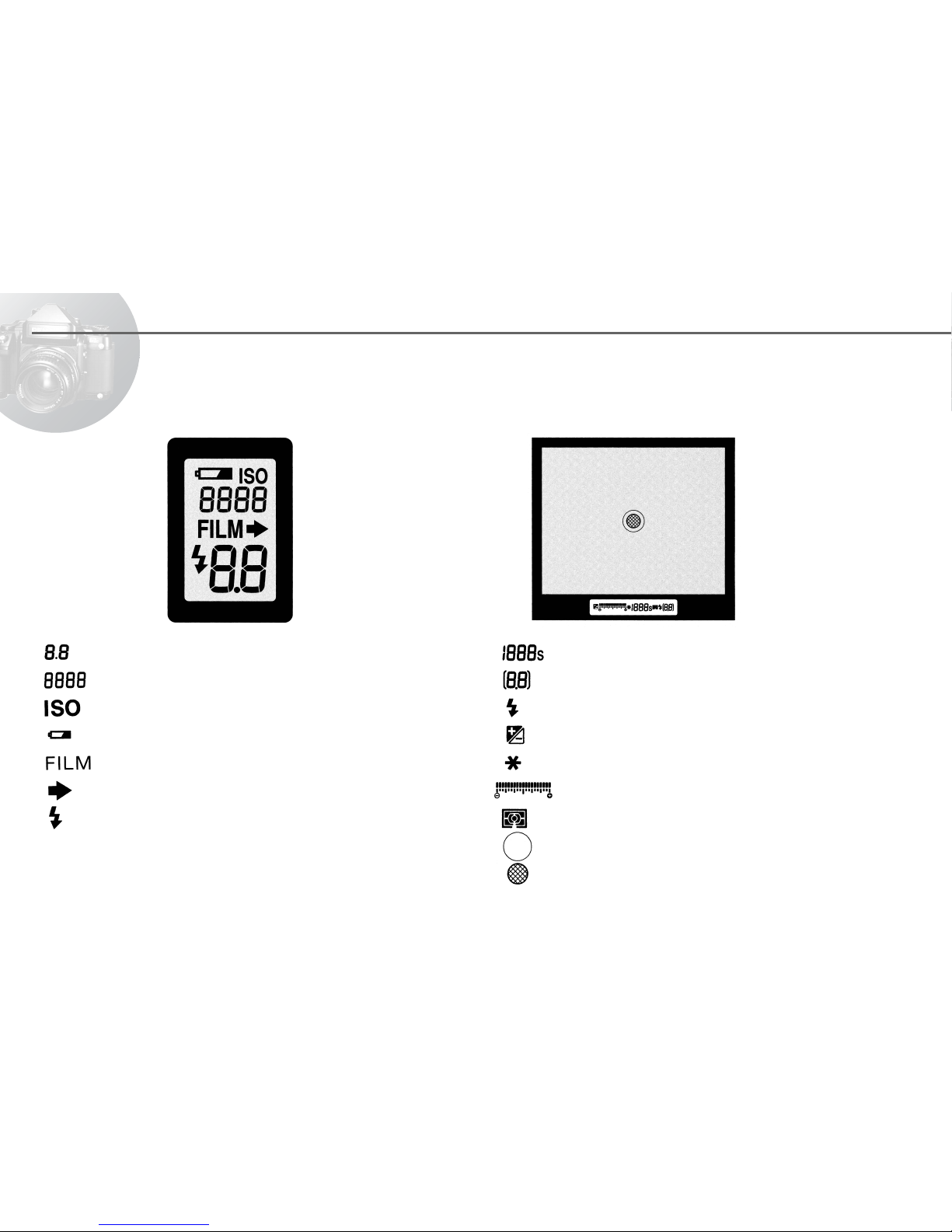

Indicators

The indicators displayed on the LCD panel and viewfinder show the following information.

LCD Panel Viewfinder

: Film counter [Page 29]

: Film speed [Page 24]

: Film speed set information [Page 24]

: Low battery warning [Page 17]

: Film symbol [Page 29]

: Film advance indicator [Page 42]

: Flash status [Page 58]

: Shutter speed [Page 48, 51]

: Film counter [Page 30]

: Flash status [Page 58]

: Exposure compensation [Page 54]

: Memory lock [Page 57]

: Bar graph [Page 51, 54]

Metering mode

[Page 36, 55, 56]

: Spot metering area [Page 56]

: Microprism [Page 39]

* As the periphery of

the image may be

cut off when the

image is printed

out, compose your

image with extra

space around it.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pentax Appareil photo numérique

Pentax

Pentax IQZoom 105WR Date Manuel utilisateur

Pentax

Pentax Optio WG-1 GPS Gray Manuel utilisateur

Pentax

Pentax *ist Manuel utilisateur

Pentax

Pentax K-X Manuel utilisateur

Pentax

Pentax Optio W10 Manuel d'instructions

Pentax

Pentax PC35AF-M SE Date Manuel utilisateur

Pentax

Pentax Optio S50 Manuel d'instructions

Pentax

Pentax IQzoom - IQezy 38-70mm Zoom Manuel utilisateur

Pentax

Pentax PC35AF-M SE Date Manuel utilisateur

Pentax

Pentax X70 - Digital Camera - Compact Manuel utilisateur

Pentax

Pentax Optio S5z Manuel d'instructions

Pentax

Pentax Optio T30 Manuel d'instructions

Pentax

Pentax WG-3 GPS Manuel utilisateur

Pentax

Pentax ESPIO 115V Manuel utilisateur

Pentax

Pentax 110 Super Manuel utilisateur

Pentax

Pentax Optio X Manuel utilisateur

Pentax

Pentax OPTIOT20 - Optio T20 Digital Camera Manuel d'instructions

Pentax

Pentax 67II Manuel utilisateur

Pentax

Pentax Optio W30 Manuel utilisateur

Pentax

Pentax K20D - Digital Camera SLR Manuel utilisateur

Pentax

Pentax Optio H90 Orange Manuel utilisateur

Pentax

Pentax IQZoom80G Manuel utilisateur

Pentax

Pentax Optio E20 Manuel utilisateur

Pentax

Pentax Optio S40 - Optio S40 4MP Digital Camera Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur

Nikon

Nikon Coolpix 100 Manuel utilisateur

Samsung

Samsung SCC-C4253 Manuel utilisateur
